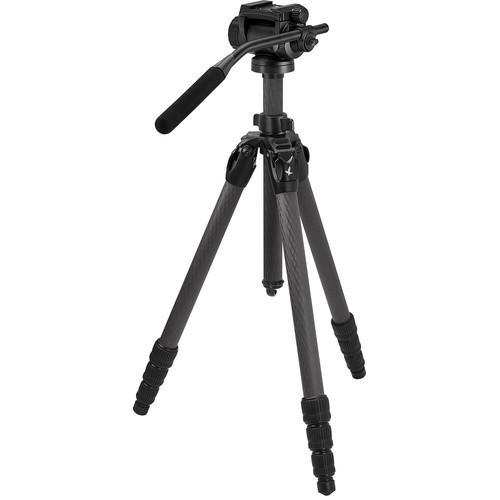

Swarovski CCT Compact Carbon Tripod with

User Manual for Swarovski CCT Compact Carbon Tripod with CTH Compact Tripod Head

• Product category: Tripods & Support Swarovski
• Brand: Swarovski
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Swarovski Tripods & Support

Product description

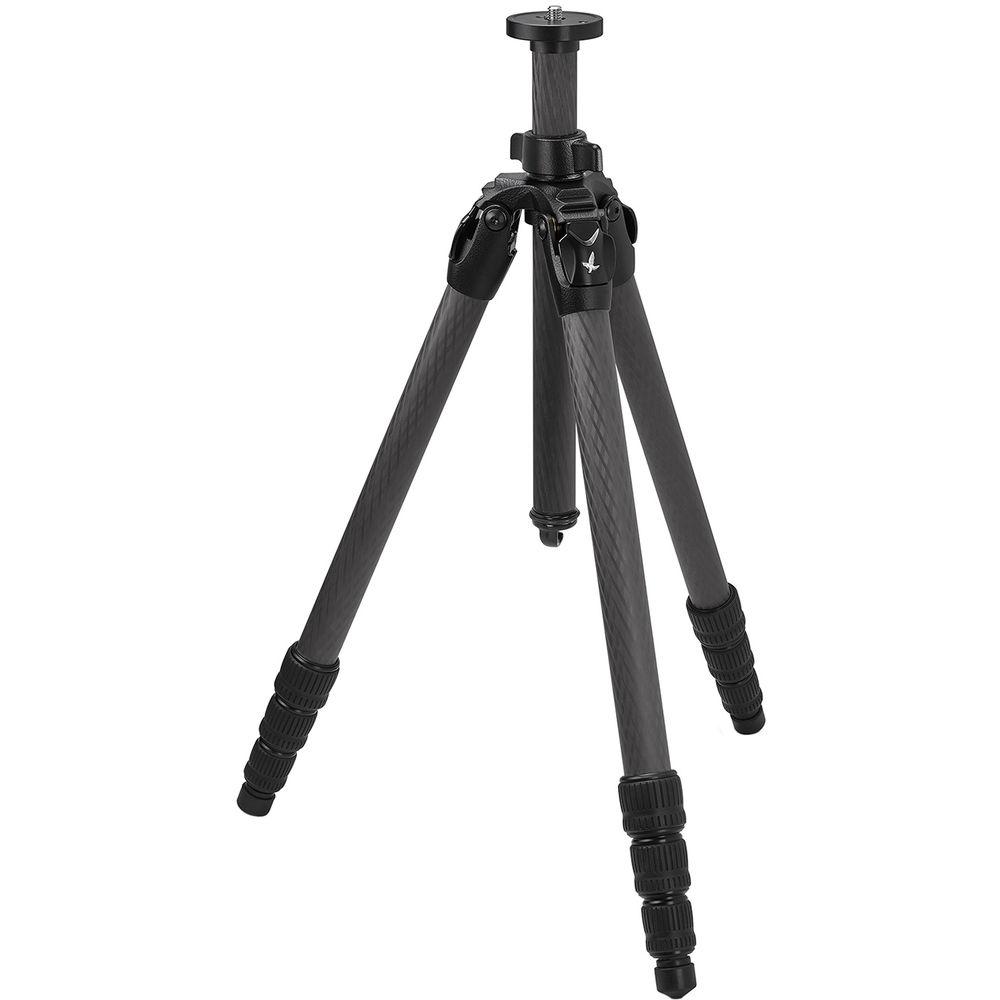

• CCT Compact Carbon Tripod Legs Ideal for avid outdoor enthusiasts who need to move fast without sacrificing performance, the Swarovski Optik CCT Compact Carbon Tripod Legs extends to a maximum height of 63.8", and can hold up to 40 pounds of gear despite it's light 3.3-pound weight.Made with 6 layers of carbon fiber to make it extremely lightweight yet rigid, the four leg sections extend with simple twist locks for fast set up and break down, with each leg capable of being independently placed in one of three angle positions to accommodate extremely uneven/rough/rocky terrain. The extendable center column is detachable for more compact packing, and features a hook at the bottom to hang bags or weights for added stability. Its head mount has dual 3/8"-16 and 1/4"-20 threads to allow almost any photo/video/field head or optic to be attached to the top. Two removable shoulder pads make carrying it more comfortable. UPC: 708026492785

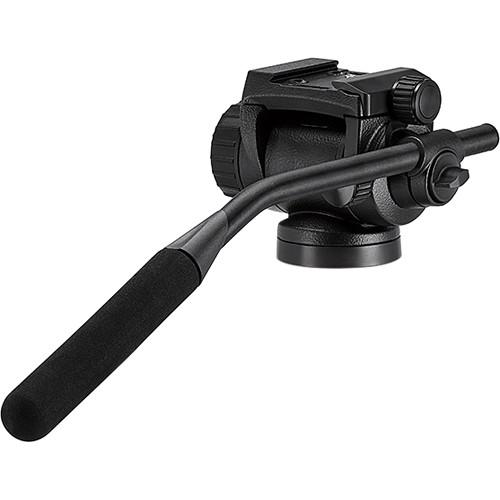

• CTH Compact Tripod Head The 2-way pan and tilt CTH Compact Tripod Head from Swarovski can support scopes, binoculars, and cameras that weigh up to 11 lb, and the counterbalance system on the support can be adjusted to accommodate each balance point. The head smoothly rotates 360°, its fluid panning range is -65° to 90°, and each movement secures into position with its independent locking knobs. The magnesium- and aluminum-constructed 1.3 lb head has a height of 3.5", and it has a removable pan handle, which has a foam grip. Additionally, the Arca-type head includes a quick release plate with a 3/8"-16 mounting thread. UPC: 708026490781

• 2 x Shoulder Pads

• Limited Lifetime Warranty

• Quick Release Plate

• Pan Handle

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• CCT Compact Carbon Tripod Legs

  Mounting Screw	1/4"-20, 3/8"-16 (Legs)

  Load Capacity	39.7 lb / 18 kg
  Maximum Working Height	63.8" / 162.1 cm
  Materials	Carbon Fiber
  Weight	3.3 lb / 1.5 kg

  Leg Lock Type	Twist Lock
  Leg Positions	3 Positions
  Independent Leg Spread	Yes
  Leg Sections	4
  Feet Features	Rubber

  Center Column Features	Ballast Hook
  Center Column Sections	1
  Center Column Extension Type	Rapid

  Box Dimensions (LxWxH)	25.3 x 5.5 x 4.9"

• CTH Compact Tripod Head

  Mounting Screw	3/8"-16 (Head)
  Mounting Thread	3/8"-16
  Arca-Type	Yes

  Load Capacity	11 lb / 5 kg
  Weight	1.3 lb / 0.6 kg

  Quick Release	Yes
  Independent Pan Lock	Yes
  Independent Tilt Lock	Yes
  Height	3.5" / 8.9 cm

  Vertical Tilt
