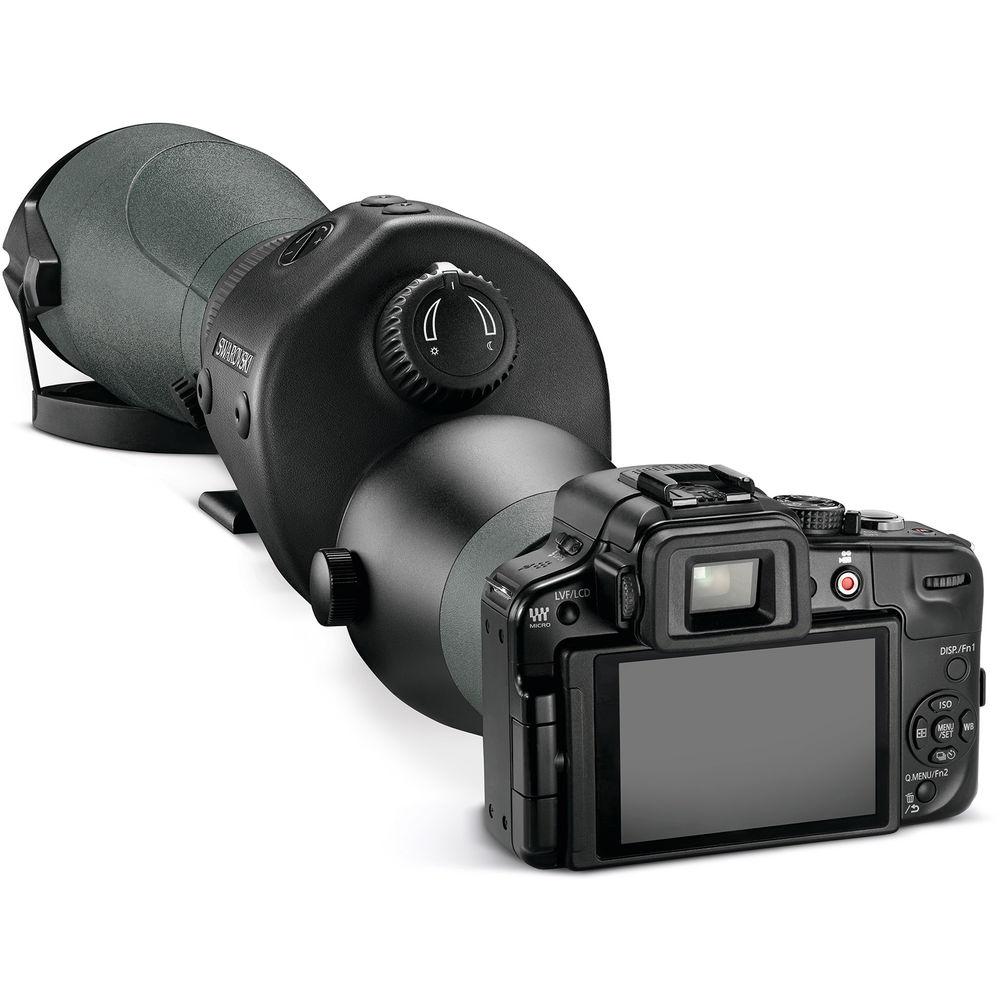

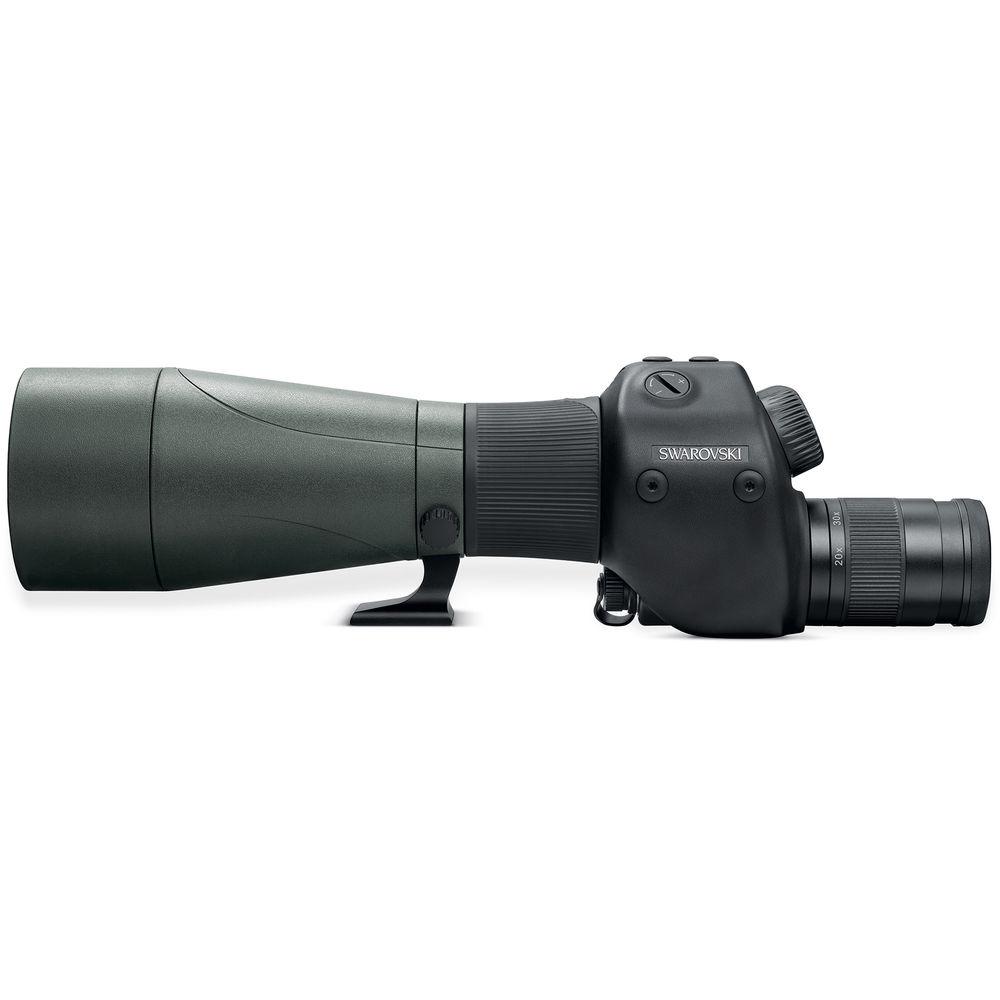

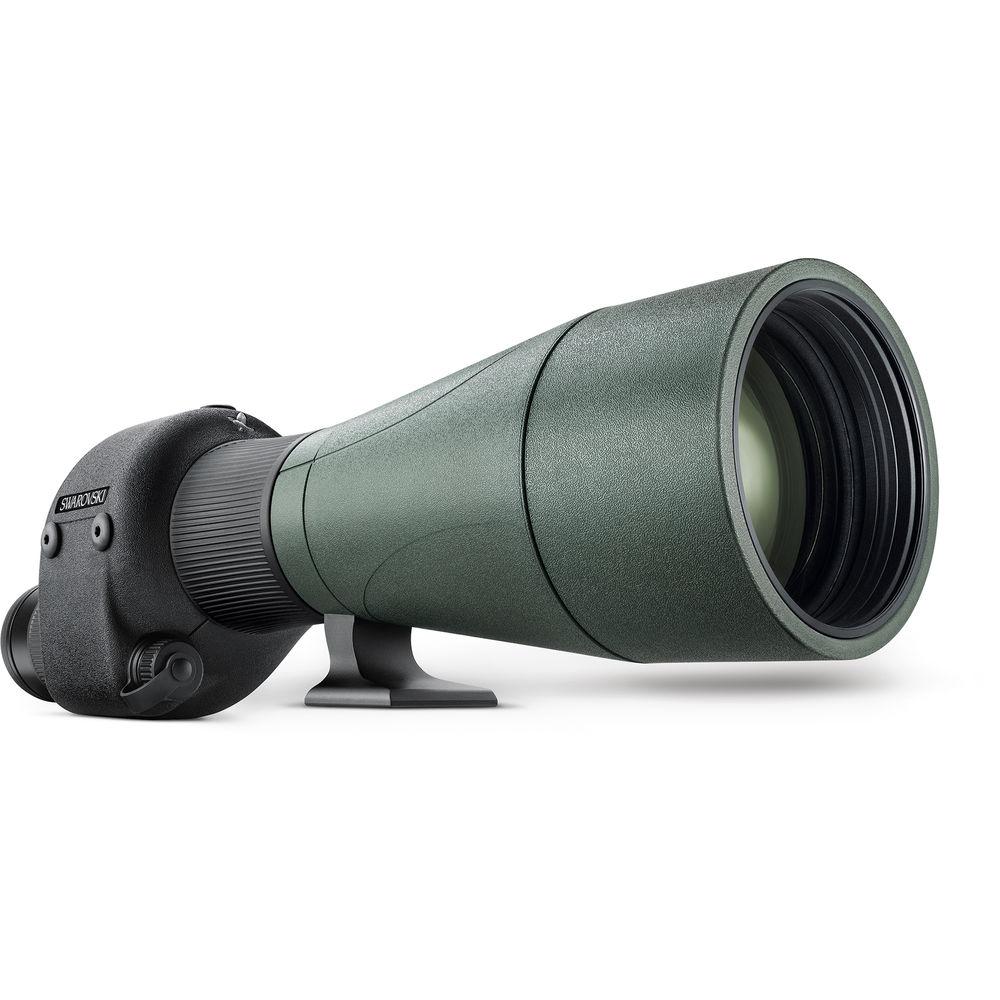

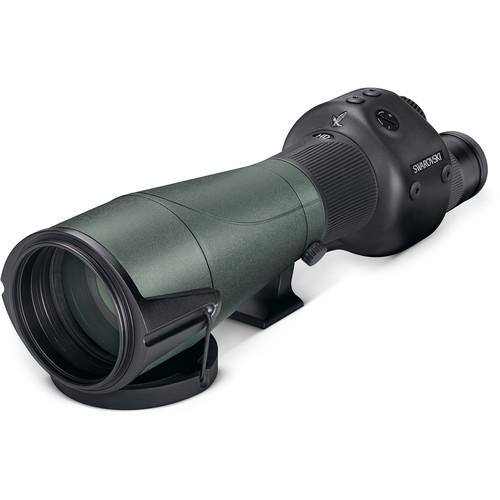

User Manual for Swarovski STR-80 HD 80mm Spotting Scope Click to enlarge the picture
Contents of the user manual for the Swarovski STR-80 HD 80mm Spotting Scope
- Product category: Spotting Scopes Swarovski
- Brand: Swarovski
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Swarovski Spotting Scopes
 |
User manual for the Swarovski STR-80 HD 80mm Spotting Scope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Swarovski product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Swarovski user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Swarovski product will considerably shorten its lifespan!
|
Product description A Guide to Birding with Spotting Scopes Read More yvufqxdqvbxt With a large aperture for maximum light-gathering ability to allow its use in even the most challenging conditions, Swarovski Optik designed their STR-80 HD 80mm Spotting Scope as an indispensable companion in a blind or stand, or at the range. This version of the scope is outfitted with a modified duplex ranging reticle with 1/4 MOA indicators and stadia to assist in range and target size estimation as well as ballistic drop compensation for long-distance shots. Running on one CR123 battery with an exceptionally long runtime, the reticle is illuminated in red with 15 intensities: 10 for daytime use and 5 for nighttime. The reticle, set on the first focal plane, retains its subtension accuracy at any magnification and can be completely removed from view to allow the scope to be used as a conventional spotter.Optically the STR-80 performs up to Swarovski's high standards and expectations with extra-low dispersion fluoride glass elements that efficiently transmit all wavelengths of visible light, resulting in bright images that are color faithful, crisp, and rich with detail. SWARODUR and SWAROTOP coatings on all lenses and prisms minimize glare while maximizing contrast. The large aperture draws in copious amounts of light, allowing it to be used in the pre-dawn and dusk/twilight hours when animals are most active. This iteration is offered here without an eyepiece for those users who wish to choose one or both of the optional 25-50x wide-angle or 20-60x zoom eyepieces. To make acquiring subjects easy and tracking targets faster, the eyepiece is set in-line with the optical tube for straight-through viewing.The aluminum-alloy chassis is wrapped in a rubber armor that protects it from bumps and impacts, while offering a slip-resistant grip for sure handling during setup and breakdown. A rotating tripod collar is equipped with both 1/4"-20 and 3/8"-16 threads to be compatible with most photo, video, and field tripods and other support systems. Its optical tube is nitrogen filled and O-ring sealed to be to be dustproof, waterproof/submersible to 13', and resistant to internal fogging when moving through extreme temperature changes or environmental conditions. - Optical Performance
-
- Requires eyepiece for proper use; compatible with Swarovski Optik 20-60 zoom or 25-50 wide-angle eyepieces
- Large 80mm objective lens maximizes light gathering to extend its use beyond the pre-dawn and twilight hours
- Extra-low dispersion fluoride HD glass limits chromatic aberrations to produce clearer and sharper views with little or no color fringing
- Anti-reflection SWAROTOP lens coating reduces glare and improves contrast, color rendition, and clarity
- Scratch-resistant SWARODUR coatings protect exterior lens surfaces
- Reticle Details
-
- Ranging duplex crosshair design for range and target size estimation
- First (front) focal plane placement maintains subtensions at all magnifications
- 1/4 MOA indicators for impact point correction or ballistic drop compensation at long distances
- Illuminated with 15 brightness levels: 10 for daytime use; 5 for nighttime
- Completely removable from view for use as a conventional spotting scope
- ±5 reticle dioptric correction ensures a crisp image
- Easy push-button interface for on/off and reticle intensity selection
- Runs on one CR123 battery, 1300-hour runtime
- Use and Handling
-
- Straight-through viewing places eyepiece in-line with optical tube for faster target acquisition and easier tracking of moving subjects
- Large ridged focusing collar is easy to manipulate even when wearing gloves
- M82x0.75 objective lens filter thread
- Rotating tripod collar enables precise eyepiece placement relative to support system
- 1/4"-20 and 3/8"-16 tripod mount
- Construction Details
-
- Lightweight and durable aluminum chassis
- SWAROCLEAN non-stick coating on exposed lens surfaces allows sap and oils to be easily cleaned for clearer views
- Nitrogen filled and O-ring sealed to be dustproof, waterproof/submersible to 13', and resistant to internal fogging when moving through extreme temperature changes or environmental conditions
- Broad -40 to 131°F operating temperature
- Tethered objective lens cover keeps it close at hand
UPC: 708026498343 In the Box Swarovski STR-80 HD 80mm Spotting Scope (Straight Viewing, Requires Eyepiece, MOA Reticle) CR123 Battery Objective Lens Cap Eyepiece Bayonet Mount Cap Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Swarovski STR-80 HD 80mm Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwarovski STR-80 Specs | | | Objective Lens Diameter | 80 mm | | Minimum Focus Distance | 19.0' / 5.8 m | | | | Reticle | MOA Crosshair (First Focal Plane) | | Fogproof | Yes, Nitrogen Filled | | Water Resistance | Waterproof | | | | Battery / Runtime | 1 x CR123 / Up to 1300 Hours | | Filter Thread | M82 x 0.75 | | Tripod Mounting Thread | 1/4"-20, 3/8"-16 | | Dimensions | L: 13.2" / L: 33.5 cm | | Weight | 3.8 lb / 1.7 kg |
