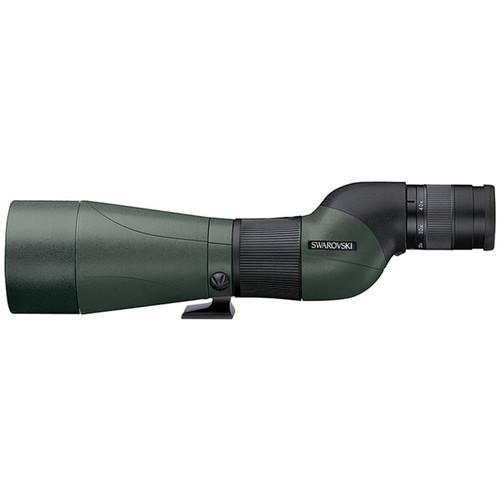

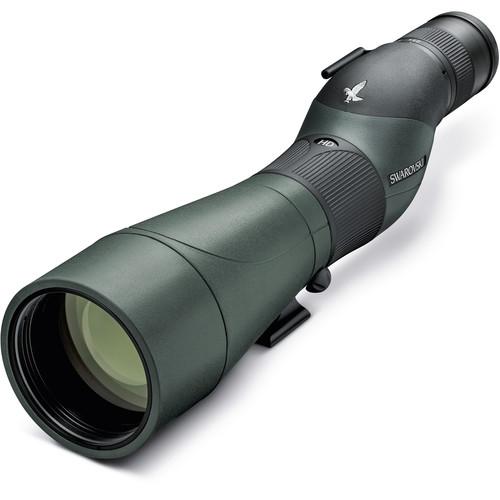

User Manual for Swarovski STS-80 HD 80mm Spotting Scope Click to enlarge the picture
Contents of the user manual for the Swarovski STS-80 HD 80mm Spotting Scope
- Product category: Spotting Scopes Swarovski
- Brand: Swarovski
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Swarovski Spotting Scopes
 |
User manual for the Swarovski STS-80 HD 80mm Spotting Scope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Swarovski product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Swarovski user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Swarovski product will considerably shorten its lifespan!
|
Product description A Guide to Birding with Spotting Scopes Read More The Swarovski Optik STS-80 HD 80mm Spotting Scope combines the legendary image quality and world-class workmanship that nature enthusiasts, tactical professionals, and researchers have come to expect from the brand. The large 80mm-objective straight-through viewing configuration is well suited for the hunter, outdoor enthusiast, or birder who demands performance from the pre-dawn hours through to sunset. Extra-low dispersion fluoride glass elements efficiently transmit all wavelengths of visible light, resulting in bright images that are color faithful, crisp, and rich with detail. SWARODUR and SWAROTOP coatings on all lenses and prisms minimize glare while maximizing contrast. This version of the STS-80 is offered here without an eyepiece for those users who already have the optional 25-50x wide-angle or 20-60x zoom eyepieces and want to upgrade their scope body.Complementing the optical performance and technologies is a lightweight and durable aluminum-alloy chassis that is wrapped in a protective rubber armor. Its optical tubes are nitrogen filled and O-ring sealed to be dustproof, waterproof and submersible, and resistant to internal fogging when moving through extreme temperature changes or environmental conditions. For mounting, the tripod collar has a 1/4"-20 socket on the bottom of the shoe and rotating collar for precise eyepiece placement relative to the mounting system. - Optical Performance
-
- Eyepiece required: 25-50x wide-angle and 20-60x zoom eyepieces available separately
- 80mm objective lens balances aperture with portability
- Compact roof prism light path
- Extra-low dispersion fluoride HD glass limits chromatic aberrations to produce clearer and sharper views with little or no color fringing
- Anti-reflection SWAROTOP lens coatings reduce glare and improve contrast, color rendition, and clarity
- Scratch-resistant SWARODUR coatings protect exterior lens surfaces
- Use and Handling
-
- Eyepiece set in-line with optical tube for faster and easier target acquisition and tracking
- Large focusing collar is easy to manipulate even when wearing gloves
- Rotating tripod mount allows for precise eyepiece placement
- M82x0.75 objective lens filter thread
- Removable sighting aid for quick target pick-up

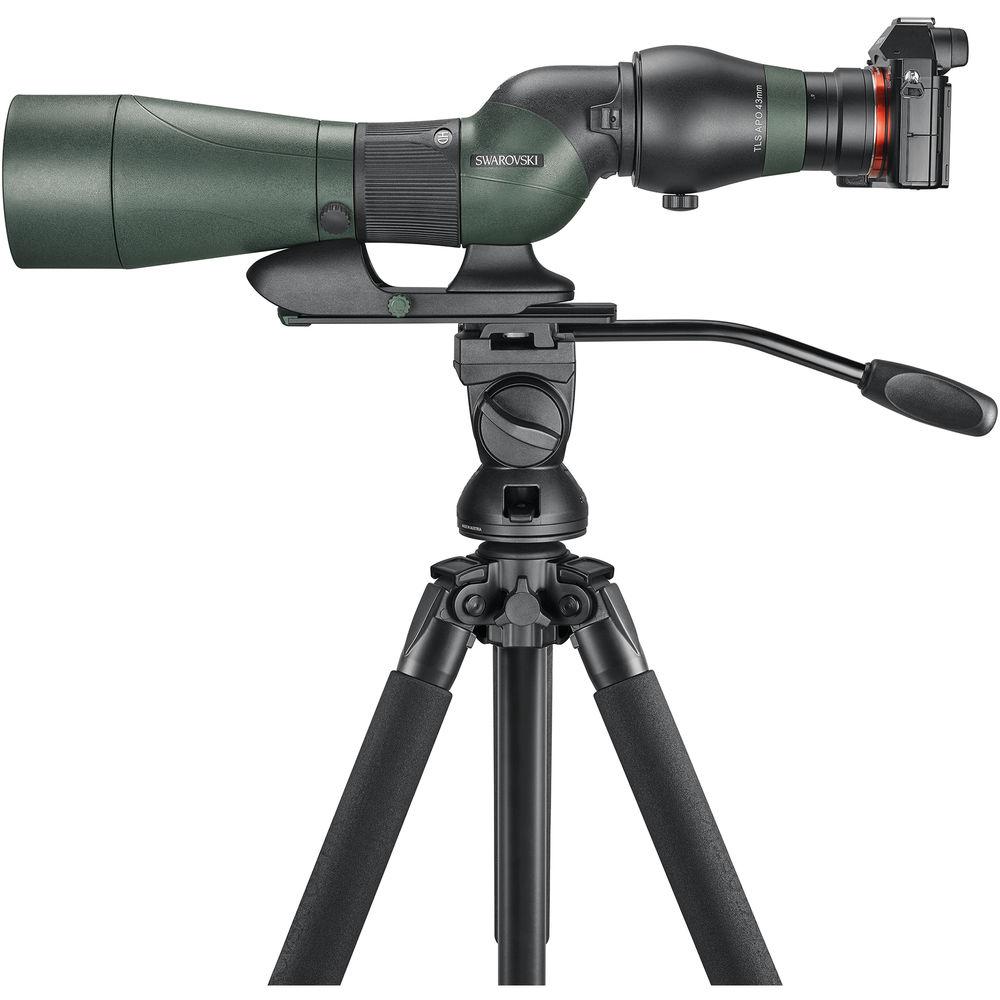

- Standard 1/4"-20 tripod mount; mounting shoe compatible with some quick release plates
- Construction Details
-
- Lightweight and durable aluminum housing
- Rubber armor protects against impacts while providing a slip-resistant grip for more secure handling during setup and breakdown
- Nitrogen filled and O-ring sealed to be dustproof, waterproof/submersible to 13', and resistant to internal fogging when moving through extreme temperature changes or environmental conditions
- Broad -4 to 131°F operating temperature range
UPC: 708026496196 In the Box Swarovski STS-80 HD 80mm Spotting Scope (Straight Viewing, Requires Eyepiece) Bayonet Mount Cap Objective Lens Cap Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Swarovski STS-80 HD 80mm Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwarovski STS-80 Specs | | | Objective Lens Diameter | 80 mm | | Minimum Focus Distance | 16.0' / 5.0 m | | | | Fogproof | Yes, Nitrogen Filled | | Water Resistance | Waterproof | | | | Filter Thread | M82 x 0.75 | | Tripod Mounting Thread | 1/4"-20 | | Dimensions | L: 14.0" / L: 35.6 cm | | Weight | 3.0 lb / 1.4 kg |
