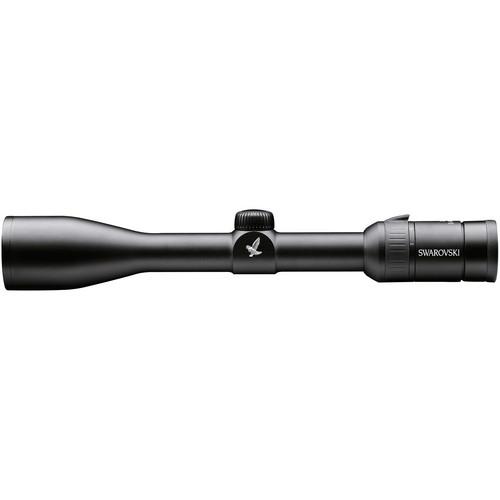

Swarovski Z3 3-10x42 Riflescope

Search your instruction manual in PDF to download

User Manual for Swarovski Z3 3-10x42 Riflescope

Click to enlarge the picture
Swarovski Z3 3-10x42 Riflescope Contents of the user manual for the Swarovski Z3 3-10x42 Riflescope
  • Product category: Riflescopes Swarovski
  • Brand: Swarovski
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Swarovski Riflescopes

User manual for the Swarovski Z3 3-10x42 Riflescope contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Swarovski product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Swarovski user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Swarovski product will considerably shorten its lifespan!



Product description

  • Product Demo
Swarovski Optik presents the Z3 - the natural successor to their successful AV riflescope series. The Z3 sports a 1.0" tube with an impeccable scratch-resistant anodized exterior, and the tube's interior is finished with a finely machined microstructure surface to reduce residual reflections. The Z3's trim profile offers a clean unobtrusive look. The field of view is crisp, wide, and rich with fine detail. The Z3 3-10x42 concentrates on the essentials - it's light, compact, and reliable. The entire scope is fully water and fogproof thanks to a meticulous nitrogen-purging process. The low-profile turrets offer ¼ MOA click-stop corrections, and the quadratic adjustment range provides a generous 50 MOA for both windage and elevation correction. The lenses have been fully multicoated to optimize light transmission, and the external lens surfaces have been treated with a scratch-resistant SWARODUR protective coating. This Z3 riflescope is configured with a 1.0" tube, and a BRH reticle in the second focal plane. The parallax correction is factory preset at 219 yd/200 m.A mounting base and rings are used to attach a riflescope to a firearm. A comfortable sight picture is contingent upon the height of the rings. A comfortable cheek-weld is the result of properly positioning the scope over the receiver. Mounting the scope close to the receiver is preferable, yet scopes with larger objectives need higher rings so the front bell can clear the barrel. It should be noted that in many mounting applications, a professional gunsmith's skills will be needed for proper installation.
    Optical Performance
    • 3x magnification range
    • Parallax setting: 219 yd / 200 m
    • 42 mm objective provides excellent twilight performance
    • SWAROTOP coatings: anti-reflective multicoating enhances light transmission
    • SWARODUR coating: protective scratch-resistant coating on external lens surfaces
    Construction Details
    • Nitrogen purged - waterproof to 13.0'/4.0 m
    • Durable yet lightweight 1.0" aluminum main tube
    • Microstructure surface: precisely defined ribbing minimizes residual reflections inside the tube for bright, high-contrast viewing
    BRH Reticle in the Second Focal Plane
    • BRH reticle: 4 medium weight posts at 3, 6, 9, & 12 o'clock. The 6 o'clock post is shorter with tiered hash marks that provide hold-over points for long range target acquisition.
    • Second focal plane positioning of the reticle maintains its size throughout the zoom range.
UPC: 708026590160 In the Box Swarovski Z3 3-10x42 Riflescope (Matte Black)
  • Microfiber Cloth
  • See-Through Bikini Lens Caps
  • Limited Lifetime Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Swarovski Z3 3-10x42 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Swarovski 59016 Specs

    Magnification 3 to 10x
    Objective Lens Diameter 42 mm
    Field of View 3x: 33.1' @ 100 yd / 11 m @ 100 m
    10x: 11.7' @ 100 yd / 3.9 m @ 100 m
    Exit Pupil Diameter 3x: 12.6 mm
    10x: 4.2 mm
    Eye Relief 3.5" / 90 mm
    Reticle Type BRH Reticle
    Filter Thread M44 x 0.75
    Impact Point Correction 1/4 MOA per Click
    Windage Adjustment 50 MOA
    Elevation Adjustment 50 MOA
    Parallax Correction Yes, 219 yd / 200 m
    Water Resistance Waterproof
    Fogproof Yes
    Maintube Diameter 1"
    Battery None
    Dimensions Length: 12.6" / 31.6 cm
    Weight 0.8 lb / 360 g
    Package Weight 1.9 lb
    Box Dimensions (LxWxH) 16.3 x 3.6 x 3.3"
