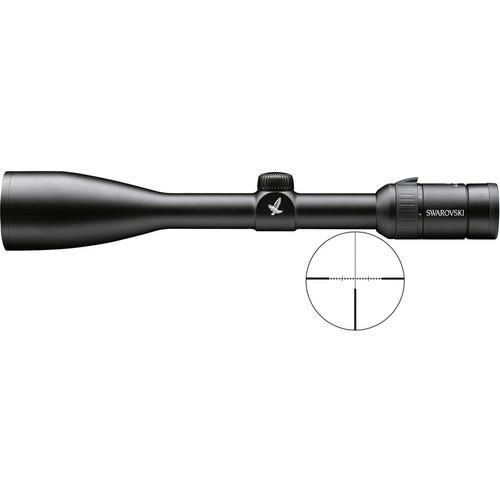

User Manual for Swarovski Z3 4-12x50 BT Riflescope Click to enlarge the picture
Contents of the user manual for the Swarovski Z3 4-12x50 BT Riflescope
- Product category: Riflescopes Swarovski
- Brand: Swarovski
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Swarovski Riflescopes
|
User manual for the Swarovski Z3 4-12x50 BT Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Swarovski product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Swarovski user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Swarovski product will considerably shorten its lifespan!
|
Product description The Z3 4-12x50 BT Riflescope (Matte Black) from Swarovski Optik sports a 1.0" tube with an impeccable scratch-resistant anodized exterior. The tube's interior is finished with a finely machined microstructure surface to reduce residual reflections. The Z3's trim profile offers a clean unobtrusive look. The field of view is crisp, wide, and rich with fine detail. The Z3 4-12x50 BT concentrates on the essentials - it's light, relatively compact, and reliable. The turrets offer ¼ MOA click-stop corrections, and the quadratic adjustment range provides a generous 43 MOA for both windage and elevation correction. This Z3 riflescope is configured with a 4W reticle in the second focal plane and a ballistic turret. The parallax correction is factory preset at 109 yds / 100 m. There is dioptric adjustment and the scope has a transmission rate of greater than 90%. A mounting base and rings are used to attach a riflescope to a firearm. A comfortable sight picture is contingent upon the height of the rings. A comfortable cheek-weld is the result of properly positioning the scope over the receiver. Mounting the scope close to the receiver is preferable, yet scopes with larger objectives need higher rings so the front bell can clear the barrel. It should be noted that in many mounting applications, a professional gunsmith's skills will be needed for proper installation. - Optical Performance
-
- 3x magnification range
- Parallax setting: 109yd / 100m
- Anti-reflective multicoating enhances light transmission
- 50mm objective provides enhanced twilight performance
- Protective scratch-resistant coating on external lens surfaces
- Construction Details
-
- Durable yet lightweight 1.0" aluminum main tube
- Aluminum outer parts are anodized providing scratch-resistance
- Micro-grooves on the tube's interior minimize residual reflections for bright high-contrast viewing
- 4W Reticle and Ballistic Turret
-
- Second focal plane positioning of the reticle maintains the reticle's size across the magnification range
- The 4W reticle features a 4-post cross hair configuration. Three heavy weight posts at 3, 6, and 9 o'clock morph into light weight crosshairs. A single stadia resides at 12 o'clock and intersects the crosshairs. The horizontal stadia is marked with hash marks.
- Ballistic turret: Swarovski's ballistics program enables setting the scope's zero for three separate distances. Proper positioning of the three color-coded disks on the turret provides a quick visual confirmation of your current zero, and the ability to range out to longer distances with ease.
UPC: 708026590245 In the Box Swarovski Z3 4-12x50 BT Riflescope (Matte Black) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Swarovski Z3 4-12x50 BT Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwarovski 59024 Specs | | | Magnification | 4 to 12x | | Objective Lens Diameter | 50 mm | | Field of View | 1x: 127.5' @ 100 yd / 42.3 m @ 100 m
6x: 20.4' @ 100 yd / 6.8 m @ 100 m | | Exit Pupil Diameter | 4x: 12.5 mm
12x: 4.2 mm | | Eye Relief | 3.5" / 90 mm | | | | Filter Thread | M52 x 0.75 | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 43 MOA | | Elevation Adjustment | 43 MOA | | Parallax Correction | Yes, 109.4 yd / 100 m | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 13.8" / 35 cm | | Weight | 14.5 oz / 410 g | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 16.3 x 3.7 x 3.5" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 16 owners. Add your rating and experience with the product.
