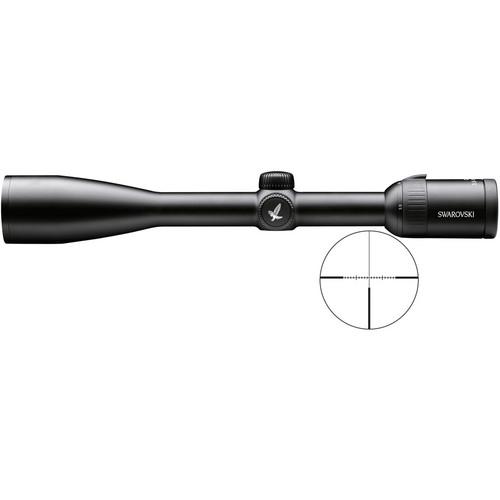

User Manual for Swarovski Z5 3.5-18x44 BT Riflescope Click to enlarge the picture
Contents of the user manual for the Swarovski Z5 3.5-18x44 BT Riflescope
- Product category: Riflescopes Swarovski
- Brand: Swarovski
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Swarovski Riflescopes
|
User manual for the Swarovski Z5 3.5-18x44 BT Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Swarovski product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Swarovski user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Swarovski product will considerably shorten its lifespan!
|
Product description - Product Demo
- SWAROVSKI OPTIK Z5 RifleScope
The technical enhancements of the Z5 3.5-18x44 BT Riflescope (Matte Black) from Swarovski Optik target the hunter's concerns as well as the hunting traditions. This Z5 is just under 1 pound. It is a high precision, 1 inch scope with 5x zoom ability. A 1 inch with a 5x zoom is something new. The wide 300 foot field of view and high 18 power magnification deliver a very versatile hunting riflescope, from expansive reconnaissance to up-close detail and back again. A third side turret providing parallax correction of 55 yards keeps the reticle constant while only the target is magnified. The Z5 3.5-18x44 BT concentrates on the essentials - it's light, relatively compact, and reliable. The turrets offer ¼ MOA click-stop corrections, and the quadratic adjustment range provides a generous 36/58 MOA for windage and elevation correction respectively. This Z3 riflescope is configured with a 4W reticle in the second focal plane and a ballistic turret. There is dioptric adjustment and the scope has a transmission rate of greater than 90%. While the exterior of the optic has an impeccable, anodized and scratch-resistant finish, the tube's interior is furnished with a finely machined microstructure surface to reduce residual reflections. The Z5's trim profile offers a clean unobtrusive look. The field of view is crisp, wide, and rich with fine detail. If rough-terrain, mountain hunting or open field long shots are where your game is, then the Z5 3.5-18x44 BT should be at the top of your short list. A mounting base and rings are used to attach a riflescope to a firearm. A comfortable sight picture is contingent upon the height of the rings. A comfortable cheek-weld is the result of properly positioning the scope over the receiver. Mounting the scope close to the receiver is preferable, yet scopes with larger objectives need higher rings so the front bell can clear the barrel. It should be noted that in many mounting applications, a professional gunsmith's skills will be needed for proper installation. - Optical Performance
-
- 5x magnification range
- Dioptric adjustment of -3 to +2
- Parallax turret adjustment of 55 yds / 50 m
- 44mm objective provides enhanced twilight performance
- Anti-reflective multicoating enhances light transmission
- Protective scratch-resistant coating on external lens surfaces
- Construction Details
-
- Durable yet lightweight 1.0" aluminum main tube
- Nitrogen purged fogproof and waterproof to 13 feet
- Aluminum outer parts are anodized providing scratch-resistance
- Erector assembly features a 4-point coil spring system for repeatability
- Micro-grooves on the tube's interior minimize residual reflections for bright high-contrast viewing
- 4W Reticle and Ballistic Turret
-
- Second focal plane positioning of the reticle maintains the reticle's size across the magnification range
- The 4W reticle features a 4-post cross hair configuration. Three heavy weight posts at 3, 6, and 9 o'clock morph into light weight crosshairs. A single stadia resides at 12 o'clock and intersects the crosshairs. The horizontal stadia is marked with hash marks.
- Ballistic turret: Swarovski's ballistics program enables setting the scope's zero for three separate distances. Proper positioning of the three color-coded disks on the turret provides a quick visual confirmation of your current zero, and the ability to range out to longer distances with ease.
UPC: 708026597640 In the Box Swarovski Z5 3.5-18x44 BT Riflescope (Matte Black) Microfiber Cloth Ballistic Turret Key Bikini Lens Covers Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Swarovski Z5 3.5-18x44 BT Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwarovski 59764 Specs | | | Magnification | 3.5 to 18x | | Objective Lens Diameter | 44 mm | | Field of View | 1x: 127.5' @ 100 yd / 42.3 m @ 100 m
6x: 20.4' @ 100 yd / 6.8 m @ 100 m | | Exit Pupil Diameter | 2.5x: 10 mm
18x: 2.4 mm | | Eye Relief | 3.7" / 95 mm | | | | Filter Thread | M46 x 0.75 | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 36 MOA | | Elevation Adjustment | 58 MOA | | Parallax Correction | Yes, 54.6 yd / 50 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 14.3" / 36.3 cm | | Weight | 15.9 oz / 450 g | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 16.0 x 3.2 x 3.0" |
