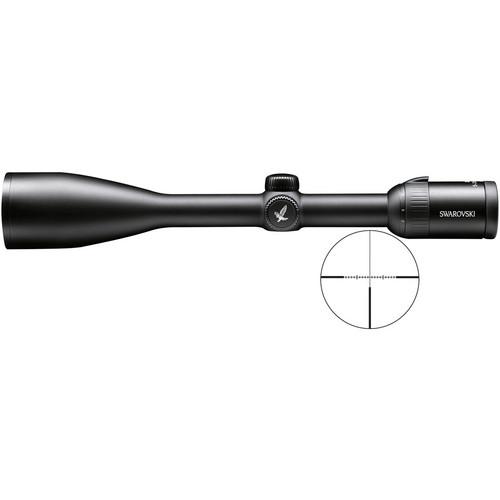

User Manual for Swarovski Z5 5-25x52 BT Riflescope Click to enlarge the picture
Contents of the user manual for the Swarovski Z5 5-25x52 BT Riflescope
- Product category: Riflescopes Swarovski
- Brand: Swarovski
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Swarovski Riflescopes
|
User manual for the Swarovski Z5 5-25x52 BT Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Swarovski product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Swarovski user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Swarovski product will considerably shorten its lifespan!
|
Product description - Product Demo
- SWAROVSKI OPTIK Z5 RifleScope
The Z5 5-25x52 BT Riflescope (Matte Black) from Swarovski Optik is a superior sighting system with outstanding optics and mechanics. Configured into a trim 1.0" main-tube with a field of view of 219 feet at 1000 yards, crisp edge-to-edge sharpness, and rugged field-ready construction - the Z5 5-25x52 BT is well suited for both everyday hunting and world-class safaris. This Z5 5-25x52 BT is delivered with Swarovski's Ballistic Turret and access to their ballistic program software. Customized to the riflescope, the software assists in the determination of the desired correction values necessary for sight-in distances. The entire scope is waterproof to 13 feet and fogproof thanks to their nitrogen-purging process. The windage / elevation turrets and the 3rd parallax turret offer ¼ MOA click-stop corrections while the rectangular adjustment range provides a very respectable 43 MOA of elevation correction. The lenses have full SWAROTOP multicoating to optimize light transmission, and the external lens surfaces have been treated with a scratch-resistant SWARODUR protective coating. This Z5's 1.0" aluminum-alloy main-tube is ornamented with side focus parallax correction, a matte black finish, and a 4w reticle in the second focal plane. A mounting base and rings are used to attach a riflescope to a firearm. A comfortable sight picture is contingent upon the height of the rings. A comfortable cheek-weld is the result of properly positioning the scope over the receiver. Mounting the scope close to the receiver is preferable, yet scopes with larger objectives need higher rings so the front bell can clear the barrel. It should be noted that in many mounting applications, a professional gunsmith's skills will be needed for proper installation. - Optical Performance
-
- 5x magnification range
- Dioptric compensation of -3 to +2
- Side Parallax adjustment: 55 yd / 50 m
- 52mm objective provides enhanced twilight performance
- Anti-reflective multicoating enhances light transmission
- Protective scratch-resistant coating on external lens surfaces
- Construction Details
-
- Durable yet lightweight 1.0" aluminum main tube
- Nitrogen purged fogproof, waterproof to 13' / 4 m
- 4-point coil spring system ensures repeatability of sighting
- Aluminum outer parts are anodized providing scratch-resistance
- Precisely defined surface micro ribbing on the tube's interior minimizes residual reflections for bright high-contrast viewing
- 4W Reticle and Ballistic Turret
-
- Second focal plane positioning of the reticle maintains the reticle's size across the magnification range
- The 4W reticle features a 4-post cross hair configuration. Three heavy weight posts at 3, 6, and 9 o'clock morph into light weight crosshairs. A single stadia resides at 12 o'clock and intersects the crosshairs. The horizontal stadia is marked with hash marks
- Ballistic turret and program enables setting the scope's zero for three separate distances. Proper positioning of the three color-coded disks on the turret provides a quick visual confirmation of the current zero, and the ability to range out to longer distances with ease
UPC: 708026598845 In the Box Swarovski Z5 5-25x52 BT Riflescope (Matte Black) Cleaning Cloth Bikini Covers Ballistic Turret Key Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Swarovski Z5 5-25x52 BT Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwarovski 59884 Specs | | | Magnification | 5 to 25x | | Objective Lens Diameter | 52 mm | | Field of View | 5x: 21.9' @ 100 yd / 7.3 m @ 100 m
25x: 4.5' @ 100 yd / 1.5 m @ 100 m | | Exit Pupil Diameter | 5x: 9.6 mm
25x: 2.1 mm | | Eye Relief | 3.7" / 95 mm | | | | Filter Thread | M54 x 0.75 | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 25 MOA | | Elevation Adjustment | 43 MOA | | Parallax Correction | Yes, 54.6 yd / 50 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 14.6" / 37.1 cm | | Weight | 17.5 oz / 495 g | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 0.17 x 0.04 x 0.04" |
