Product description - Product Demo

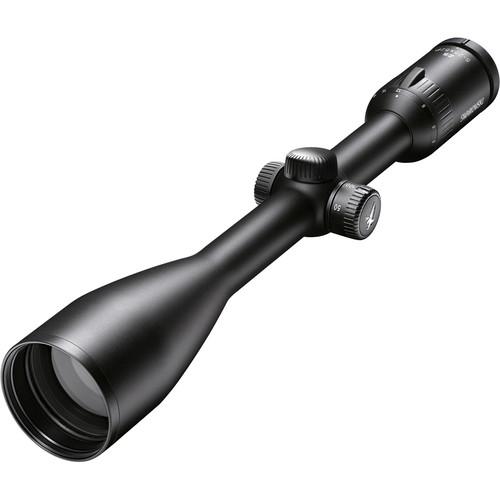

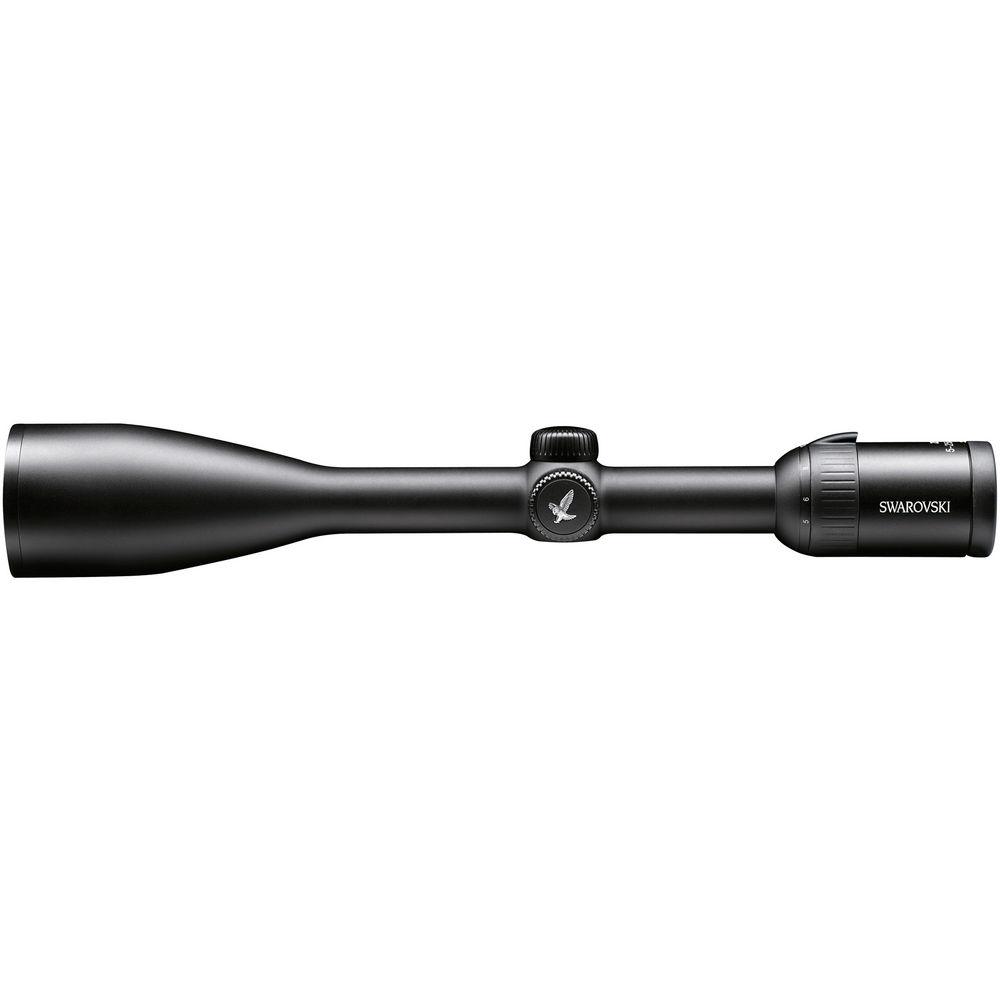

- SWAROVSKI OPTIK Z5 RifleScope
Swarovski Optik presents the Z5 - a superior sighting system with outstanding optics and mechanics - and it's neatly configured into a trim 1.0" main-tube. With its spectacular field of view, crisp edge-to-edge sharpness, and rugged field-ready construction - The Z5 is well suited for everyday hunting and world-class safaris. The Z5 5-25x52 pushes the envelope - it delivers a broad magnification range, yet it's relatively light, compact, and of course - reliable. The entire scope is fully water and fogproof thanks to a meticulous nitrogen-purging process. The low-profile turrets offer ¼ MOA click-stop corrections, and the rectangular adjustment range provides a very respectable 43 MOA of elevation correction. The lenses have been fully multicoated to optimize light transmission, and the external lens surfaces have been treated with a scratch-resistant SWARODUR protective coating. This Z5 is configured with a rugged 1.0" aluminum-alloy main-tube, side focus parallax correction, a matte black finish, and a BRX Fine reticle in the second focal plane. A mounting base and rings are used to attach a riflescope to a firearm. A comfortable sight picture is contingent upon the height of the rings. A comfortable cheek-weld is the result of properly positioning the scope over the receiver. Mounting the scope close to the receiver is preferable, yet scopes with larger objectives need higher rings so the front bell can clear the barrel. It should be noted that in many mounting applications, a professional gunsmith's skills will be needed for proper installation. - Optical Performance
-
- Objective: 52 mm - provides outstanding twilight performance

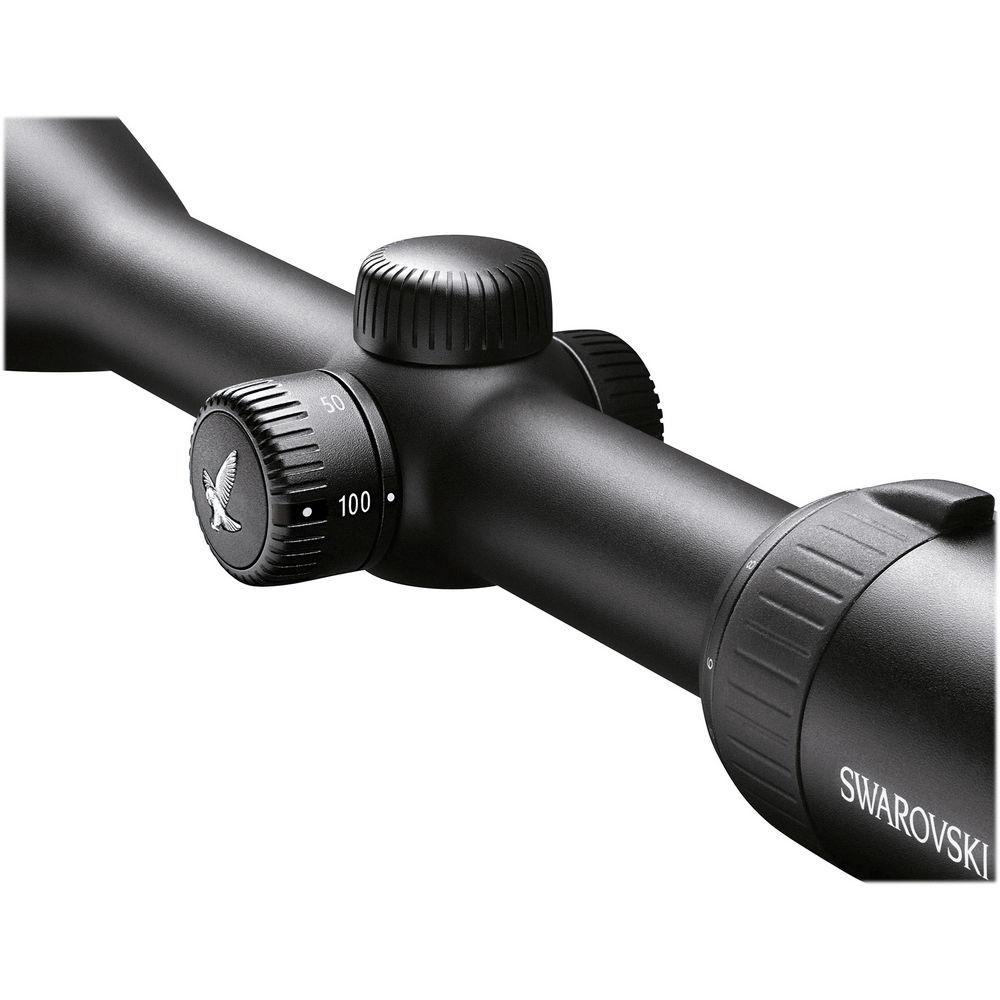

- Side focus knob: adjusts parallax error from 55 m - infinity
- SWAROTOP coatings: anti-reflective multicoating enhances light transmission
- SWARODUR coating: protective scratch-resistant coating on external lens surfaces
- 5x magnification range offers a wide field of view and the ability to zoom in for close-up observation
- Construction Details
-
- 1.0" Aluminum alloy main tube
- Scratch-resistant anodized coating on exterior surfaces
- Nitrogen purged main tube is waterproof to 13.0'/4.0 m
- Erector assembly features a 4-point coil spring system for repeatability
- Micro-grooves on the tube's interior minimize residual reflections for bright high-contrast viewing
- BRX Fine Reticle in the Second Focal Plane
-
- BRX Fine reticle: 4 medium weight posts at 3, 6, 9, & 12 o'clock. The 6 o'clock post is shorter with tiered hash marks that provide hold-over points for long range target acquisition.
- Second focal plane positioning of the reticle maintains the reticle's size across the magnification range.
UPC: 708026598876 In the Box Swarovski Z5 5-25x52 Riflescope (Matte Black) Microfiber Cloth See-Through Bikini Lens Caps Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Swarovski Z5 5-25x52 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwarovski 59887 Specs | | | Magnification | 5 to 25x | | Objective Lens Diameter | 52 mm | | Field of View | 5x: 21.9' @ 100 yd / 7.3 m @ 100 m
25x: 4.5' @ 100 yd / 1.5 m @ 100 m | | Exit Pupil Diameter | 5x: 936 mm
25x: 2.1 mm | | Eye Relief | 3.7" / 95 mm | | | | Reticle Type | BRX Fine Reticle | | | | Filter Thread | M54 x 0.75 | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 25 MOA | | Elevation Adjustment | 43 MOA | | Parallax Correction | Yes, 60.1 yd / 55 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 14.6" / 37.1 cm | | Weight | 17.5 oz / 495 g | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 16.3 x 3.6 x 3.1" |
