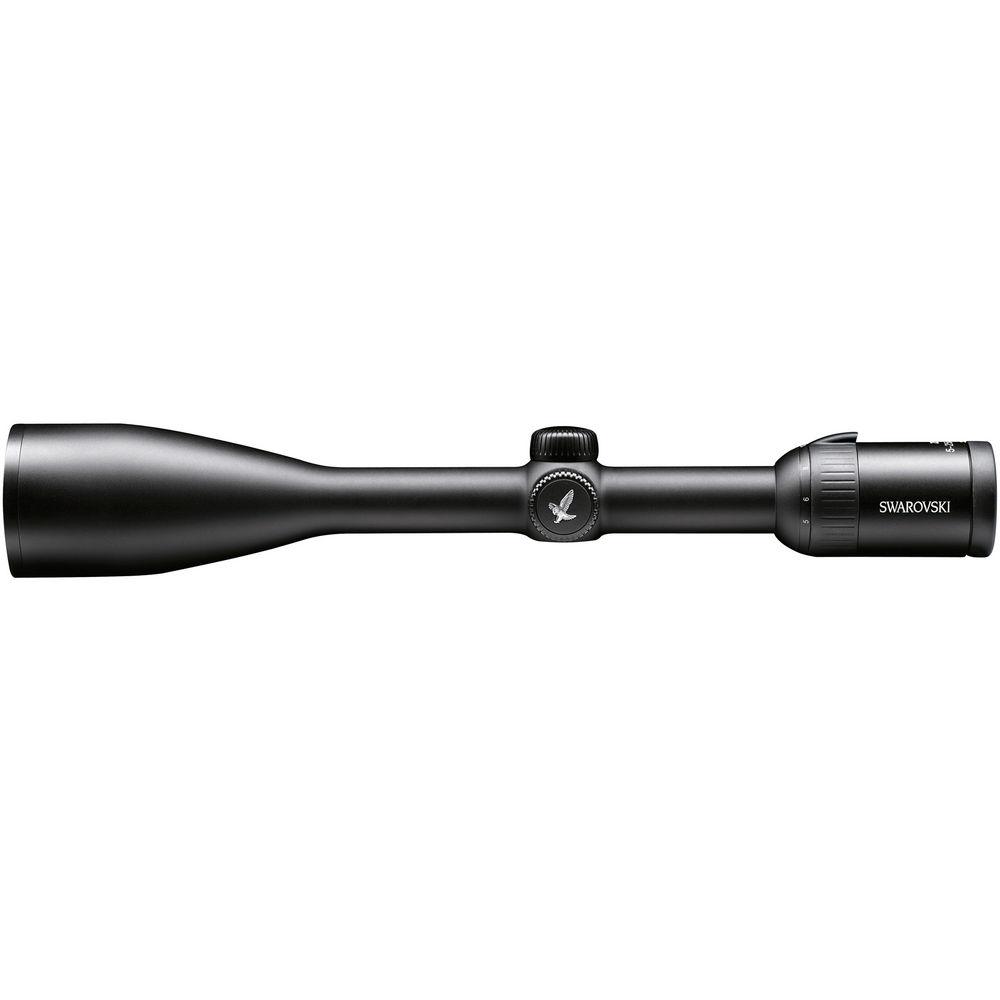

User Manual for Swarovski Z5 5-25x52 Riflescope Click to enlarge the picture
Contents of the user manual for the Swarovski Z5 5-25x52 Riflescope
- Product category: Riflescopes Swarovski
- Brand: Swarovski
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Swarovski Riflescopes
 |
User manual for the Swarovski Z5 5-25x52 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Swarovski product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Swarovski user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Swarovski product will considerably shorten its lifespan!
|
Product description - Product Demo
- SWAROVSKI OPTIK Z5 RifleScope

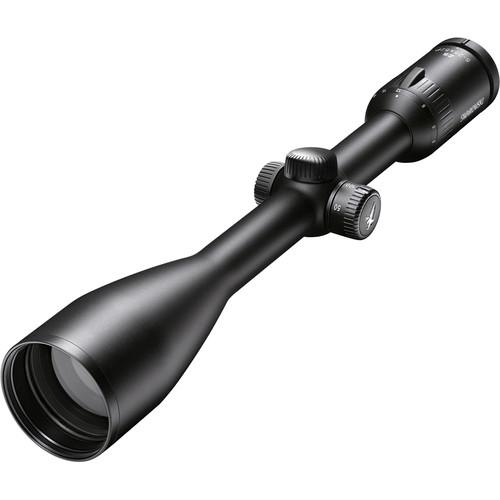

Swarovski Optik presents the Z5 - a superior sighting system with outstanding optics and mechanics - and it's neatly configured into a trim 1.0" main-tube. With its spectacular field of view, crisp edge-to-edge sharpness, and rugged field-ready construction - The Z5 is well suited for everyday hunting and world-class safaris. The Z5 5-25x52 pushes the envelope - it delivers a broad magnification range, yet it's relatively light, compact, and of course - reliable. The entire scope is fully water and fogproof thanks to a meticulous nitrogen-purging process. The low-profile turrets offer ¼ MOA click-stop corrections, and the rectangular adjustment range provides a very respectable 43 MOA of elevation correction. The lenses have been fully multicoated to optimize light transmission, and the external lens surfaces have been treated with a scratch-resistant SWARODUR protective coating. This Z5 is configured with a rugged 1.0" aluminum-alloy main-tube, side focus parallax correction, a matte black finish, and a BRH reticle in the second focal plane. A mounting base and rings are used to attach a riflescope to a firearm. A comfortable sight picture is contingent upon the height of the rings. A comfortable cheek-weld is the result of properly positioning the scope over the receiver. Mounting the scope close to the receiver is preferable, yet scopes with larger objectives need higher rings so the front bell can clear the barrel. It should be noted that in many mounting applications, a professional gunsmith's skills will be needed for proper installation. - Optical Performance
-
- Objective: 52 mm - provides outstanding twilight performance

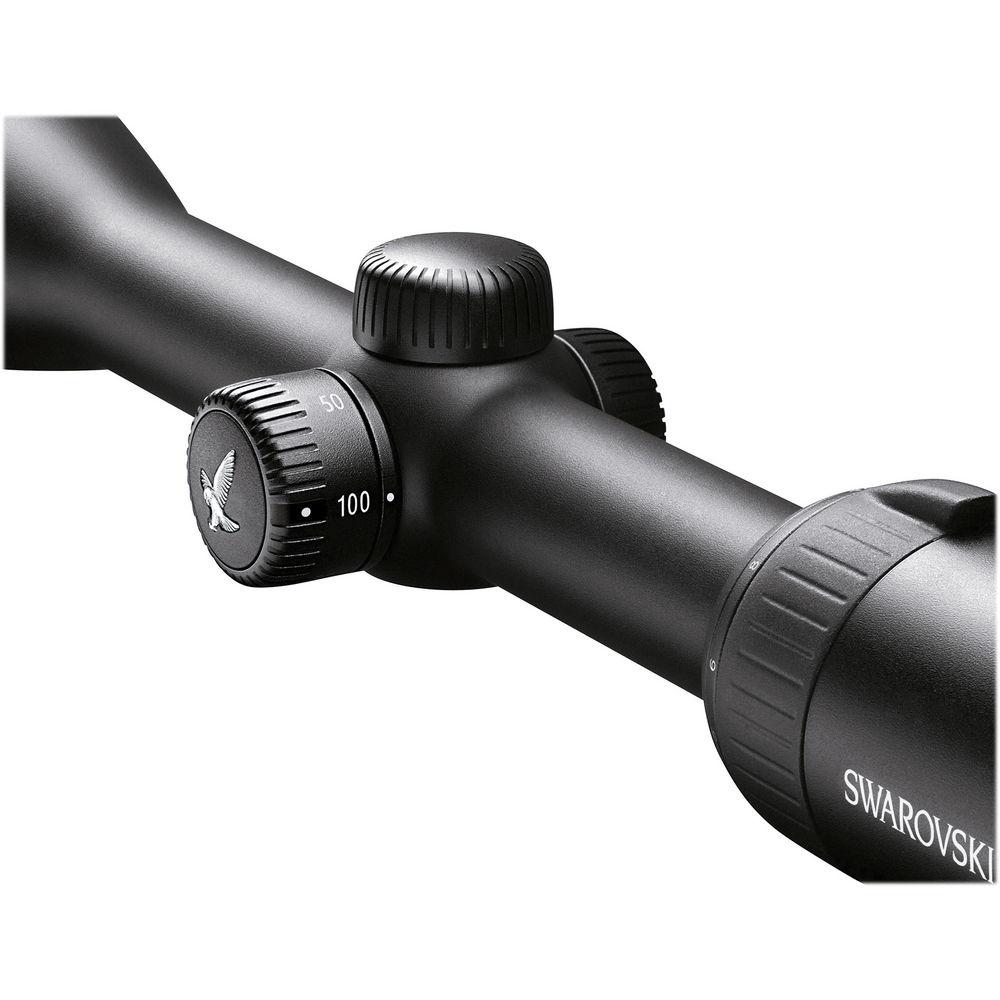

- Side focus knob: adjusts parallax error from 55 m - infinity
- SWAROTOP coatings: anti-reflective multicoating enhances light transmission
- SWARODUR coating: protective scratch-resistant coating on external lens surfaces
- 5x magnification range offers a wide field of view and the ability to zoom in for close-up observation
- Construction Details
-
- 1.0" Aluminum alloy main tube
- Scratch-resistant anodized coating on exterior surfaces
- Nitrogen purged main tube is waterproof to 13.0'/4.0 m
- Erector assembly features a 4-point coil spring system for repeatability
- Micro-grooves on the tube's interior minimize residual reflections for bright high-contrast viewing
- BRH Ballistic Reticle in the Second Focal Plane
-
- The BRH ballistic reticle: three heavy posts at 3, 9, and 12 o'clock center the eye. Fine cross hairs establish the point of aim. A short post at 6 o'clock terminates into a single stadia with hold-over dots and tiered hash-marks.
- Second focal plane positioning of the reticle maintains the reticle's size across the magnification range.
UPC: 708026598869 In the Box Swarovski Z5 5-25x52 Riflescope (Matte Black) Microfiber Cloth See-Through Bikini Lens Caps Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Swarovski Z5 5-25x52 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwarovski 59886 Specs | | | Magnification | 5 to 25x | | Objective Lens Diameter | 52 mm | | Field of View | 5x: 21.9' @ 100 yd / 7.3 m @ 100 m
25x: 4.5' @ 100 yd / 1.5 m @ 100 m | | Exit Pupil Diameter | 5x: 936 mm
25x: 2.1 mm | | Eye Relief | 3.7" / 95 mm | | | | Reticle Type | BRH Ballistic Reticle | | | | Filter Thread | M54 x 0.75 | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 25 MOA | | Elevation Adjustment | 43 MOA | | Parallax Correction | Yes, 60.1 yd / 55 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 14.6" / 37.1 cm | | Weight | 17.5 oz / 495 g | | | | Package Weight | 2.1 lb | | Box Dimensions (LxWxH) | 16.457 x 3.78 x 3.622" |
