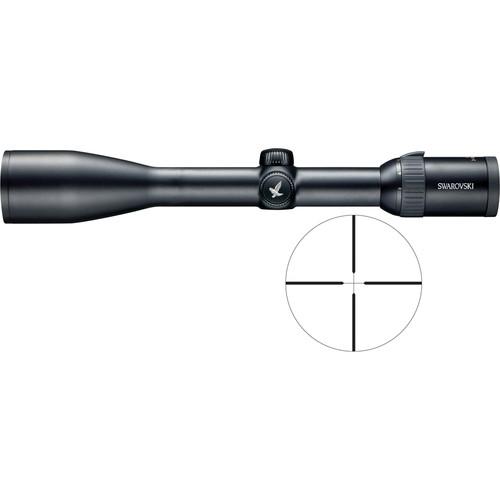

User Manual for Swarovski Z6 3-18x50 Riflescope Click to enlarge the picture
Contents of the user manual for the Swarovski Z6 3-18x50 Riflescope
- Product category: Riflescopes Swarovski
- Brand: Swarovski
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Swarovski Riflescopes
|
User manual for the Swarovski Z6 3-18x50 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Swarovski product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Swarovski user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Swarovski product will considerably shorten its lifespan!
|
Product description The Z6 3-18x50 from Swarovski opens up new doors for hunters seeking high-powered optics for their sporting arms. Combining the situational-awareness from sighting at 3x, with a shocking up-close-and-personal view at 18x, and topping it off with a very efficient 50mm objective - this stellar sighting system brings an immense amount of flexibility and low-light performance to your next great hunt. From the ocular to the objective, inside and out, this scope is a world class performer that will get you on target quickly and accurately. This Z6 is configured with a 30mm waterproof/fogproof main-tube, side-focus parallax correction, and a PLEX reticle in the second focal plane. - Optical Performance
-
- Objective: 50 mm - provides remarkable twilight performance
- Swarotop coatings: anti-reflective multicoating enhances light transmission
- 6x magnification range offers a wide field of view and the ability to zoom in for close-up observation
- HD Optics: fluoride glass elements with multilayered anti-reflective coatings yield superior edge-sharpness
- Construction Details
-
- Main-tube: 30 mm aluminum alloy
- Nitrogen purged: waterproof to 13.0'/4.0 m
- Side focus knob: adjusts parallax error from 50 m - infinity
- Micro-grooves on the tube's interior minimize residual reflections for bright high-contrast viewing
- PLEX Reticle in the Second Focal Plane
-
- PLEX reticle: four long medium weight tapered posts. The posts stand out well against dark backgrounds while fine cross hairs establish your exact point of aim. The narrow gate of this reticle isolates your point of aim quickly to ensure rapid target acquisition.
- Second focal plane positioning of the reticle maintains the reticle's size across the magnification range
UPC: 708026596117 In the Box Swarovski Z6 3-18x50 Riflescope (Matte Black) Microfiber Cloth See-Through Bikini Lens Caps CR2032 Battery Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Swarovski Z6 3-18x50 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwarovski 59611 Specs | | | Magnification | 3 to 18x | | Objective Lens Diameter | 50 mm | | Field of View | 3x: 39.9' @ 100 yd / 13.3 m @ 100 m
18x: 6.6' @ 100 yd / 2.2 m @ 100 m | | Exit Pupil Diameter | 3x: 9.5 mm
18x: 2.8 mm | | Eye Relief | 3.7" / 95 mm | | Diopter Correction | -3.0 to +2.0 | | | | Reticle Type | Plex Reticle | | | | Filter Thread | M52 x 0.75 | | Impact Point Correction | 0.2 MOA per Click (Windage)
0.4 MOA per Click (Elevation) | | Windage Adjustment | 36 MOA | | Elevation Adjustment | 65 MOA | | Parallax Correction | Yes, 50 yd / 45.7 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 15" / 381 mm
Eyepiece Diameter: 1.2" / 30 mm | | Weight | 21 oz / 595 g | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 16.6 x 3.5 x 3.25" |
