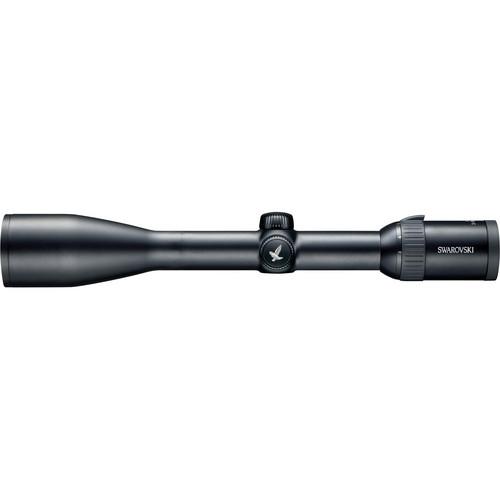

User Manual for Swarovski Z6 3-18x50 Riflescope Click to enlarge the picture
Contents of the user manual for the Swarovski Z6 3-18x50 Riflescope
- Product category: Riflescopes Swarovski
- Brand: Swarovski
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Swarovski Riflescopes
|
User manual for the Swarovski Z6 3-18x50 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Swarovski product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Swarovski user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Swarovski product will considerably shorten its lifespan!
|
Product description Swarovski Optik, always on the cutting edge of technological advancements, once again raises the bar by introducing the Z6 line of riflescopes, including the Z6 3-18x50. While most variable power riflescopes offer a modest zoom, the Z6 series delivers a broad (6x) magnification range. This enhanced field of view makes your favorite hunting firearm more versatile while eliminating the need for a second or third optics purchase.The Z6 3-18x50 is not just another sighting system with fancy specifications; it is rugged, dependable, and repeatable - it excels in the woods and the open plains. Twilight conditions are handled easily thanks to a stellar HD 50mm objective. From long shots to up-close-and-personal encounters, the remarkable 3-18x range of magnification is easy to dial in and tweak to perfection. From the ocular to the objective, inside and out, this scope is a world-class performer that will get you on target quickly and accurately.This Z6 scope is configured with a water and fogproof 30mm maintube, crystal clear HD lenses, a side focus parallax knob, a matte black finish, and a BRH reticle in the second focal plane.A mounting base and rings are used to attach a riflescope to a firearm. A comfortable sight picture is contingent upon the height of the rings. A comfortable cheek-weld is the result of properly positioning the scope over the receiver. Mounting the scope close to the receiver is preferable, yet scopes with larger objectives need higher rings so the front bell can clear the barrel. It should be noted that in many mounting applications, a professional gunsmith's skills will be needed for proper installation. - Optical Performance
-
- 50mm objective provides enhanced twilight performance
- Swarotop coatings: anti-reflective multicoating enhances light transmission
- 6x magnification range offers a wide field of view and the ability to zoom in for close-up observation
- HD optics: fluoride glass elements with multilayered anti-reflective coatings yield superior edge sharpness
- Construction Details
-
- 30mm aluminum alloy maintube
- Nitrogen-purged maintube is waterproof
- Side focus knob: adjusts parallax error from 55 yd to infinity
- Micro-grooves on the tube's interior minimize residual reflections for bright high-contrast viewing
- BRH Reticle
-
- 2nd focal plane
- Hunting reticle optimized for big game
- Four heavy posts with a thin crosshair
- Short bottom post with horizontal hold-over lines
In the Box Swarovski Z6 3-18x50 Riflescope (Matte Black) - Microfiber Cloth
- 2 x See-Through Lens Cover
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Swarovski Z6 3-18x50 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwarovski 59619 Specs | | | Magnification | 3 to 18x | | Objective Lens Diameter | 50 mm | | Field of View | 3x: 39.9' @ 100 yd / 13.3 m @ 100 m
18x: 6.6' @ 100 yd / 2.2 m @ 100 m | | Exit Pupil Diameter | 3x: 9.5 mm
18x: 2.8 mm | | Eye Relief | 3.7" / 95 mm | | Diopter Correction | -3.0 to +2.0 | | | | Reticle Type | BRH Reticle (Second Focal Plane) | | | | Parallax Correction | Yes, 54.6 yd / 50 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | None | | Dimensions | Length: 15.1" / 38.1 cm | | Weight | 21 oz / 685 g | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 20.0 x 5.0 x 5.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 32 owners. Add your rating and experience with the product.
