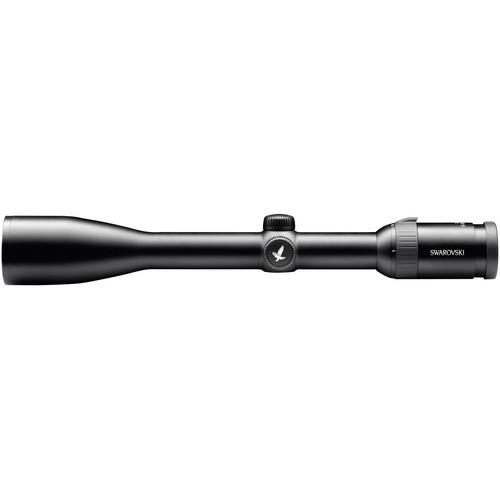

User Manual for Swarovski Z6 5-30x50 Riflescope Click to enlarge the picture
Contents of the user manual for the Swarovski Z6 5-30x50 Riflescope
- Product category: Riflescopes Swarovski
- Brand: Swarovski
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Swarovski Riflescopes
|
User manual for the Swarovski Z6 5-30x50 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Swarovski product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Swarovski user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Swarovski product will considerably shorten its lifespan!
|
Product description The Z6 5-30x50 from Swarovski is not just another sighting system with fancy specifications; it is rugged, dependable and repeatable. Hunters seeking positive target acquisition on fast moving game will greatly appreciate the wide FOV at 5x, while long-range targets become a definite reality with the power dialed up to 30x. From the ocular to the objective, inside and out, this scope is a world class performer that will get you on target quickly and accurately. This particular Z6 scope is configured with a 30mm main tube, a matte black finish, a ballistic plex reticle and Swarovski's ballistic elevation turret. - Optical Performance
-
- Objective lens: 50 mm, offers remarkable twilight performance
- Swarotop coatings: anti-reflective multicoating enhances light transmission
- Range of magnification: 5-30x, provides wide FOV and the ability to zoom in for close-up observation
- Construction Details
-
- Main-tube: 30 mm Aluminum alloy
- Spare battery holder located under windage turret
- Nitrogen purged: waterproof, fogproof, submersible to 13.0'/4.0 m
- Micro-grooves on the tube's interior minimize residual reflections for bright high-contrast viewing
- Ballistic Turret
-
- Turret assembles and adjusts easily
- Swarovski's ballistic program calculates necessary values
- Adjustments can be calculated for specific cartridges, bullet weight, target distance. Three color-coded indicator rings also allow for intermediate distance ranging
- The ballistic turret provides a total of 4 settings. The turret's nose indicates basic zero setting; indicator rings provide additional range/cartridge/bullet options
UPC: 708026599101 In the Box Swarovski Z6 5-30x50 Riflescope Microfiber Cloth 3V CR2032 Lithium Battery See-Through Bikini Lens Caps Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Swarovski Z6 5-30x50 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwarovski 59910 Specs | | | Magnification | 5 to 30x | | Objective Lens Diameter | 50 mm | | Field of View | 5x: 23.7' @ 100 yd / 7.9 m @ 100 m
30x: 3.9' @ 100 yd / 1.3 m @ 100 m | | Exit Pupil Diameter | 5x: 9.5 mm
30x: 1.7 mm | | Eye Relief | 3.7" / 95 mm | | Diopter Correction | -3.0 to +2.0 | | | | Reticle Type | Ballistic Plex Reticle | | | | Filter Thread | M52 x 0.75 | | Impact Point Correction | 0.7 MOA per Click | | Elevation Adjustment | 25.2 MOA | | Parallax Correction | Yes, 50 yd / 45.7 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 15.6" / 395 mm | | Weight | 1.3 lb / 600 g | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 17.5 x 3.5 x 3.1" |
