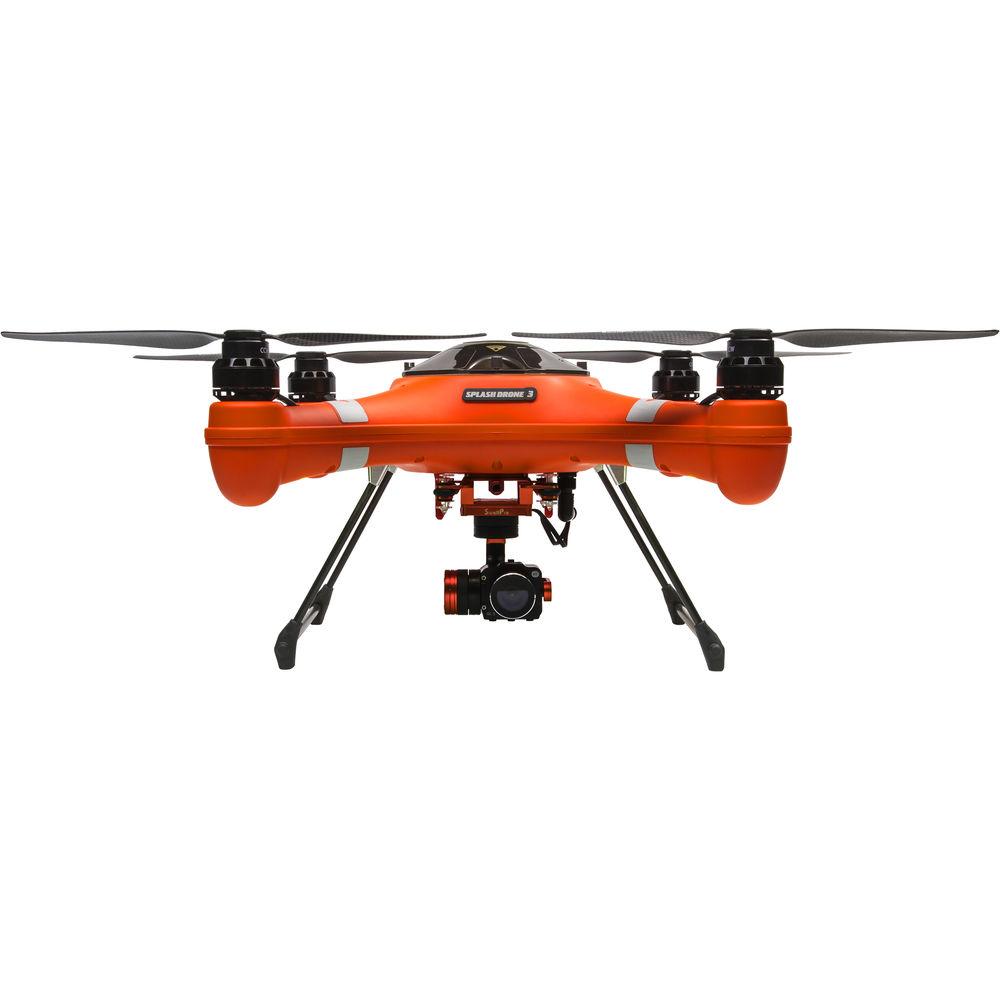

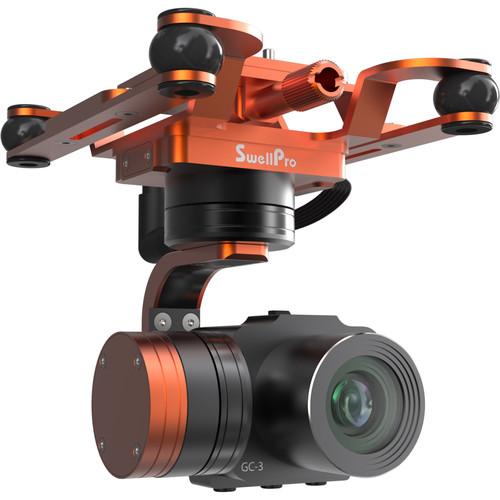

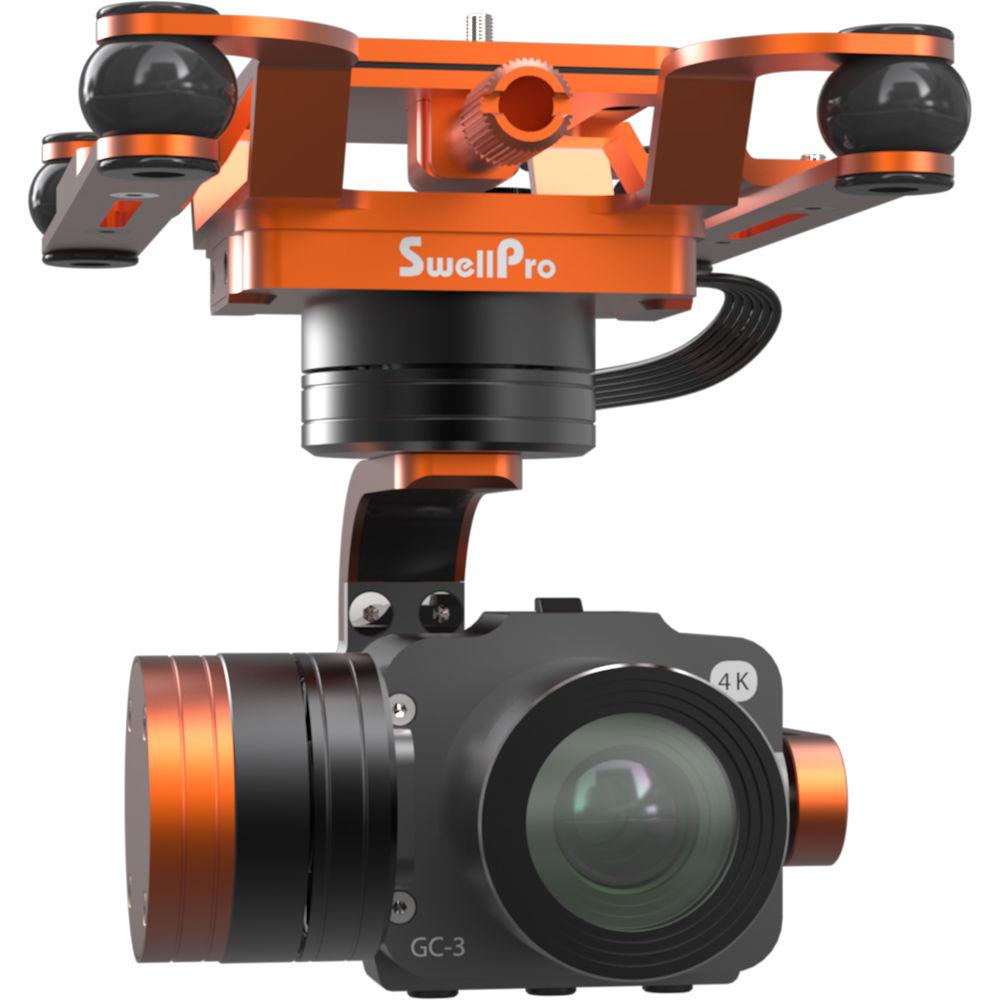

Product description Add a new dimension to your aquatic aerial filming with this 3-Axis GC-3 Gimbal Camera for SplashDrone 3 Series Drones from Swellpro. This gimbal camera continues to incorporate the tilt and roll abilities of the previous 2-axis version, but now includes the ability to pan, which provides you with more dramatic and professional-quality filming options.
At the heart of the GC-3 is a Sony 1/2.3" CMOS sensor and 8G all-glass non-fisheye lens array. It is capable of taking up to 16MP still photos as well as video in 4K resolution at 30 fps. There are even slow-motion and super slow-motion video options that can capture footage in 1080p resolution at 120 fps or 720p resolution at 240 fps. - IP67 Water Resistance
- This 3-axis gimbal camera is rated IP67, which means that it is completely protected from dust and is water-resistant from depths between 5.9" and 3.3'.
- Built-In Camera Controls
- Built-in buttons on the camera allow you to adjust settings without the need of an app. The on-screen menus are conveniently displayed on your remote controller's display. You can adjust:
Video Resolution: 4K or 1080p
Photo Resolution: 16MP, 12MP, or 8.3MP White Balance: Auto, incandescent, D4000, D5000, daylight, cloudy, D9000, or D10K
Exposure Compensation: -2, -1.7, -1.3, -1.0, -0.7, -0.3, 0, +0.3, +0.7, +1.0, +1.3, +1.7, or +2.0 - Additional Features
- Compatible with SplashDrone 3 Auto and SplashDrone 3 Fishing drones
90° field of view (FOV) at f/2.5
High-sensitivity gimbal motor helps to keep footage stable and shake-free, even in the water
Compressive vibration damper that is designed to eliminate the jelly effect
Remotely adjustable Yaw and Tilt
NTSC and PAL compatible
MicroSD card slot that supports up to 64GB Class 10 or UHS-1 or higher memory cards (not included) In the Box Swellpro 3-Axis Gimbal Camera for SplashDrone 3 Series Drones Limited 6-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Swellpro 3-Axis Gimbal Camera for SplashDrone 3 Series Drones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwellpro CYT02 0005 Specs | Sensor | 1/2.3" Sony CMOS | | 3-Axis Angle | X (Roll): -45° to 45°
Y (Pitch/Tilt): 0° to 90°
Z (Yaw/Pan): -25° to 25° | | Video Resolution | 4K at 25/30 fps (3840 x 2160)
2.7K at 25/30 fps (2720 x 1530)
2.5K at 25/30/50/60 fps (2560 x 1350)
1080p at 25/30/50/60/100/120 fps (1920 x 1080)
720p at 100/120/200/240 fps (1280 x 720) | | Photo Resolution | 16MP (4608 x 3456) 4:3
12MP (4000 x 3000) 4:3
8.3MP (3840 x 2160) 16:9 | | White Balance | Auto, incandescent, D4000, D5000, daylight, cloudy, D9000, or D10K | | Exposure Compensation | -2, -1.7, -1.3, -1.0, -0.7, -0.3, 0, +0.3, +0.7, +1.0, +1.3, +1.7, or +2.0 | | Metering | Global
Center Weighted
Spot Metering | | Field of view (FOV) | 90° at f/2.5 | | ISO Range | 100 to 1600 | | Maximum Video Bandwidth | 60 Mb/s | | Picture Format | JPEG | | Video Format | MOV and MP4 | | Self-Timer Delay | Off
3 sec
5 sec
10 sec | | Continuous Shooting | Off
3 pictures per second
5 pictures per second
10 pictures per second | | Interval Shooting | Off
3 shots per second
5 shots per second
10 shots per second | | Memory Card Support | Class 10 or UHS-1 and above microSD cards | | | | Package Weight | 1.065 lb | | Box Dimensions (LxWxH) | 5.1 x 4.9 x 4.5" |
