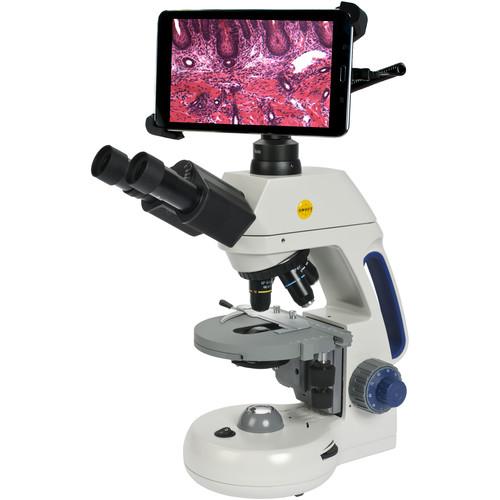

Product description The Swift Optical M10T-BTW1-P Advanced Trinocular Microscope adds a 4MP WiFi-enabled camera with a conventional compound microscope to produce a microscopy device that can be used by students and researchers at a lab table with the ability to show the view to several people in a room, hundreds in a lecture hall, thousands attending an online seminar, or millions watching a YouTube video.The head is equipped with binocular-view 10x wide field eyepieces that, when combined with the four objectives, produce magnifications from 40x to 1000x. Its plan (planar) objectives present a flat field of view across almost the entire field of view, so the only noticeable curvature (spherical aberration) will be around the extreme edges of the view. The optical performance is complemented by a dual-speed rack-and-pinion focuser, Siedentopf-style head, left-eye dioptric correction, and a wide interpupillary adjustment range—making it easy to achieve tack-sharp views and convenient for multiple people to share the eyepieces. A large tray features a mechanical specimen holder, 1.25 rack-and-pinion Abbe condenser, and an iris-style diaphragm.Included with the M10T is a National Optical Moticam X3 WiFi microscope camera. The camera mounts into the port on top of the head and produces its own WiFi signal that can be shared by up to five devices, from tablets to computers running the MotiConnect app for Android or iOS devices. Swift also provides an 8" Android OS tablet, preloaded with the app, and a bracket to hold it on top of the head. Between the camera and the tablet, you can also send the view directly to computers, monitors, or TVs via an RJ45 ethernet port on the camera or a mini-HDMI port on the tablet. - Optical Performance
-
- Trinocular viewing head with binocular-view eyepieces and mounting for included camera system
- Selectable magnifications: 40x, 100x, 400x, and 1000x
- Dual wide field 10x eyepieces
- DIN standard 4x (0.10 N.A.), 10x (0.25 N.A.), 40xR (0.65 N.A.) and 100xR oil immersion (1.25 N.A.), objectives
- Plan (planar) objectives correct spherical aberration for virtually the entire field of view so specimens will appear flat with the only perceptible curvature at the edges
- Quad-objective turret is ball-bearing mounted for smooth, precise positioning of objectives, mounted in reverse position to facilitate ease in changing slides
- Wireless Camera and Tablet
- Camera:
- National Optical Moticam X3 camera
- 4MP 1/3" CMOS sensor
- 1920x1080 or 1280x720 live image resolutions
- Up to 30 fps with 5 Ghz with compatible devices
- Auto white balance or user configured
- Simultaneously connect up to five different devices
- Connect wirelessly to the included tablet, and computers or WiFi-enabled smart TVs/monitors
- MotiConnect app available for Android and iOS devices
- RJ45 port for wired Ethernet cable connection between camera and computer
- Designed specifically for Swift, National, and Motic C-Mount adapters and microscopes; no support is provided for third-party adapters or microscopes
Tablet:- 8" screen with 1280x800 screen resolution
- WiFi resolutions of 1920x1080 and 1280x720
- Comes preloaded with MotiConnect app to capture, measure, annotate
- Mini-HDMI port allows wired connection to HD monitors and TVs
- Android-based operating system
- Accepts SD memory cards
- Internal rechargeable battery
- Use and Handling
-
- Binocular eyepiece configuration makes it easier and more comfortable to use versus monocular heads, while also preserving a true 3D view and rich depth of field
- Siedentopf-style head design enables the interpupillary distance between eyepieces to be adjusted without affecting the focus—making it easier and more convenient to share between multiple people
- ±5 left-eye dioptric correction enables precise accommodation for individual eye prescriptions to ensure views are tack sharp for all users
- Objectives are parfocal so little or no focus correction is required when switching between magnifications, and parcentered so the center of the view will remain the same when changing objectives
- Head set at a 30° angle to place user's head in a comfortable viewing position
- Wide 55-75mm interpupillary adjustment range accommodates a variety of users
- Microscope runs on 110-240VAC power, supplied with a three-prong grounded US wall outlet plug
- Stage and Illumination
-
- Dual-speed coarse and fine rack-and-pinion focusing mechanism moves the stage up and down to achieve proper focus
- Coarse tension adjustment prevents stage slippage so focusing remains sharp when knob is released
- Large 5.75x5.5" (142mm x 140mm) stage easily holds specimens other than slides
- Built-in, low-profile, ball-bearing mounted mechanical specimen holder with low-position coaxial controls
- 1.25 Abbe rack-and-pinion condenser with filter carrier
- Iris-style diaphragm with lever control allows user to improve their subject's contrast for improved views
- Slow-closing slide holder slip
- Variable-intensity lower LED illuminator
- Frosted glass filter plate disperses the bright white LED light to the specimen without harsh glare
In the Box Swift M10T-BTW1-P Advanced Trinocular Microscope with WiFi Camera and 8" Tablet 3-Prong US Power Cord Microscope Cover Moticam X3 Wifi Camera 8" Tablet with Mounting Bracket Limited Lifetime Warranty Table of Contents
|
