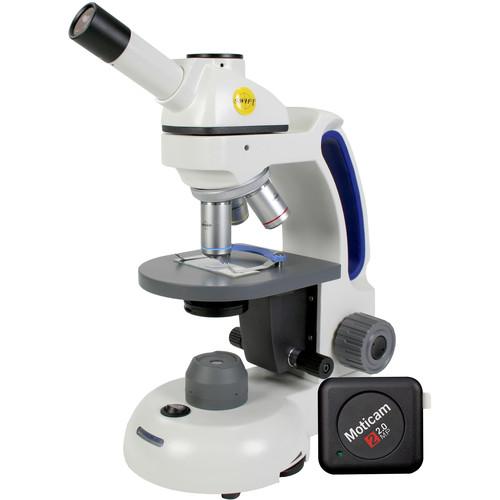

User Manual for Swift M3601C-USB Cordless Monocular Compound Microscope with 2.0MP Camera Click to enlarge the picture
Contents of the user manual for the Swift M3601C-USB Cordless Monocular Compound Microscope
- Product category: Microscopes Swift
- Brand: Swift
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Swift Microscopes
|
User manual for the Swift M3601C-USB Cordless Monocular Compound Microscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Swift product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Swift user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Swift product will considerably shorten its lifespan!
|
Product description Swift Optical combines their flagship microscope model with a National Optical Moticam 2MP camera to give you the M3601C-USB Monocular Compound Microscope kit. This bundle puts a powerful microscopy device in your hands for all kinds of scholastic, laboratory, and industrial work with the convenience of a rechargeable battery system so you can take it with you into the field. The camera mounts into the dedicated port on the head so you can send the views of your specimen to a Windows or Mac computer in up to 1600x1200 resolution and enhance, label, measure, print, and store them. - M3601C Monocular Microscope The Swift M3601C Monocular Microscope is considered the most "student-proof" microscope on the market. Designed for high school classrooms and up, the "slip clutch" focusing system, one-piece eyetube, locked-on eyepiece, objectives, and stage clips are designed to withstand student tampering. The unique "C-wrench" tool allows teachers sole control of the focusing tension. The microscope features 4XD, 10XD, 40XRD lead-free achromat objectives along with a monocular viewing head. The 18mm W10XD Pointmaster graduated eyepiece has a scale for specimen measurement. The microscope has a built-in handle to encourage proper handling. The cordless LED illumination allows for variable intensity that provides an energy-efficient, cool, white light. Given the extraordinary life of the LED bulbs, it is unlikely that the lighting source will ever need replacement.
- Student-Proof design - eliminates the possibility of tampering
- 18mm, W10XD locked-on eyepiece has Pointmaster specimen measurement scale
- 4XD, 10XD, 40XRD lead-free achromat objectives
- Slip-clutch focusing system will protect gears from over-focusing
- Built-in handle encourages proper handling
- Built-in LED battery charge indicator allows up to 40 hours of use on a single 8 hour charge
- One Touch Stage Clip touch lever to lift clips
- 2.0MP Moticam 2 Digital Camera for Microscopes The 2.0MP Moticam 2 Digital Camera for Microscopes from National Optical & Scientific Instruments, Inc. is an easy to use, plug-and-play digital camera for both compound and stereoscopic microscopes. The camera is able to mount on any microscope that has a C-Ring adapter. The adapter will attach to the camera body and mount to the microscope. The camera also comes with 30mm and 38mm adapter rings to fit standard microscope eyepiece holder diameters. The adapters are adjustable to hold the camera centered in the microscope field of view, and provide either still or moving digital images to a computer using the included USB 2.0 cable and software. The included imaging software also allows you to enhance, label, measure, print, and catalog your recorded imagery with ease, and works with Windows XP or above, and Mac OSX.
- Plug-and-play camera for Windows or Mac computers, and nearly any stereo or compound microscope--with the supplied adaptors.
- Capture still or moving microscope images at 1600 x 1200 pixel resolution.
In the Box Bundle Items M3601C Monocular Microscope ufxcqwadewesfsvdcdudxawd - Limited Lifetime Warranty
2.0MP Moticam 2 Digital Camera for Microscopes - 2 x 30mm-38mm Eyepiece Adaptors
- Motic Images 2.0ML Software CD
Table of Contents
|
Upload User Manual
Have you got an user manual for the Swift M3601C-USB Cordless Monocular Compound Microscope with 2.0MP Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - M3601C Monocular Microscope
| Eyepiece | 18mm W10XD | | Objective(s) | 4XD, 10XD, 40XRD lead-free achromat objectives | | Mechanical Stage | One-touch Stage Clips | | Condenser System | Built-in N.A. 0.65 | | Illuminator | Corded, LED with dimmer switch | - 2.0MP Moticam 2 Digital Camera for Microscopes
| Sensor Size | 2.0MP with 1600 x 1200 maximum resolution | | System Requirements (Minimum) | Processor: 2.0 GHz
RAM: 1.0 GB
Hard Disk: 500 MB
Video Card: 128 MB Connectivity: USB 2.0 | | | | Box Dimensions (LxWxH) | 11.0 x 5.5 x 3.2" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 62 owners. Add your rating and experience with the product.
