User manual

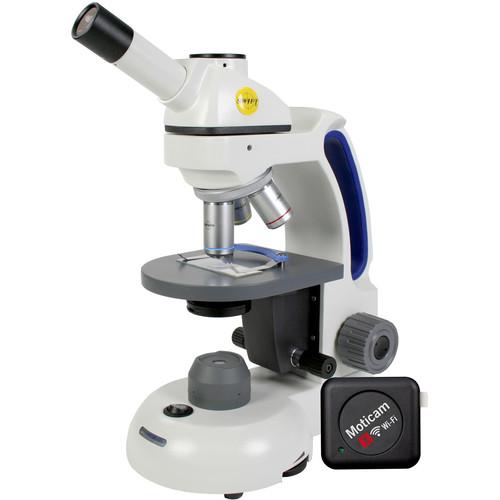

Swift M3601C-WF2 Cordless Monocular Compound Microscope

User Manual for Swift M3601C-WF2 Cordless Monocular Compound Microscope with Wi-Fi Camera

• Product category: Microscopes Swift
• Brand: Swift
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Swift Microscopes

Product description

• M3601C Monocular Microscope The Swift M3601C Monocular Microscope is considered the most "student-proof" microscope on the market. Designed for high school classrooms and up, the "slip clutch" focusing system, one-piece eyetube, locked-on eyepiece, objectives, and stage clips are designed to withstand student tampering. The unique "C-wrench" tool allows teachers sole control of the focusing tension. The microscope features 4XD, 10XD, 40XRD lead-free achromat objectives along with a monocular viewing head. The 18mm W10XD Pointmaster graduated eyepiece has a scale for specimen measurement. The microscope has a built-in handle to encourage proper handling. The cordless LED illumination allows for variable intensity that provides an energy-efficient, cool, white light. Given the extraordinary life of the LED bulbs, it is unlikely that the lighting source will ever need replacement.
  • Student-Proof design - eliminates the possibility of tampering
  • 18mm, W10XD locked-on eyepiece has Pointmaster specimen measurement scale
  • 4XD, 10XD, 40XRD lead-free achromat objectives
  • Slip-clutch focusing system will protect gears from over-focusing
  • Built-in handle encourages proper handling
  • Built-in LED battery charge indicator allows up to 40 hours of use on a single 8 hour charge
  • One Touch Stage Clip touch lever to lift clips
• Moticam X3 Wireless 4MP WiFi Microscope Camera Use the National Moticam X3 Wireless 4MP WiFi Microscope Camera to view your microscope specimens on a computer or tablet, or attach the included focusable lens and tube and convert it to a macro camera.The Moticam X3 generates its own WiFi signal to connect to your devices so you can live-stream and capture images using the iOS or Android app for tablets, computers running the included Motic Images Plus software, or any other device using a web browser (but with limited functionality).Whether you're a teacher who wants to display their microscopy to a class, a jeweler who needs to show a client a gemstone, or an enthusiast who is interested in posting and sharing on social media, the Moticam X3 is the ideal tool for the job.
  Applications
  • • Use one of the two included eyepiece adapters to view images through a microscope eyepiece. The 30mm and 38mm outside-diameter adapters fit the most popular size eyepieces
    • Attach the camera to a C-mount adapter on trinocular-style microscopes. The included C-ring may be required for proper mounting depending on the type of adapter and microscope
    • Use as a self-contained macro camera by installing the included focusable lens and macro tube
  WiFi Connectivity
  • • Generates its own WiFi signal to wirelessly connect to tablets and computers
    • WiFi standard of IEEE802.11b/g/n/ac at either 2.4Ghz (default) or 5Ghz (fast mode)
    • Connect to Android/iOS devices or WiFi-enabled computers via web browser or included software
    • Capture still images or live feed with app and software
    • Use on devices with screens 7" or larger; iOS 5 or higher/Android 4.0 or higher recommended
    • Max range 10' line of sight
  Performance
  • • 4MP 1/3" CMOS sensor
    • Live Image: 1920x1080 or 1280x720
    • Up to 30fps with 5Ghz-compatible device
    • Auto white balance or user configured
    • 38.1dB signal-to-noise ratio
    • 70.1dB dynamic range

• Battery Charger

• C-Wrench Tool

• Limited Lifetime Warranty

• 30mm Eyepiece Adapter

• 38mm Eyepiece Adapter

• Calibration Slide

• Dust Cap

• C-Ring

• Focusable Lens

• Macro Tube

• USB Cable and Charger

• Motic Images CD

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• M3601C Monocular Microscope

  Eyepiece	18mm W10XD
  Objective(s)	4XD, 10XD, 40XRD lead-free achromat objectives
  Mechanical Stage	One-touch Stage Clips
  Condenser System	Built-in N.A. 0.65
  Illuminator	Corded, LED with dimmer switch

• Moticam X3 Wireless 4MP WiFi Microscope Camera

  Sensor Size	1/3" CMOS
  Pixel Size	2.0 x 2.0 µm
  Resolution	Still Mode - MotiConnect, Browser, and Software 2592 x 1520 Live Mode - MotiConnect 1920 x 1080 (Maximum Resolution), 1280 x 720 Live Mode - Browser and Software 1920 x 1080, 1280 x 720, 640 x 360
  Frame Rate	Up to 9fps @ 2.4Ghz 15 - 30fps @ 5Ghz
  Signal to Noise	38.1dB
  Dynamic Range	70.1dB
  WiFi Connectivity	IEEE802.11b/g/n/ac 5dB Power Output
  Power Requirement	5 VDC
  Power Consumption	≤5.0W
  Operating Temperature	32 to 122°F / 0 to 50°C
  Storage Temperature	14 to 140°F / -10 to 60°C
  Dimensions	3.0 x 3.0 x 2.0" / 7.6 x 7.6 x 5.1 cm
  Weight	3.2 oz / 90.7 g
