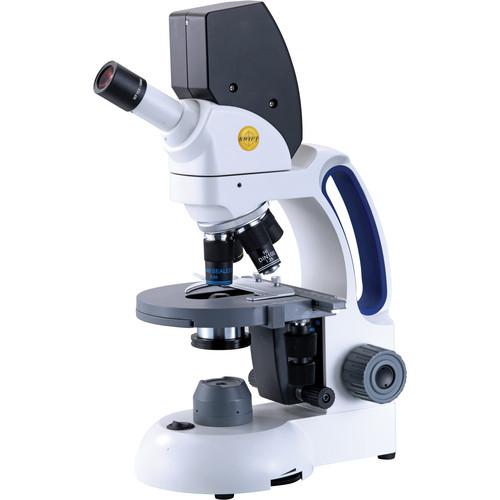

User Manual for Swift M3602C-3DGL Monocular Digital Microscope Click to enlarge the picture
Contents of the user manual for the Swift M3602C-3DGL Monocular Digital Microscope
- Product category: Microscopes Swift
- Brand: Swift
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Swift Microscopes
|
User manual for the Swift M3602C-3DGL Monocular Digital Microscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Swift product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Swift user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Swift product will considerably shorten its lifespan!
|
Product description The Swift M3602C-3DGL Digital Monocular Microscope has a built-in 1.3 megapixel camera that allows you to document your work at a resolution of 1280 x 1024. The internal camera is incorporated into the one piece monocular head and you can capture single and time-lapse images or video clips. You have a USB output that provides a direct connection to your PC, and Motic Images Plus software is included. The software allows you to edit, measure, annotate, draw, and magnify captured still images.The Swift M3602C-3DGL Microscope is considered the most "student-proof" microscope on the market. Designed for high school classrooms and up, the "slip clutch" focusing system, one-piece eyetube, locked-on eyepiece, objectives, and stage clips are designed to withstand student tampering. The unique "C-wrench" tool allows teachers sole control of the focusing tension. The microscope features 4XD, 10XD, 40XRD lead-free achromat objectives along with a monocular viewing head. The 18mm W10XD Pointmaster graduated eyepiece has a scale for specimen measurement. The microscope has a built-in handle to encourage proper handling. The cordless LED illumination allows for variable intensity that provides an energy-efficient, cool, white light. Given the extraordinary life of the LED bulbs, it is unlikely that the lighting source will ever need replacement. - Student-Proof design - eliminates the possibility of tampering
- Built-in 1.3 megapixel camera allows you to document your work at a resolution of 1280 x 1024
- Capture single and time-lapse images or video clips
- USB output provides direct connection to your PC, and Motic Images Plus software is included
- 18mm, W10XD locked-on eyepiece has Pointmaster specimen measurement scale
- 4XD, 10XD, 40XRD lead-free achromat objectives
- Slip-clutch focusing system will protect gears from over-focusing
- Built-in handle encourages proper handling
- Built-in LED battery charge indicator allows up to 40 hours of use on a single 8 hour charge
In the Box Swift M3602C-3DGL Monocular Digital Microscope Calibration Slide USB Cable Battery Charger Motic Images Plus Software C-Wrench Tool Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Swift M3602C-3DGL Monocular Digital Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwift M3602C-3DGL Specs | Eyepiece | 18mm W10XD | | Objective(s) | 4XD, 10XD, 40XRD lead-free achromat objectives | | Mechanical Stage | Built-in Mechanical | | Condenser System | Abbe 1.25, Spiral | | Illuminator | Corded, LED with dimmer switch |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 08 owners. Add your rating and experience with the product.
