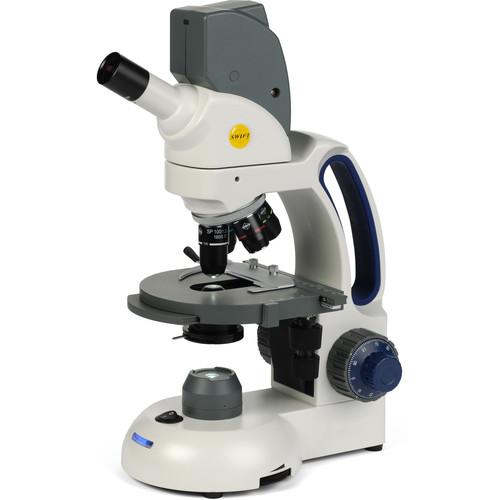

User Manual for Swift M3702C-3DGLX Cordless Compound Monocular Microscope with 1.3MP WiFi Camera Click to enlarge the picture
Contents of the user manual for the Swift M3702C-3DGLX Cordless Compound Monocular Microscope
- Product category: Microscopes Swift
- Brand: Swift
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Swift Microscopes
|
User manual for the Swift M3702C-3DGLX Cordless Compound Monocular Microscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Swift product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Swift user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Swift product will considerably shorten its lifespan!
|
Product description Ideal for advanced high school, biology, college, veterinarian, medical, or technical applications, the Swift Optical M3702C-3DGLX Cordless Compound Monocular Microscope combines a versatile microscopy device with an integrated 1280x1024 high-resolution WiFi camera. With this combination, the magnified view can be seen through the eyepiece, on an Android or iOS mobile device, or on a computer to be sent to a projector for a classroom or lecture hall or streamed on the internet.It is outfitted with a single 10x wide field eyepiece and a triple-position nosepiece with 4x, 10x, and 40x objectives that produce magnifications from a low 40x up to a high of 400x. The objectives are parfocal and parcentered, so that little or no focus adjustment will be required when changing magnifications, and the center of the view will remain consistent when switching objectives. The objective turret is also reverse mounted, so the unselected objectives point backward to provide better access to the stage and make changing slides easier. For added comfort and convenience, the eyepiece is set at a 45° angle to make it easy to view through whether you are sitting or standing, and the head can rotate a full 360° to make sharing fast.The large 5.75x4.75" specimen stage features built-in slide clips, with a two-speed coarse and fine focusing mechanism. The 1.25 Abbe condenser has an iris diaphragm that allows you to precisely control the amount of light coming though the stage for improved specimen contrast. A single lower LED illuminator also has a rheostat dimmer, giving you complete control of the intensity. This model comes with three rechargeable batteries for field use and they charge in the microscope to eliminate the need to carry charging cradles. A single charge will power the illuminator for up to 40 hours. - Optical Performance
-
- Wide magnification range of 40x, 100x, and 400x is ideal for a wide variety of research, scholastic, industrial, and hobbyist applications
- 10x wide field eyepiece
- DIN standard 4x (0.10 N.A.), 10x (0.25 N.A.), and 40xR (0.65 N.A.) objectives
- Semi-plan (semi-planar) objectives present a flat field of view across about 80% of the center portion, so the only noticeable curvature (spherical aberration) will be around the edges of the view
- Parfocal objectives will require little or no refocusing when changing magnifications
- Parcentered objectives ensure the center of the view remains consistent when switching between objectives
- Each objective is color coded for fast identification of the selected magnification
- Triple objective turret; ball-bearing mounted for smooth, precise positioning of objectives
- Reverse-position nosepiece design helps to facilitate ease in changing slides
- Camera
-
- Integrated camera streams view to devices
- 1.3MP sensor produces 1280x1024 resolution
- Free Android/iOS MotiConnect app allows users to view, capture, and edit live images
- Access camera feed via most web browsers on Windows 7 (or higher) or MAC OSX computers running Motic Images Plus software
- Use and Handling
-
- Head set at a 45° angle to place user's head in a comfortable viewing position
- Head rotates a full 360° to make it easier to share with a group or class; thumb screw locks head in position
- Runs on set of three included AA rechargeable NiMH batteries
- Batteries charge in the microscope for convenience
- Charges in 8 hours, with up to 40 hours of use
- Curved handle encourages proper handling
- Stage and Illumination
-
- Large 5.75x4.75" stage
- Coaxial coarse and fine focusing controls—coarse has tension adjustment, fine is graduated
- Ball-bearing mounted mechanical specimen holder with coaxial low-profile controls
- Built-in 1.25 Abbe condenser with iris diaphragm for precise control of light throughput to improve specimen contrast
- Lower LED illumination with variable brightness
In the Box Swift M3702C-3DGLX Cordless Compound Monocular Microscope with 1.3MP WiFi Camera Microscope Cover Charging Cord 3 x NiMH Battery Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Swift M3702C-3DGLX Cordless Compound Monocular Microscope with 1.3MP WiFi Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSwift M3702C-3DGLX Specs | Head | 45
