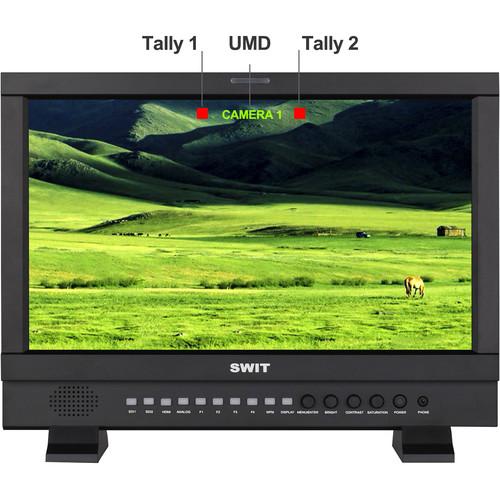

Product description The 17.3" Full HD 3G-SDI & HDMI Studio LCD Monitor with Gold mount battery plate from SWIT adopts a 17.3" IPS (In-Plane Switching) LCD panel and Full HD resolution. It features an LED backlight, 700:1 contrast for accurate color reproduction, and a horizontal and vertical viewing angle of 160°. It supports 2-channel audio meters under SDI and HDMI input. The audio meter begins green, turns yellow when it exceeds -20 dB, and turns red when it exceeds -9 dB. The channel-1 and channel-2 de-embedded audio outputs via the 3.5mm headphone jack or through the speaker. If the audio value is too low or there is no embedded audio, it will display mute or unlocked in the audio bar. The LCD supports UMD and text tally display using the TSL 3.1/4.0 protocol, with 1-126 TSL address selection and a maximum of 8 letters displayed. The UMD inputs via an RS-485 or RS-232C port and outputs via an RS-485 port. It provides a standard USB port for firmware upgrades. You can download the latest firmware file to a USB stick, and directly insert it into S-1173HA monitor to upgrade, without a PC connection. It features a 4-pin XLR socket rated 11-17 VDC, and includes a Gold mount plate for outdoor use. There are red, green, and yellow colors for the Tally light. You can define the pins of the RS-485 port to control the Tally lights. -
- 17.3” LCD panel with 1920 x 1080 resolution
- 2 x 2K/3G/HD/SD-SDI, HDMI monitoring
- Y/Pb/Pr, VGA, CVBS monitoring
- 2-channel embedded audio meters with alert
- Select any 2 audio channels to output
- Peaking focus assist (red/blue switch)
- AFD, timecode, H/V delay
- TSL UMD and text Tally display
- Safety marker 4:3/13:9/14:9/15:9/1.85:1/2.35:1
- False color, R/G/B/Mono, zebra stripes, internal color bar
- Gold mount battery plate
- 19" rack install, 7U height
- USB firmware upgrade
In the Box SWIT 17.3" Full HD 3G-SDI & HDMI Studio LCD Monitor (Gold Mount) 2 x Desktop Stand Feet Gold Mount Battery Plate AC/DC Power Adapter 19-Inch Rack Mount Bracket Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SWIT 17.3" Full HD 3G-SDI & HDMI Studio LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSWIT S-1173 Specs | | | Size | 17.3" / 439.4 mm | | Display Area | 381.89 x 214.8 mm | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 / 4:3 | | Brightness | 300 cd/m2 | | Contrast | 700:1 | | Color | 16.77 million colors | | Viewing Angle | Horizontal: 160°
Vertical: 160° | | | | Input | 2 x BNC: 2K/3G/HD/SD-SDI input
3 x BNC: Y/Pb/Pr input
1 x BNC: CVBS input
1 x HDMI: HDMI input
1 x RS-485: UMD input
1 x RS-485: GPI input
1 x VGA: VGA input
1 x 3.5 mm RCA: L/R audio input
1 x USB: input (firmware upgrade) | | Output | 2 x BNC: 2K/3G/HD/SD-SDI loop output
1 x BNC: CVBS Loop output
1 x HDMI: HDMI loop output
1 x RS-485: UMD output
1 x 3.5 mm: SDI/HDMI embedded audio output, analog audio output | | | | CVBS | NTSC/PAL | | SDI | SMPTE 2048-1:2011
2048 x 1080p: 60/59.94/50/30/29.97/25/24/23.98
SMPTE-425M:
1080p: 60/59.94/50
SMPTE-274M:
1080i: 60/59.94/50
1080p: 30/29.97/25/24/23.98
SMPTE-RP211:
1080psf: 30/29.97/25/24/23.98
SMPTE-296M:
720p: 60/59.94/50
SMPTE-125M:
480i: 59.94
ITU-R BT.656:
576i: 50 | | HDMI | 480i / 576i / 480p / 576p
1080i: 60 / 59.94 / 50
720p: 60 / 59.94 / 50
1080p: 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 | | Component (Y/Pb/Pr) | 480i / 576i / 480p / 576p
720p: 50 / 60
1080i: 50 / 60
1080p: 50 / 60 | | VGA | 640 x 480 / 800 x 600 / 1024 x 768 / 1152 x 864 / 1280 x 768 1280 x 960 / 1280 x 1024 / 1600 x 1200 | | | | Working Voltage | 100 to 240 VAC
11 to 17 VDC | | Power Consumption | ≤32 W | | Working Temperature | 32 to 104°F / 0 to 40°C | | Humidity | 10 to 90% | | Storage Temperature | 5 to 150°F / -15 to 60°C | | Storage Humidity | 10 to 90% | | Dimensions | 16.9 x 12.2 x 2.8" / 430 x 310 x 73 mm | | Weight | 10.25 lb / 4.65 kg |
