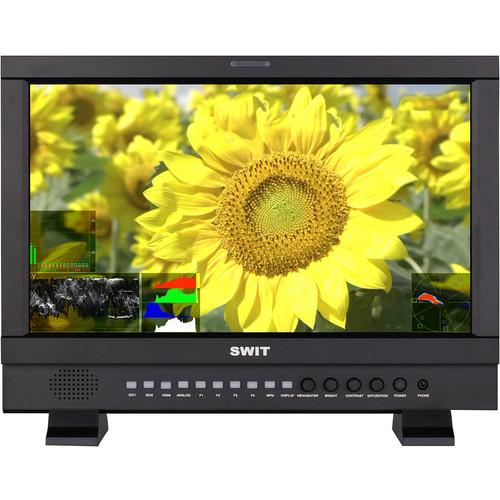

User Manual for SWIT 17.3" Full HD Waveform Studio LCD Monitor Click to enlarge the picture
Contents of the user manual for the SWIT 17.3" Full HD Waveform Studio
- Product category: Production Monitors SWIT
- Brand: SWIT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SWIT Production Monitors
|
User manual for the SWIT 17.3" Full HD Waveform Studio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SWIT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SWIT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SWIT product will considerably shorten its lifespan!
|
Product description The 17.3" Full HD Waveform Studio LCD Monitor with V-mount battery plate from SWIT offers a 17.3" IPS (In-Plane Switching) LCD panel and Full HD resolution. It also features a horizontal and vertical viewing angle of 160°, an LED backlight, and a 700:1 contrast ratio for accurate color reproduction. It also supports video analysis assistant patterns that include waveform (Y/Pb/Pr/R/G/B), vectorscope, histogram (R/G/B/Y) to convert the digital video quality info (luma, color, saturation, etc) to patterns (which can be switched on/off individually), and you can select display position (up/down/left/right), size, color, and translucence. The LCD also supports SDI 16-channel and HDMI 8-channel embedded audio meter displays with marks and abnormal audio alert info. Users can also select any two channels of audio to output via the 3.5 mm socket or through the speakers. The audio meter pattern position can be selected from up/down/left/right, and you can choose to display only two channels, eight channels, or the full sixteen channels. It features a UMD and text tally display using the TSL 3.1/4.0 protocol with 1-126 TSL address selection and a maximum of eight letters displayed. The UMD inputs via RS-485 or RS-232C port and outputs via RS-485 port. The LCD provides a standard USB port for firmware upgrades. Users can download the latest firmware file to a USB stick and directly insert it into the S-1173FS monitor to upgrade, without a PC connection. It has a 4-pin XLR jack rated for 11-17 VDC, and includes a V-mount battery plate for outdoor use. There are red, green and yellow colors for the Tally light. -
- 17.3" LCD panel, 1920 x 1080 resolution
- 2 x 2K/3G/HD/SD-SDI, HDMI monitoring
- Y/Pb/Pr, VGA, CVBS monitoring
- 16-channel embedded audio meters with alerts
- Select any two audio channels to output
- Supports video analysis assistant patterns such as waveform Y/Cb/Cr/R/G/B and single line, vectorscope, & histogram R/G/B/Y
- Peaking focus assist (red/blue switch)
- AFD, timecode, H/V delay
- TSL UMD and text Tally display
- Safety marker 4:3/13:9/14:9/15:9/1.85:1/2.35:1
- False color, R/G/B/Mono, zebra stripes, internal color bar
- V-mount battery plate
- 19" rack install, 7U height
- USB firmware upgrade
In the Box SWIT 17.3" Full HD Waveform Studio LCD Monitor (V-Mount) 2 x Desktop Stand Feet V-Mount Battery Plate AC-DC Power Adapter 19-Inch Rack Mount Bracket Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SWIT 17.3" Full HD Waveform Studio LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSWIT S-1173 Specs | | | Size | 17.3" / 43.9 cm | | Display Area | 381.89 x 214.8 mm | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 (4:3 adjustable) | | Brightness | 300 cd/m2 | | Contrast | 700:1 | | Color | 16.77 million colors | | Viewing Angle | Horizontal: 160°
Vertical: 160° | | | | Input | 2 x BNC: 2K/3G/HD/SD-SDI input
1 x BNC: CVBS input
3 x BNC: Y/Pb/Pr input
1 x HDMI: HDMI input
2 x RS-485: 1 x GPI, 1 x UMD
1 x RS-232C: UMD
1 x VGA: VGA input
2 x 3.5 mm RCA: L/R audio input
1 x USB input (firmware upgrade) | | Output | 2 x BNC: 2K/3G/HD/SD-SDI loop output
1 x BNC: CVBS Loop output
1 x HDMI: HDMI loop output
1 x RS-485: UMD
1 x 3.5 mm: SDI, HDMI, embedded audio output, analog audio output | | | | CVBS | NTSC/PAL | | SDI | SMPTE 2048-1:2011
2048 x 1080p: 60/59.94/50/30/29.97/25/24/23.98
SMPTE-425M:
1080p: 60/59.94/50
SMPTE-274M:
1080i: 60/59.94/50
1080p: 30/29.97/25/24/23.98
SMPTE-RP211:
1080psf: 30/29.97/25/24/23.98
SMPTE-296M:
720p: 60/59.94/50
SMPTE-125M:
480i: 59.94
ITU-R BT.656:
576i: 50 | | HDMI | 480i / 576i / 480p / 576p
1080i: 60 / 59.94 / 50
720p: 60 / 59.94 / 50
1080p: 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 | | Component (Y/Pb/Pr) | 480i / 576i / 480p / 576p
720p: 50/60
1080i: 50/60
1080p: 50/60 | | VGA | 640 x 480 / 800 x 600/ 1024 x 768 / 1152 x 864 / 1280 x 768 | | | | Working Voltage | 100 to 240 VAC
DC: 11 to 17 V | | Power Consumption | ≤32 W | | Working Temperature | 32 to 104°F / 0 to 40°C | | Humidity | 10 to 90% | | Storage Temperature | 5 to 150°F / -15 to 60°C | | Storage Humidity | 10 to 90% | | Dimensions | 17.0 x 12.2 x 2.8" / 430 x 310 x 73 mm | | Weight | 10.3 lb / 4.65 kg |
