User Manual for SWIT 2-Battery Kit for Canon C300 Mark II & C200 Click to enlarge the picture
Contents of the user manual for the SWIT 2-Battery Kit for Canon C300
- Product category: On Camera Batteries SWIT
- Brand: SWIT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SWIT On Camera Batteries
 |
User manual for the SWIT 2-Battery Kit for Canon C300 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SWIT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SWIT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SWIT product will considerably shorten its lifespan!
|

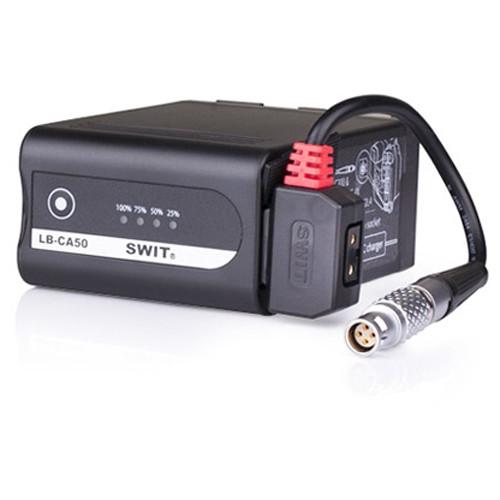

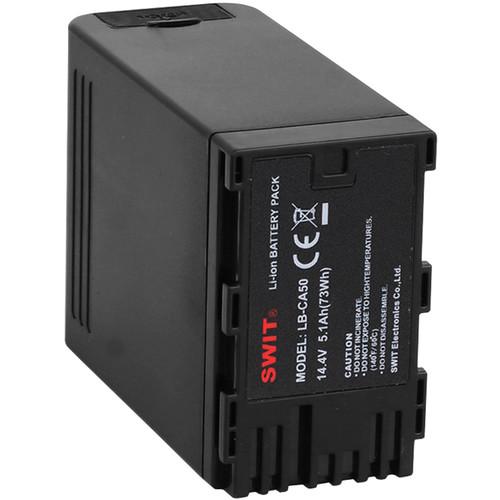

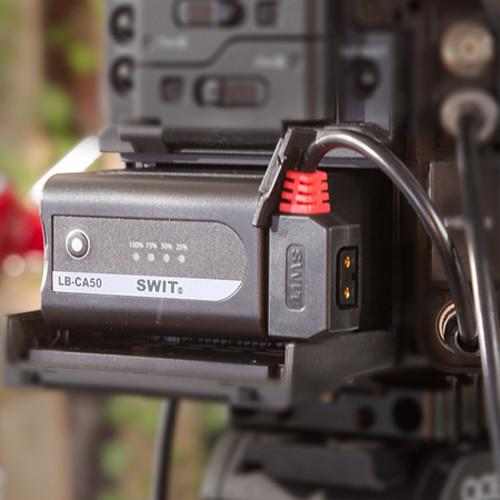

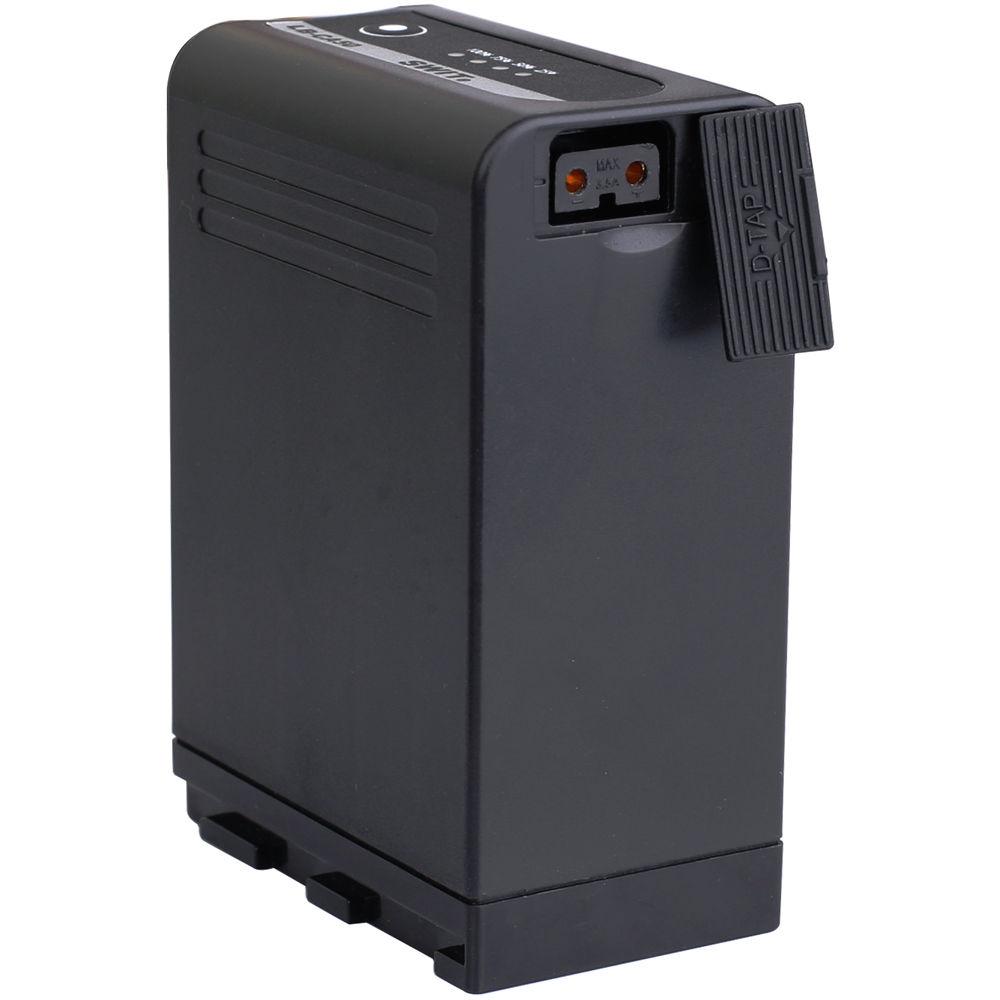

Product description The SWIT 2-Battery Kit for Canon C300 Mark II & C200 features two 73Wh batteries designed as cost-effective alternatives to the Canon BP-A60 battery. Each battery runs for approximately 6 hours on the C300 Mark II with the camera's monitor on. The batteries have a Canon BP-A mount and attach interchangeably in place of the camera's standard battery. They were designed without battery contacts, featuring a D-Tap port instead that allows connecting to the camera using the included D-Tap to LEMO cable.

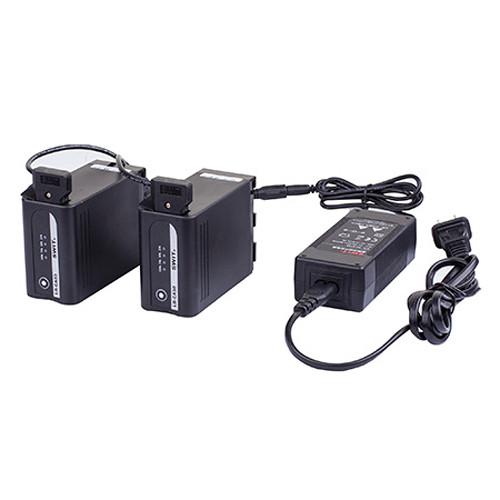

Each battery also offers a USB port for charging mobile devices. The kit also includes a 3A dual D-Tap to 2-prong AC cord charger that fully recharges both batteries at the same time in approximately 3.5 hours. - Key Features
-
- Cost-effective alternative to the Canon BP-A60 battery
- 2 x 73Wh batteries with Canon BP-A mount and D-Tap port instead of battery contacts
- D-Tap to LEMO cable
- Dual D-Tap simultaneous charger
- 6-hour runtime per battery

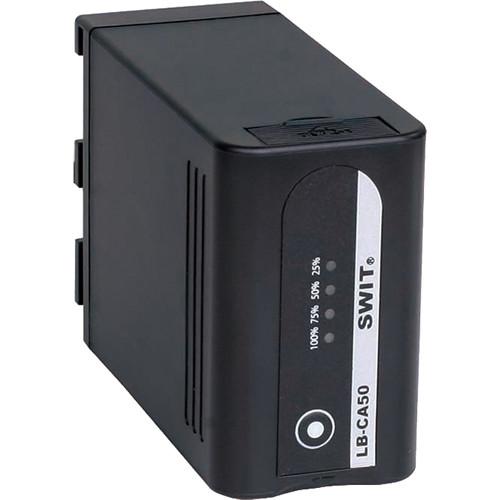

- 4-LED power indicator

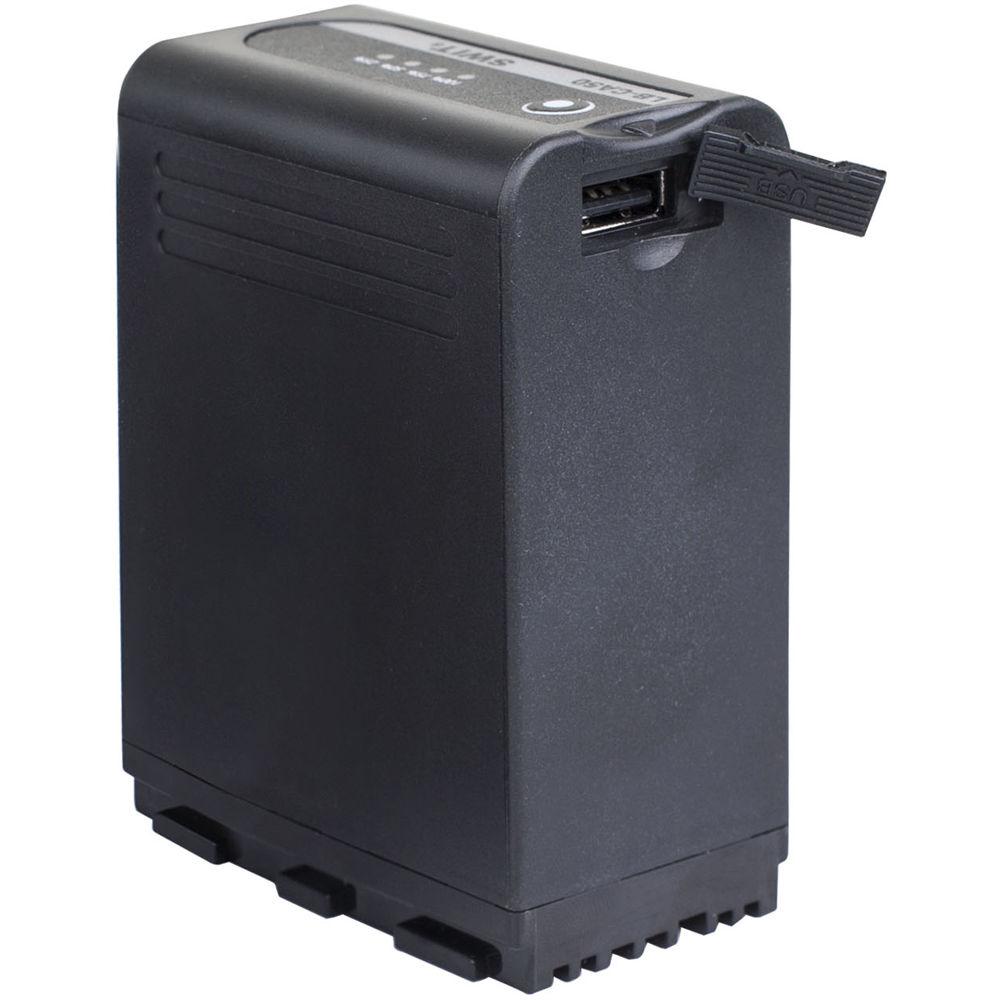

- 5V/1A USB charging output
- Circuit protection

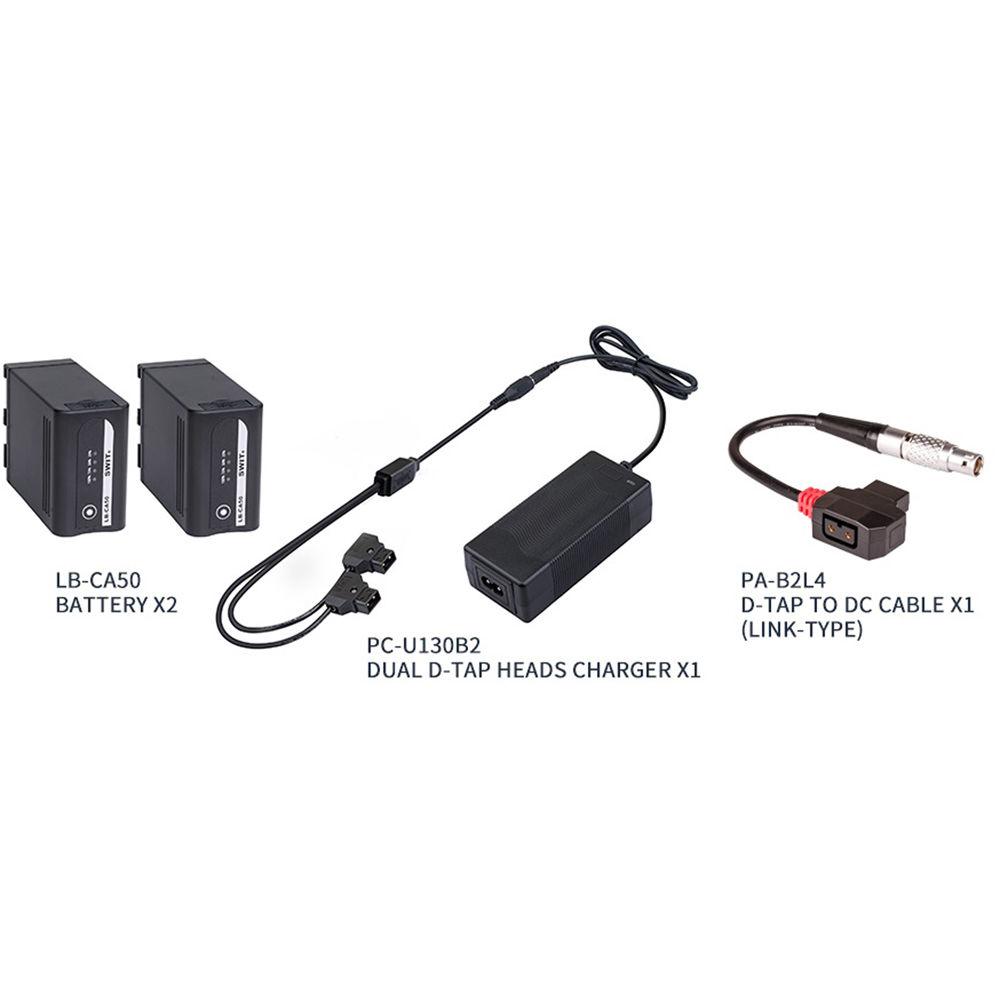

In the Box SWIT 2-Battery Kit for Canon C300 Mark II & C200 2 x LB-CA50 Battery PA-B2L4 D-Tap to LEMO Cable PC-U130B2 Dual D-Tap 3A Charger Limited 1-Year Warranty User Manual PDF 466.8kb Table of Contents
|
Upload User Manual
Have you got an user manual for the SWIT 2-Battery Kit for Canon C300 Mark II & C200 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSWIT LB-CA50-KIT Specs | Mount / Series Type | Canon BP-A Series | | Chemistry | Lithium-Ion | | Capacity (Wh) | 73 Wh | | Amp-Hours | 5.1 Ah | | Output Voltage | 14.4 VDC | | USB Output | 5 V, 1 A | | Dimensions (W x H x D) | 1.7 x 2.8 x 3.8" / 4.2 x 7.0 x 9.6 cm | | Weight | 0.9 lb / 410 g | | | | Package Weight | 3.1 lb | | Box Dimensions (LxWxH) | 7.0 x 4.8 x 4.2" |
