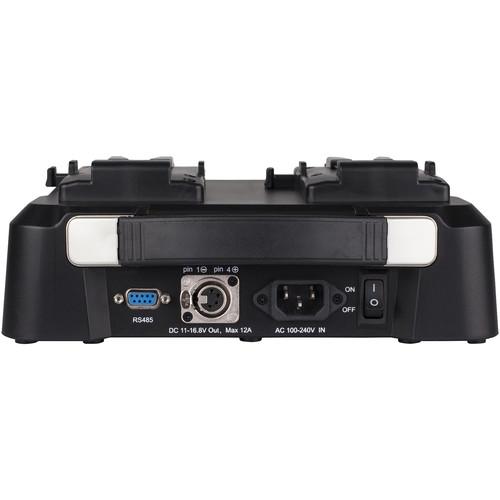

User Manual for SWIT 2-Channel V-Mount Fast Battery Charger with LCD Click to enlarge the picture
Contents of the user manual for the SWIT 2-Channel V-Mount Fast Battery Charger
- Product category: Chargers SWIT
- Brand: SWIT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SWIT Chargers
 |
User manual for the SWIT 2-Channel V-Mount Fast Battery Charger contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SWIT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SWIT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SWIT product will considerably shorten its lifespan!
|

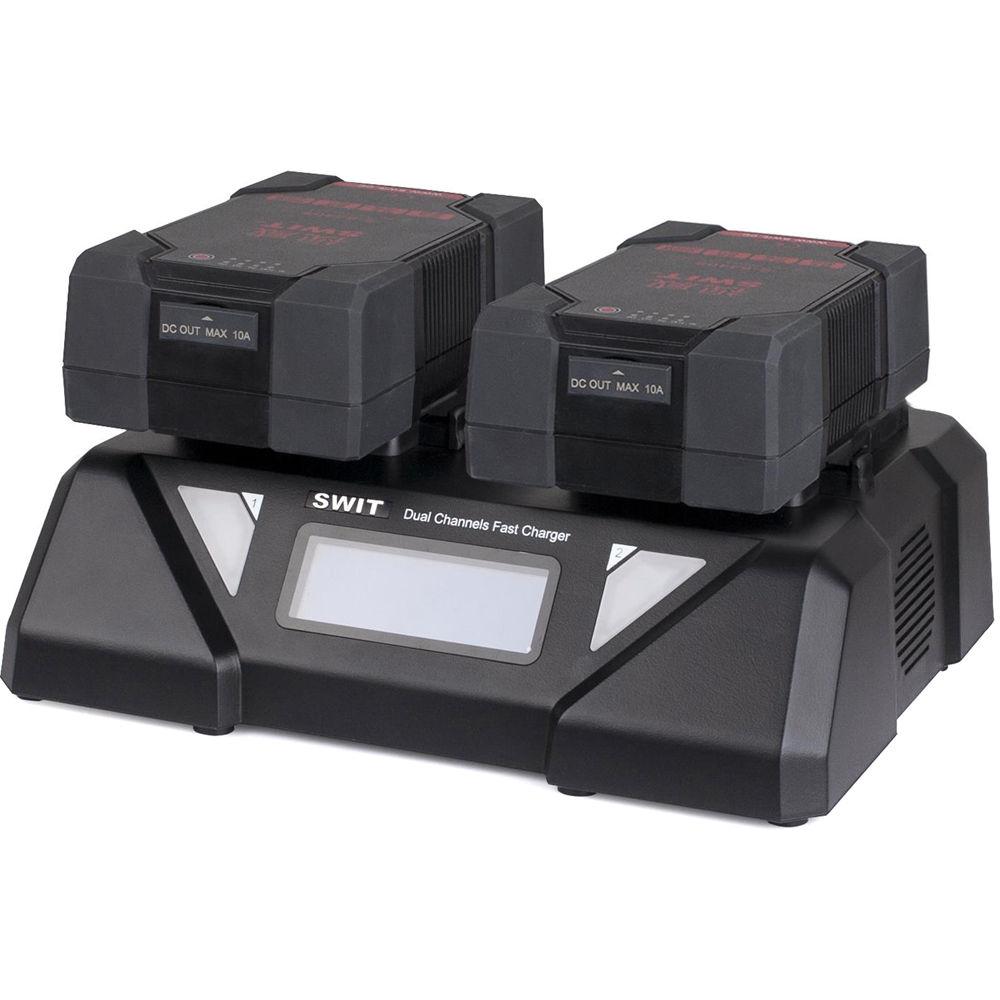

Product description Provided by third party: S-3812S can charge 2 V-mount batteries simultaneously at Max 6A fast charging current, to SWIT particular batteries. The charging speed is quite faster than normal chargers.

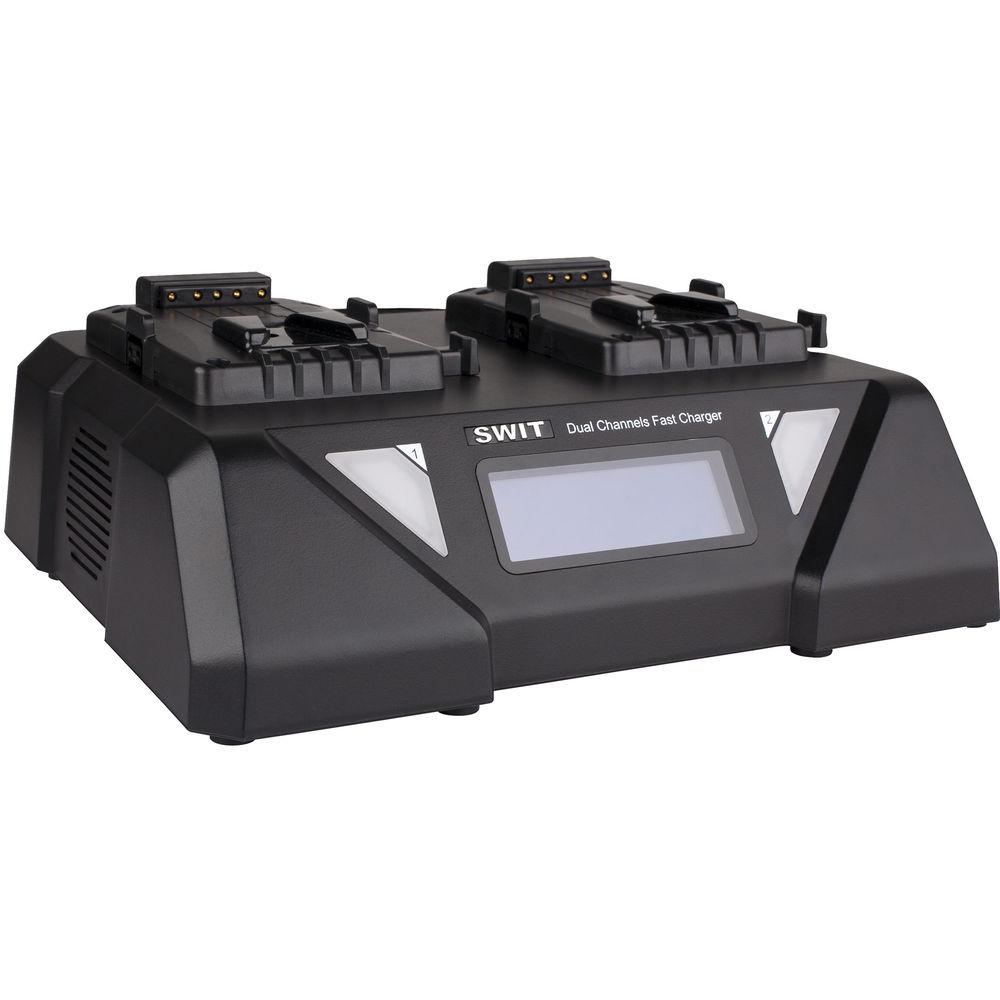

S-3812S has an LCD screen to display the real time. S-3812S has the 3-color LED indicators for both 2 channels.
- Key Features
-
- 2-ch simultaneous charging
- Identify battery type and adjust charging method
- 6A fast charging for SWIT particular batteries
- 3A charging for normal batteries
- Support AC to 4-pin XLR output
- Support battery to 4-pin XLR output
- LCD display charging/adapting info
- Max charging current: 6A
- S-3812S can charge 2 V-mount batteries simultaneously at Max 6A fast charging current, to SWIT particular batteries. The charging speed is quite faster than normal chargers.
- AC-DC adapting output

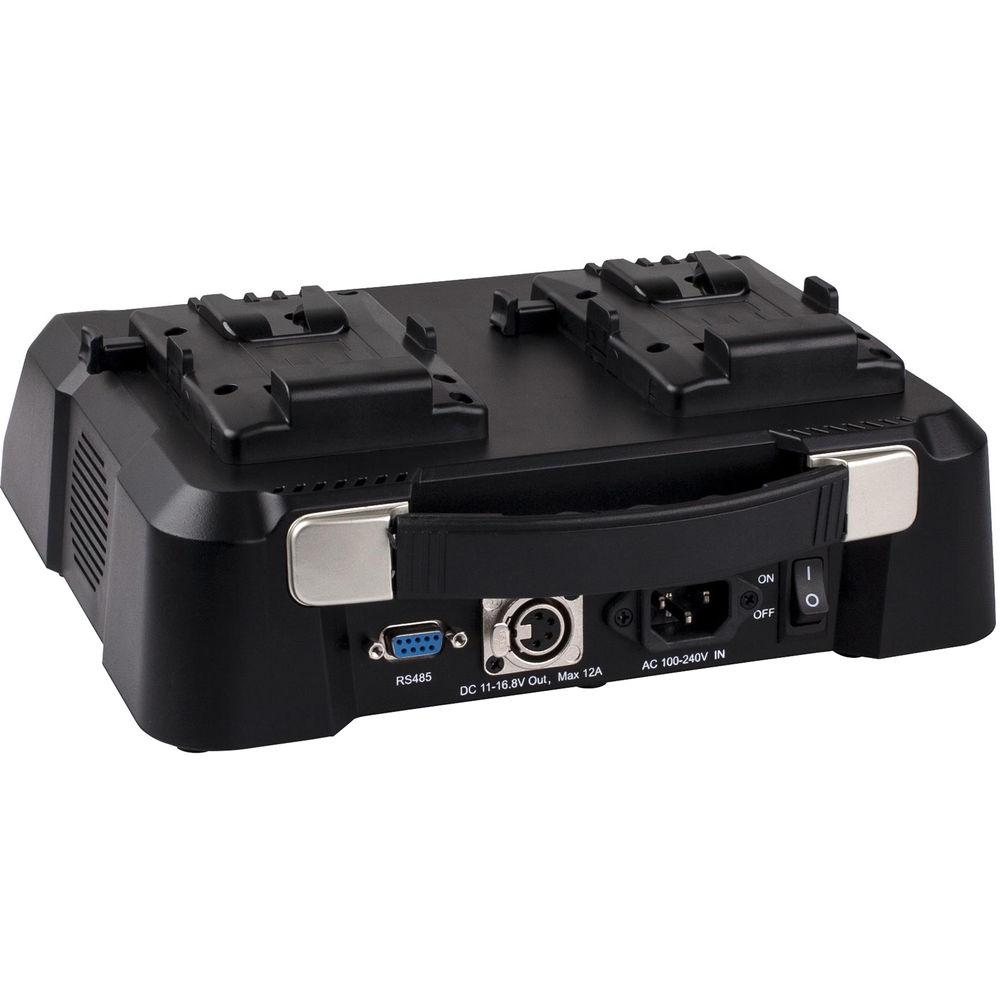

- S-3812S supports 1-ch AC-DC adapting output via 4-pin XLR port. By S-7102 (4-pin XLR female to male) cable, it can supply 16.8V DC power to the other equipment, Max load 200W/12A.
- LCD charging info display
- S-3812S has an LCD screen to display the real time.
- 3-color LED indicators
- S-3812S has the 3-color LED indicators for both 2 channels.
Table of Contents
|
Upload User Manual
Have you got an user manual for the SWIT 2-Channel V-Mount Fast Battery Charger with LCD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSWIT S-3812S Specs | | | Product Type | Battery charger / power adapter | | Width | 10.7 in | | Depth | 9.7 in | | Height | 3.8 in | | Weight | 4.08 lbs | | | | Voltage Required | AC 100-240 V (50/60 Hz) | | Voltage Provided | 16.8 V | | Output Connectors | 4 pin XLR | | Max Electric Current | 12 A | | Features | LCD display, V-Mount, LED indicator, temperature protection, overcharging protection, over-current protection | | | | Max Supported Qty | 2 | | Technology | Lithium ion | | | | Package Weight | 5.4 lb | | Box Dimensions (LxWxH) | 15.4 x 11.5 x 5.0" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 89 owners. Add your rating and experience with the product.
