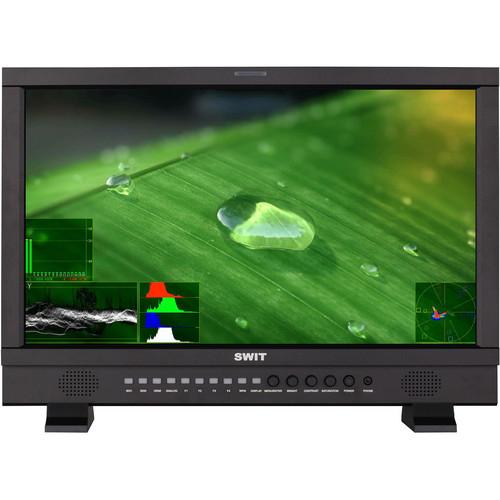

User Manual for SWIT 21.5" Full HD Waveform Studio LCD Monitor Click to enlarge the picture
Contents of the user manual for the SWIT 21.5" Full HD Waveform Studio
- Product category: Production Monitors SWIT
- Brand: SWIT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SWIT Production Monitors
|
User manual for the SWIT 21.5" Full HD Waveform Studio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SWIT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SWIT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SWIT product will considerably shorten its lifespan!
|
Product description The 21.5" Full HD Waveform Studio LCD Monitor from SWIT adopts an IPS (In-Plane Switching) LCD panel with full HD resolution. It also features an LED backlight, 1000:1 contrast for accurate color reproduction, and a viewing angle of 178°. The supported video analysis assistant patterns include: Waveform (Y/Pb/Pr/R/G/B), Vectorscope and Histogram (R/G/B/Y). For convenience, the patterns can be switched on/off individually.
The monitor can display SDI 16-channel and HDMI 8-channel embedded audio meters with marks and audio abnormal alert info. Users can also select any 2 channels audio to output to the internal speakers or via the 3.5 mm audio output jack. The audio meter pattern position can be selected from Up/Down/Left/Right, and you can select to display 2 channels, 8 channels or 16 channels. It supports UMD and Text-Tally display of TSL 3.1/4.0 protocol, with 1-126 TSL address selection; up to 8 letters can be displayed.
The monitor provides a standard USB port for firmware upgrade. You can download the latest firmware file to a USB stick, and directly insert it into the monitor to upgrade; no computer needed. For power, it provides a 4-pin XLR jack for 11-17 VDC, and a Gold-Mount battery plate enables outdoor using. There are three colors for the Tally light: Red, Green and Yellow. -
- 21.5" LCD panel, 1920 x 1080 resolution
- 2K/3G/HD/SD-SDI (x2), HDMI monitoring
- Y/Pb/Pr, VGA, CVBS monitoring
- 16-channel embedded audio meters with alert
- Select any 2 audio channels to output
- Waveform Y/Cb/Cr/R/G/B and single line
- Vectorscope, Histogram R/G/B/Y
- Peaking focus assist (red/blue switch)
- AFD, timecode, H/V delay
- TSL UMD and text TALLY display
- Safety marker 4:3/13:9/14:9/15:9/1.85:1/2.35:1
- False color, R/G/B/Mono, zebra stripes, internal color bar
- USB firmware upgrade
In the Box SWIT 21.5" Full HD Waveform Studio LCD Monitor (Gold-Mount) Gold-Mount Battery Plate AC-DC Power Adapter 2 x Desktop Stand Feet Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SWIT 21.5" Full HD Waveform Studio LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSWIT S-1223 Specs | | | Size | 21.5" (546.1 mm) | | Display Area | 18.78 x 10.55" (47.7 x 26.8 cm) | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 (4:3 selectable) | | Brightness | 250 cd/m2 | | Contrast | 1000:1 | | Color | 16.77 million colors | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | | | Input | 2 x BNC: 2K/3G/HD/SD-SDI
1 x BNC: CVBS
1 x BNC: Y/Pb/Pr
1 x HDMI
2 x RS485: 1 x GPI, 1 x UMD
1 x RS232C: UMD
1 x VGA: VGA input
1 x RCA: L/R audio input
1 x USB:
USB input (firmware upgrade) | | Output | 2 x BNC: 2K/3G/HD/SD-SDI (loop output)
1 x BNC: CVBS (loop output)
1 x HDMI: HDMI (loop output)
1 x RS485: 1 x UMD
1 x 3.5 mm: SDI, HDMI, embedded audio output, analog audio output | | | | CVBS | NTSC/PAL | | SDI | SMPTE 2048-1: 2011
2048 x 1080p (60/59.94/50/30/29.97/25/24/23.98)
SMPTE-425M:
1080p (60/59.94/50)
SMPTE-274M:
1080i (60/59.94/50)
1080p (30/29.97/25/24/23.98)
SMPTE-RP211:
1080psf (30/29.97/25/24/23.98)
SMPTE-296M:
720p (60/59.94/50)
SMPTE-125M:
480i (59.94)
ITU-R BT.656:
576i (50) | | HDMI | 480i / 576i / 480p / 576p
1080i (60/59.94/50)
720p (60/59.94/50)
1080p (60/59.94/50/30/29.97/25/24/23.98) | | Component (Y/Pb/Pr) | 480i / 576i / 480p / 576p, 720p (50/60), 1080i (50/60), 1080p (50/60) | | VGA | 640 x 480 / 800 x 600 / 1024 x 768 / 1152 x 864 / 1280 x 768
1280 x 960 / 1280 x 1024 / 1600 x 1200 | | | | Working Voltage | 100 to 240 VAC
11 to 17 VDC | | Power Consumption | ≤32 W | | Working Temperature | 32 to 104°F (0 to 40°C) | | Humidity | 10 to 90% | | Storage Temperature | 5 to 150°F (-15 to 60°C) | | Storage Humidity | 10 to 90% | | Dimensions | 20.6 x 14.0 x 3.4" (525 x 358 x 87 mm) | | Weight | 13.6 lb (6.2 kg) |
