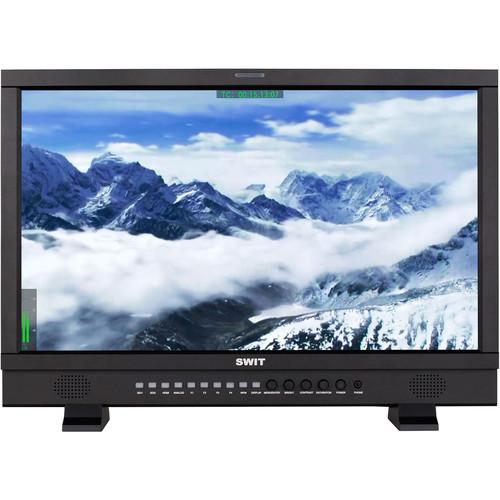

User Manual for SWIT 23.8" Full HD 3G-SDI & HDMI Studio LCD Monitor Click to enlarge the picture
Contents of the user manual for the SWIT 23.8" Full HD 3G-SDI &
- Product category: Production Monitors SWIT
- Brand: SWIT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SWIT Production Monitors
|
User manual for the SWIT 23.8" Full HD 3G-SDI & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SWIT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SWIT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SWIT product will considerably shorten its lifespan!
|
Product description The 23.8" Full HD 3G-SDI & HDMI Studio LCD Monitor with Gold mount battery plate from SWIT adopts a 23.8" IPS (In-Plane Switching) LCD panel and Full HD resolution. It also features an LED backlight, 1000:1 contrast for accurate color reproduction and the horizontal and vertical viewing angle is 178°.
The LCD supports 2-channel audio metering over SDI or HDMI inputs. The audio meter begins at green, turns yellow when it exceeds -20dB, and turns red when it exceeds -9dB. The channel-1 and channel-2 de-embedded audio can be output via the 3.5mm headphone socket or through the speaker. If the audio value is too low or there is no embedded audio, it will display Mute or Unlocked in the audio bar. It supports UMD and text tally display using the TSL 3.1/4.0 protocol with a 1-126 TSL address selection, and a maximum of 8 letters are displayed. The UMD inputs via RS-485 or RS-232C ports, and outputs via an RS-485 port. It also provides a standard USB port for firmware upgrades. You can download the latest firmware file to a USB stick, and directly insert it into the S-1243HA monitor to upgrade, without a PC connection.
The LCD provides a 4-pin XLR jack rated for 11-17 VDC, and a Gold mount battery plate is included for outdoor use. There are three colors for the Tally light: Red, Green and Yellow. You can define the pins of the RS-485 port to control the Tally lights. -
- 23.8" LCD Panel, 1920 x 1080 resolution
- 2 x 2K/3G/HD/SD-SDI, HDMI monitoring
- Y/Pb/Pr, VGA, CVBS monitoring
- 2-channel embedded audio meters with alerts
- Select any two audio channels to output
- Peaking focus assist (red/blue switch)
- AFD, timecode, H/V delay
- TSL UMD and text Tally display
- Safety marker 4:3/13:9/14:9/15:9/1.85:1/2.35:1
- False color, R/G/B/Mono, zebra stripes, internal color bar
- Gold mount battery plate
- USB firmware upgrade
In the Box SWIT 23.8" Full HD 3G-SDI & HDMI Studio LCD Monitor (Gold Mount) 2 x Desktop Stand Feet Gold Mount Battery Plate AC/DC Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SWIT 23.8" Full HD 3G-SDI & HDMI Studio LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSWIT S-1243 Specs | | | Size | 23.8" / 604.5 mm | | Display Area | 527.04 x 296.46 mm | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 (4:3 adjustable) | | Brightness | 250 cd/m2 | | Contrast | 1000:1 | | Color | 16.77 million colors | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | | | Input | 2 x BNC: 2K/3G/HD/SD-SDI loop output
1 x BNC: CVBS loop output
3 x BNC: Y/Pb/Pr input
1 x HDMI: HDMI input
2 x RS-232C: 1 x GPI, 1 x UMD
1 x RS-232C: UMD
1 x VGA: VGA input
3.5 mm RCA: L/R audio input
1 x USB:
USB input (firmware upgrade) | | Output | 2 x BNC: 2K/3G/HD/SD-SDI loop output
1 x BNC: CVBS Loop output
1 x HDMI: HDMI loop output
1 x RS-485: 1 x UMD 1 x 3.5 mm: SDI, HDMI, embedded audio output, analog audio output | | | | CVBS | NTSC/PAL | | SDI | SMPTE 2048-1:2011
2048 x 1080p: 60/59.94/50/30/29.97/25/24/23.98
SMPTE-425M:
1080p: 60/59.94/50
SMPTE-274M:
1080i: 60/59.94/50
1080p: 30/29.97/25/24/23.98
SMPTE-RP211:
1080psf: 30/29.97/25/24/23.98
SMPTE-296M:
720p: 60/59.94/50
SMPTE-125M:
480i: 59.94
ITU-R BT.656:
576i: 50 | | HDMI | 480i / 576i / 480p / 576p
1080i: 60 / 59.94 / 50
720p: 60 / 59.94 / 50
1080p: 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 | | Component (Y/Pb/Pr) | 480i / 576i / 480p / 576p
720p: 50/60
1080i: 50/60
1080p: 50/60 | | VGA | 640 x 480/800 x 600/1024 x 768/1152 x 864/1280 x 768
1280 x 960 / 1280 x 1024 / 1600 x 1200 | | | | Working Voltage | 100 to 240 VAC
11 to 17 VDC | | Power Consumption | ≤32 W | | Working Temperature | 32 to 104°F / 0 to 40°C | | Humidity | 10 to 90% | | Storage Temperature | 5 to 150°F / -15 to 60°C | | Storage Humidity | 10 to 90% | | Dimensions | 22.6 x 15.2 x 3.4" / 576 x 387 x 87 mm | | Weight | 15.8 lb / 7.2 kg |
