User Manual for SWIT AV-1360 HD PTZ Video Conference Camera Click to enlarge the picture
Contents of the user manual for the SWIT AV-1360 HD PTZ Video Conference
- Product category: PTZ Cameras SWIT
- Brand: SWIT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SWIT PTZ Cameras
|
User manual for the SWIT AV-1360 HD PTZ Video Conference contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SWIT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SWIT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SWIT product will considerably shorten its lifespan!
|

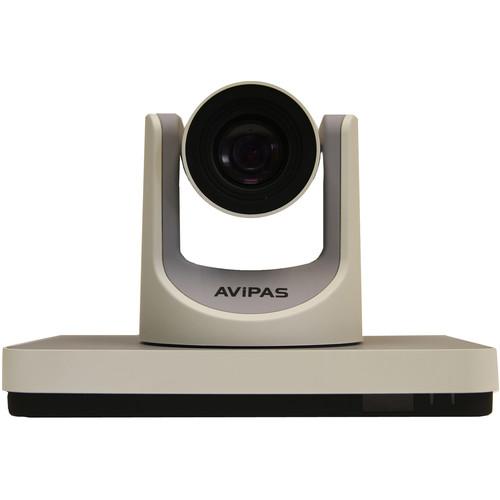

Product description The SWIT AV-1360 HD PTZ Camera outputs HD video at up to 1080p/60. Its H.264/H.265 encoding function enables IP streaming even when using low bandwidth. Features include HDMI and 3G-SDI outputs, a 20x optical/32x digital zoom, and a wide 60.7° angle-of-view. The SWIT AV-1360's low 0.5-lux minimum illumination capability maintains optimal performance even in low-light situations. The AV-1360's USB2.0 output can be used for local storage to a drive (not included). A 1/2.7" CMOS sensor and 2D/3D noise reduction help the AV-1360 produce clear, natural-looking HD images. This PTZ camera is suitable for video conferencing, educational uses, sports applications, and houses of worship. Camera control is available through the included IR remote controller and via the RS-232/RS-485 interface. Key Features - Capable of streaming HD video at up to 1080p/60 resolution with H.264/H.265 encoding
- Store footage on a local drive via the USB2.0 output (drive not include)
- Versatile 20x optical/32x digital zoom lens with a 60.7-3.36° angle of view and a 0.5-lux minimum illumination capacity
- 2D/3D noise reduction and 2.7" CMOS image sensor for clear imaging
- IP streaming, HDMI and 3G-SDI outputs
- Camera control via RS-232/RS-485 interface or included infrared remote controller
UPC: 858738005220 In the Box SWIT AV-1360 HD PTZ Video Conference Camera IR Remote Controller AC Adapter Power Cord RS-232 Cable (7") Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SWIT AV-1360 HD PTZ Video Conference Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSWIT AV-1360 Specs | | | Image Resolution | 1080p: 60/50/30/25
1080i: 60/50
720p: 60/50/30/25 | | Image Sensor | Type: 1/2.7" CMOS
Effective Pixels: 2.07 million
Aspect Ratio: 16:9 | | Lens | Zoom: 20x optical, 32x digital
Focal Length: 4.42-88.5mm
Aperture: f/1.8 to 2.8 | | Minimum Illumination | 0.5 lux (at f/1.8, auto gain on) | | Shutter Speed | 1/30~1/10,000 per second | | White Balance Modes | Auto, 3000K
Indoor, 4000K, 5000K
Outdoor, 6500K-1, 6500K-2, 6500K-3
One-Push, Manual | | Digital Noise Reduction | 2D and 3D | | Video S/N Ratio | ≥55 dB | | Angle of View | Horizontal: 60.7-3.36°
Vertical: 34.1-1.89° | | Rotation Range | Vertical: -30 to 90° | | Speed Range | Pan: 0.7 to 100°/second
Tilt: 0.7 to 69.9°/second | | Number of Presets | 255 | | Preset Accuracy | 0.1° | | | | Encoding | H.264/H.265 | | Video Resolutions | First Stream: 1920 x 1080, 1280 x 720, 1024 x 576, 960 x 540, 640 x 360
Second Stream: 720 x 576, 720 x 480, 320 x 240 | | Video Bit Rate | Range: 128~8192 kbps
Type: Variable, fixed | | Frame Rates | 60 Hz: 1~60 fps
50 Hz: 1~50 fps | | Audio Encoding | AAC | | Audio Streaming | 96/128/256 kbps | | Supported Protocols | TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc. | | | | HD Output | 1 x HDMI: Version 1.3
1 x 3D-SDI: BNC/800 mV p-p/75 Ohms/SMPTE 424M | | Network Interface | 1 x RJ45: 10/100/1000M adaptive Ethernet ports | | Audio Interface | 1-channel 3.5 mm audio interface, line-in | | USB | 1 x USB2.0: Type-A female jack | | Communication Interface | 1 x RS-232 In:
8-pin mini DIN, Max Distance: 98' (30 m), Protocol: VISCA/Pelco-D/Pelco-P
1 x RS-232 Out:
8-pin mini DIN, Max Distance: 98' (30 m), Protocol: VISCA network use only
1 x RS-485:
2-pin Phoenix port, Max Distance: 3937' (1200 m), Protocol: VISCA/Pelco-D/Pelco-P | | | | Power Input | 12 VDC, JEITA-type | | Power Consumption (Maximum) | 12 W, 1.0 A | | Operating/Storage Temperature | Operating: 14 to 104°F (-10 to 40°C)
Storage: -40 to 140°F (-40 to 60°C) | | Mean Time Between Failure (MTBF) | >30,000 h | | Dimensions | 9.4 x 5.7 x 6.3" (240 x 144 x 160 mm) | | Weight | 3.6 lb (1.65 kg) | | | | Package Weight | 6.3 lb | | Box Dimensions (LxWxH) | 11.7 x 9.9 x 9.6" |
