User Manual for SWIT AV-3104 3D Joystick Keyboard Controller with LCD for 64 PTZ Cameras Click to enlarge the picture
Contents of the user manual for the SWIT AV-3104 3D Joystick Keyboard Controller
- Product category: Camera Controllers SWIT
- Brand: SWIT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SWIT Camera Controllers
|
User manual for the SWIT AV-3104 3D Joystick Keyboard Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SWIT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SWIT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SWIT product will considerably shorten its lifespan!
|

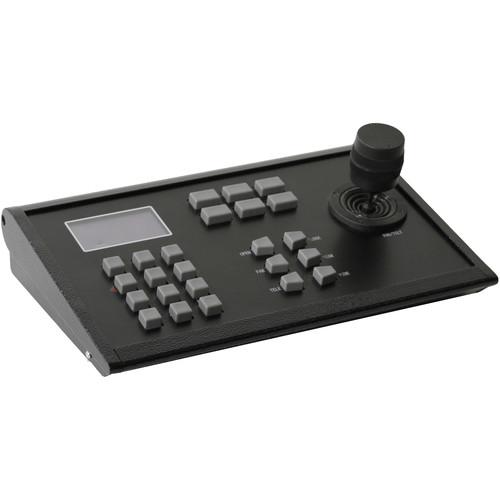

Product description The AV-3104 3D Joystick Keyboard Controller from SWIT is designed for controlling up to 64 PTZ cameras from up to 3937' away, and supports VISCA, Pelco-D, and Pelco-P protocols. Equipped with a 3D joystick, you can control the pan, tilt, and zoom of the camera lens. A backlit LCD screen displays the current operation, the name of the control protocol, the current dome ID, the current monitor ID, and the state of the joystick. Remote communication control provided include RS-232, RS-422, RS-485, and RJ45 ports. - Control speed of pan/tilt and zoom in/out
- Connectable together to other console for a total of four units
- Communication modes: RS-232, RS-422, RS-485, RJ45
UPC: 858738005268 In the Box SWIT AV-3104 3D Joystick Keyboard Controller with LCD for 64 PTZ Cameras (RS-232) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SWIT AV-3104 3D Joystick Keyboard Controller with LCD for 64 PTZ Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSWIT AV-3104 Specs | Channels | 64 | | Frequency | 1200/2400/4800/9600/19200 bps | | Connectors | 1 x RS-485, semi-duplex
1 x RS-422, full-duplex
1 x RS-232
1 x RJ45 | | Power Input | 12 VDC / 500 mAh | | Rated Power | 5 W | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Humidity | 10 to 90% | | Dimensions | 10.7 x 7.1 x 2.1" / 27.1 x 18.1 x 5.4 cm | | Weight | 3.3 / 1.5 kg | | | | Package Weight | 3.72 lb | | Box Dimensions (LxWxH) | 14.8 x 9.35 x 5.5" |
