User Manual for SWIT CW-H150 Wireless HDMI Transmission Kit with Panasonic Battery Plate Click to enlarge the picture
Contents of the user manual for the SWIT CW-H150 Wireless HDMI Transmission Kit
- Product category: Wireless Transmission Systems SWIT
- Brand: SWIT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SWIT Wireless Transmission Systems
 |
User manual for the SWIT CW-H150 Wireless HDMI Transmission Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SWIT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SWIT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SWIT product will considerably shorten its lifespan!
|

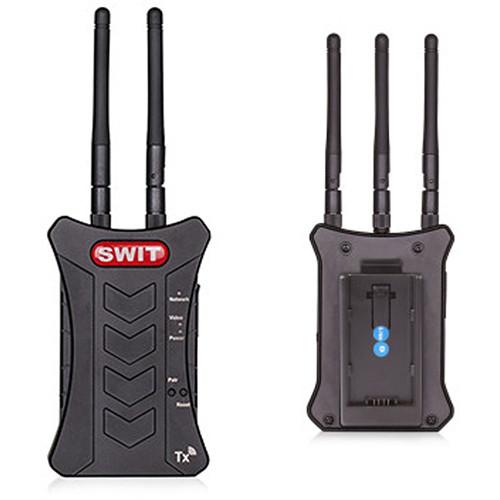

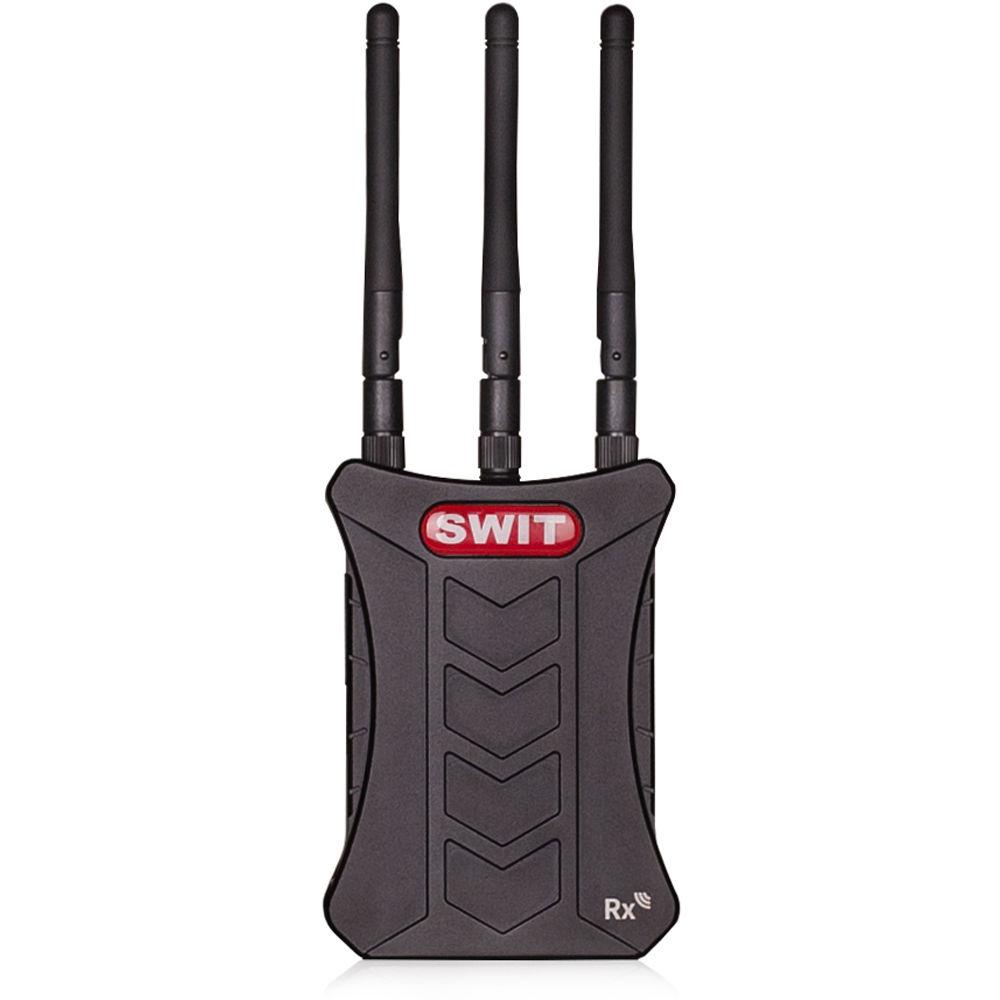

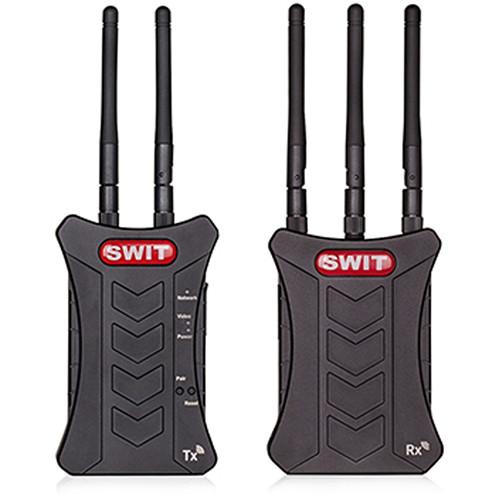

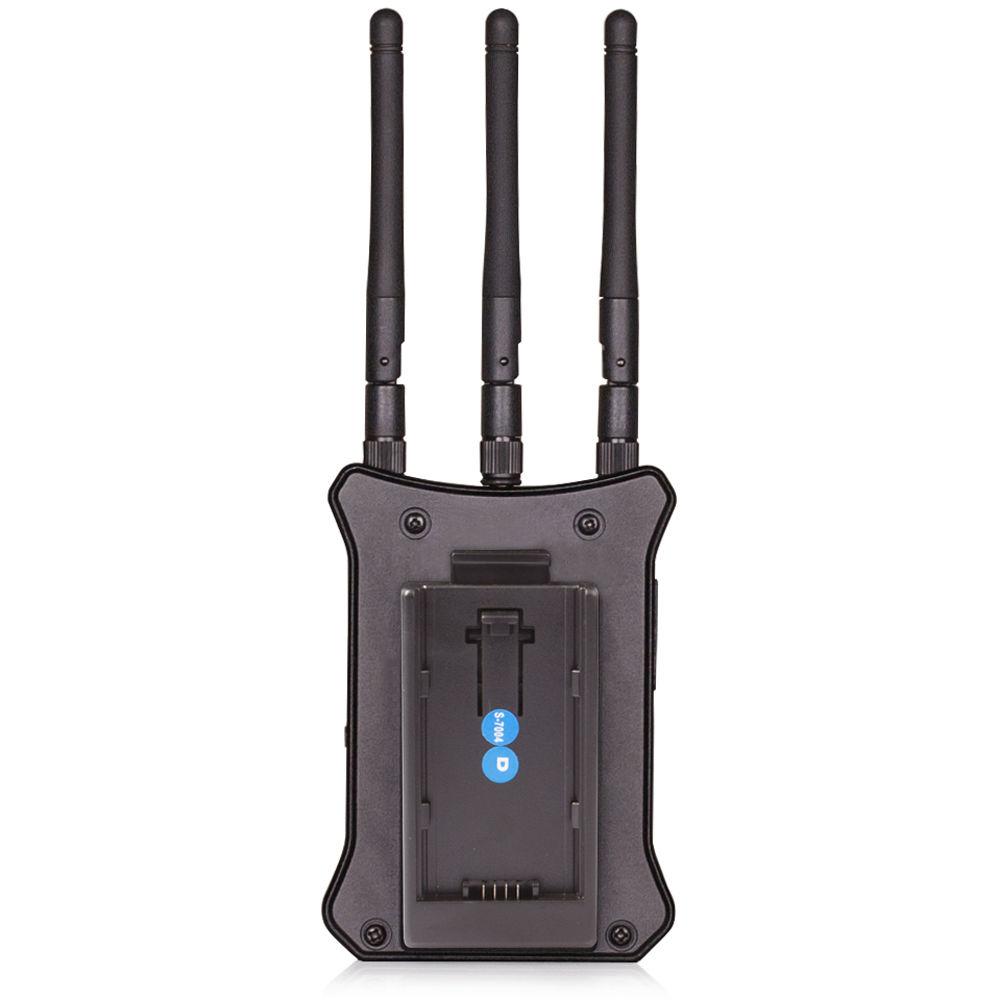

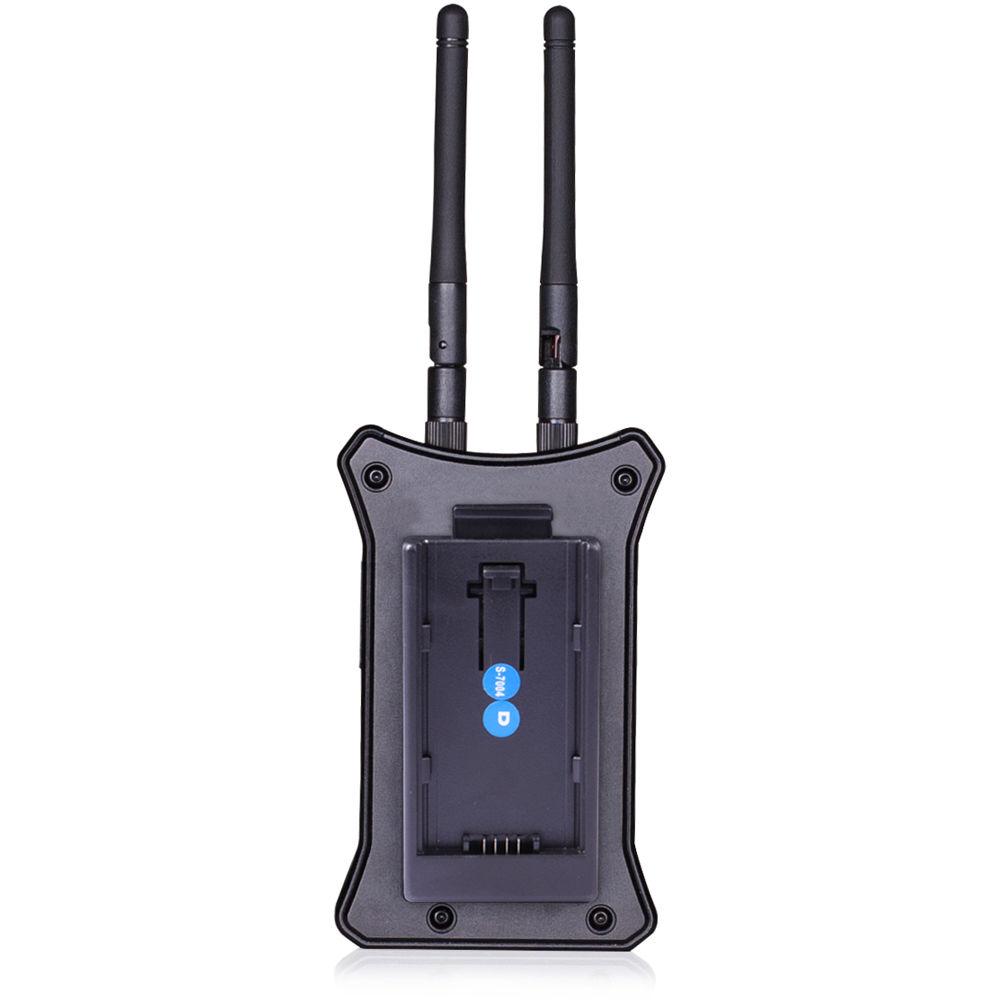

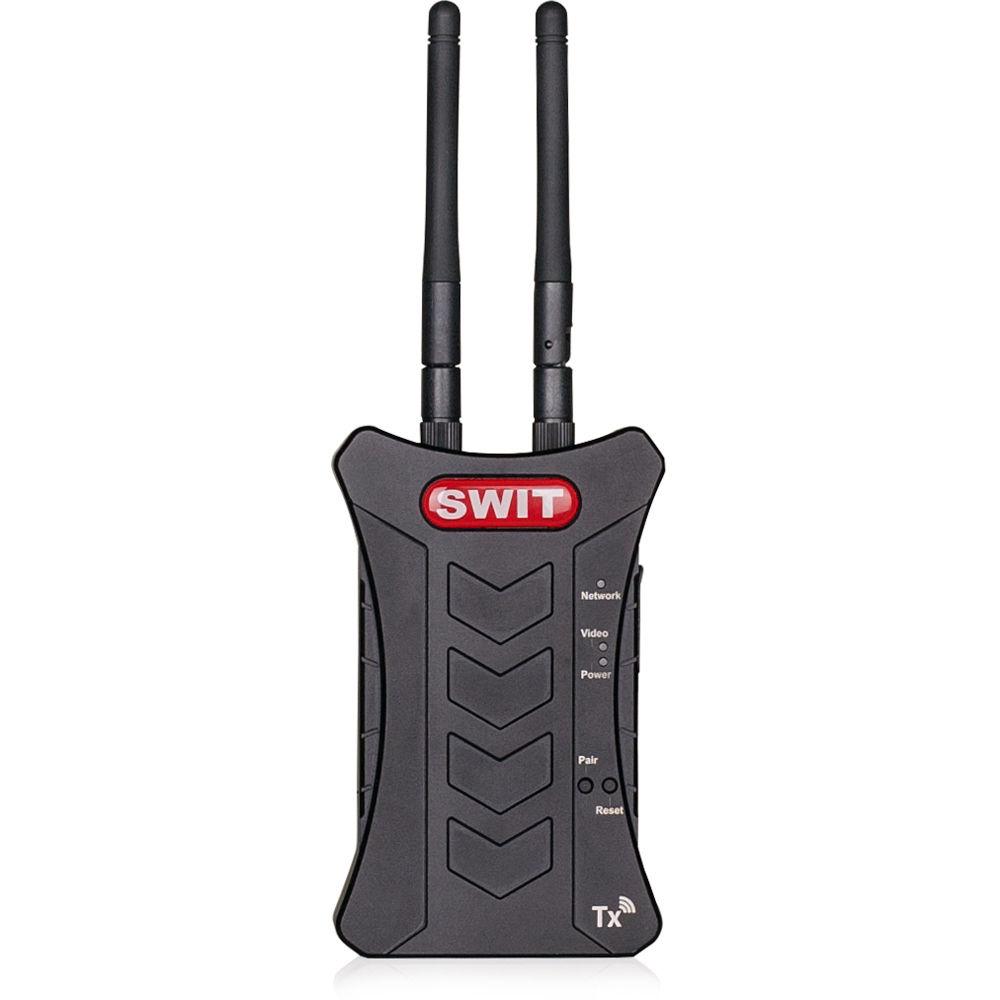

Product description The SWIT CW-H150 Wireless HDMI Transmission Kit can transmit a 1080p HDMI signal up to 492' without noticeable latency. Included in this kit are a transmitter, receiver, power cables, an articulating arm, and a hard case to pack everything up into. In addition to video, the CW-H150 also supports 2 channels of embedded HDMI audio. Since the 5 GHz frequency band is used, the CW-H150 operates license-free in all regions. One transmitter can be used with up to four receivers if you need to get signals to more than one destination. This version of the CW-H150 comes with a Panasonic battery plate that supports Panasonic CGA-D54/28 and VW/VBD58 as well as SWIT S-8D62/8D58/8D98 batteries. In the Box SWIT CW-H150 Wireless HDMI Transmission Kit with Panasonic Battery Plate Transmitter Receiver 5 x Antennas Articulating Arm D-Tap Power Cable Barrel Jack Power Cable HDMI Cable Power Supply Hard Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SWIT CW-H150 Wireless HDMI Transmission Kit with Panasonic Battery Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSWIT CW-H150D Specs | Input | 1 x HDMI type A, v1.3 | | Output | 1 x HDMI type A, v1.3 | | Video Format Support | 1080p 60/59.94/50/30/29.97/25/24/23.98
1080i 60/59.94/50
720p 60/59.94/50 | | Wireless Frequency Range | 5.15-5.85 GHz | | Radio Protocol | OFDM 16QAM | | Transmission Distance | Up to 492' / 150 m (line-of-sight) | | Latency | ≤1 ms | | Power Consumption | Transmitter: Up to 6 W
Receiver: Up to 5 W | | Transmitter Power | Up to 100 mW | | Input Voltage | 7-17 VDC | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions | Transmitter: 3 x 5 x 1.4" / 77 x 126 x 35 mm
Receiver: 3.2 x 4.6 x 1.4" / 82 x 118 x 35 mm | | Weight | Transmitter: 9.5 oz / 268 g
Receiver: 9.4 oz / 267 g |
