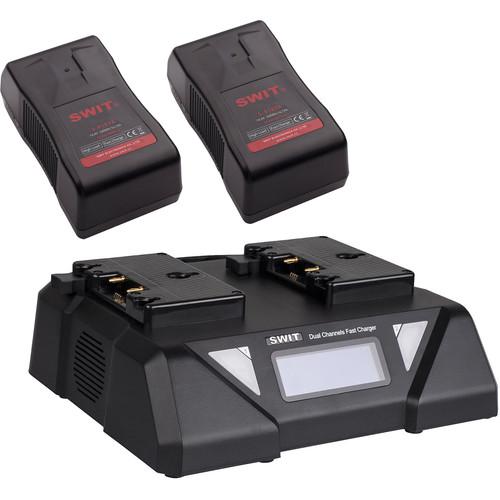

User Manual for SWIT Dual 240Wh, 15A Gold Mount Batteries & 2-Channel Fast Charger Kit Click to enlarge the picture
Contents of the user manual for the SWIT Dual 240Wh, 15A Gold Mount
- Product category: On Camera Batteries SWIT
- Brand: SWIT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SWIT On Camera Batteries
|
User manual for the SWIT Dual 240Wh, 15A Gold Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SWIT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SWIT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SWIT product will considerably shorten its lifespan!
|
Product description This Kit pairs two 14.4V, 240Wh High Load Fast-Charge Gold Mount Batteries with a 2-channel simultaneous Gold Mount Fast Charger. The charger delivers 6A of fast-charging to these batteries, and 3A to other Gold Mount batteries.
Designed with full-size cinema cameras in mind, the High Load batteries support up to 15A of constant draw. The batteries offer a D-Tap output, and the charger features a 4-pin XLR power output and an RS-485 port. The XLR output can be powered from an AC outlet or via attached batteries, so the charger provides a convenient, portable solution. The charger is 100-240V worldwide compatible, has 3-color LED indicators, and is equipped with a carry handle. - 2 x SWIT High Load Series S-8183A Gold Mount Cine-Camera Li-ion Battery The High Load Series S-8183A Gold Mount Cine-Camera Li-ion Battery from SWIT offers up to 180W, 15A constant power output that drives more high-power cine-cameras, high-power lightings and other equipment easily. It won’t reduce battery life during long time high-draw.
- 4-level LED power indicator
- Multiple circuit protections
In the Box - 2 x High Load Series S-8183A Gold Mount Cine-Camera Li-ion Battery zwxrtyccyrrqstsrxuqydrezuad
- Limited 2-Year Warranty
- Dual-Channel Fast Charger for Two Gold Mount Batteries
Table of Contents
|
Upload User Manual
Have you got an user manual for the SWIT Dual 240Wh, 15A Gold Mount Batteries & 2-Channel Fast Charger Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x SWIT High Load Series S-8183A Gold Mount Cine-Camera Li-ion Battery
| Battery Type | Gold Mount | | Nominal Voltage | 14.4 V | | Capacity | 240 Wh / 16.7 Ah | | Maximum Output | 180 W, 15 A | | Dimensions | 6.5 x 3.5 x 2.7" (165 x 90 x 68 mm) | | Weight | 3.02 lb (1.37 kg) | | | | Box Dimensions (LxWxH) | 6.9 x 3.8 x 2.8" | - SWIT Dual-Channel Fast Charger for Two Gold Mount Batteries
| | | Box Dimensions (LxWxH) | 15.2 x 11.3 x 4.8" |
