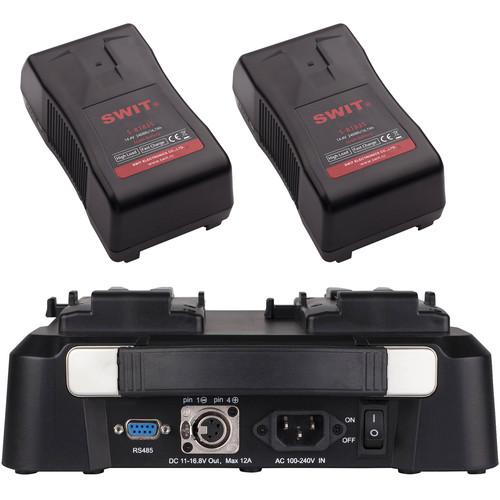

Product description This Kit pairs two 14.4V, 240Wh High-Load Fast-Charge V-Mount Batteries with a 2-channel simultaneous V-Mount Fast Charger. The charger delivers 6A of fast-charging to these batteries, and 3A to other V-Mount batteries.
Designed with full-size cinema cameras in mind, the High-Load batteries support up to 15A of constant draw. The batteries offer a D-Tap output, and the charger features a 4-pin XLR power output and an RS-485 port. The XLR output can be powered from an AC outlet or via attached batteries, so the charger provides a convenient, portable solution. The charger is 100-240 VAC worldwide compatible, has 3-color LED indicators, and is equipped with a carry handle. - 2 x SWIT High Load Series S-8183S V-Mount Cine-Camera Li-ion Battery The High Load Series S-8183S V-Mount Cine-Camera Li-ion Battery from SWIT offers up to 180W, 15A constant power output that drives more high-power cine-cameras, high-power lightings and other equipment easily. It won’t reduce battery life during long time high-draw.
- 4-level LED power indicator
- Multiple circuit protections
- SWIT 2-Channel V-Mount Fast Battery Charger with LCD (6A) Provided by third party: S-3812S can charge 2 V-mount batteries simultaneously at Max 6A fast charging current, to SWIT particular batteries. The charging speed is quite faster than normal chargers.
S-3812S has an LCD screen to display the real time. S-3812S has the 3-color LED indicators for both 2 channels.
- Key Features
-
- 2-ch simultaneous charging
- Identify battery type and adjust charging method
- 6A fast charging for SWIT particular batteries
- 3A charging for normal batteries
- Support AC to 4-pin XLR output
- Support battery to 4-pin XLR output
- LCD display charging/adapting info
- Max charging current: 6A
- S-3812S can charge 2 V-mount batteries simultaneously at Max 6A fast charging current, to SWIT particular batteries. The charging speed is quite faster than normal chargers.
- AC-DC adapting output
- S-3812S supports 1-ch AC-DC adapting output via 4-pin XLR port. By S-7102 (4-pin XLR female to male) cable, it can supply 16.8V DC power to the other equipment, Max load 200W/12A.
- LCD charging info display
- S-3812S has an LCD screen to display the real time.
- 3-color LED indicators
- S-3812S has the 3-color LED indicators for both 2 channels.
In the Box - 2 x High Load Series S-8183S V-Mount Cine-Camera Li-ion Battery zcbzqtacdwuqeqcfcuwxcex
- Limited 2-Year Warranty
- 2-Channel V-Mount Fast Battery Charger with LCD (6A)
Table of Contents
|
Upload User Manual
Have you got an user manual for the SWIT Dual 240Wh, 15A V-Mount Batteries & 2-Channel Fast Charger Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x SWIT High Load Series S-8183S V-Mount Cine-Camera Li-ion Battery
| Battery Type | V-Mount | | Nominal Voltage | 14.4 V | | Capacity | 240 Wh / 16.7 Ah | | Maximum Output | 180 W, 15 A | | Dimensions | 6.5 x 3.5 x 2.6" (165 x 90 x 66 mm) | | Weight | 3.02 lb (1.37 kg) | | | | Box Dimensions (LxWxH) | 7.0 x 4.0 x 2.7" | - SWIT 2-Channel V-Mount Fast Battery Charger with LCD (6A)
| | | Product Type | Battery charger / power adapter | | Width | 10.7 in | | Depth | 9.7 in | | Height | 3.8 in | | Weight | 4.08 lbs | | | | Voltage Required | AC 100-240 V (50/60 Hz) | | Voltage Provided | 16.8 V | | Output Connectors | 4 pin XLR | | Max Electric Current | 12 A | | Features | LCD display, V-Mount, LED indicator, temperature protection, overcharging protection, over-current protection | | | | Max Supported Qty | 2 | | Technology | Lithium ion | | | | Box Dimensions (LxWxH) | 15.4 x 11.5 x 5.0" |
