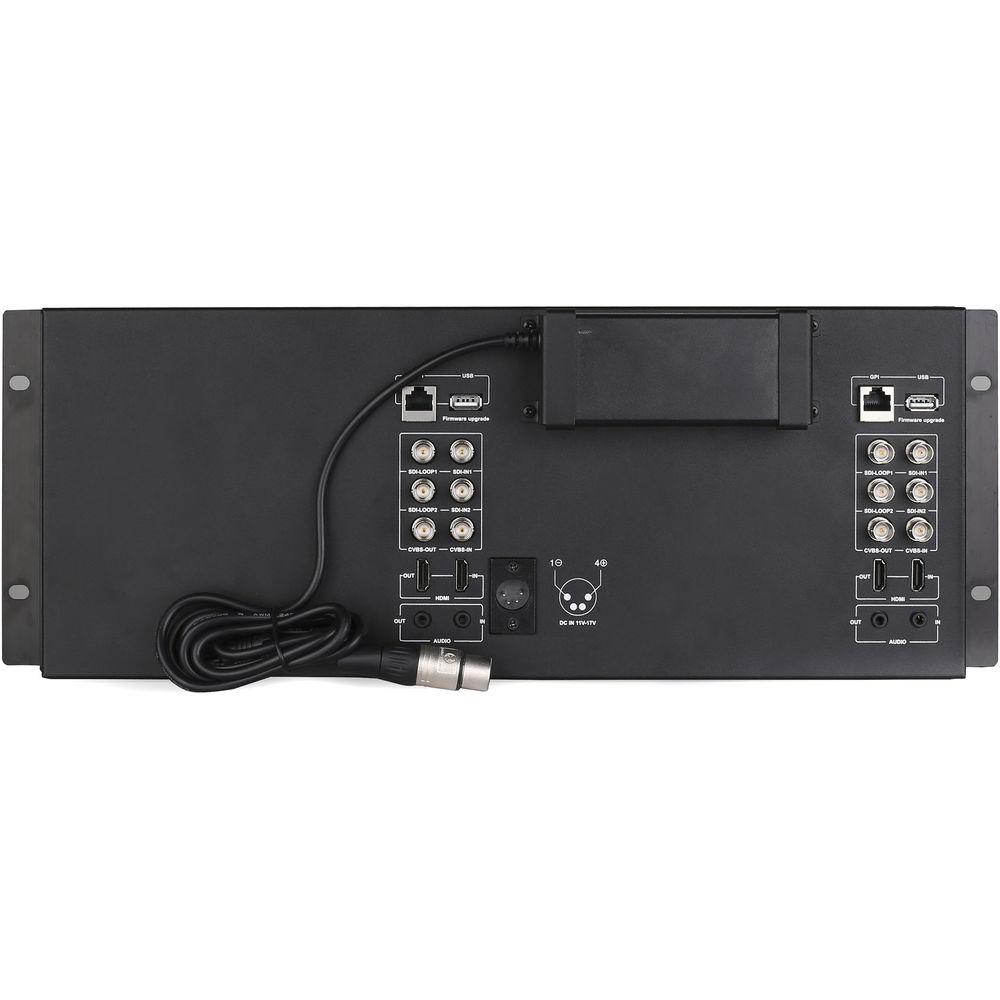

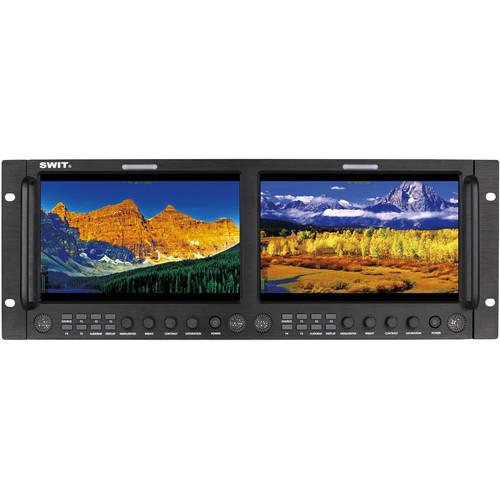

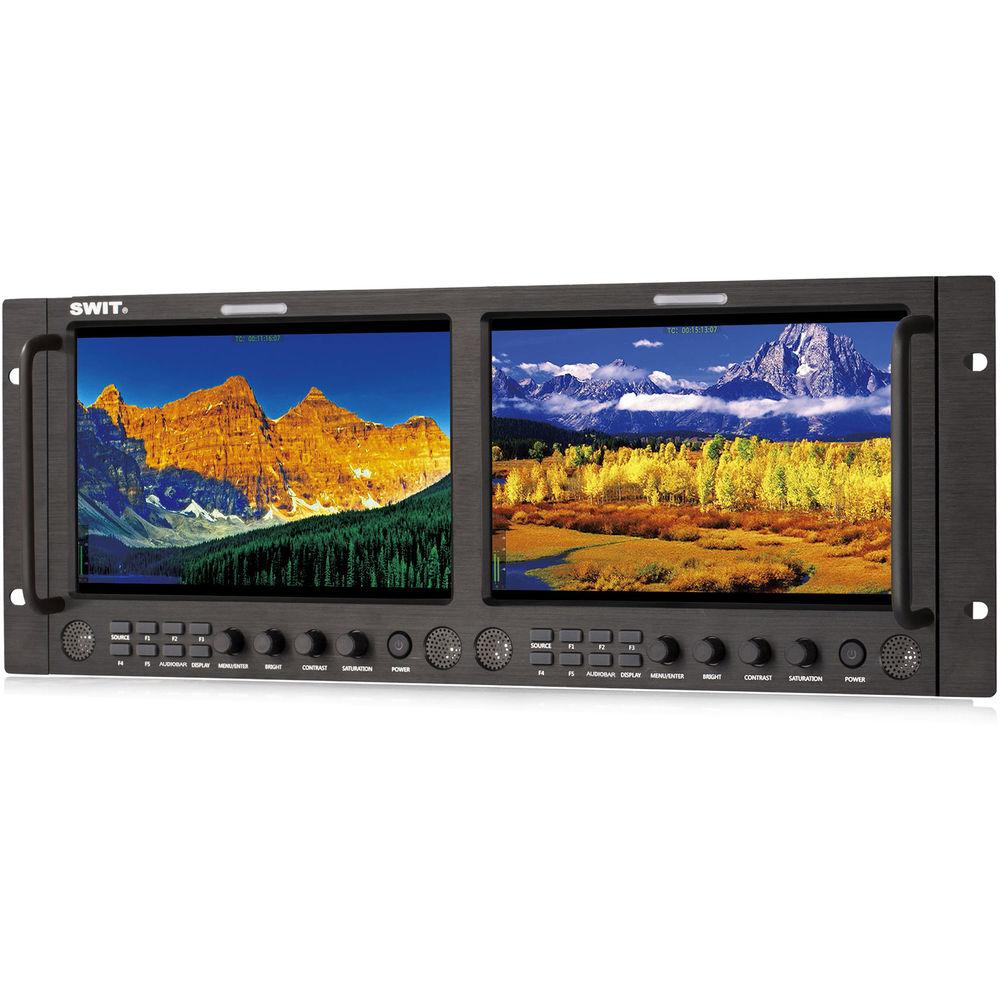

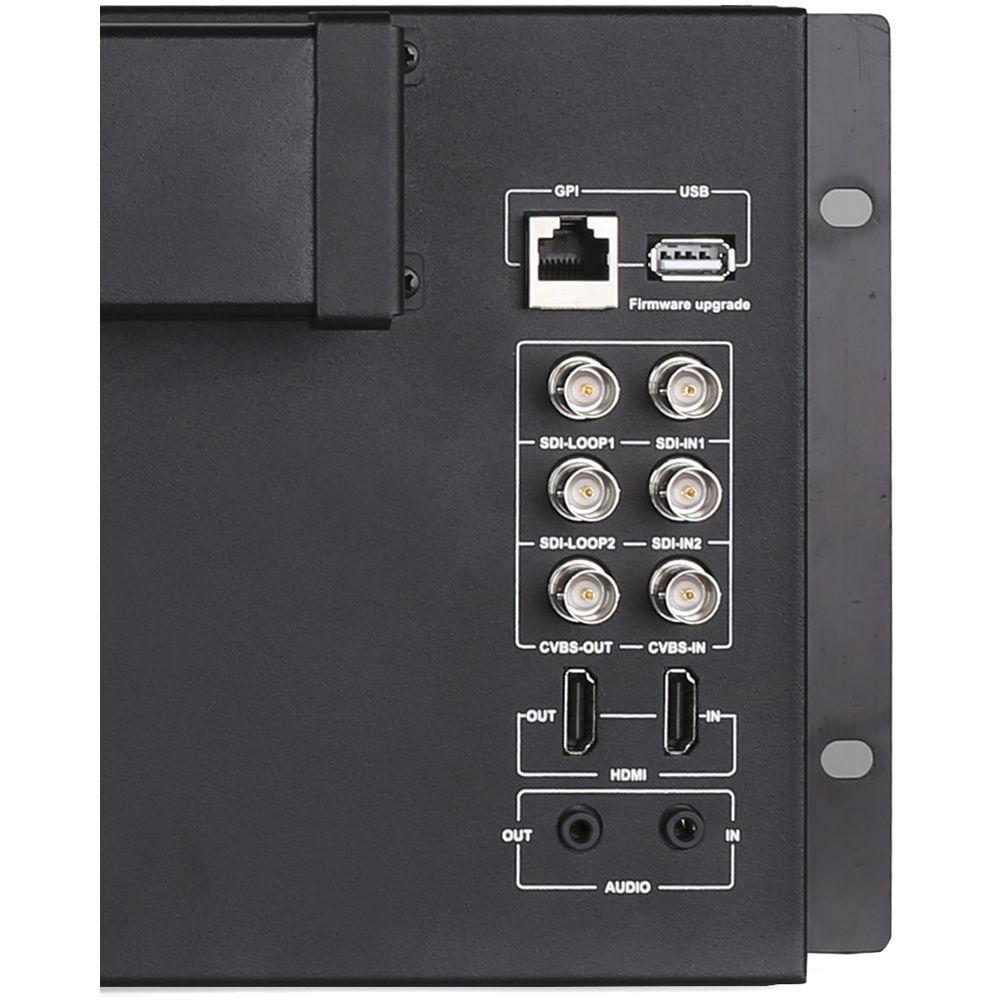

Product description The Dual 9" Full HD Rack LCD Monitor with IPS Panel from SWIT adopts two 9" IPS (In-Plane Switching) LCD panels with Full HD resolution. It also features LED backlight, an 800:1 contrast ratio, and a horizontal and vertical viewing angle of 170°. It is overlaid with glass that protects the screens against scratches or cracks. The unit supports SDI 2-channel / HDMI 2-channel embedded audio meters and analog 2-channel audio meter displays with marks and abnormal audio alert info. The audio meter pattern position can be selected from one of four corners, and the scale markers, alert info, and translucent of the audio meter pattern can be selected. It also supports UMD and text-tally display of the TSL 3.1/4.0 protocol, with 1-126 TSL address selection, and a maximum of eight letters displayed. The UMD/TALLY signal inputs via the RJ45 (RS-485) port on the rear panel. The monitor provides a standard USB port on the rear panel for firmware upgrades. Users can download the latest firmware file to a USB stick and directly insert it into the M-1093H monitor to upgrade without a PC connection. Also, the unit provides a 4-pin XLR socket with 6.5 to 24 VDC power input, and can also run via battery with a V-mount, Gold mount, or DV battery plate (sold separately). -
- Dual 9” IPS LCD, 1920 x 1200, 170° H/V viewing
- Built-in LCD protective glass
- 2K/3G/HD/SD-SDI, HDMI, CVBS monitoring
- 2-channel embedded audio meters with alert
- AFD, H/V delay, R/G/B/Mono, false color
- TSL UMD and text Tally display
- Zebra stripes, peaking focus assist
- SDI timecode display
- Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
- Front / rear Tally light and GPI control
- V-mount, Gold mount, or snap-on DV mount (sold separately)
- USB firmware upgrade
In the Box SWIT Dual 9" Full HD Rack LCD Monitor with IPS Panel Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SWIT Dual 9" Full HD Rack LCD Monitor with IPS Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSWIT M-1093H Specs | | | Size | 2 x 9" (22.8 cm) | | Display Area | 191.52 x 119.70 mm | | Resolution | 1920 x 1200 | | Aspect Ratio | 16:9 (4:3 adjustable) | | Brightness | 450 cd/m2 | | Contrast | 800:1 | | Color | 16.77 million colors | | Viewing Angle | Horizontal: 170°
Vertical: 170° | | | | Input | 2 x BNC: 2K/3G/HD/SD-SDI input
1 x BNC: Composite input
1 x HDMI: HDMI input
1 x 3.5 mm: Analog audio input | | Output | 2 x BNC: 2K/3G/HD/SD-SDI loop output
1 x BNC: Composite loop output
1 x HDMI: HDMI loop output
1 x 3.5 mm: SDI, HDMI, analog audio output | | | | CVBS | NTSC/PAL | | SDI | SMPTE 2048-2:
2048 x 1080p: 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98
2048 x 1080i: 60 / 59.94 / 50
SMPTE-425M:
1080p: 60 / 59.94 / 50
SMPTE-274M:
1080i: 60 / 59.94 / 50
1080p: 30 / 29.97 / 25 / 24 / 23.98
SMPTE-RP211:
1080psf: 30 / 29.97 / 25 / 24 / 23.98
SMPTE-296M: 720p: 60 / 59.94 / 50
SMPTE-125M: 480i59.94
ITU-R BT.656: 576i50 | | HDMI | 480i / 576i / 480p / 576p
1080i: 60 / 59.94 / 50
720p: 60 / 59.94 / 50
1080p: 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 | | | | Working Voltage | DC / battery 6.5 to 24 V | | Power Consumption | ≤18 W | | Working Temperature | 32 to 104°F (0 to 40°C) | | Humidity | 10 to 90% | | Storage Temperature | 5 to 150°F / -15 to 60°C | | Storage Humidity | 10 to 90% | | Dimensions | 19 x 7.0 x 4.4" / 48.4
