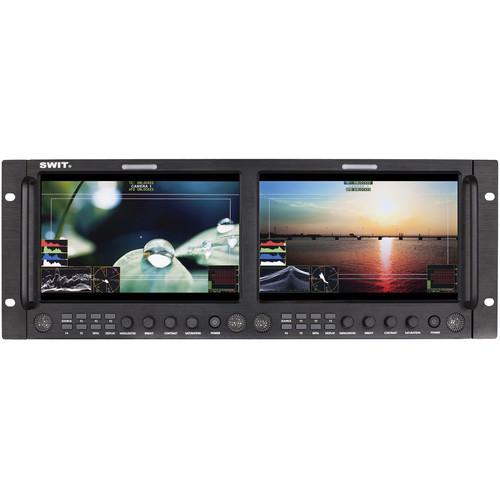

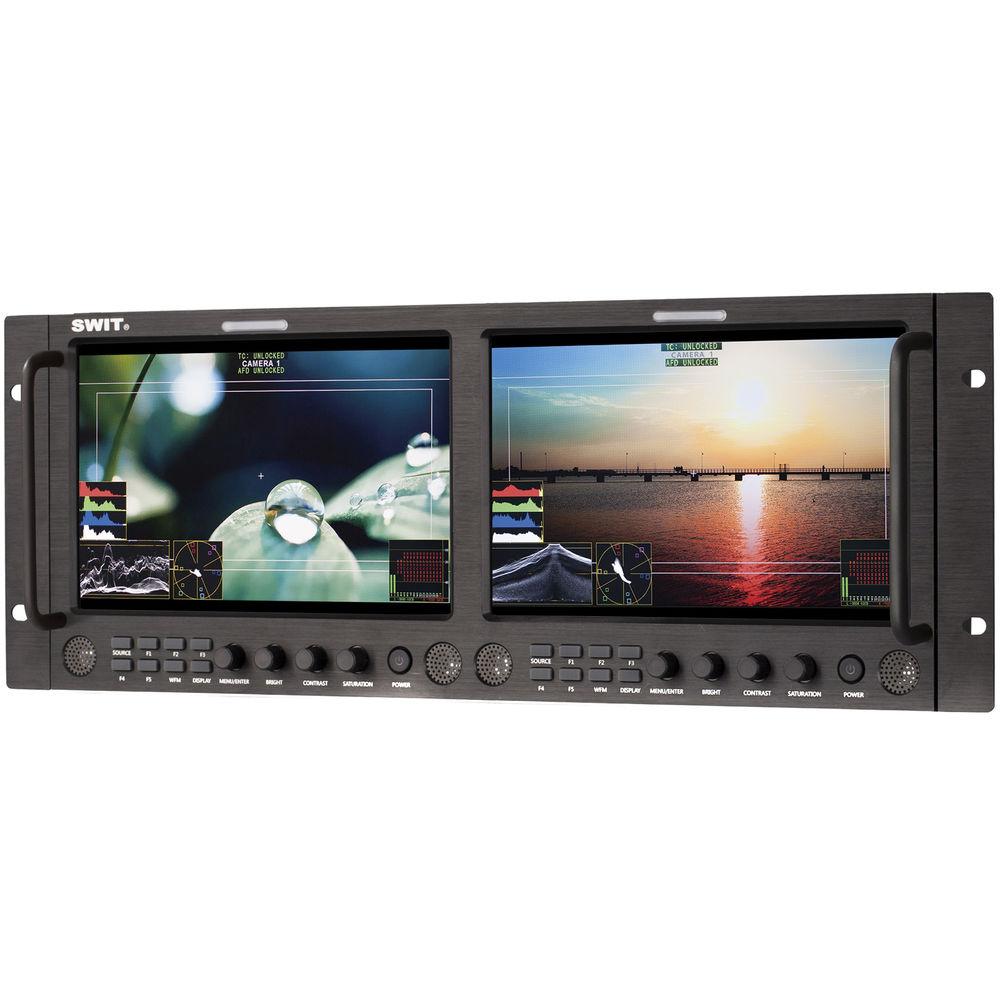

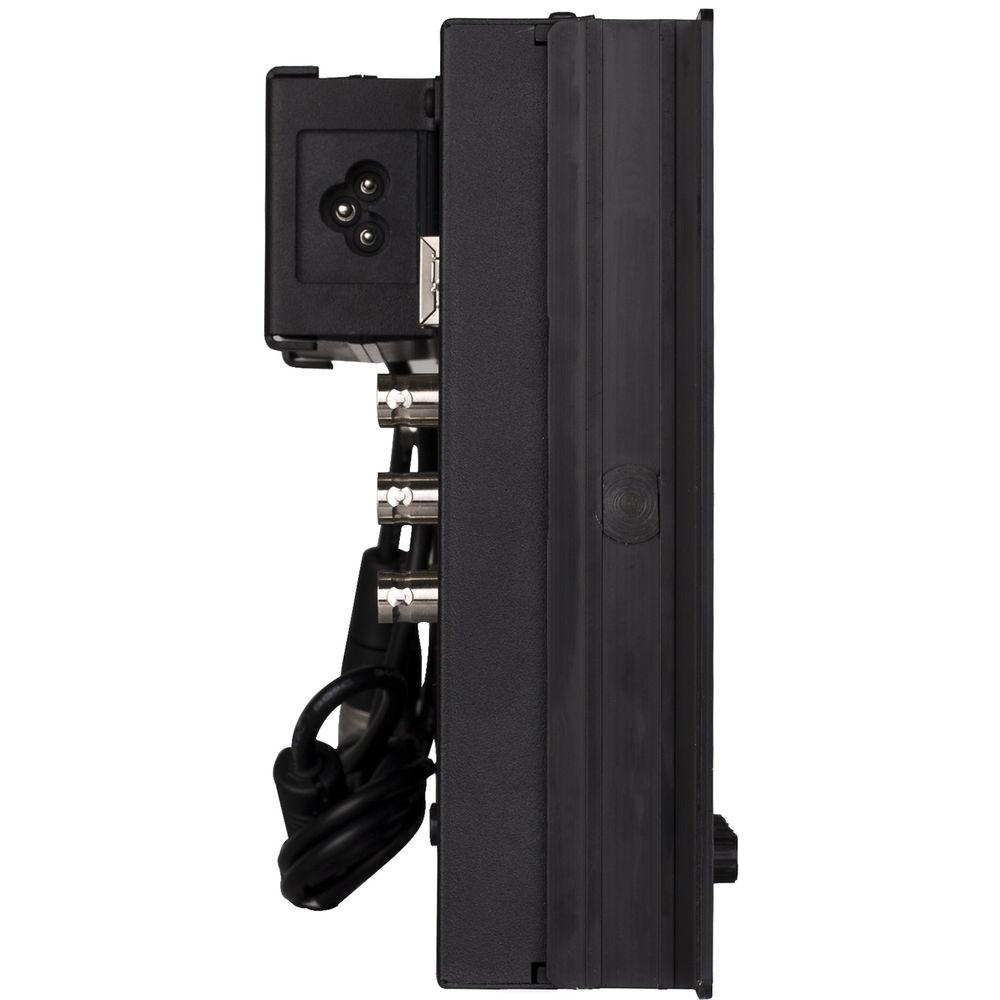

Product description The M-1093F Dual 9" FHD Waveform Rack LCD Monitor from SWIT features two 9" IPS (In-Plane Switching) LCD panels, with Full HD 1920 x 1200 resolution, LED backlight, 800:1 contrast, and the viewing angle is 170°/170°. The monitor supports built-in HDMI to SDI conversion and also features an SDI loop output port. It supports 6.5 to 24 VDC input. - 1920 x 1200 resolution, 800:1 contrast
- 19" 4U rack mounting, ±30° rotatable
- 2K/3G/HD/SD-SDI, HDMI, CVBS monitoring
- 16-channel embedded audio meters with alert
- Select any 2 audio channels to output
- Waveform Y/Cb/Cr/R/G/B and single line
- Vectorscope, histogram R/G/B/Y
- AFD, H/V delay, R/G/B/Mono, false color
- TSL UMD and text Tally display
- Zebra stripes and peaking focus assist
- Marker 4:3, 13:9, 15:9, 1.85:1, 2.35:1
- Tally light and GPI control
In the Box SWIT M-1093F Dual 9" FHD Waveform Rack LCD Monitor LCD Protective Film Power Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SWIT M-1093F Dual 9" FHD Waveform Rack LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSWIT M-1093F Specs | Size | 2 x 9" / 22.9 cm | | Display Area | 191.52 x 119.70 mm | | Resolution | 1920 x 1200 | | Aspect Ratio | 16:9 (4:3 adjustable) | | Brightness | 450 cd/m2 | | Contrast | 800:1 | | Color | 16.77 million colors | | Viewing Angle | Horizontal: 170°
Vertical: 170° | | Input | 2 x BNC: 2K/3G/HD/SD-SDI input
BNC: Composite input
HDMI: HDMI input

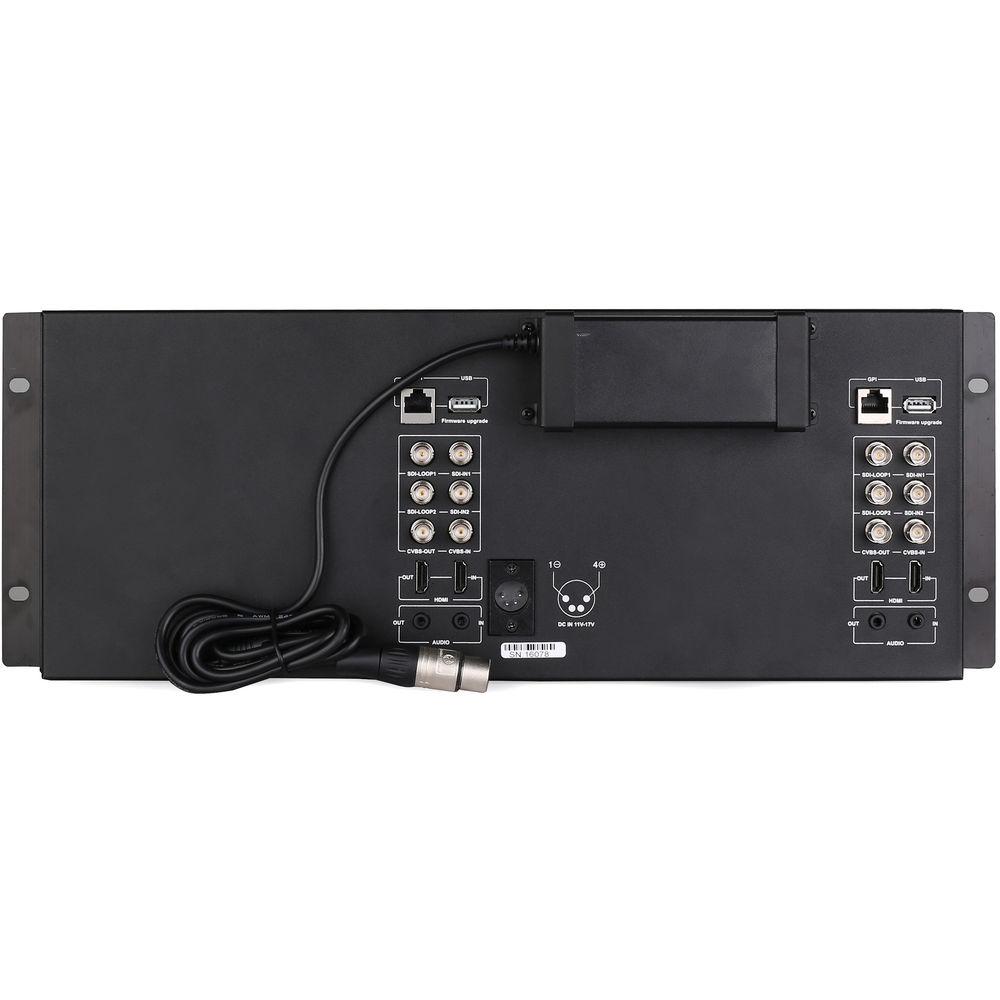

1 x 3.5 mm: Analog audio input | | Output | 2 x BNC: 2K/3G/HD/SD-SDI loop output
1 x BNC: Composite loop output
1 x HDMI: HDMI loop output
1 x 3.5 mm: SDI, HDMI, Analog audio output | | Video Format | CVBS:
Converted NTSC/PAL
SDI:
SMPTE 2048-2: 2048 x 1080p: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60, 2048 x 1080i: 50 / 59.94 / 60
SMPTE-425M: 1080p: 60 / 59.94 / 50
SMPTE-274M: 1080i: 60 / 59.94 / 50, 1080p: 30 / 29.97 / 25 / 24 / 23.98
SMPTE-RP211: 1080psf: 30 / 29.97 / 25 / 24 / 23.98
SMPTE-296M: 720p: 60 / 59.94 / 50
SMPTE-125M: 480i59.94
ITU-R BT.656: 576i50
HDMI:
1080p: 60/ 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98
1080psf: (30 / 29.97 / 25 / 24 / 23.98
1080i: 60 / 59.94 / 50
720p: 60 / 59.94 / 50
480i / 576i / 480p / 576p | | Power Consumption | ≤36 W | | Working Voltage | DC/Battery 6.5 to 24 V | | Working Environment | Temperature: 32 to 104°F(0 to 40°C)
Humidity: 10 to 90% | | Dimensions | 19.1 x 6.9 x 4.4" / 484 x 177 x 113 mm | | Weight | 4.4 lb / 2.8 kg | | | | Package Weight | 8.05 lb | | Box Dimensions (LxWxH) | 22.2 x 9.4 x 5.7" |
