User Manual for SWIT PB-M98S 14.4V 98Wh Pocket Battery with D-Tap and USB Output Click to enlarge the picture
Contents of the user manual for the SWIT PB-M98S 14.4V 98Wh Pocket Battery
- Product category: On Camera Batteries SWIT
- Brand: SWIT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SWIT On Camera Batteries
 |
User manual for the SWIT PB-M98S 14.4V 98Wh Pocket Battery contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SWIT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SWIT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SWIT product will considerably shorten its lifespan!
|

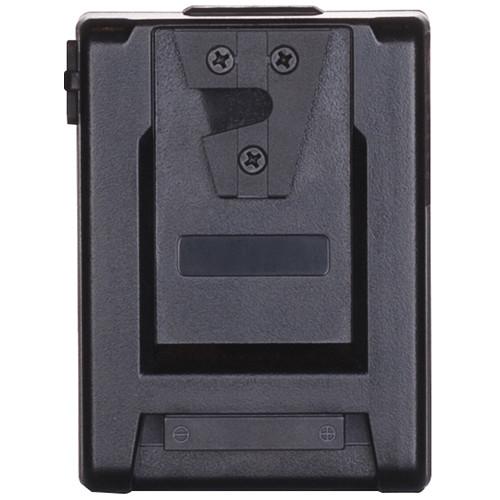

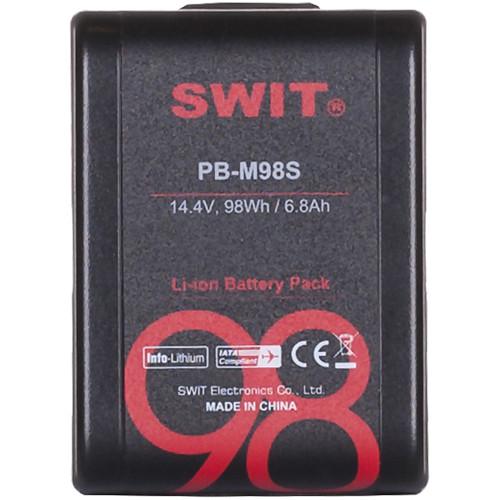

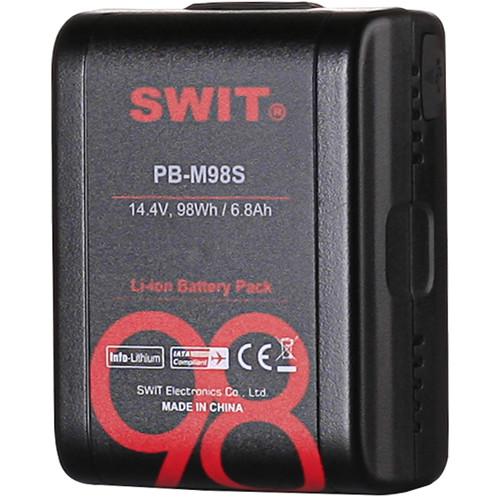

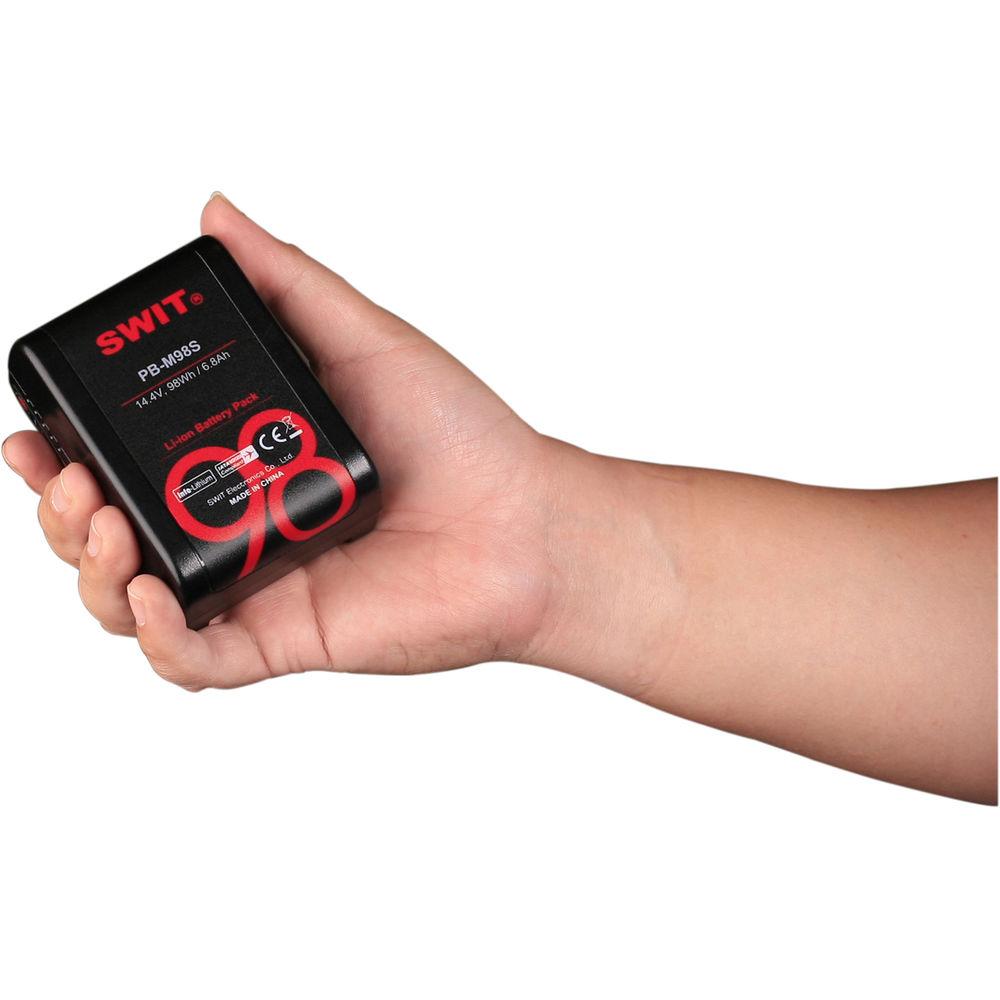

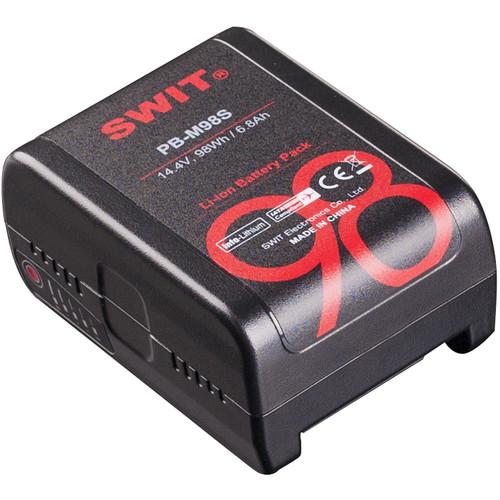

Product description The SWIT PB-M98S 14.4V 98Wh Pocket Battery features a V-mount, has a short compact design, has D-Tap and USB outputs, and provides up to 100W/8A continuous output. While it's suitable for most small cameras and devices and even an ENG camera, its small size also makes it ideal for handheld stabilizers, monitors, and other mobile applications.
The PB-S98S offers a D-Tap output that shares the 100W/8A load with the V-mount interface for powering accessories, and it has a USB port that provides 5V/2A for charging mobile devices. It has an intelligent LED indicator that displays remaining runtime information using five LEDs when the battery is in use. When the remaining runtime is less than 10%, the LED will flash as a warning. The battery charges in standard V-mount chargers and it takes approximately 3 hours to reach a full charge. The PB-M98S also communicates runtime info to RED and Sony viewfinders. - Key Features
-
- Light, compact design housing twelve 18650 battery cells
- Up to 100W/8A continuous output
- 98Wh delivers approximately 3 hours of power to ENG cameras
- One D-Tap output and one USB port on the sides
- Intelligent LED indicators
- Communicates runtime info to RED and Sony viewfinders
- Circuit protection
- Charging
- The PB-M98S can be charged by all standard V-mount chargers and D-Tap chargers. The maximum charging current is 3A.
The following chargers are recommended:- S-3822S portable 2-ch simultaneous charger: Charge two PB-M98S in approx 3 hours
- PC-U130B2 portable dual D-Tap charger: Charge one PB-M98S in approx. 3 hours or two in approx. 5 hours 15 minutes
In the Box SWIT PB-M98S 14.4V 98Wh Pocket Battery with D-Tap and USB Output (V-Mount) Limited 1-Year Warranty User Manual PDF 430.2kbeaxxyxcfuc Table of Contents
|
Upload User Manual
Have you got an user manual for the SWIT PB-M98S 14.4V 98Wh Pocket Battery with D-Tap and USB Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSWIT PB-M98S Specs | Mount / Series Type | V-Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 98 Wh | | Amp-Hours | 6.8 Ah | | Output Voltage | 14.4 VDC | | Maximum Load | 3 A (Peak) | | Accessory Port | 1 x D-Tap
1 x USB Type-A | | Maximum Load (Accessory Port) | 100 W, 8 A ( D-Tap ) | | USB Output | 5 V, 2 A | | Charging Temperature | 32 to 104°F / 0 to 40°C | | Discharging Temperature | -4 to 122°F / -20 to 50°C | | Dimensions (W x H x D) | 3.9 x 2.9 x 1.9" / 100.0 x 74.0 x 48.0 mm | | Weight | 18 oz / 510 g | | | | Package Weight | 1.26 lb | | Box Dimensions (LxWxH) | 4.4 x 3.1 x 2.0" |
