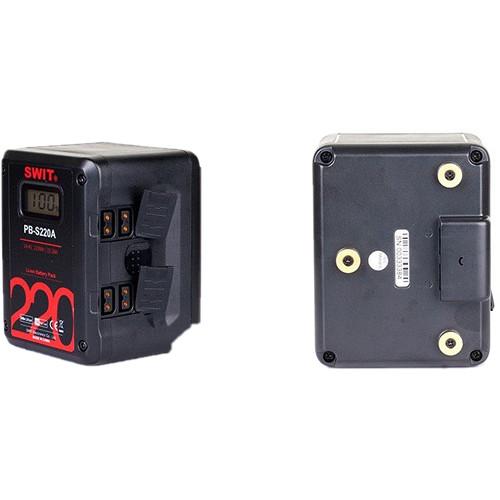

Product description The SWIT PB-S220A 14.4V 220Wh Multi D-Tap Heavy-Duty Digital Battery, featuring a Gold mount, has a short, square-shaped design and provides up to 150W/12A continuous output. This makes it suitable for up to the most demanding cine-cameras along with monitors and other accessories. With 220 watt hours, the PB-S220A delivers approximately 2.5 hours of power to the ARRI ALEXA and 7 hours to ENG cameras. In addition to this, it offers four D-Tap outputs — meaning you won't need splitters if you have multiple accessories to power — and a USB port for charging mobile devices.
The battery has an intelligent LCD that displays remaining runtime in minutes when the battery is in use and as a percentage value when not in use or when charging. When remaining runtime is less than 15 minutes, the LCD will flash as a warning. It'll also show a warning signal with a specific warning code if the battery detects over-discharging, over-charging, circuit issues, and the like. A long press of the power-check button will display the battery's cycle times on the LCD. The PB-S220A also communicates runtime info to RED and Sony viewfinders.
This battery also supports fast charging at 6A using the optional SWIT S-3812A charger, which charges 0 to 80% of the battery in 2.3 hours and provides a full charge in 3.5 hours. - Key Features
-
- Short, square-shaped design housing twenty-four 18650 battery cells
- Up to 150W/12A continuous output
- 220 watt hours, delivers approximately 2.5 hours of power to the ARRI ALEXA and 7 hours to ENG cameras
- Four D-Tap outputs and a USB port on the sides
- Intelligent LCD
- Communicates runtime info to RED and Sony viewfinders
- Supports 6A fast charging using the optional SWIT S-3812A charger
- Circuit protection
In the Box SWIT PB-S220A 14.4V 220Wh Multi D-Tap Heavy-Duty Digital Battery (Gold Mount) Limited 1-Year Warranty User Manual PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the SWIT PB-S220A 14.4V 220Wh Multi D-Tap Heavy-Duty Digital Battery in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSWIT PB-S220A Specs | Mount / Series Type | Gold Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 220 Wh | | Amp-Hours | 15.3 Ah | | Output Voltage | 14.4 VDC | | Maximum Load | 150 W, 12 A | | Accessory Port | 4 x D-Tap | | Maximum Load (Accessory Port) | 120 W, 10 A ( D-Tap ) | | USB Output | 5 V, 2 A | | Dimensions (W x H x D) | 3.7 x 4.8 x 3.9" / 9.5 x 12.1 x 9.9 cm | | Weight | 3.1 lb / 1.4 kg | | | | Package Weight | 3.35 lb | | Box Dimensions (LxWxH) | 5.2 x 4.2 x 3.9" |
