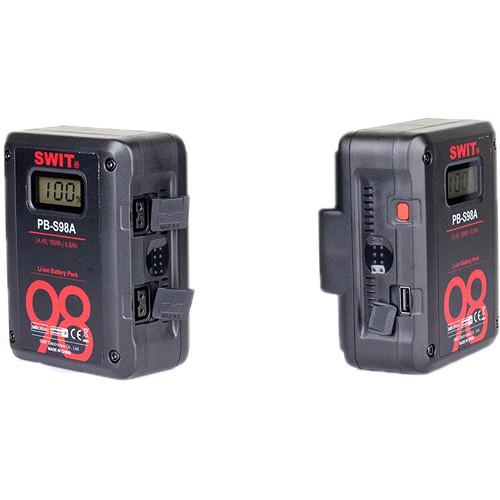

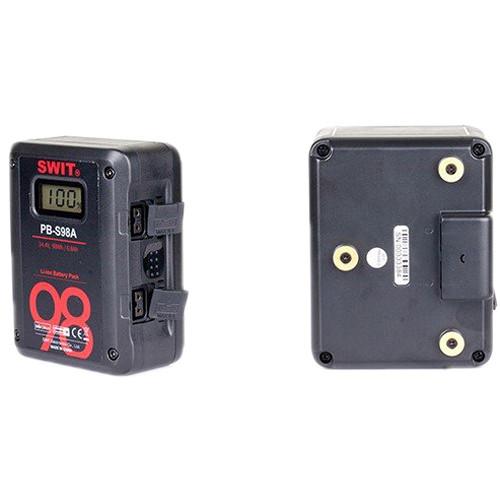

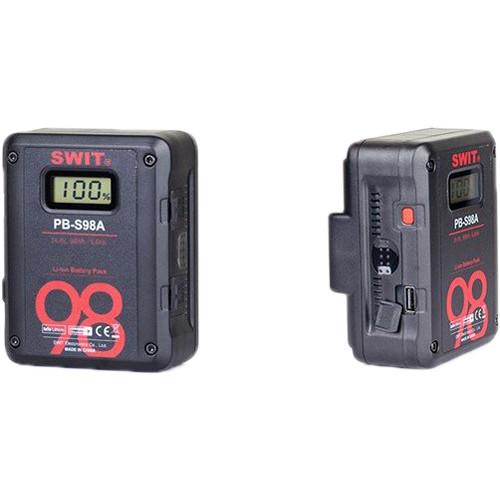

Product description The SWIT PB-S98A 14.4V 98Wh Dual D-Tap Heavy-Duty Digital Battery, featuring a Gold mount, has a short, compact design and provides up to 100W/8A continuous output. While it's suitable for most cameras and devices and it can power an ENG camera for approximately 3 hours, its small size also makes it ideal for drones and other mobile applications. In addition to this, the PB-S98A offers two D-Tap outputs for powering accessories and a USB port for charging mobile devices.
The battery has an intelligent LCD that displays remaining runtime in minutes when the battery is in use and as a percentage value when not in use or when charging. When remaining runtime is less than 15 minutes, the LCD will flash as a warning. It'll also show a warning signal with a specific warning code if the battery detects over-discharging, over-charging, circuit issues, and the like. A long press of the power-check button will display the battery's cycle times on the LCD. The PB-S98A also communicates runtime info to RED and Sony viewfinders. - Key Features
-
- Short, compact design housing twelve 18650 battery cells
- Up to 100W/8A continuous output
- 98 watt hours delivers approximately 3 hours of power to ENG cameras
- Two D-Tap outputs and a USB port on the sides
- Intelligent LCD
- Communicates runtime info to RED and Sony viewfinders
- Circuit protection
In the Box SWIT PB-S98A 14.4V 98Wh Dual D-Tap Heavy-Duty Digital Battery (Gold Mount) Limited 1-Year Warranty User Manual PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the SWIT PB-S98A 14.4V 98Wh Dual D-Tap Heavy-Duty Digital Battery in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSWIT PB-S98A Specs | Mount / Series Type | Gold Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 98 Wh | | Amp-Hours | 6.8 Ah | | Output Voltage | 14.4 VDC | | Maximum Load | 100 W, 8 A | | Accessory Port | 2 x D-Tap | | Maximum Load (Accessory Port) | 100 W, 8 A ( D-Tap ) | | USB Output | 5 V, 2 A | | Dimensions (W x H x D) | 3.7 x 4.8 x 2.3" / 9.5 x 12.1 x 5.9 cm | | Weight | 1.8 lb / 0.8 kg | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 5.0 x 5.0 x 3.0" |
