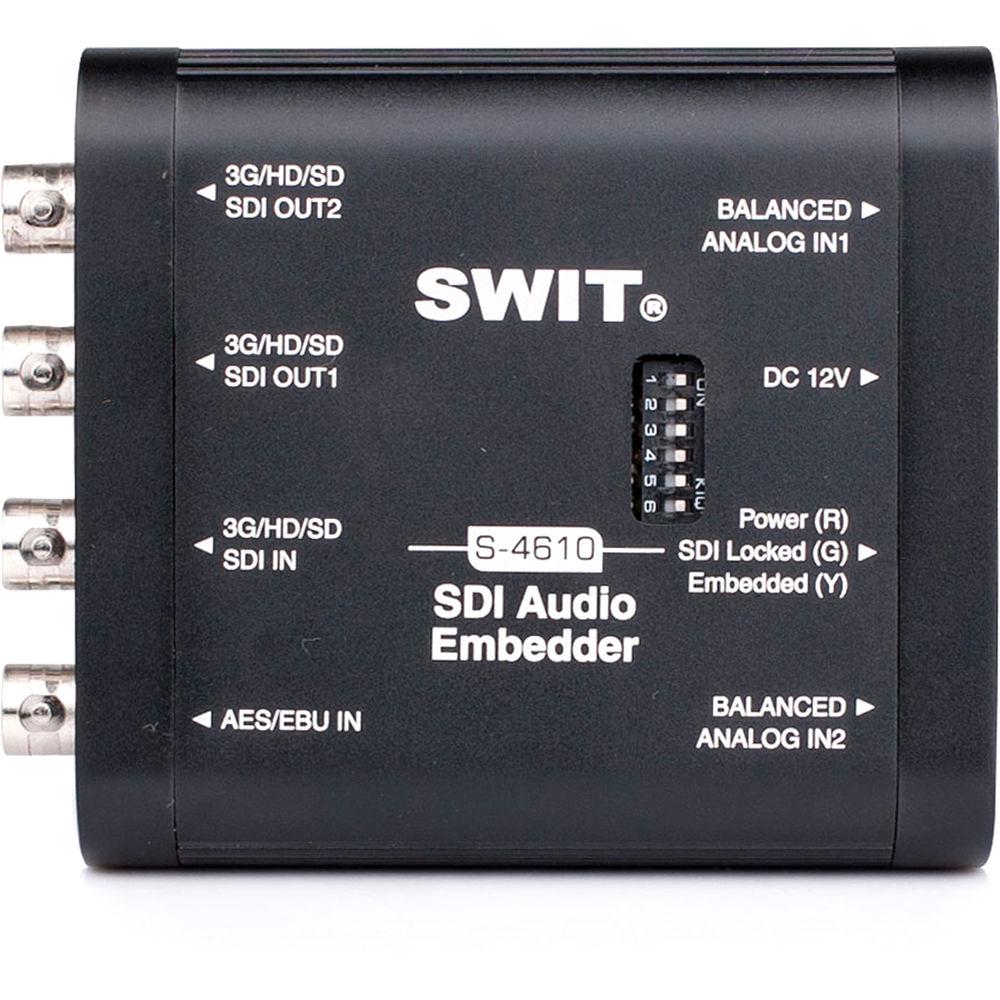

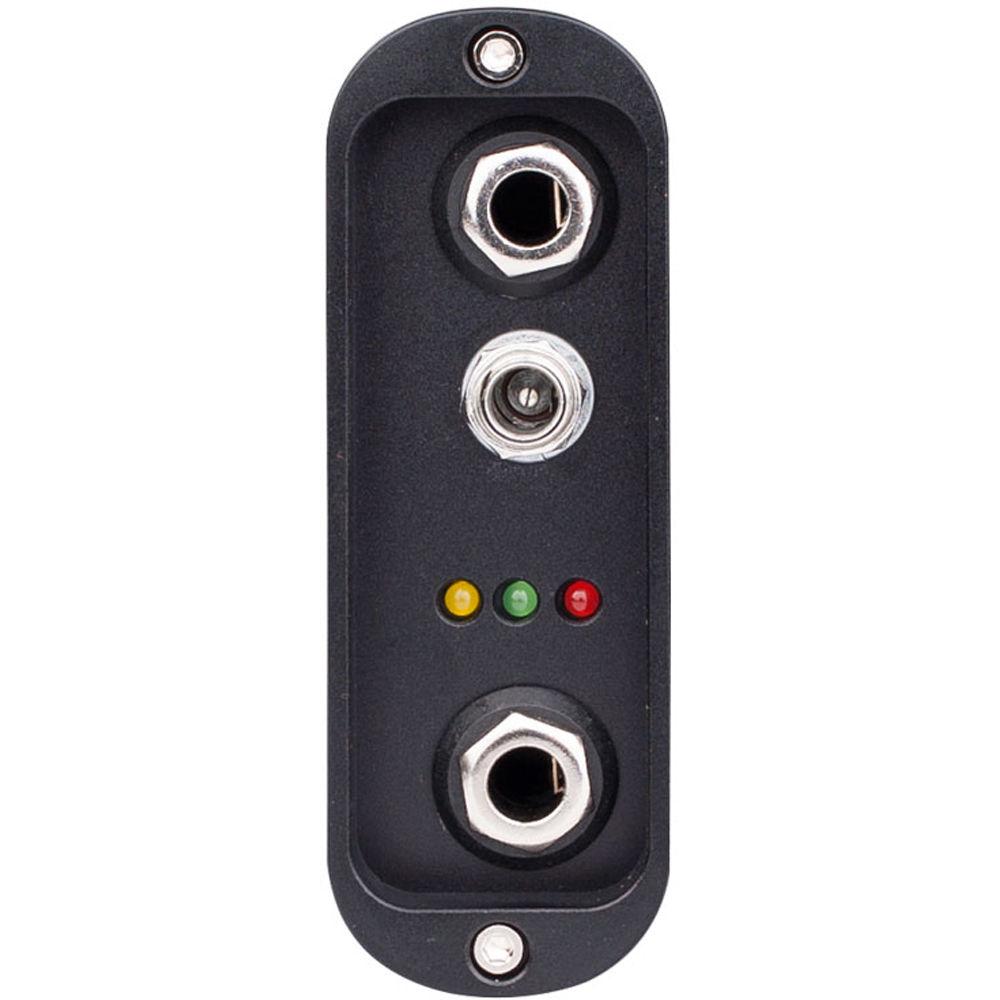

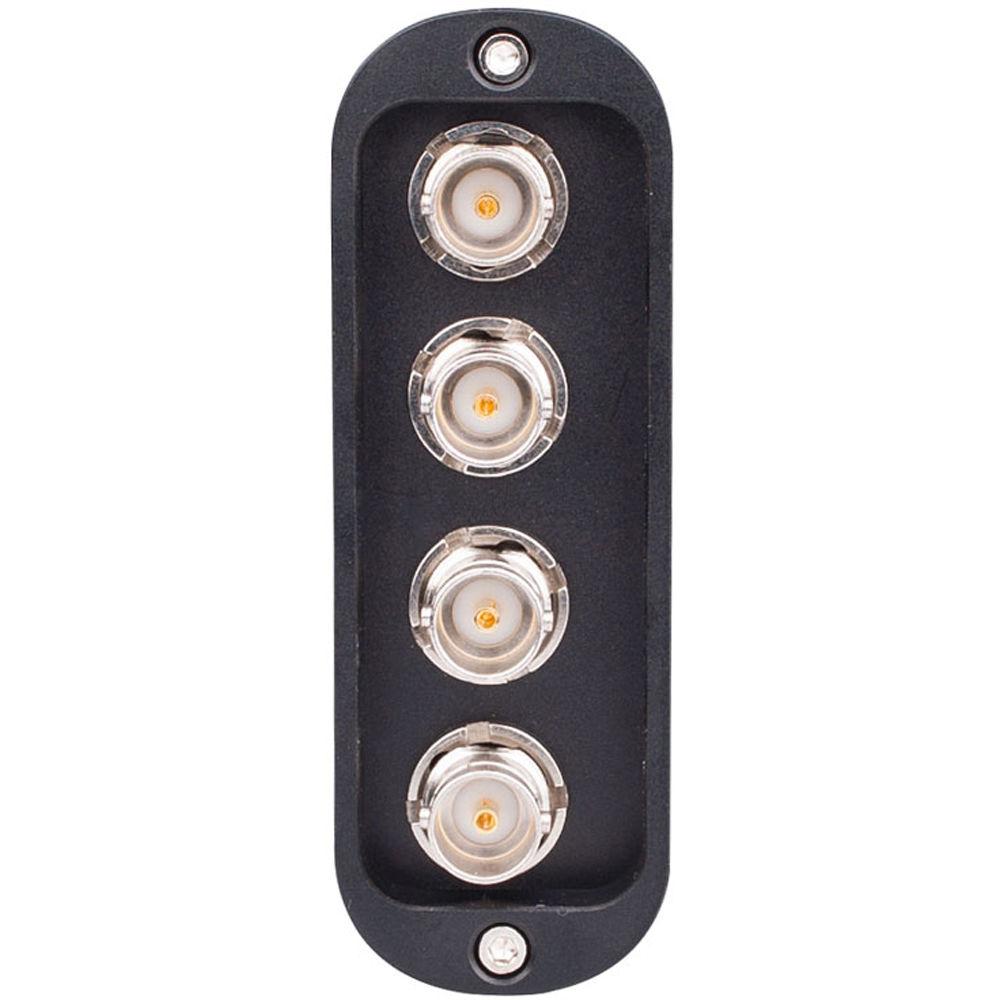

Product description The SDI Audio Embedder from SWIT is a portable mini converter of SDI audio embedder that supports digital and analog audio. It allows you to embed audio to any two channels of the SDI first eight-channel positions. It is designed for use in broadcast field production and professional audio/video conversion and transmission. 1/4"-20 screw threads are provided on the bottom for fixing the embedder on to a camera. This embedder provides three LED indicators which show if the unit is powered, if the SDI input is recognized, and presence of new embedded SDI outputs. A mounting plate is included for installing the embedder on a wall, and for binding the BNC/audio cables. - Power/input/output status indicator
- Pole-tap 6-18 VDC power input
- Heavy-duty aluminum housing

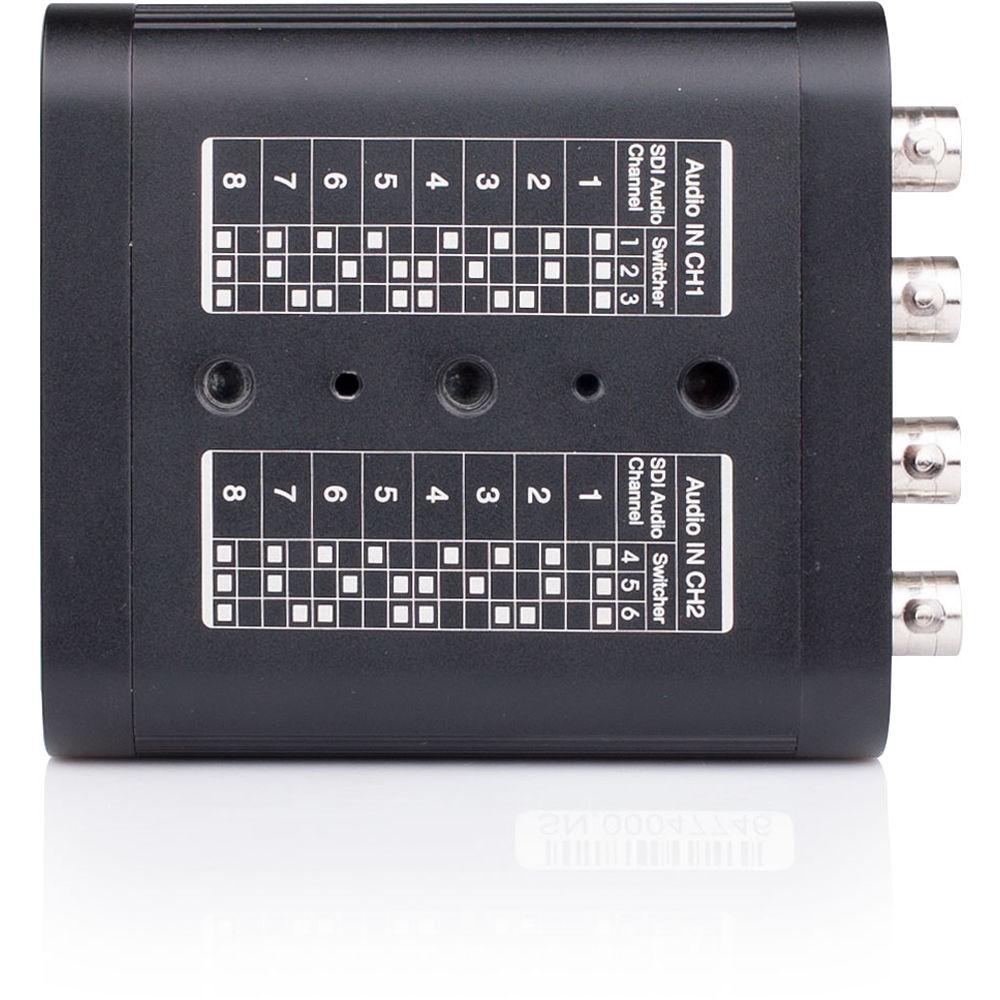

- Bottom screw threads for installing
In the Box SWIT Portable SDI Audio Embedder AC-DC Power Adapter Mounting Plate Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SWIT Portable SDI Audio Embedder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSWIT S-4610 Specs | Housing | Heavy-duty aluminum | | Inputs | 1 x BNC 3G/HD/SD-SDI port
1 x BNC AES/EBU digital audio port
2 x 6.35 mm plug analog audio port (balanced)
1 x DC socket, power | | Outputs | 2 x BNC 3G/HD/SD-SDI embedded port | | Control | 1 x 6-switch embed channel selection | | Indicator | 1 x LED, power
1 x LED, SDI
1 x LED, embedded | | Video Formats | SDI: SMPTE-425M at 1080p: 60, 59.94, 50
SMPTE-274M at 1080i: 60, 59.94, 50, 1080p: 30, 29.97, 25, 24, 23.98
SMPTE-RP211 at 1080psf: 30, 29.97, 25, 24, 23.98
SMPTE-296M at 720p: 60, 59.94, 50
SMPTE-125M at 480i (59.94)
ITU-R BT.656 at 576i (50) | | Audio Formats | Digital Audio: AES/EBU 5 V p-p at 48 KHz
Analog Audio: +24 dBu (max.), 20 Hz-20 KHz bandwidth | | Power Consumption | Up to 3 W | | Operating Voltage | 6-18 VDC | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 10 - 90% | | Dimensions | 3.9 x 3.3 x 1.1" / 9.8 x 8.4 x 2.9 cm | | Weight | 8.3 oz / 235 g | | | | Package Weight | 1.155 lb | | Box Dimensions (LxWxH) | 7.9 x 4.8 x 3.6" |
