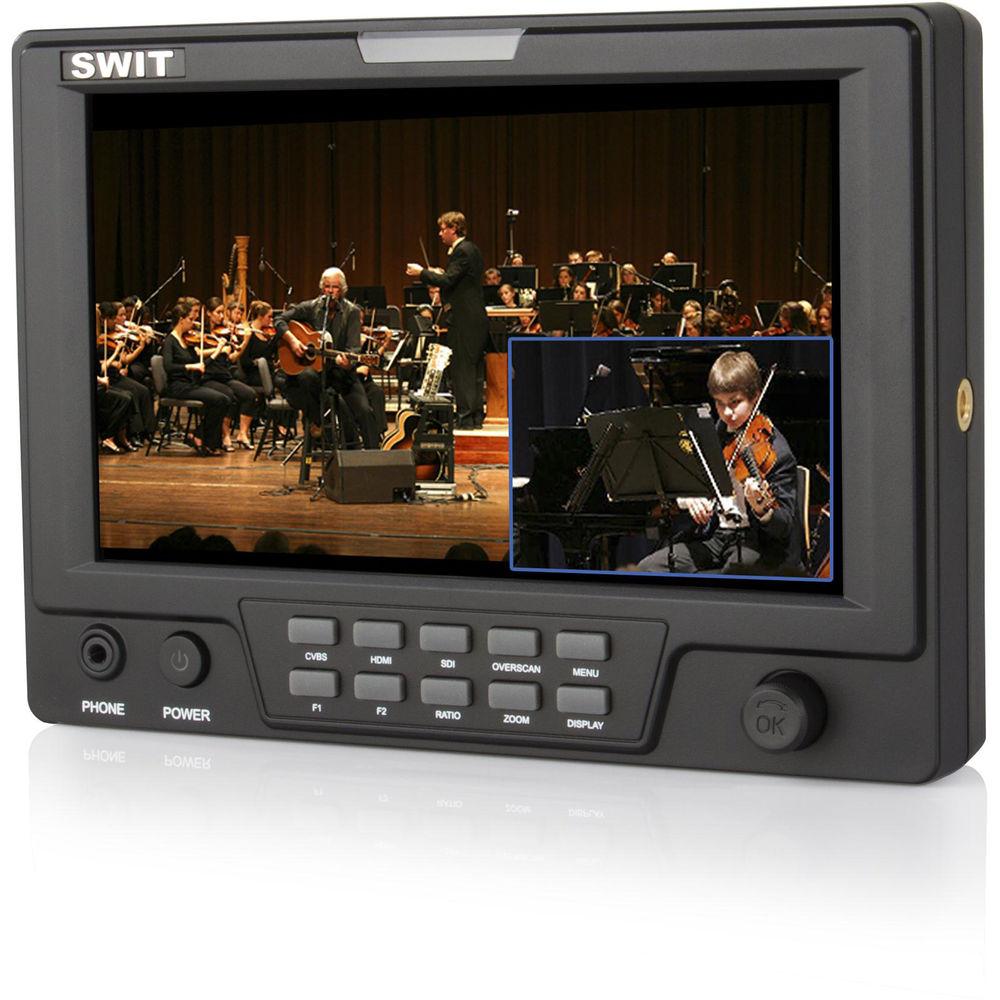

User Manual for SWIT S-1071F 7" EFP Field LCD Monitor with Picture-in-Picture Function and Dual HD Video Input Click to enlarge the picture
Contents of the user manual for the SWIT S-1071F 7" EFP Field LCD
- Product category: On Camera Monitors SWIT
- Brand: SWIT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SWIT On Camera Monitors
 |
User manual for the SWIT S-1071F 7" EFP Field LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SWIT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SWIT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SWIT product will considerably shorten its lifespan!
|

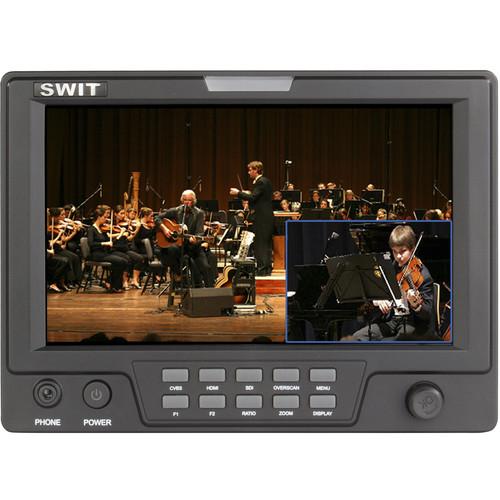

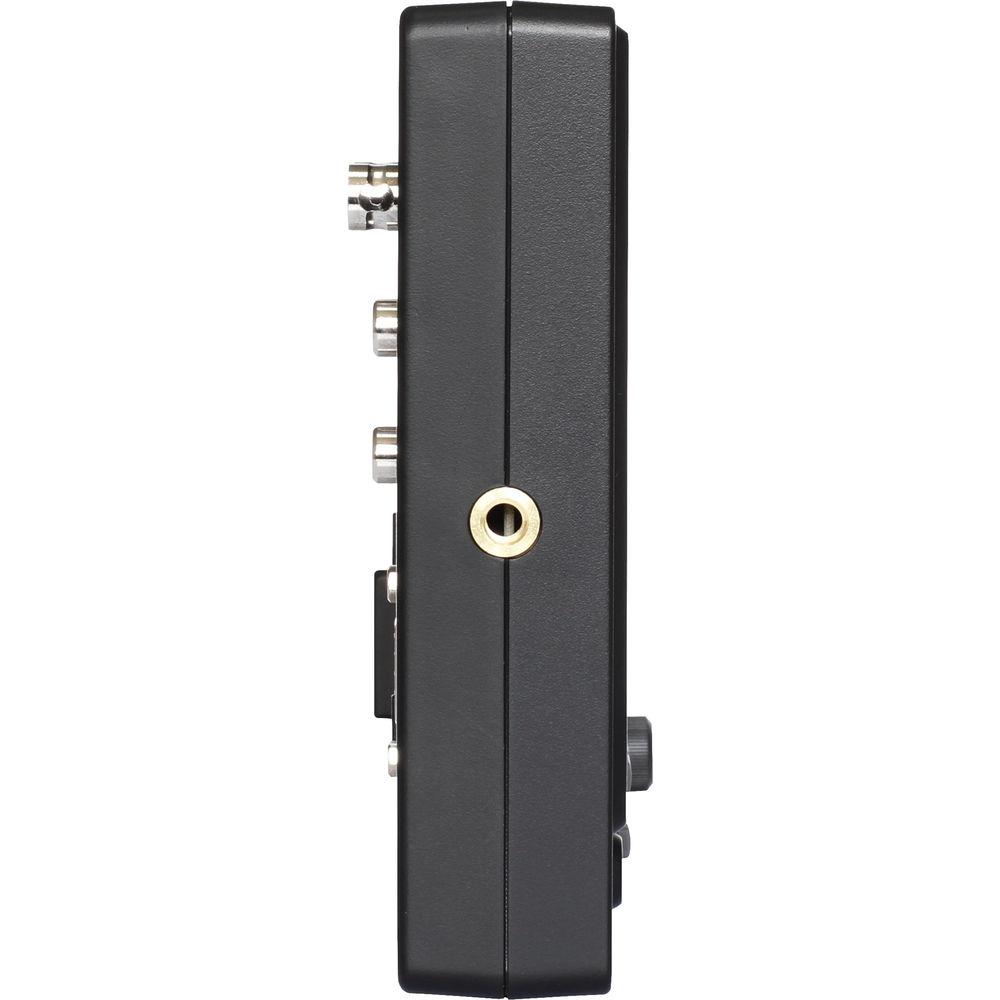

Product description The S-1071F(EFP) 7" EFP Field LCD Monitor from SWIT is a 7" field LCD monitor with 1024 x 600 resolution, 900:1 contrast, and 160° horizontal/vertical viewing angles. The picture-in-picture function enables the EFP system cameraman to monitor the switcher returned CVBS video on the same screen of the local SDI/HDMI monitoring. The S-1071F(EFP) monitor provides a multi-functional DB-9 interface with centralized DC power input, CVBS input, picture-in-picture switch on/off, and TALLY light controlling, allowing you to use only one DB-9 cable to input everything, instead of complex cable work. It also features waveform, vector scope, RGB histogram, peaking focus assist (red/blue switch), 16-channel HD-SDI audio meter, timecode, false color, Blue only mode, Zebra stripes, and internal color-bar. The S-1071F(EFP) accepts 2 HD/SD-SDI, 1 HDMI, and 1 composite video, and it has 2 HD/SD-SDI and 1 HDMI loop-through outputs. Note: HDCP content not supported - 7" LCD, 1024 x 600 resolution
- 160/160° viewing angle, 900:1 contrast
- HD/SD-SDI, HDMI input and loop-through output, CVBS input
- Under HDMI input, PIP display another CVBS, and under SDI input, PIP display another SDI or CVBS
- Y/Cb/Cr, R/G/B, and full scale waveforms (SDI&HDMI)
- SDI timecode display, Vector scope, R/G/B Histogram (SDI&HDMI)
- Peaking focus assist, False color, Blue only, Zebra stripes (SDI&HDMI)
- Overlay window position selection (4 corners or center), overlay window size adjustable
- Multi-functional DB-9 port
- Underscan and Overscan modes, safety mark, Video flip
In the Box SWIT S-1071F(EFP) 7" EFP Field LCD Monitor with Picture-in-Picture Function and Dual HD Video Input Carry Case Monitor Support Arm Cold Shoe Power Adapter Sunhood Screen Protection Film HDMI Cable with mini-HDMI Adapter D-Tap to 4-Pin XLR Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SWIT S-1071F 7" EFP Field LCD Monitor with Picture-in-Picture Function and Dual HD Video Input in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

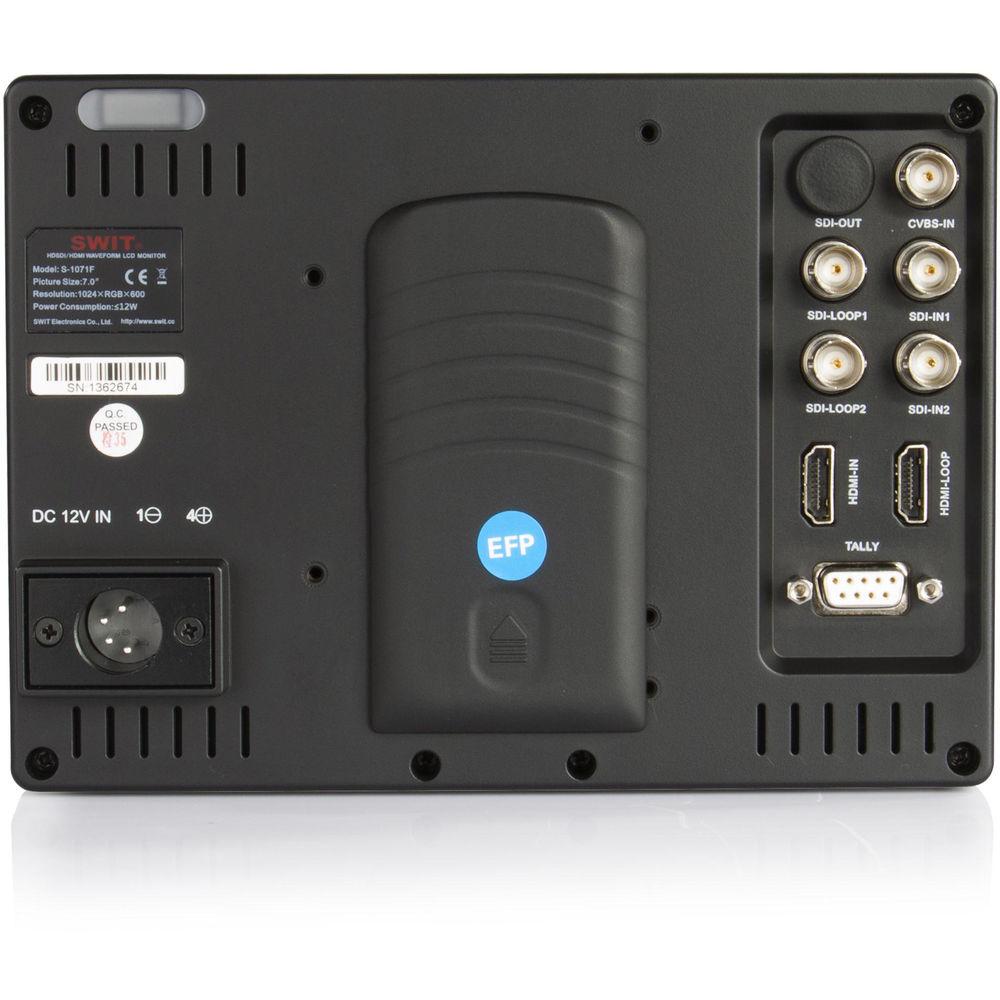

Technical parametersSWIT S-1071E(EFP) Specs | Input Connectors | 2 x BNC, HD/SD-SDI
1 x BNC, composite
1 x HDMI | | Output Connectors | 2 x BNC, HD/SD-SDI loop-through
1 x HDMI, loop-through
1 x 3.5 mm phone jack, SDI and HDMI audio | | Video Formats | CVBS:
NTSC / PAL
SDI:
SMPTE-274M: 1080i (60/59.94/50), 1080p (30/29.97/25/24/23.98)
SMPTE-RP211: 1080psf (30/29.97/25/24/23.98)
SMPTE-296M: 720p (60/59.94/50)
SMPTE-125M: 480i (59.94)
ITU-R BT.656: 576i (50)
HDMI:
480i (59.94), 576i (50), 480p (60), 576p (50)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | | LCD Panel | 7" (17.8 cm) | | Display Area | 6.1 x 3.5" (15.4 x 9.0 cm) | | Resolution | 1024 x 600, RGB | | Aspect Ratio | 16:9, 4:3 adjustable | | Viewing Angle | Horizontal/Vertical: 160/160° | | Brightness | 400 cd/m2 | | Contrast | 900:1 | | Colors | 16.77 million | | Working Voltage | 6.5 - 17 VDC or battery | | Power Consumption | ≤ 15 W | | Temperature | Operating: 32 to 104°F (0 to 40°C)
Storage: 5 to 140°F (-15 to 60°C) | | Humidity | 10 - 90% | | Dimensions | 7.6 x 5.5 x 1.9" (19.2 x 13.9 x 4.7 cm) | | Weight | 1.2 lb (550 g) | | | | Package Weight | 8.55 lb | | Box Dimensions (LxWxH) | 17.0 x 13.5 x 4.4" |
