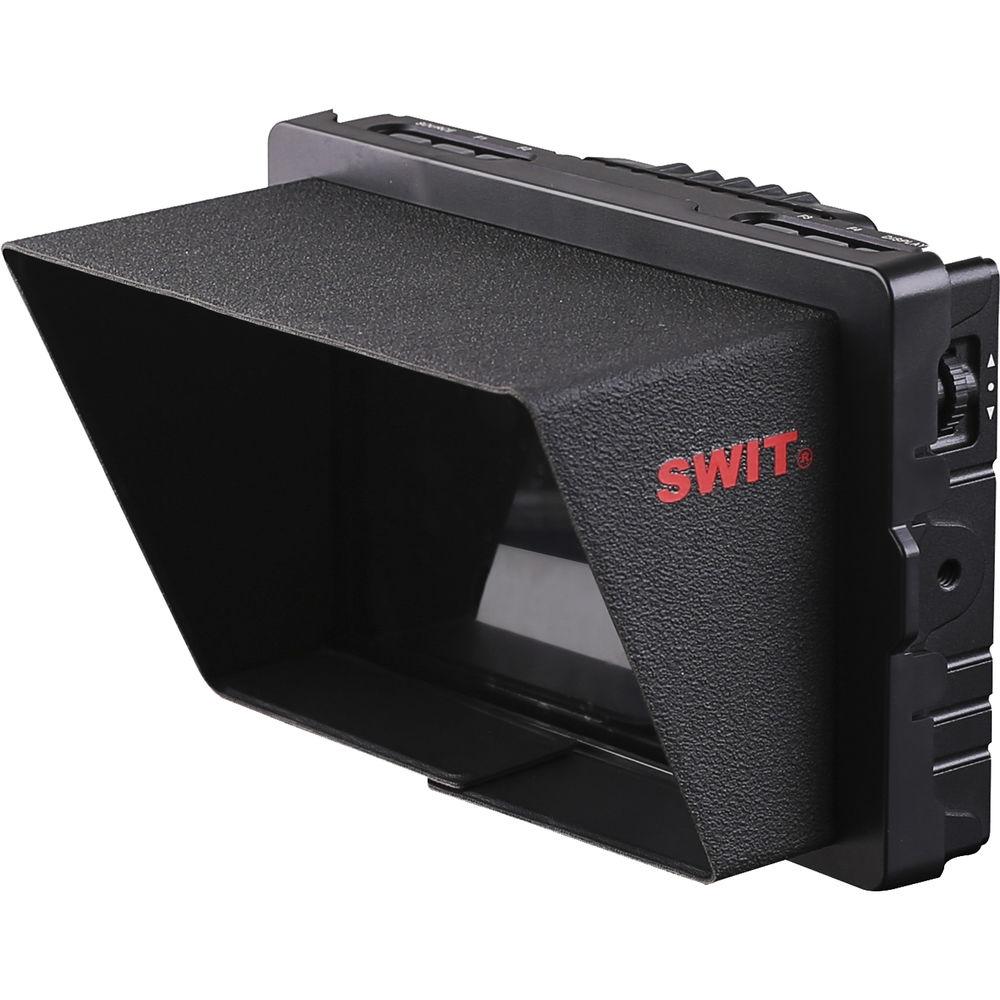

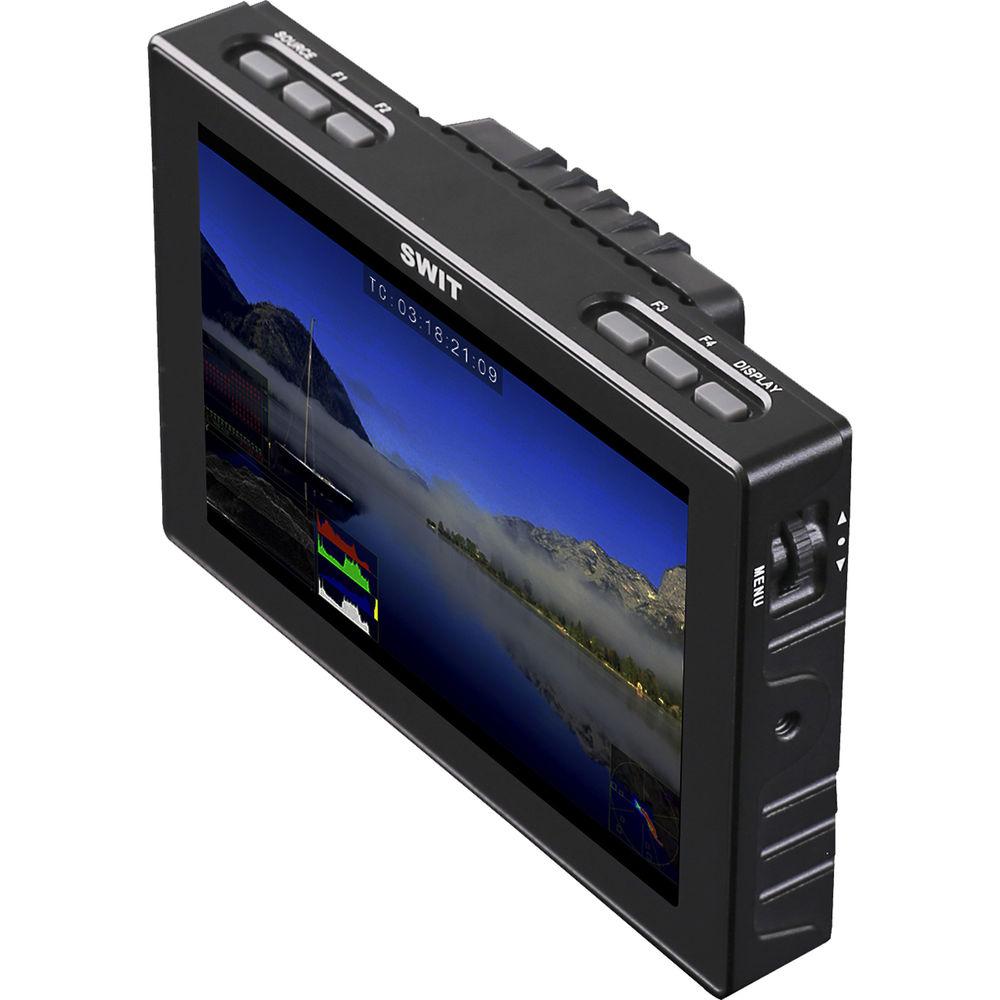

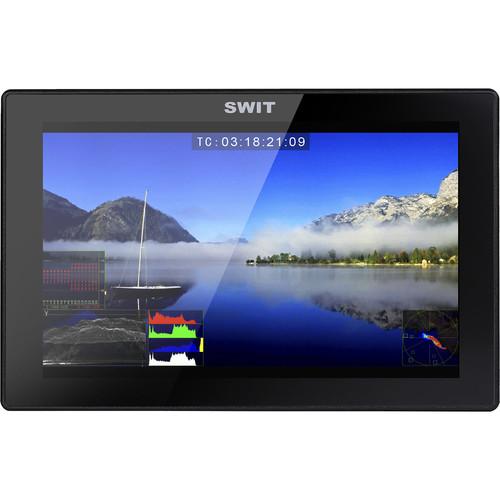

Product description The SWIT S-1073F Monitor adopts a 7" TFT LCD panel with optical bonding technology. The LCD offers a native resolution 1920 x 1200 and 160° wide viewing angle. It features two 3G-SDI (Level A/B) input, one HDMI input, and one CVBS input. It also features one SDI output (SDI loop through output/HDMI converted to SDI output), one HDMI output, and one headphone and speaker audio output. The monitor is suitable for outdoor on-camera video monitoring thanks for the aluminum alloy housing and foldable sun hood. It supports 6.5 to 36 VDC input via a 5.5mm lockable DC socket, and comes installed with a S-7006S V-Mount battery plate to power the V-mount batteries. The monitor supports video analysis assistant patterns including Waveform (Y/Pb/Pr/R/G/B), Vectorscope, and Histogram (R/G/B/Y) to convert the digital video quality info (Luma, Color, Saturation, etc.) into patterns, and it has select display position (Up/Down/Left/Right), size, color, and translucence. The patterns can be switched on/off individually. The S-1073F monitor offers 16-channel (SDI), 8-channel (HDMI), and 2-channel (analog audio) audio meter displays, with marks and abnormal audio alert info. It allows you to select any two channels audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from one of four corners, and can be selected to display only 2 channels, 8 channels, or full 16 channels. The scale markers, alert info, and translucent of the audio meter pattern are also selectable. The monitor also supports GPI control input via rear RJ45 (RS-485) port allowing you to define the functions for each GPI pins, including Red/Green/Yellow Tally signals. The monitor screen displays soft Tally signal, which flashes as Red/Green/Yellow according to the GPI settings. The monitor has a revolve/push menu button with one-button operation for the menu system. It also features four F1 to F4 user-definable function keys that allow you to preset a function with a long press. These keys support functions like audio meters, histogram, false color, AFD, H/V delay, R/G/B/Mono, scale markers, colorbar, UMD, audio alert, max backlight, peaking focus assist, aspect ratio, scan mode, zoom mode, mute, freeze frame, flip, waveform, color temperature, timecode, zebra, and vectorscope. The monitor provides a standard USB port on the side for firmware upgrades. Monitor - 7" non-glaring LED-backlit monitor
- Native resolution of 1920 x 1200
- Optical bonding LCD panel
- All metal housing, thinner and robust
- 2K/3G/HD/SD-SDI input and loopout
- Build-in HDMI to SDI conversion
- 16-channel embedded audio meters with alert
- Supports 2K display resolution
- Supports multiple aspect ratio and scan modes
- Select any two audio channels to output
- Supports various audio and video analysis functions
- Waveform Y/Cb/Cr/R/G/B and single line
- Vectorscope, histogram R/G/B/Y
- Peaking focus assist (dual color)
- Timecode, H/V delay, AFD, scale markers
- Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
- Multiple marker selection (marker, safety area)
- False color, R/G/B/Mono, 100% colorbar
- GPI control and soft Tally display
- Supports multiple user-defined functions (Source ID, function keys)
- Comes with a S-7006S V-Mount battery plate
- Multiple power supply methods to meet different requirements
- Includes a foldable sun hood
Battery Plate - Compatible With
- V-mount batteries
- Comes with a 2-pin DC plug for the monitor board
- Reliable power connection
In the Box SWIT S-1073F 7" Full HD Waveform LCD Monitor with S-7006S V-Mount Battery Plate S-7006S V-Mount Battery Plate Cold Shoe / Screw Articulating Arm Trestle A-SH73 Foldable Sun Hood S-7114 D-Tap to D-Tap DC Cable with Lock HDMI Cable BNC SDI Cable Power Cord AC to DC Lockable Power Adapter LCD Protective Film Carrying Case Limited 2-Year Warranty User Manual PDF 854kb Table of Contents
|
Upload User Manual
Have you got an user manual for the SWIT S-1073F 7" Full HD Waveform LCD Monitor with S-7006S V-Mount Battery Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

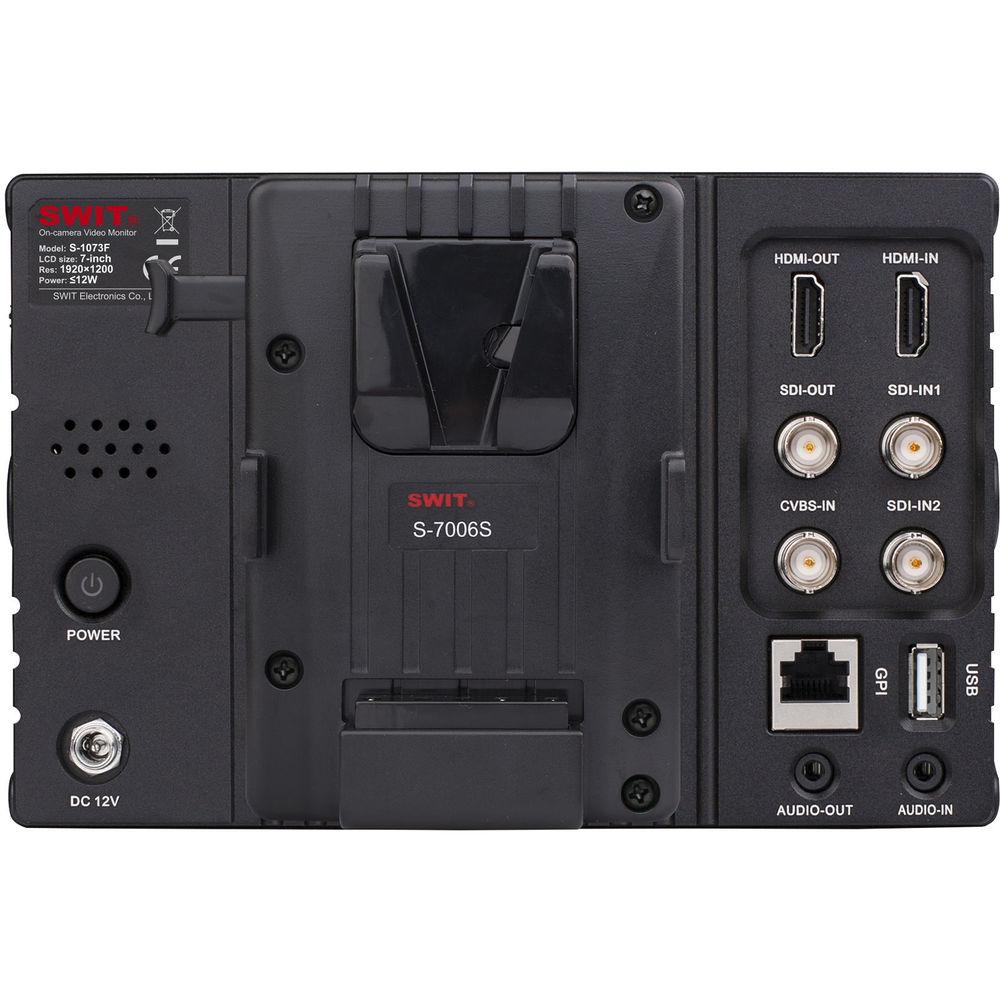

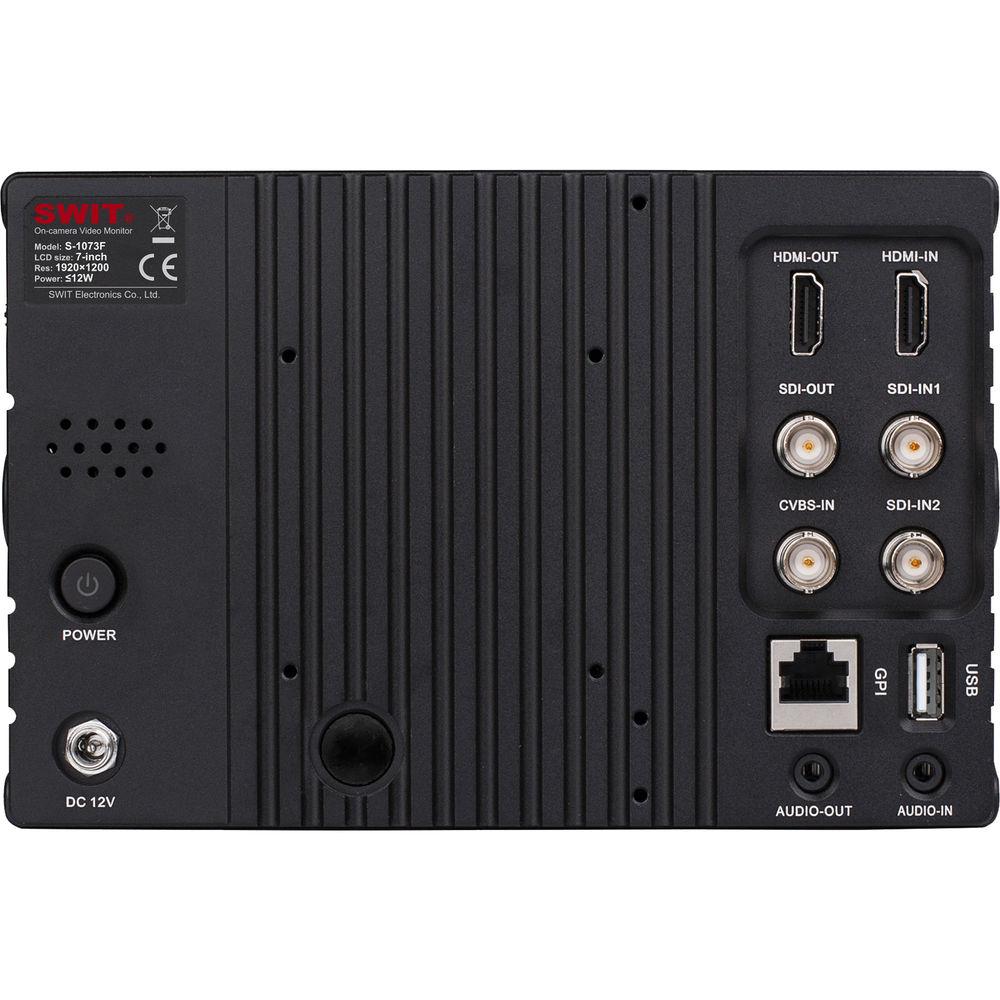

Technical parametersSWIT S-1073FS LUXURY PACKAGE Specs | Application | Field monitoring | | LCD Size | 7" / 17.8 cm | | Display Area | 5.95 x 3.72" / 151.2 x 94.5 mm | | Video System | PAL / NTSC | | Resolution | 1920 x 1200 (RGB) | | Aspect Ratio | 16:9 (4:3 adjustable) | | Brightness | 400 cd/m2 | | Contrast | 1000:1 | | Color | 8-bit, 16.77M | | Viewing Angle (H/V) | 160° / 160° | | Input and Output Connectors | 2 x 2K/3G/HD/SD-SDI input
1 x CVBS input
1 x HDMI 1.3 input
1 x 3.5mm analog audio input
1 x GPI/Tally input
1 x 2K/3G/HD/SD-SDI loop output
1 x HDMI 1.3 loop output
1 x HDMI to SDI output (share SDI loop port)
1 x 3.5mm analog audio output (or SDI, HDMI embedded audio output)
1 x USB (firmware upgrade) | | Picture Controls | Waveform
Vectorscope
Histogram
Peaking
Peaking focus assist
Zebra stripes
Marker
False color
R/G/B/Mono only
GPI control and soft Tally display
Timecode
H/V delay
AFD
Scale Markers | | Video Format | SDI SMPTE 2048-2:
2048 x 1080p: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
2048 x 1080i: 50 / 59.94 / 60
SMPTE-425M-A/B: 1080p: 60 / 59.94 / 50
SMPTE-274M:
1080i: 60 / 59.94 / 50
1080p: 30 / 29.97 / 25 / 24 / 23.98
SMPTE-RP211: 1080psf: 30 / 29.97 / 25 / 24 / 23.98
SMPTE-296M: 720p: 60 / 59.94 / 50
SMPTE-125M: 480i59.94
ITU-R BT.656: 576i50
HDMI:
480i / 576i / 480p / 576p
1080i: 60 / 59.94 / 50
720p: 60 / 59.94 / 50
1080p: 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98
1080psf: 30 / 29.97 / 25 / 24 / 23.98
CVBS:
PAL / NTSC | | Remote Control | No | | Power Requirements | DC power
Battery: 6.5 to 36 V | | Power Consumption | 12 W | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Storage Temperature | 5 to 140°F / -15 to 60°C | | Humidity | Operating & Storage: 10 to 90% | | Dimensions | 7.2 x 4.7 x 1.3" / 184 x 120 x 33 mm | | Weight | 21.5 oz / 610 g |
