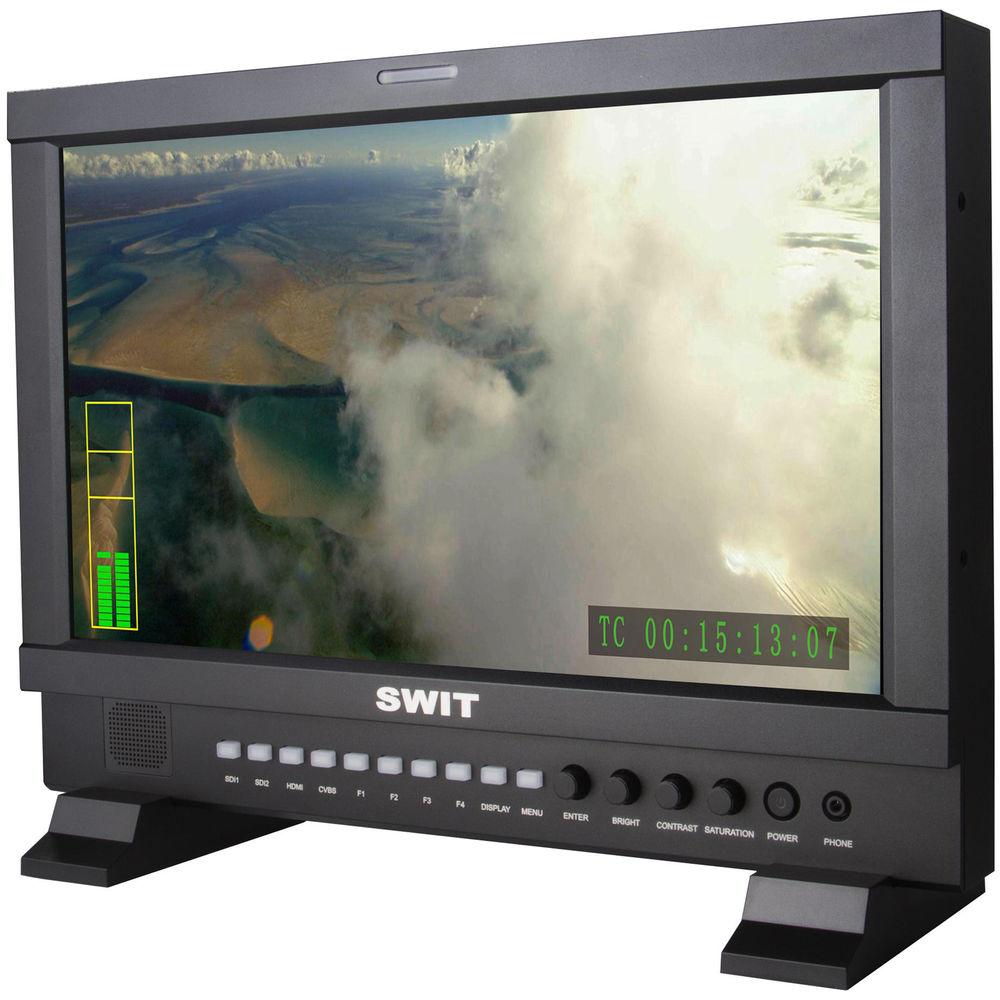

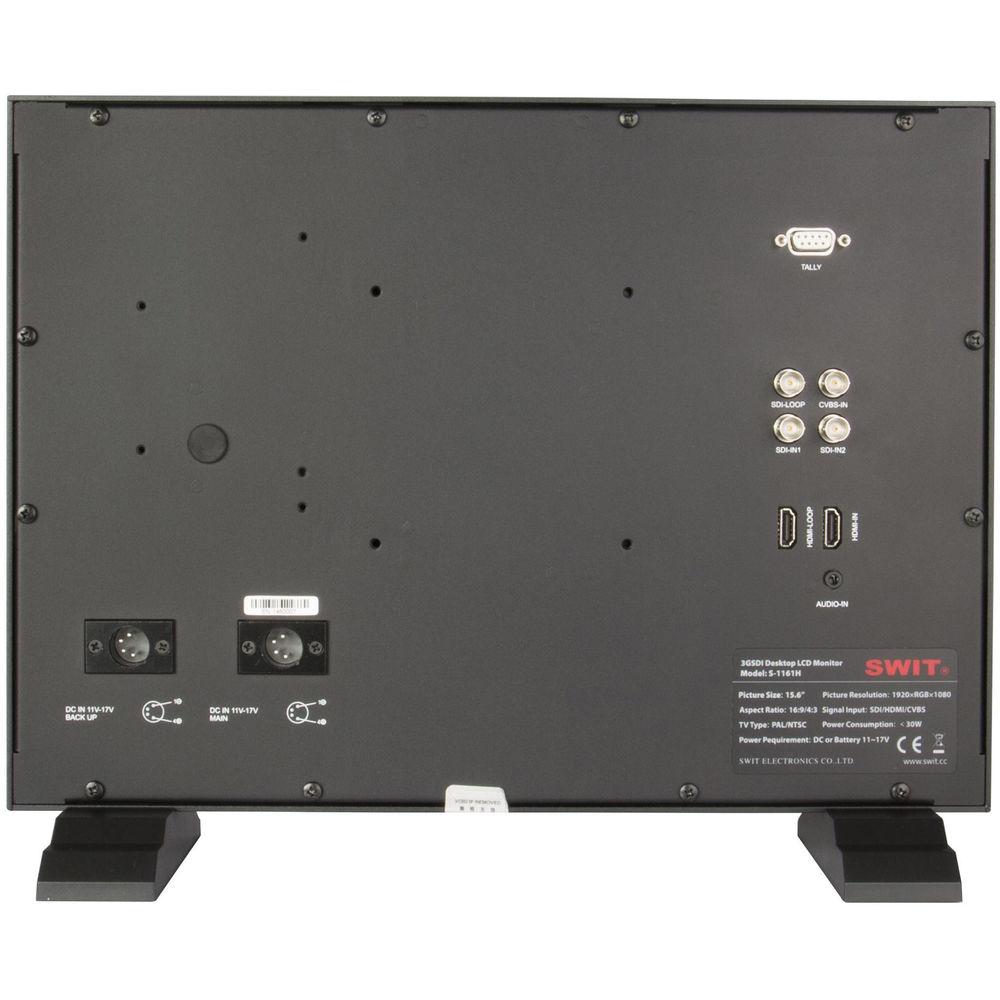

Product description The S-1161HS from SWIT is a 15.6" 3G-SDI/HDMI studio LCD monitor with a Full HD resolution 1920 x 1080 panel. The LCD panel offers accurate color reproductions, and you can adjust color temperature via RGB Gain and Bias. This monitor features two 3G/HD/SD-SDI inputs, an HDMI input, and a composite video input. It also has a 3G/HD/SD-SDI loop-through output and an HDMI loop-through output. Two-channel embedded audio meters, SDI timecode, zebra stripes, blue only mode, and peaking focus assist (red/blue switch) functions are displayed under the SDI or HDMI input. The monitor is powered via the 4-pin XLR 11-17 VDC connector or via the included V-Mount battery plate. It features magnetically attached glass to protect the LCD screen. - 15.6" LCD, Full HD 1920 x 1080 resolution, 10-bit color depth
- 178/178° viewing angle, 700:1 contrast
- 3G/HD/SD-SDI, HDMI input and loop-through output, CVBS input
- Peaking focus assist, Red/Blue dual color (SDI & HDMI)
- 2-Channel SDI/HDMI embedded audio meter display
- Zebra stripes, Blue only mode (SDI & HDMI)
- Marker: 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
- Magnetic LCD protective glass, V-Mount battery plate
In the Box SWIT S-1161HS 15.6" Full HD Studio LCD Monitor with S-7000S V-Mount Battery Plate 4-Pin XLR Power Adaptor Desktop Stand Feet Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SWIT S-1161HS 15.6" Full HD Studio LCD Monitor with S-7000S V-Mount Battery Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

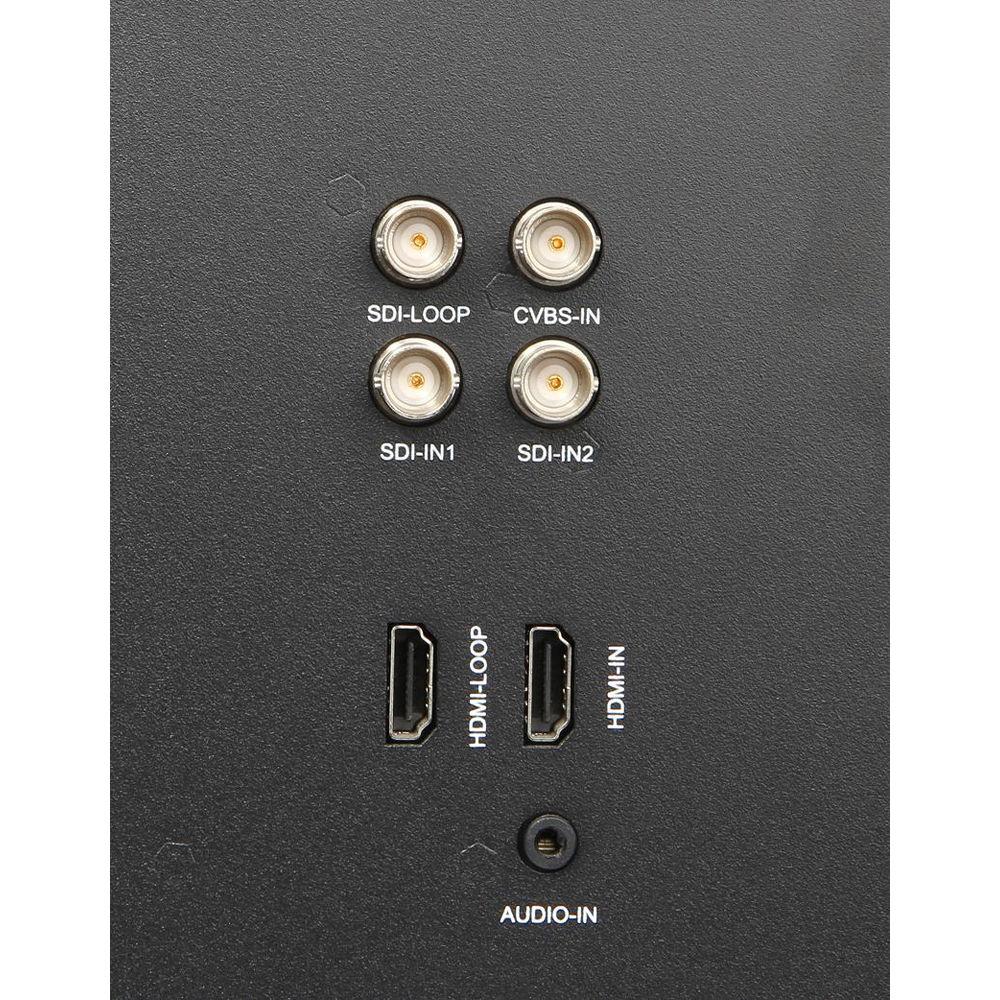

Technical parametersSWIT S-1161HS Specs | Input Connectors | 2 x BNC, 3G/HD/SD-SDI
1 x BNC, composite
1 x HDMI
1 x 3.5 mm phone jack, stereo analog audio | | Output Connectors | 1 x BNC, 3G/HD/SD-SDI loop-through
1 x HDMI, loop-through
1 x 3.5 mm phone jack, stereo analog audio | | Supported Formats | SDI:
SMPTE-425M: 1080p (60 / 59.94 / 50)
SMPTE-274M: 1080i (60 / 59.94 / 50); 1080p (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-RP211: 1080psf (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-296M: 720p (60 / 59.94 / 50)
SMPTE-125M: 480i (59.94)
ITU-R BT.656: 576i (50)
HDMI:
480i (59.94), 576i (50), 480p (60), 576p (50)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
Composite:
PAL / NTSC | | LCD Panel | 15.6" (39.6 cm) | | Resolution | 1920 x 1080, RGB | | Aspect Ratio | 16:9 (4:3 adjustable) | | Viewing Angle | Horizontal/Vertical: 178/178° | | Brightness | 200cd/m² | | Contrast | 700:1 | | Input Voltage | 11 to 17 VDC or battery | | Power Consumption | ≤ 30 W | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | 5 to 140°F (-15 to 60°C) | | Humidity | Operating/Storage: 10 to 90% | | Dimensions | 15.5 x 11.2 x 5.3" (39.4 x 28.5 x 13.5 cm), without stand | | Weight | 8.8 lb (4.0 kg), without stand |
