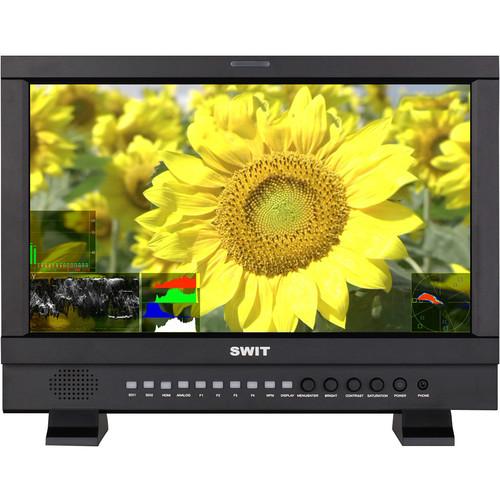

Product description The S-1173F Broadcast Studio LCD Monitor from SWIT adopts a 17.3” LCD panel to produce 3G/SDI/HDMI video in Full HD 1920 x 1080 resolution. It provides a 700:1 contrast for accurate color reproduction and comes with a Gold Mount battery plate. With four corners and a large center display position, the monitor allows for adjusted translucence for waveform and vectorscope/histogram. -
- 17.3” LCD panel
- 1920 x 1080 resolution
- 2 x 2K/3G/HD/SD-SDI, HDMI monitoring
- Y/Pb/Pr, VGA, CVBS monitoring
- 2-channel embedded audio meters with alert
- 2 selectable audio channels to output
- Waveform Y/Cb/Cr/R/G/B and single line
- Vectorscope, histogram R/G/B/Y
- Peaking focus assist (red/blue switch)
- Active Format Description (AFD)
- Timecode, H/V delay
- TSL UMD and text TALLY display
- Safety marker 4:3/13:9/14:9/15:9/1.85:1/2.35:1
- False color with color chart
- R/G/B/mono color modes
- Over exposure zebra stripes
- Internal color bar
- Gold Mount battery plate
- 19” rack installation, 7U height
- USB firmware upgrade
In the Box SWIT S-1173F Waveform Studio LCD Monitor (17.3", Gold Mount) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SWIT S-1173F Waveform Studio LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSWIT S-1173 Specs | Signal System | NTSC/PAL | | Monitor Type | LCD | | Screen Size | 17.3" (43.9 cm) | | Resolution | 1920 x 1080 | | Display Area | 15 x 8.6" (38 x 22 cm) | | Display Colors | 16.7 million colors | | Viewing Angle | H/V: 160°/ 160° | | Brightness | 300 cd/m2 | | Contrast Ratio | 700:1 | | Aspect Ratio | 16:9 / 4:3 | | Inputs | BNC: 2 x 2K/3G/HD/SD-SDI input, 1 x CVBS input, 1 x Y/Pb/Pr input
1 x HDMI
RS-485: 1 x GPI, 1 x UMD
1 x USB
1 x VGA
1 x RS-232C (UMD)
RCA: 2 x L/R audio input | | Outputs | Output
BNC: 2K/3G/HD/SD-SDI Loop output, 1 x CVBS loop output
1 x HDMI loop output
1 x RS-485 (UMD)
1 x 3.5 mm SDI/HDMI embedded audio output, analog audio output | | Video Formats | SDI:
SMPTE ST 2048-1: 2048 x 1080p (60/59.94/50/30/29.97/25/24/23.98), 2048 x 1080i (60/59.94/50)
SMPTE-425M: 1080p (60/59.94/50)
SMPTE-274M: 1080p (30/29.97/25/24/23.98), 1080i (60/59.94/50)
SMPTE-RP211: 1080psf (30/29.97/25/24/23.98)
SMPTE-296M: 720p (60/59.94/50)
SMPTE-125M: 480i (59.94)
ITU-R BT.656: 576i (50)
HDMI:
1080p (60/59.94/50/30/29.97/25/24/23.98)
1080i (60/59.94/50)
720p (60/59.94/50)
480i/576i/480p/576p
Y/Pb/Pr: 1080p (50/60)/1080i (50/60)/720p (50/60)/576p/576i/480p/480i
VGA: 1600 x 1200/1280 x 1024/1280 x 960/1280 x 768/1152 x 864/1024 x 768/800 x 600/640 x 480 | | Temperature | Working: 32 to 104°F (0 to +40°C)
Storage: 5 to 140°F (-15 to +60°C) | | Humidity | 10 to 90% | | Power Requirements | 100 to 240 VAC, 11 to 17 VDC | | Power Consumption | ≤32 W | | Dimensions | 1.7 x 1.2 x 0.3" (43 x 31 x 7.3 cm) | | Weight | 10.2 lb (4.65 kg) |
