User Manual for SWIT S-1173H 3G SDI HDMI Broadcast Studio LCD Monitor Click to enlarge the picture
Contents of the user manual for the SWIT S-1173H 3G SDI HDMI Broadcast
- Product category: Production Monitors SWIT
- Brand: SWIT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SWIT Production Monitors
|
User manual for the SWIT S-1173H 3G SDI HDMI Broadcast contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SWIT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SWIT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SWIT product will considerably shorten its lifespan!
|

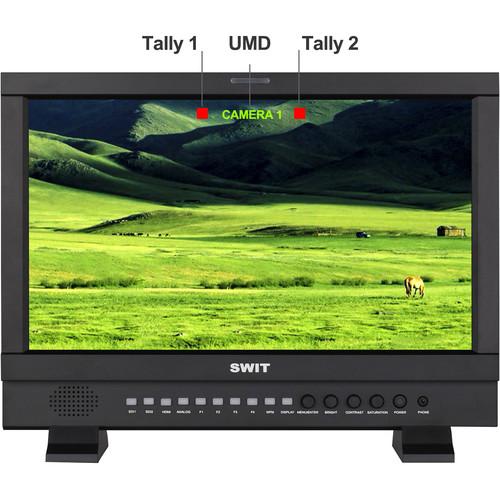

Product description The S-1173H Broadcast Studio LCD Monitor from SWIT adopts a 17.3” LCD panel to produce 3G/SDI/HDMI video in Full HD 1920 x 1080 resolution. It provides a 700:1 contrast for accurate color reproduction and comes with a V-Mount battery plate. -
- 17.3” LCD panel
- 1920 x 1080 resolution
- 2 x 2K/3G/HD/SD-SDI, HDMI monitoring
- Y/Pb/Pr, VGA, CVBS monitoring
- 2-channel embedded audio meters with alert
- 2 selectable audio channels to output
- Peaking focus assist (red/blue switch)
- Active Format Description (AFD)
- Timecode, H/V delay
- TSL UMD and text TALLY display
- Safety marker 4:3/13:9/14:9/15:9/1.85:1/2.35:1
- False color with color chart
- R/G/B/mono color modes
- Over exposure zebra stripes
- Internal color bar
- V-Mount battery plate
- 19” rack installation, 7U height
- USB firmware upgrade
In the Box SWIT S-1173H 3G/SDI/HDMI Broadcast Studio LCD Monitor (17.3", V-Mount) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SWIT S-1173H 3G SDI HDMI Broadcast Studio LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSWIT S-1173 Specs | Signal System | NTSC/PAL | | Monitor Type | LCD | | Screen Size | 17.3" (43.9 cm) | | Resolution | 1920 x 1080 | | Display Area | 15 x 8.6" (38 x 22 cm) | | Display Colors | 16.7 million colors | | Viewing Angle | H/V: 160°/ 160° | | Brightness | 300 cd/m2 | | Contrast Ratio | 700:1 | | Aspect Ratio | 16:9/4:3 | | Inputs | BNC: 2 x 2K/3G/HD/SD-SDI input, 1 x CVBS input, 1 x Y/Pb/Pr input
1 x HDMI
RS-485: 1 x GPI, 1 x UMD
1 x USB
1 x VGA
1 x RS-232C (UMD)
RCA: 2 x L/R audio input | | Outputs | Output
BNC: 2 x 2K/3G/HD/SD-SDI Loop output, 1 x CVBS loop output
1 x HDMI loop output
1 x RS-485 (UMD)
1 x 3.5 mm SDI/HDMI embedded audio output, analog audio output | | Video Formats | SDI:
SMPTE ST 2048-1: 2048 x 1080p (60/59.94/50/30/29.97/25/24/23.98), 2048 x 1080i (60/59.94/50)
SMPTE-425M: 1080p (60/59.94/50)
SMPTE-274M: 1080p (30/29.97/25/24/23.98), 1080i (60/59.94/50)
SMPTE-RP211: 1080psf (30/29.97/25/24/23.98)
SMPTE-296M: 720p (60/59.94/50)
SMPTE-125M: 480i (59.94)
ITU-R BT.656: 576i (50)
HDMI:
1080p (60/59.94/50/30/29.97/25/24/23.98)
1080i (60/59.94/50)
720p (60/59.94/50)
480i/576i/480p/576p
Y/Pb/Pr: 1080p (50/60)/1080i (50/60)/720p (50/60)/576p/576i/480p/480i
VGA: 1600 x 1200/1280 x 1024/1280 x 960/1280 x 768/1152 x 864/1024 x 768/800 x 600/640 x 480 | | Temperature | Working: 32 to 104°F (0 to +40°C)
Storage: 5 to 140°F (-15 to +60°C) | | Humidity | 10 to 90% | | Power Requirements | 100 to 240 VAC, 11 to 17 VDC | | Power Consumption | ≤32 W | | Dimensions | 1.7 x 1.2 x 0.3" (43 x 31 x 7.3 cm) | | Weight | 10.2 lb (4.65 kg) |
