User Manual for SWIT S-2041B Chip-Array LED On-Camera Light with Panasonic VW-VBG6 Battery Plate Click to enlarge the picture
Contents of the user manual for the SWIT S-2041B Chip-Array LED On-Camera Light
- Product category: On Camera Lights SWIT
- Brand: SWIT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SWIT On Camera Lights
 |
User manual for the SWIT S-2041B Chip-Array LED On-Camera Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SWIT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SWIT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SWIT product will considerably shorten its lifespan!
|

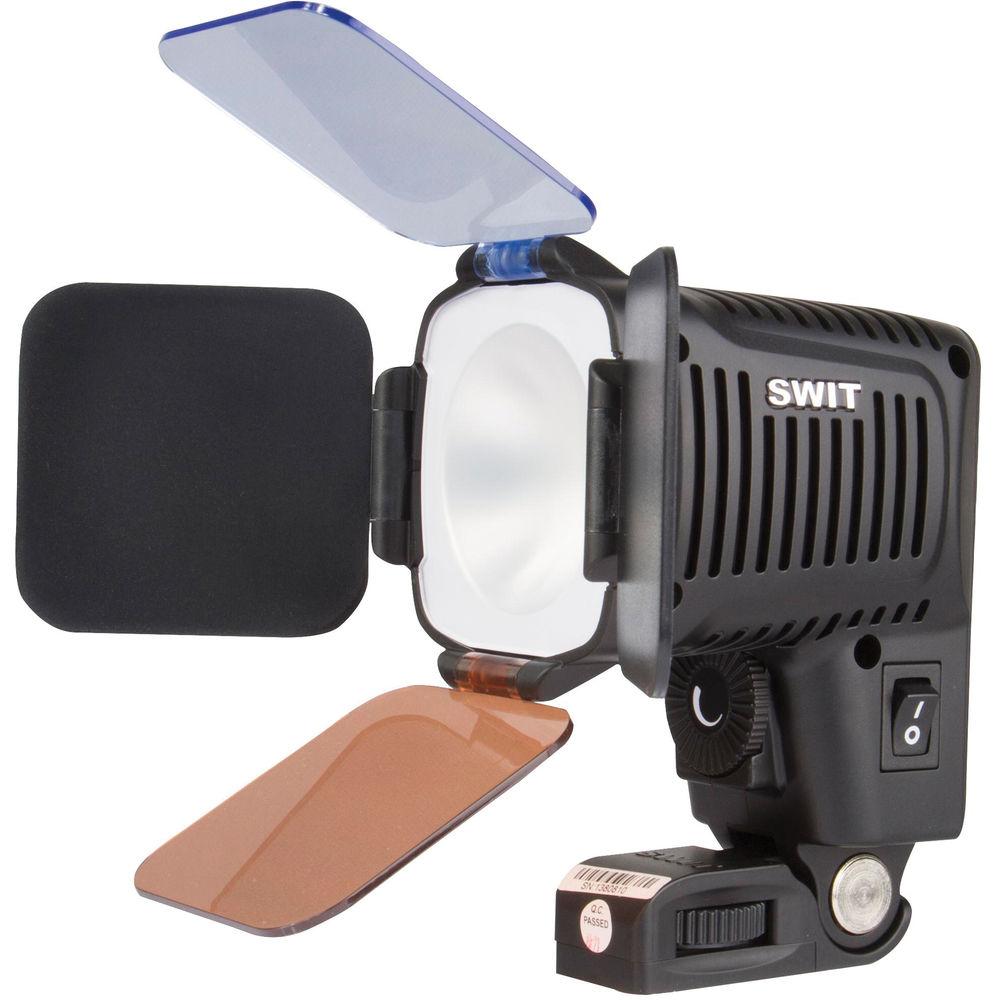

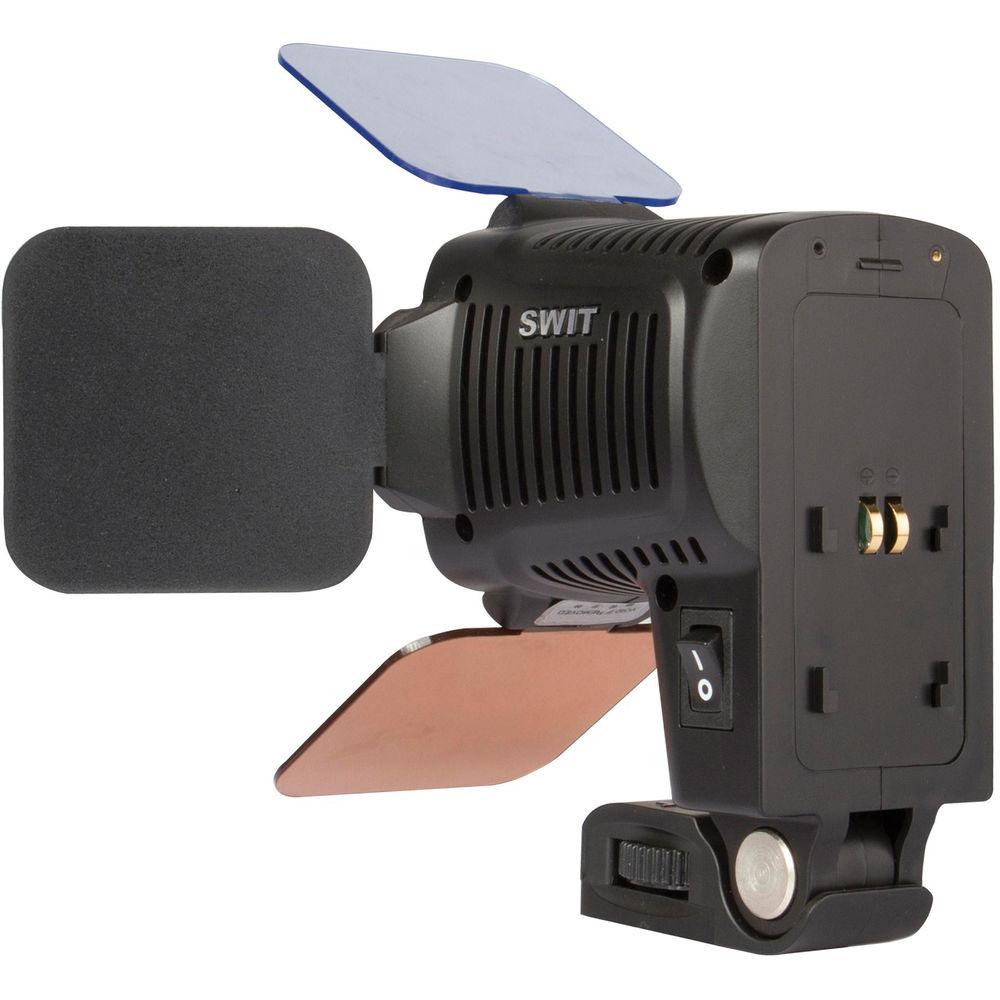

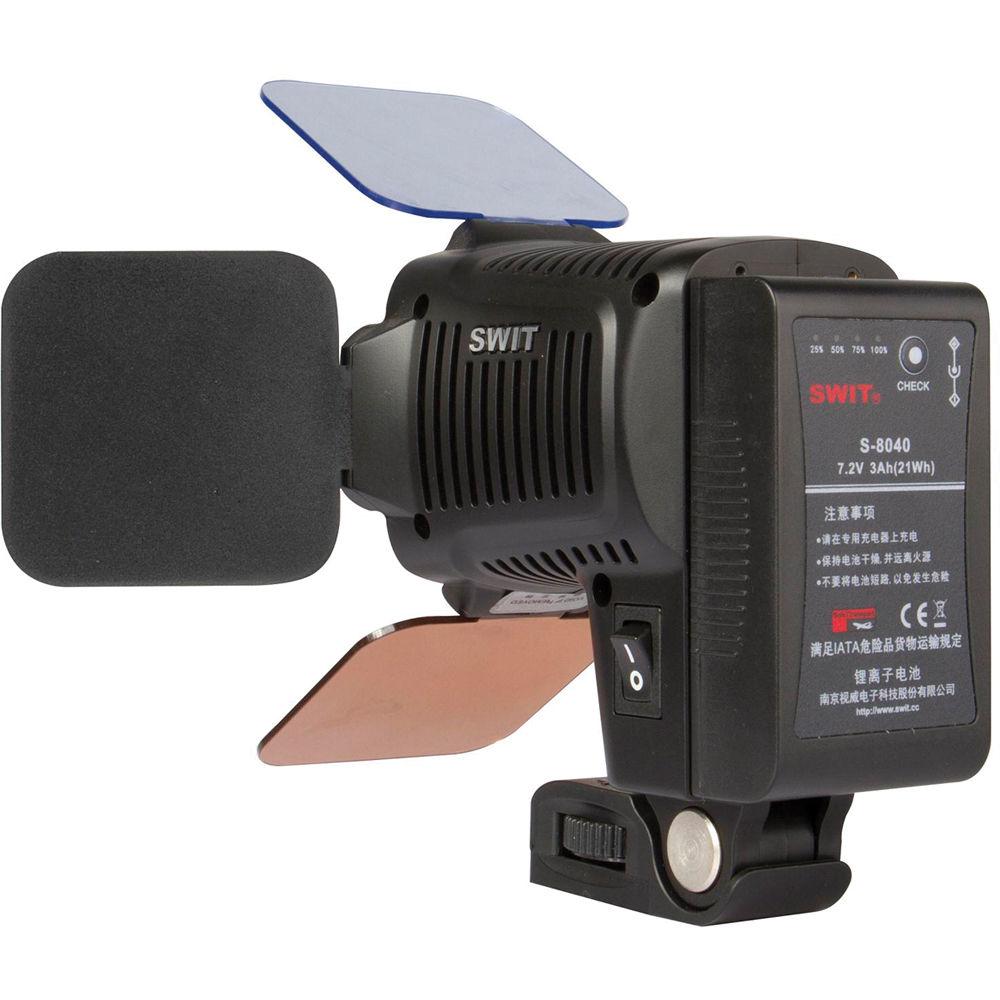

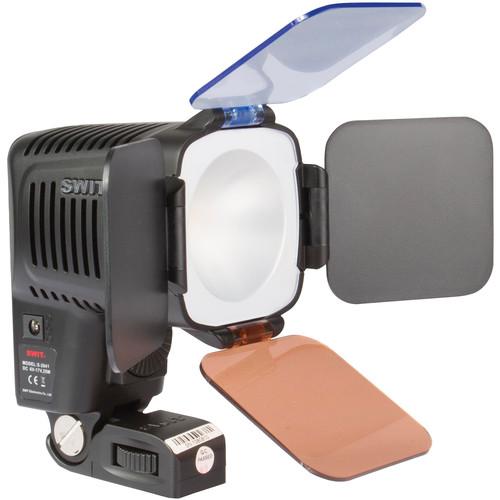

Product description The SWIT S-2041B LED On-Camera Light uses chip-array LED technology to provide a soft, bright light with minimal glare. This 5000K light is switchable to 3200K or 5600K by using the attached, hinged orange or blue filters. A front-mounted dial enables dimming from 10-100%. The light comes with the S-7004B interchangeable battery plate, making it compatible with Panasonic VW-VBG6 and SWIT S-8BG6 batteries. It can also be powered using the included D-tap to 5.5mm cable.This LED light offers a 60° wide beam angle, an illumination of 1200 lux at 3.3', and a CRI rating of 85. Its output is equivalent to a 100W halogen bulb at 5000K with a power consumption of 23W. The light mounts to your camera via its cold shoe plate or its 1/4"-20 threaded screw. - LEDs remain cool while producing a soft, bright light with minimal glare
- Can be powered using the S-7004B interchangeable battery plate or the D-Tap cable
- Compatible with Panasonic VW-VBG6 and SWIT S-8BG6 batteries
- 5000K color temperature with 5600K and 3200K options using hinged filters
- Dimmable from 10 to 100% using the built-in dial
- Attaches to camera by using either 1/4"-20 screw or cold-shoe mount
In the Box SWIT S-2041B Chip-Array LED On-Camera Light with Panasonic VW-VBG6 Battery Plate S-7004B Interchangeable Battery Plate D-Tap to 5.5mm Barrel Jack Adapter Cable (2') Carrying Pouch Limited 2-Year Warranty User Manual PDF 609.7kbbzfzbeucce Table of Contents
|
Upload User Manual
Have you got an user manual for the SWIT S-2041B Chip-Array LED On-Camera Light with Panasonic VW-VBG6 Battery Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSWIT S-2041B Specs | | | Beam Angle | 60° | | Color Temperature | 5000K | | Color Temperature with Included Filter | 5600K
3200K | | Color Accuracy Standard | CRI 85 | | | | Battery Plate | 1 x Panasonic VW | | DC Input Power | 6 to 17 VDC | | Max Power Consumption | 23 W | | Power Input Connector | D-Tap | | | | Mount Type | Cold Shoe | | Dimensions | 3.3 x 6.2 x 4.1" / 8.4 x 15.7 x 10.3 cm | | Weight | 14.1 oz / 400 g | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 10.0 x 6.1 x 4.6" |
