User Manual for SWIT S-2240 Bi-Color SMD On-Camera LED Light Click to enlarge the picture
Contents of the user manual for the SWIT S-2240 Bi-Color SMD On-Camera LED
- Product category: On Camera Lights SWIT
- Brand: SWIT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SWIT On Camera Lights
 |
User manual for the SWIT S-2240 Bi-Color SMD On-Camera LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SWIT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SWIT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SWIT product will considerably shorten its lifespan!
|

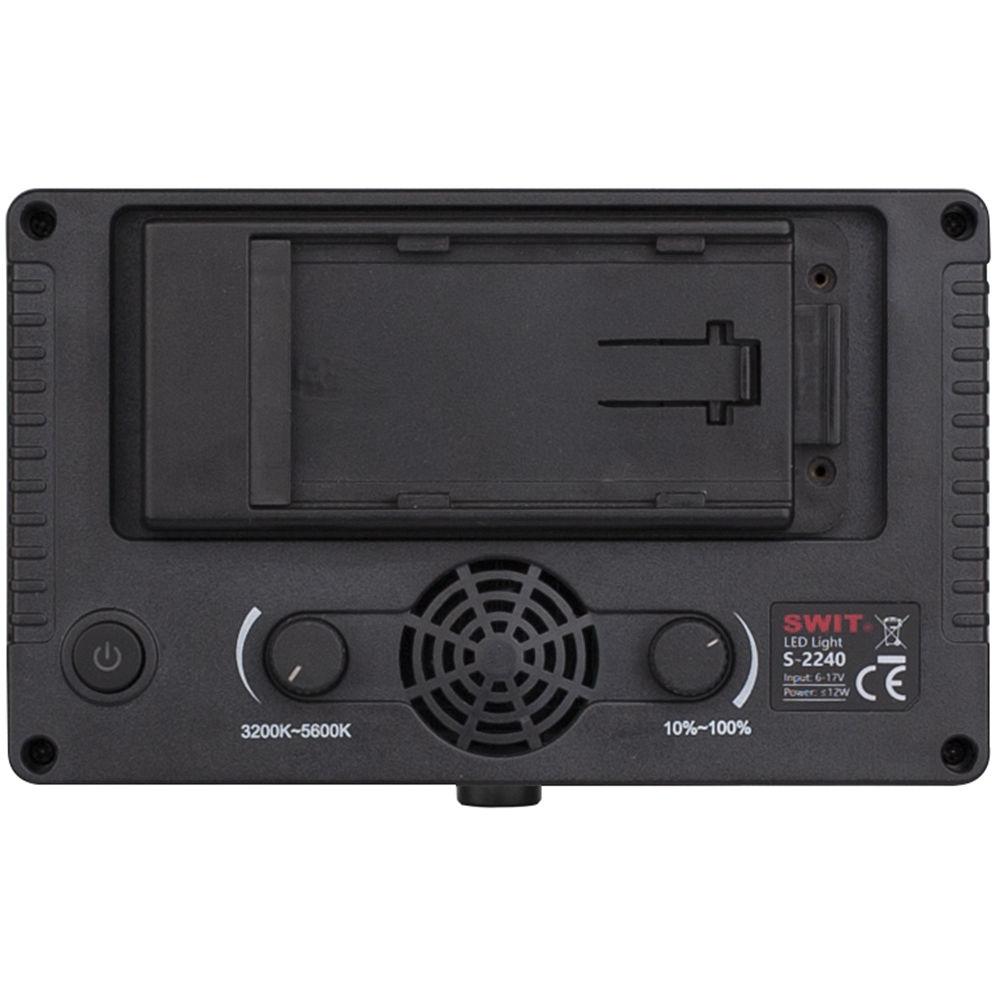

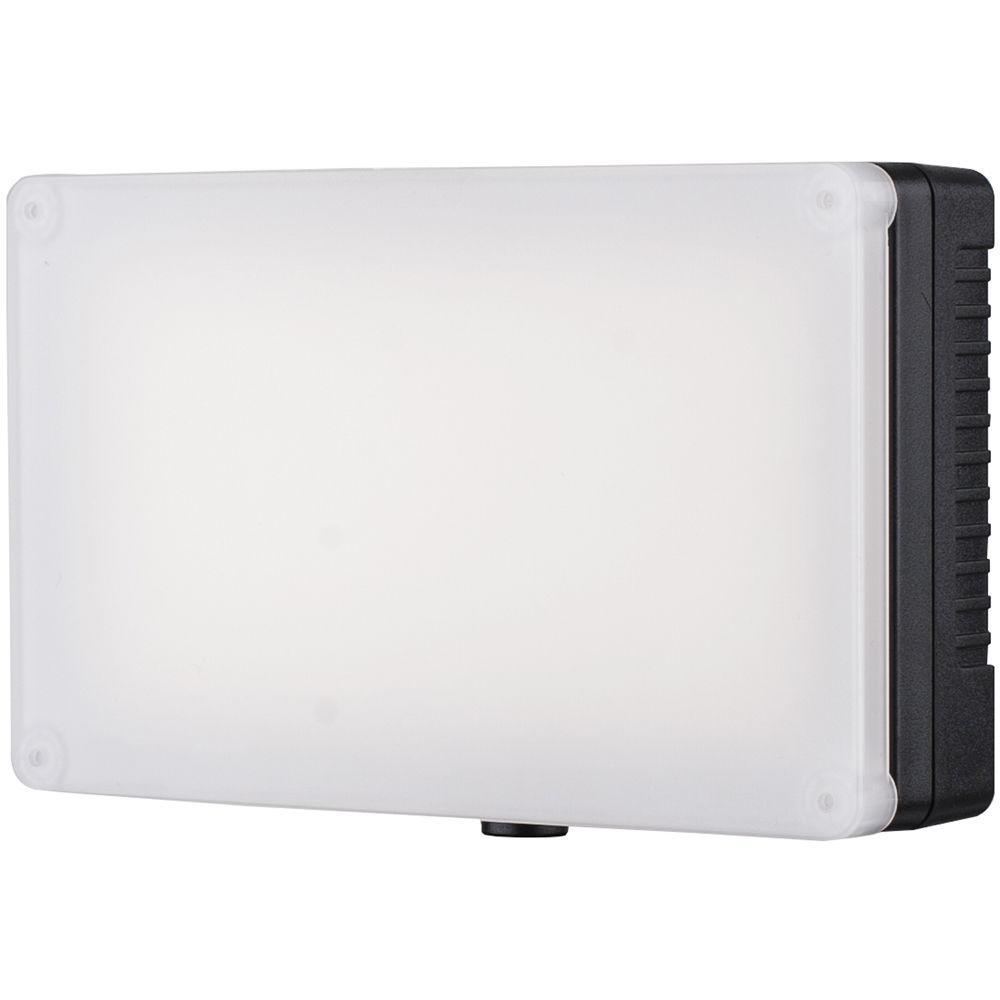

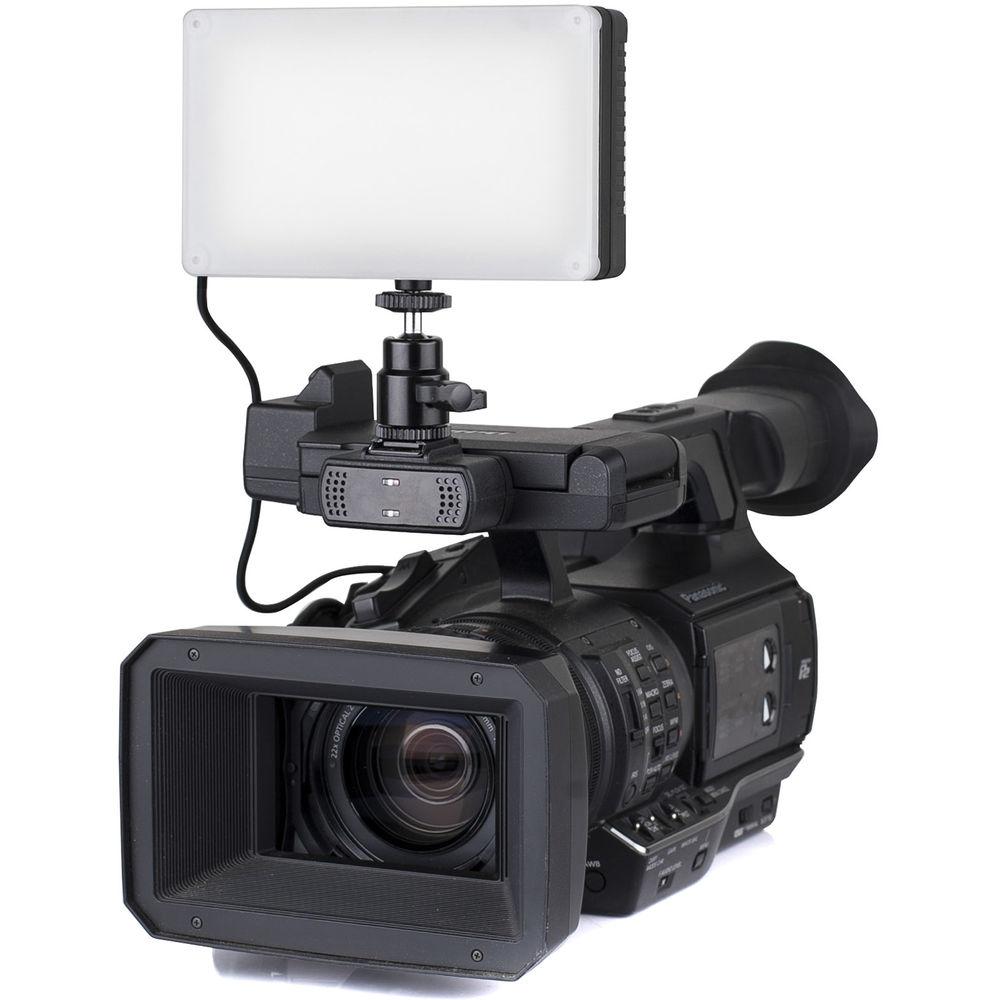

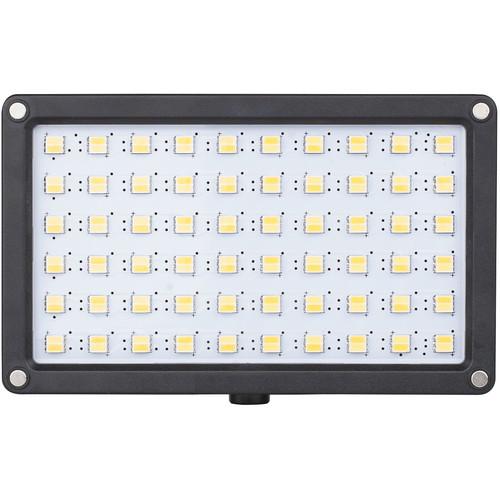

Product description The S-2240 Bi-Color On-Camera LED Light with Sony NP-F970/770 battery mount from SWIT features 60 ultra-bright, surface mounted LEDs. It comes with a polycarbonate diffuser that attaches on the front of light fixture via magnets. The diffuser helps generate an equally spread, glareless light for close interview and professional film lighting. This LED light offers a 120° wide beam angle with a half-declined beam at 68°, an illumination of 300 lux at 3.3', and a CRI rating of 92. The light output can be adjusted from 10 to 100% with the onboard dimmer. The color temperature can also be continuously adjusted from 5600 to 3200K via the knob on the rear panel. The LED light comes with an interchangeable snap-on Sony NP-F type battery plate that accepts Sony NP-F970 and NP-F770 batteries, and SWIT S-8972, S-8970, and S-8770 batteries. It operates on 6 to 17 VDC wide voltage input, which can be supplied from 7.2V camera batteries. It can also accept power from D-Tap power output sockets, such as 14.4V V-mount or Gold mount batteries, battery plates, or camera handles using the included D-Tap cable. The light can be mounted on a tripod via a 1/4"-20 screw head, and can be fixed on the camera with the cold-shoe mount ball head. - 60 ultra-bright, bi-color, surface-mounted LEDs
- Wide beam angle of 120° (half-declined at 68°)
- 3200 to 5600K continuously adjustable color temperature
- 12W power, 300 lux at 3.3' center
- 10 to 100% adjustable dimmer
- CRI (Color Rendering Index) of 92 and TLCI (Television Lighting Consistency Index) of 97
- Includes a snap-on Sony NP-F type battery plate for Sony NP-F970/F770 and SWIT S-8972, S-8970, and S-8770 batteries
- Accepts 6 to 17 VDC input via D-Tap
- Includes a magnetic diffuser cover
- Includes a ball head with 1/4"-20 screw and cold-shoe mount
In the Box SWIT S-2240 Bi-Color SMD On-Camera LED Light (Sony NP-F Mount) Magnetic Diffuser Cover D-Tap Power Cable S-7004F Sony NP-F Type DV Battery Plate Ball Head with 1/4" Screw & Cold Shoe Interface Carrying Bag Limited 2-Year Warranty User Manual PDF 616.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the SWIT S-2240 Bi-Color SMD On-Camera LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSWIT S-2240F Specs | Lamp Type | 60 x SMD LEDs | | Mount Type | 1/4"-20 screw
Cold-shoe mount | | Photometrics | 300 lux at 3.3' (1 m) | | Beam Angle | 120°
Half-declined at 68° | | Color Temperature | 3200 ± 200K to 5600 ± 300K | | Rating | CRI Ra ≥93
TLCI ≥97 | | LED Lifetime | 50,000 hours | | Power Source | 6 to 17 VDC | | Power Consumption | Approximately 12 W | | Power Connector | D-Tap | | Dimensions | 5.6 x 3.6 x 1.3" / 143 x 91 x 34 mm | | Weight | Approximately 5.9 oz / 166 g | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 8.3 x 7.5 x 5.0" |
