User Manual for SWIT S-2440C Bi-Color Studio Panel LED Light Click to enlarge the picture
Contents of the user manual for the SWIT S-2440C Bi-Color Studio Panel LED
- Product category: LED Lights SWIT
- Brand: SWIT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SWIT LED Lights
 |
User manual for the SWIT S-2440C Bi-Color Studio Panel LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SWIT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SWIT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SWIT product will considerably shorten its lifespan!
|

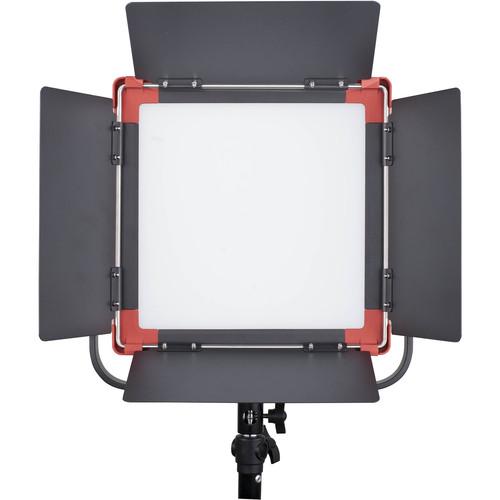

Product description The S-2440C Bi-Color Studio Panel LED Light from Swit is a low-profile fixture with a thin 3.26" metal design and a 70-degree beam angle for wide coverage that can be contoured and controlled by the included 4-way barndoors. Color temperature is variable from 3200 - 5600K or anywhere in between to match prevailing ambient light conditions, other fixtures, or to work creatively without resorting to filters. The high CRI: 93, TLCI: 97 rating ensures the accurate rendition of color. Light intensity is also variable from 10-100% without flicker. Both functions can be adjusted on the fixture or remotely via onboard DMX. Your settings are displayed on the large, easy-to-read LCD screen on the back of the fixture. The S-2440C runs on 100-240 VAC for worldwide use thanks to the inclusion of an AC adapter, but it can also run on V-mount batteries via the battery plate on the rear of the light. - 576 Surface Mounted LEDs
- The S-2440C Studio Panel LED Light employs surface mounted LED technology and includes 576 bright LEDs. The built-in diffuser generates an even 70° beam spread for effective wide coverage which is an ideal for broadcast studio and field video productions.
- Bi-Color Temperature
- Color temperature can be continuously adjustable between 3200 and 5600K or anywhere in between.
- High Output, Low Power Draw
- The S-2440C consumes 50W of power, produces 1250 lux @ 3.3' (1.0 m) and supports smooth 10 to 100% digital dimming without flicker.
- Highly Accurate Color Rendering: CRI: 93, TLCI: 97
- CRI (Color Rendering Index) is a measure of the ability of a light source to reveal the colors of various objects faithfully in comparison with a natural light source. And TLCI (Television Lighting Consistency Index) is a special rating for color revealing ability by the camera sensor. 100 is the maximum rating.
- DMX512 Control
- The S-2440C adopts a standard 5-pin DMX In/Out port, supports DMX512 protocol, and adjusts dimming and color temperature by a DMX controller.
- LCD Screen Display

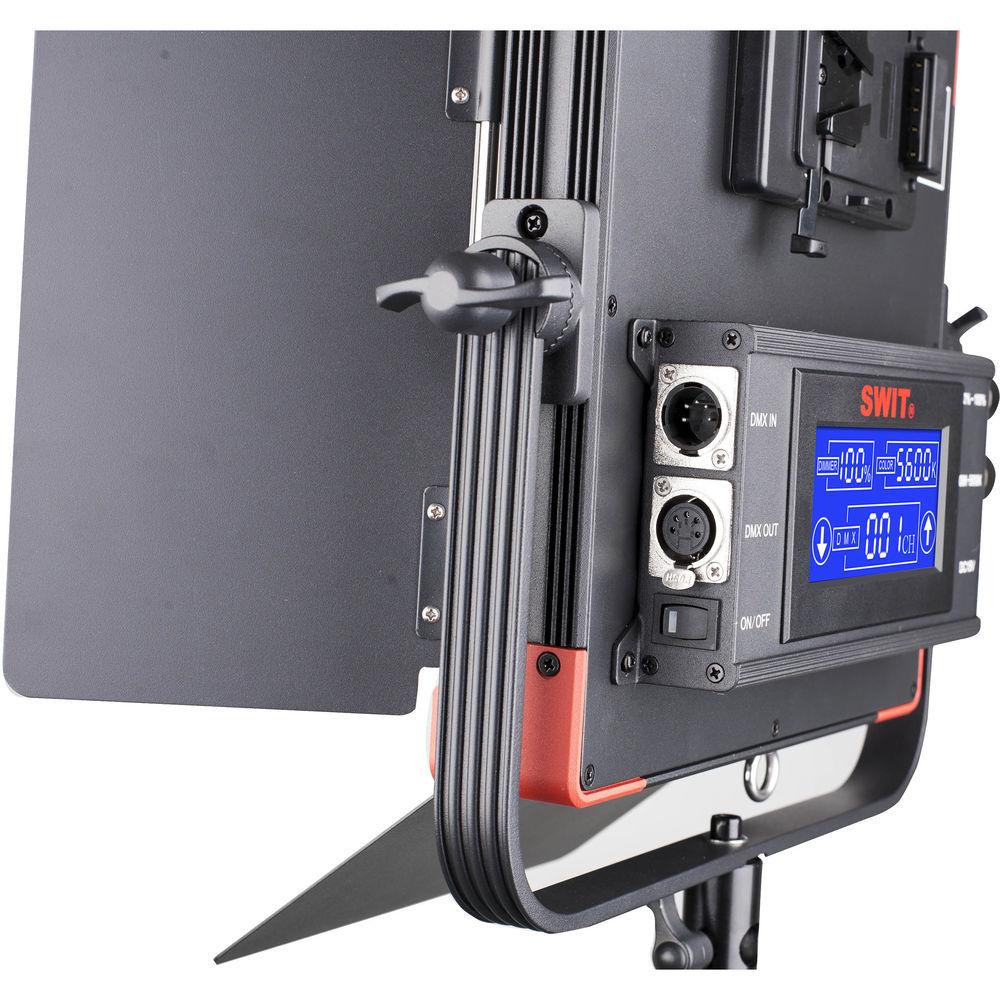

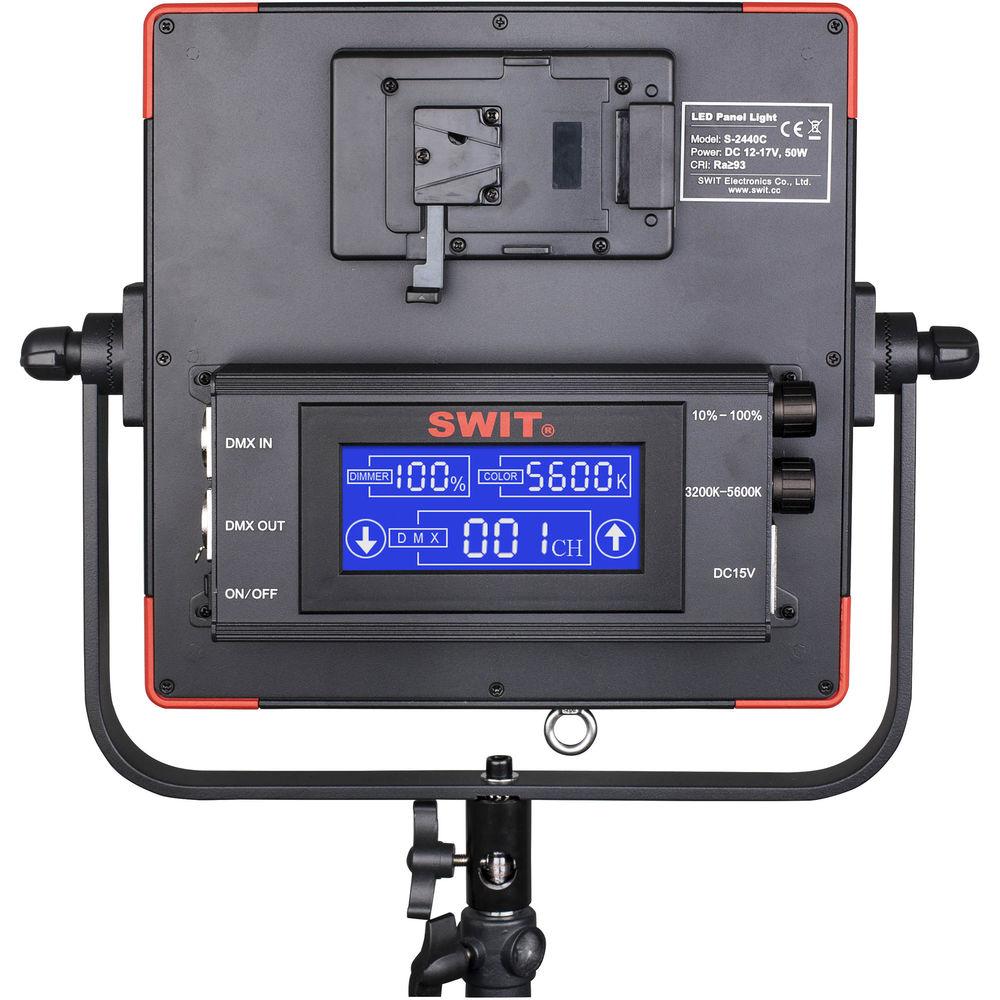

- The rear LCD screen can display the current dimmer percentage and color temperature value and supports touch control to set DMX addresses.
- DC 12-17V Power Supply
- The light supports a 12-17V 4-pin XLR DC input and is equipped with a battery plate to power it by V-mount battery or by the included AC adapter.

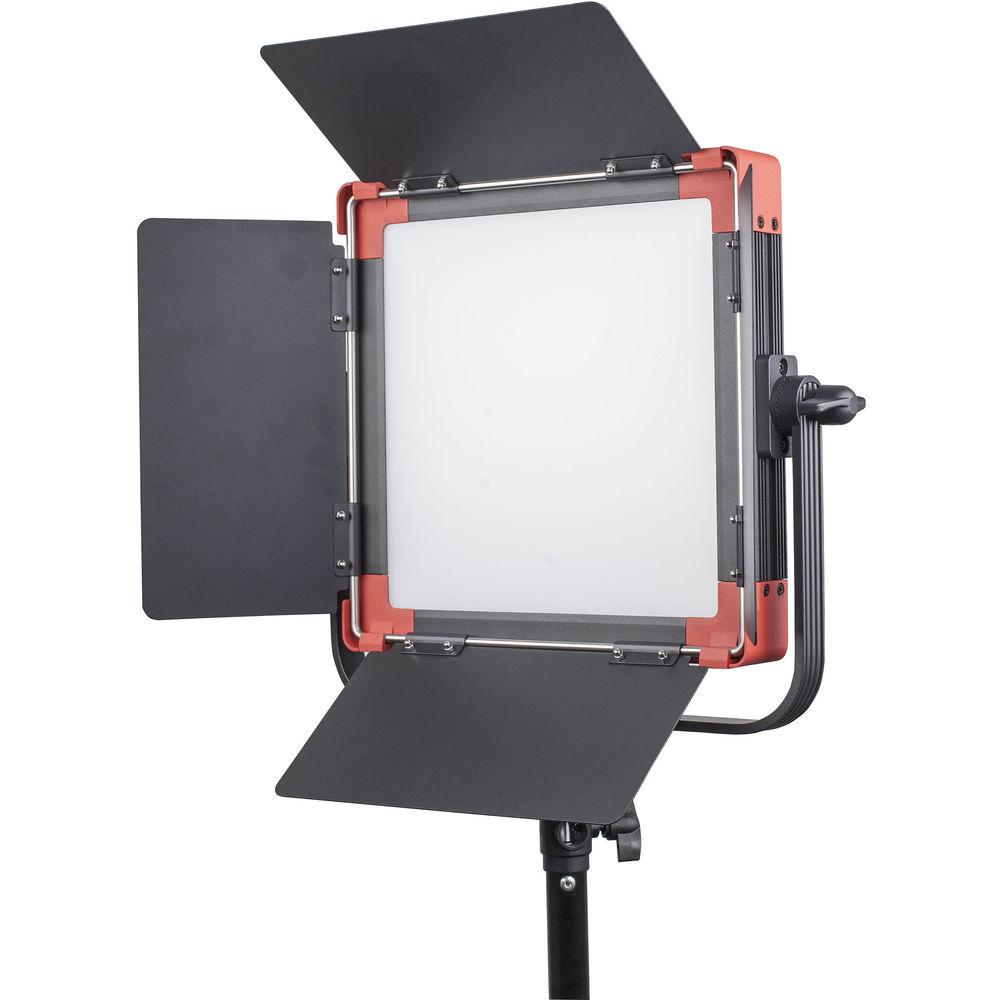

- 4-Way Barndoors
- Snap-on metal 4-way barndoors allow you to light the areas that you want to and keep light from areas where you don't want it.
- U-Shaped Bracket with 2 Security Cables
- The S-2440C is supplied with a U-shape bracket for mounting on a stand or hanging from the ceiling. Two steel security cables secure the fixture and the bracket, preventing accidents.
In the Box SWIT S-2440C Bi-Color Studio Panel LED Light AC Power Adapter with 90-Degree 4-Pin XLR U-Shaped Bracket Four-Way Barndoors 5-Pin DMX Cable 2 x Steel Security Cables Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SWIT S-2440C Bi-Color Studio Panel LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSWIT S-2440C Specs | Light Source | 576 LEDs | | Color Range | 3200K (+/-300K) to 5600K (+/-200K) | | CRI / TLCI | CRI: 93, TLCI: 97 | | DMX | Yes (5-pin DMX In/Out port) | | Dimming | 10 - 100% | | Beam Angle | 70° | | Photometrics | 1250 lux @ 3.3' (1.0 m) | | Operating Voltage | Working voltage: DC12V - 17 V
AC adapter: 100 - 240 VAC, 50/60 Hz | | Battery | Optional V-mount | | Power Consumption | 50 W | | Mount | 5/8" (16 mm) Stand mount | | Dimensions | Overall: 15.5 x 14.7 x 3.26" (395 x 375 x 83 mm)
Illuminated Area: 9.3 x 9.3" (237 x 237 mm) | | Weight | 9.0 lb (4.1 kg) | | | | Package Weight | 16.75 lb | | Box Dimensions (LxWxH) | 21.2 x 16.0 x 8.6" |
