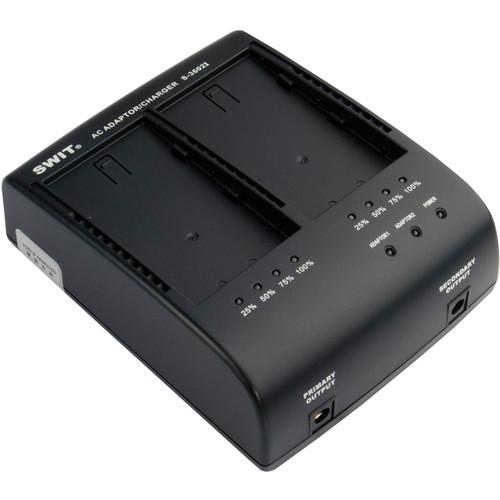

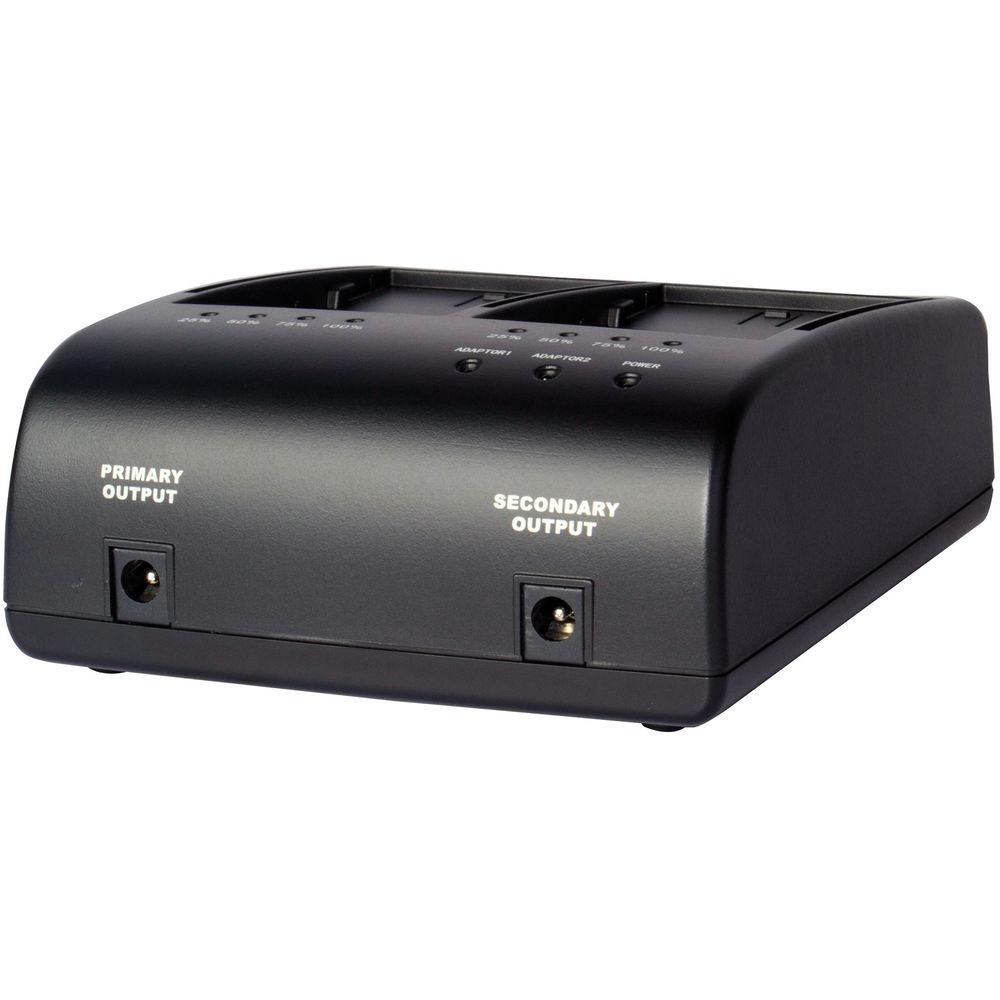

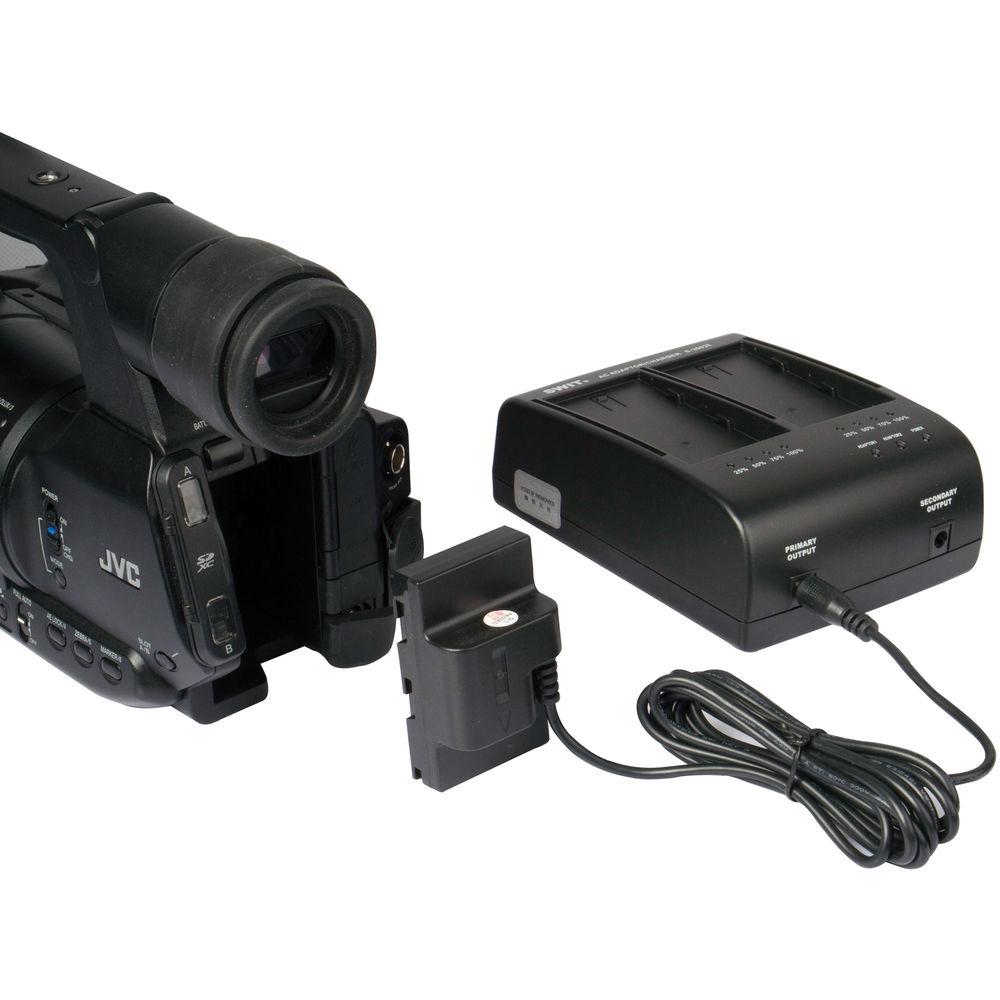

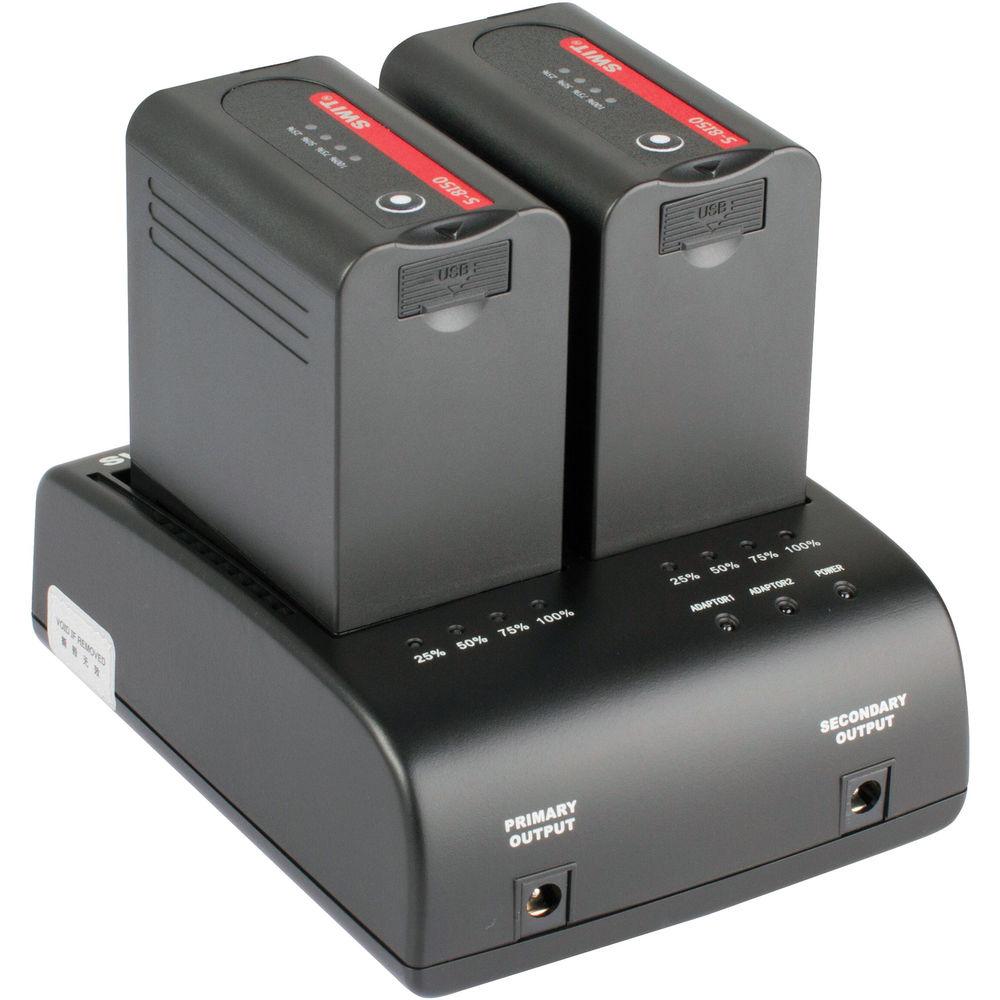

Product description The SWIT S-3602I Dual Charger/Adapter has two charging channels with 7-8.4 VDC, 2A output each for simultaneously charging two batteries. It is compatible with the SWIT S-8i50 and JVC SSL-JVC50 batteries. Four-level LED charging indicators for each channel indicate the percentage of charge remaining. The dual charger also has two 5.5/2.1mm DC pole sockets to provide 8.4V, 3.5A (total) DC adapting output. The S-7500I dummy adapter is included for adapting JVC GY-HM600/650 cameras or equipment with the corresponding battery mounts. Both channels can simultaneously provide DC output to the connected cameras/accessories or one channel can be used to charge a battery by dropping it in, while the other can be used to adapt to a camera/accessory. Note: One dummy adapter is included to adapt one of the dual DC pole sockets to a compatible camera. To use both adapting outputs simultaneously, an additional dummy adapter must be purchased. - Two-channel simultaneous charging
- Two 8.4V, 3.5A (total) DC adapting output sockets
- Compatible with SWIT S-8i50 and JVC SSL-JVC50 batteries
- Includes the S-7500I dummy adapter to adapt to JVC GY-HM600/650 and corresponding accessories
- Four-level LED charging indicators
In the Box SWIT S-3602I Dual Charger/Adapter for JVC SSL-JVC50 Battery S-7500I Dummy Battery Adapter Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SWIT S-3602I Dual Charger Adapter for JVC SSL-JVC50 Battery in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSWIT S-3602I Specs | Input | 100 to 240 VAC, 50/60 Hz | | Output | Charger: 7 to 8.4 VDC, 2 x 1.8 A
Adapter: 8.4 VDC, 3.5 A (total) | | Maximum Power Consumption | 50 W | | Compatibility | Batteries: SWIT S-8i50
JVC SSL-JVC50
Cameras: JVC GY-HM600/650, HMQ10 | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Dimensions | 5.4 x 4.3 x 1.9" (136 x 110 x 47 mm) | | Weight | 12.7 oz (360 g) | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 9.2 x 7.8 x 2.7" |
