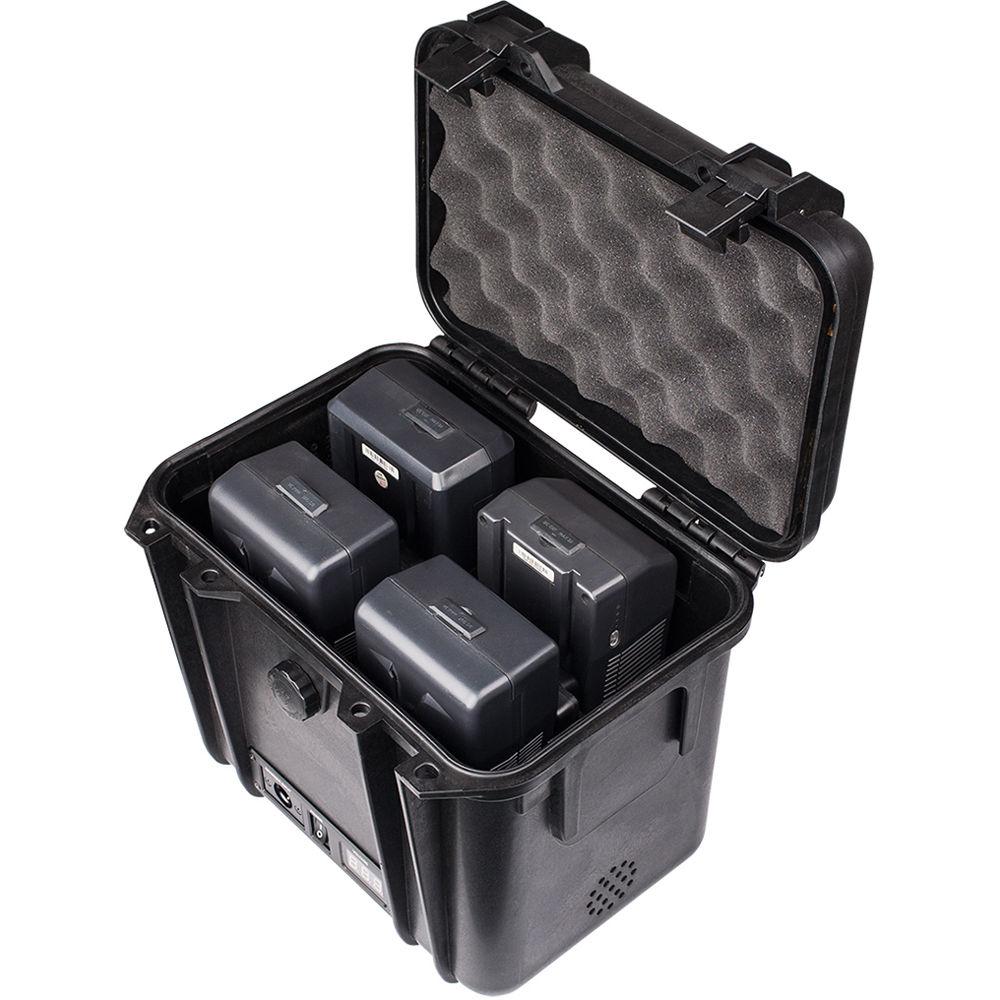

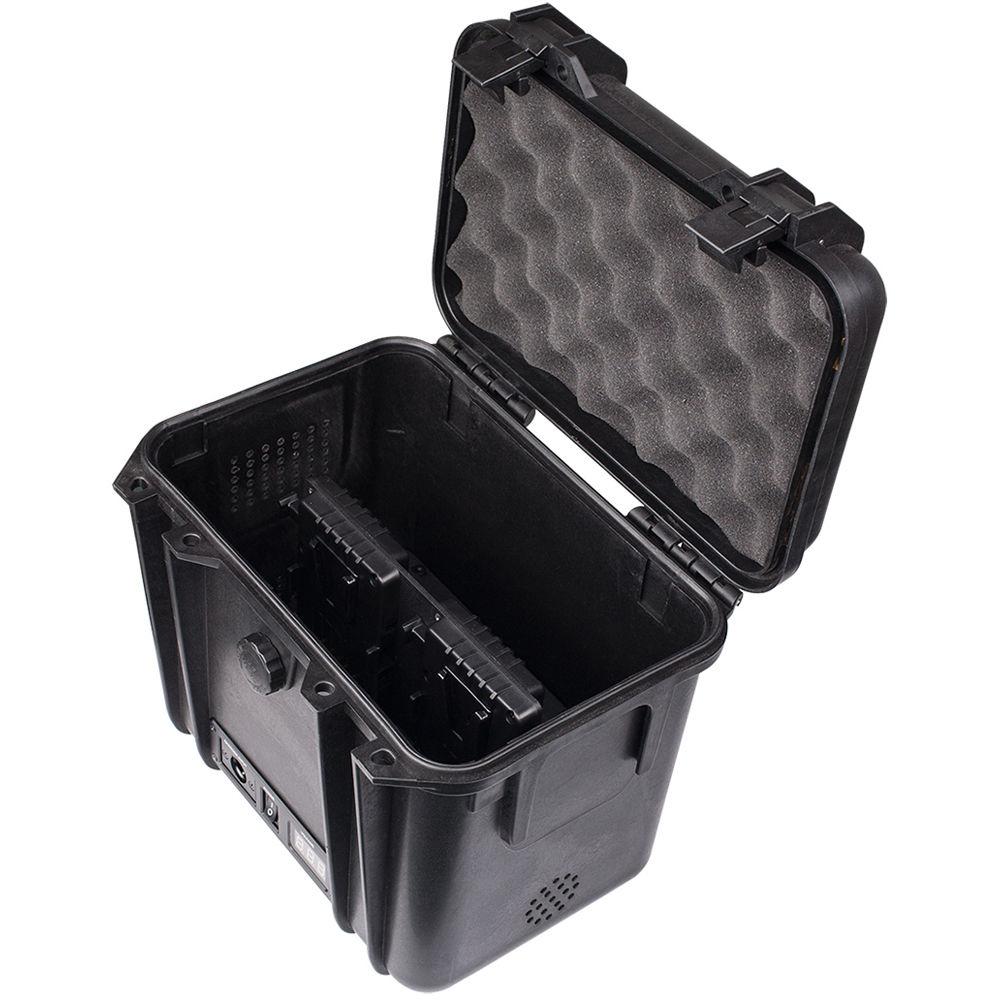

Product description The SWIT S-4010 4-Battery Power Station Box can install 4 pieces of V-Mount batteries which can provide more power and longer power supply time comparing to single Li-ion battery. It can meet the demand of different users, and is very suitable for Cine cameras, lighting for Film & Television and mobile studios. It adopts PP+ Fiber glass case which is high-intensity, toughness, and temperature resistant.
The box is designed to be powered with 1 to 4 V-Lock batteries, which are widely used and easy to find. It is compatible with all the SWIT V-Lock batteries or 3rd party batteries. The auto-balanced circuit design helps power the box with 1 to 4 batteries, of different capacity. The maximum output is limited by the batteries output. With 2 x 4-pin XLR output sockets, the S-4010 is capable of supplying 2-channel 11 to 16.8 VDC, 15 A power simultaneously.

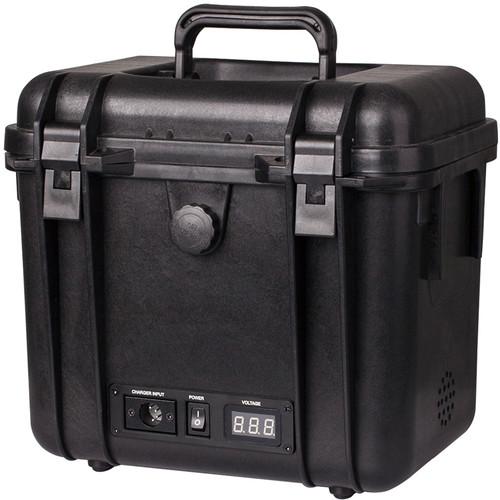

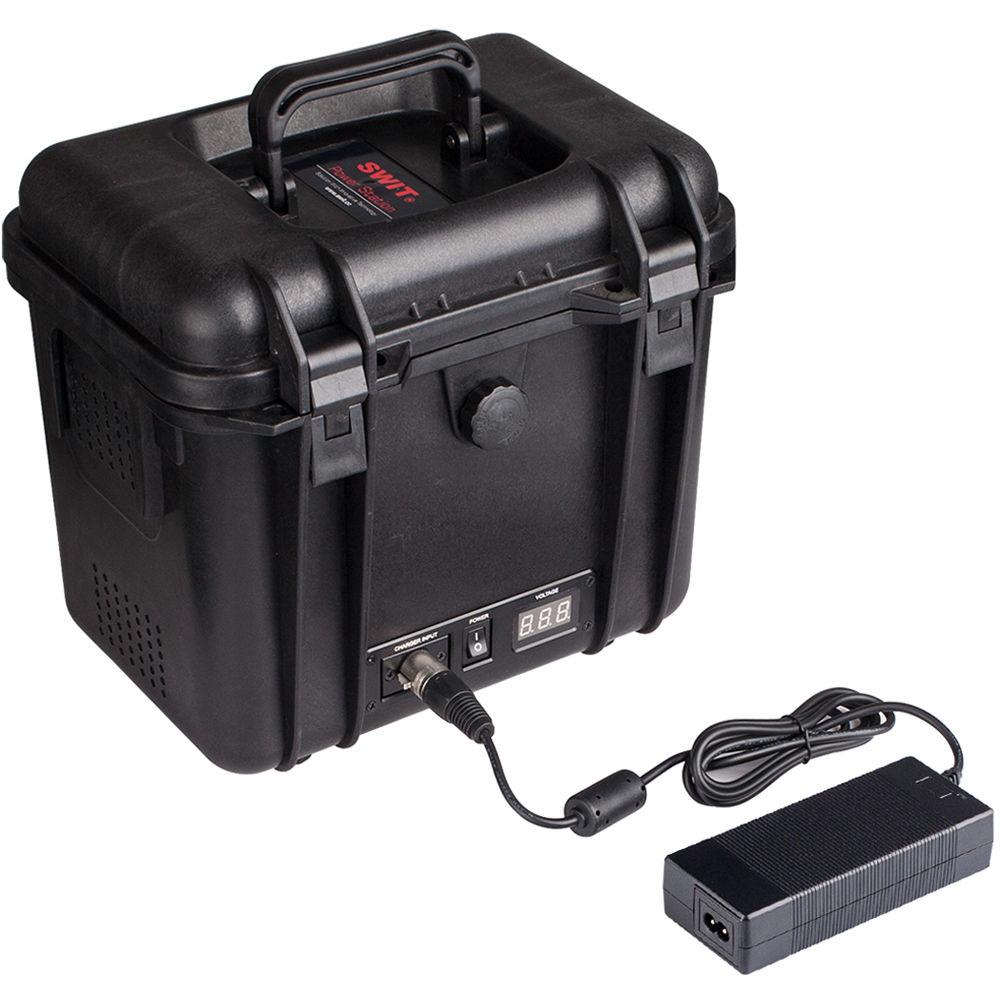

With a LED panel, the S-4010 can display real-time voltage, and when battery capacity is too low, the LED panel will keep flashing to remind you to change or charge batteries. The supplied 5A charger charges the batteries in the S-4010 directly, without taking them out. The fan keeps dissipating heat from the box and makes it safe when working in high-temperature environments. - Install 4 x V-Mount batteries
- Real time output voltage LED display
- Charging without taking out batteries
- Intelligent protective circuit design
In the Box SWIT S-4010 4-Battery Power Station Box Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SWIT S-4010 4-Battery Power Station Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSWIT S-4010 Specs | Input | Charging: 16.8 VDC, 5A | | Output | 11 to 16.8 VDC, 2x 15 A (2 x 180 W) | | Charging | With 4 fully discharged 160 Wh batteries, S-4010 will take around 11.5 hours to fully charge these batteries with the supplied power adapter. | | Discharge | With 4 fully charged 160 Wh batteries, S-4010 can power 85 W power consumption Cine camera for around 7.5 hours. | | Working Temperature | 32 to 104°F (0 to 40°C) | | Humidity | 10% to 90% | | Storage Temperature | 5 to 140°F (-15 to 60°C) | | Dimensions | 11.4 x 8.7 x 10.9" (290 x 221 x 278 mm) | | Weight | 7.61 lb (3.45 kg) | | | | Package Weight | 9.45 lb | | Box Dimensions (LxWxH) | 11.9 x 11.0 x 9.1" |
