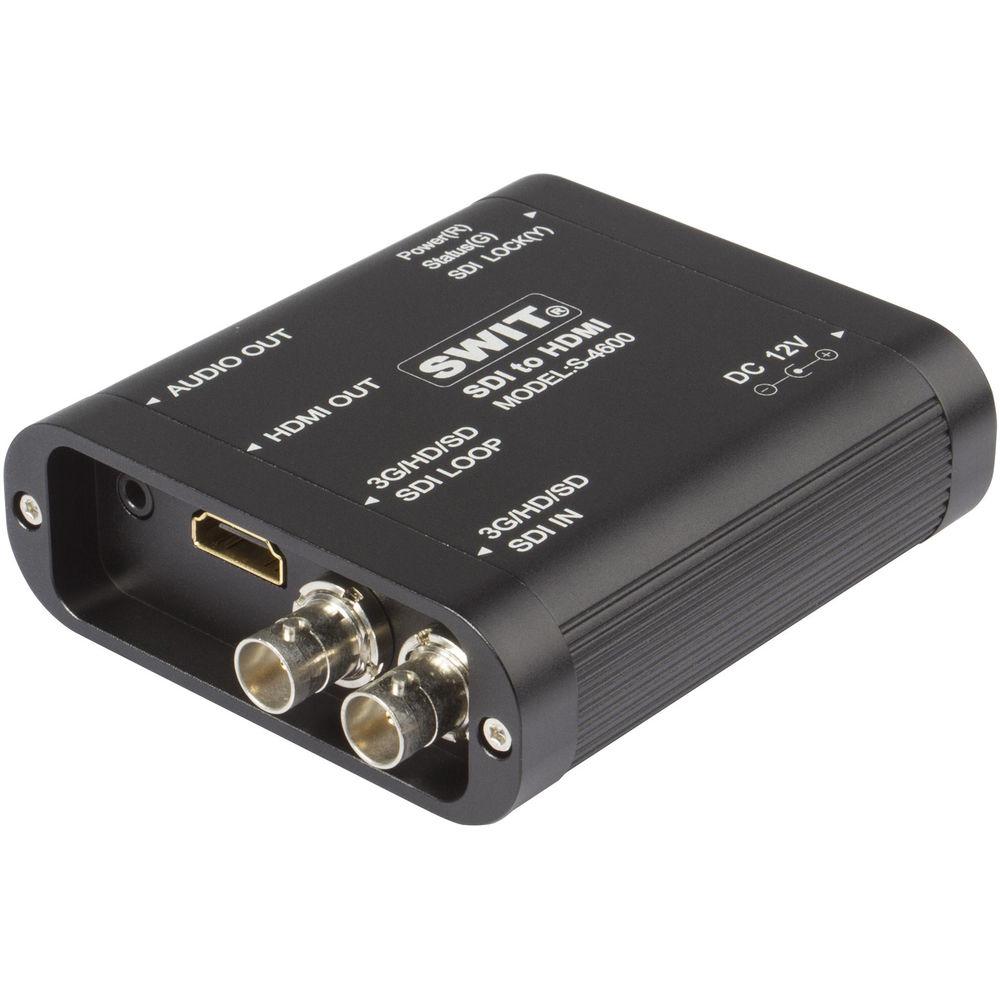

Product description The S-4600 Converter from SWIT is a portable 3G-SDI to HDMI converter. It converts the 3G-SDI signal, with its embedded audio, to HDMI output. The S-4600 supports 3G-SDI loop through output and SDI embedded audio via a 3.5mm analog audio output. The BNC connectors are protected by the S-4600's heavy-duty housing. It features various screw threads at the bottom for convenient installation. The unit ships with a power supply. - Portable 3G/HD/SD-SDI to HDMI converter
- Embed SDI audio to HDMI output

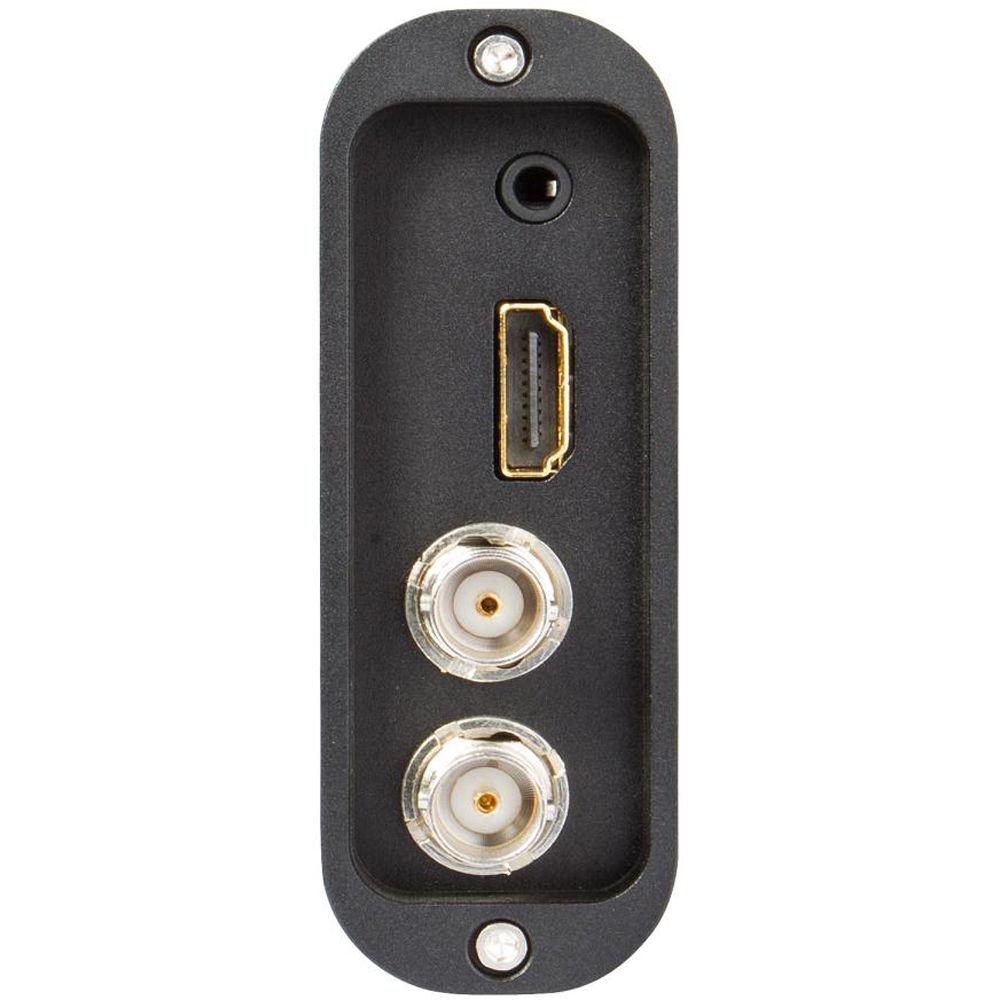

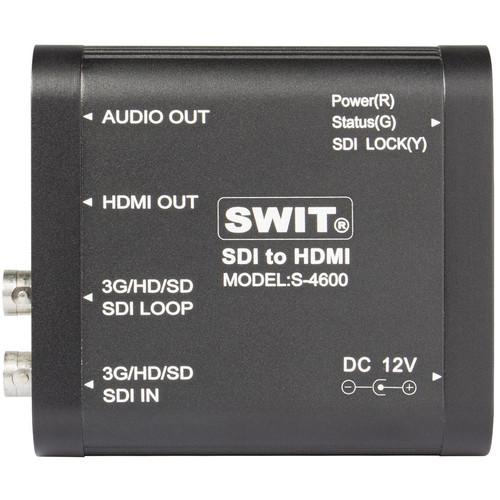

- One 3G-SDI input, one HDMI output, and one 3G-SDI loop through output
- One analog audio output via 3.5mm socket

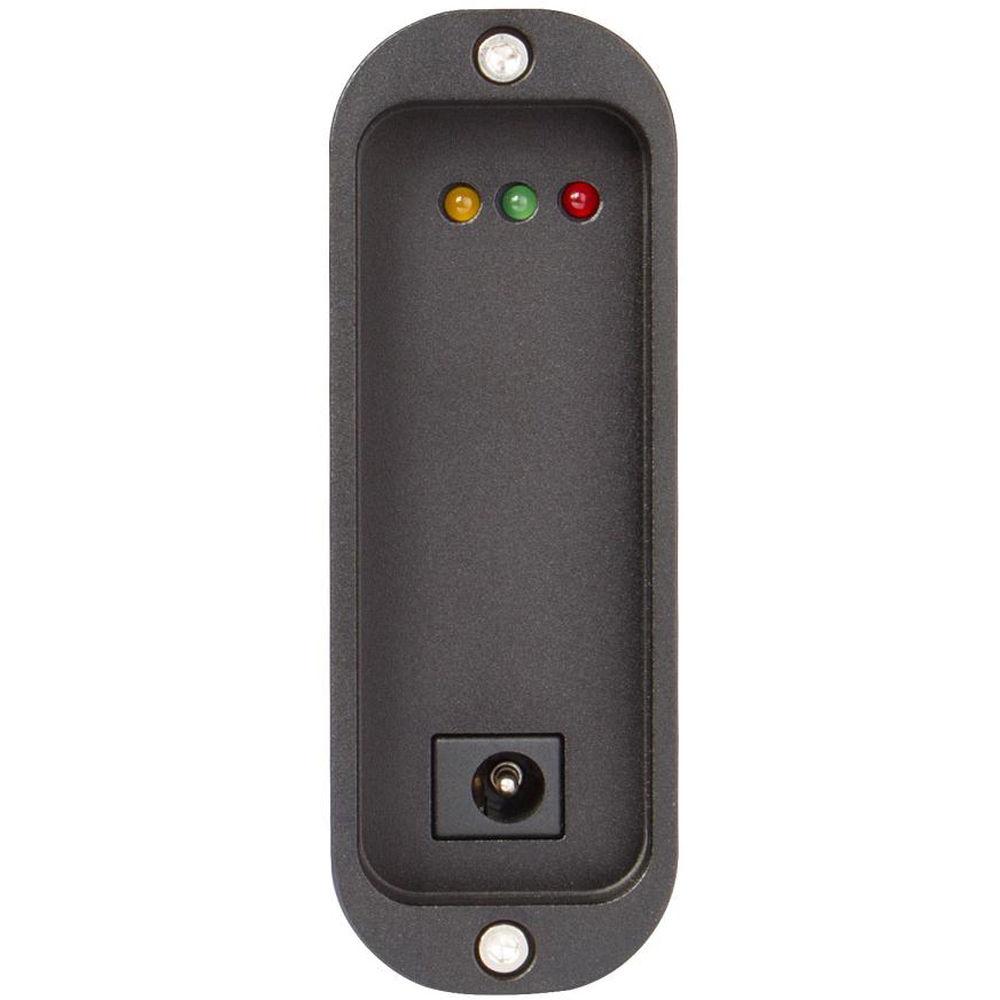

- Power/input/output status indicators

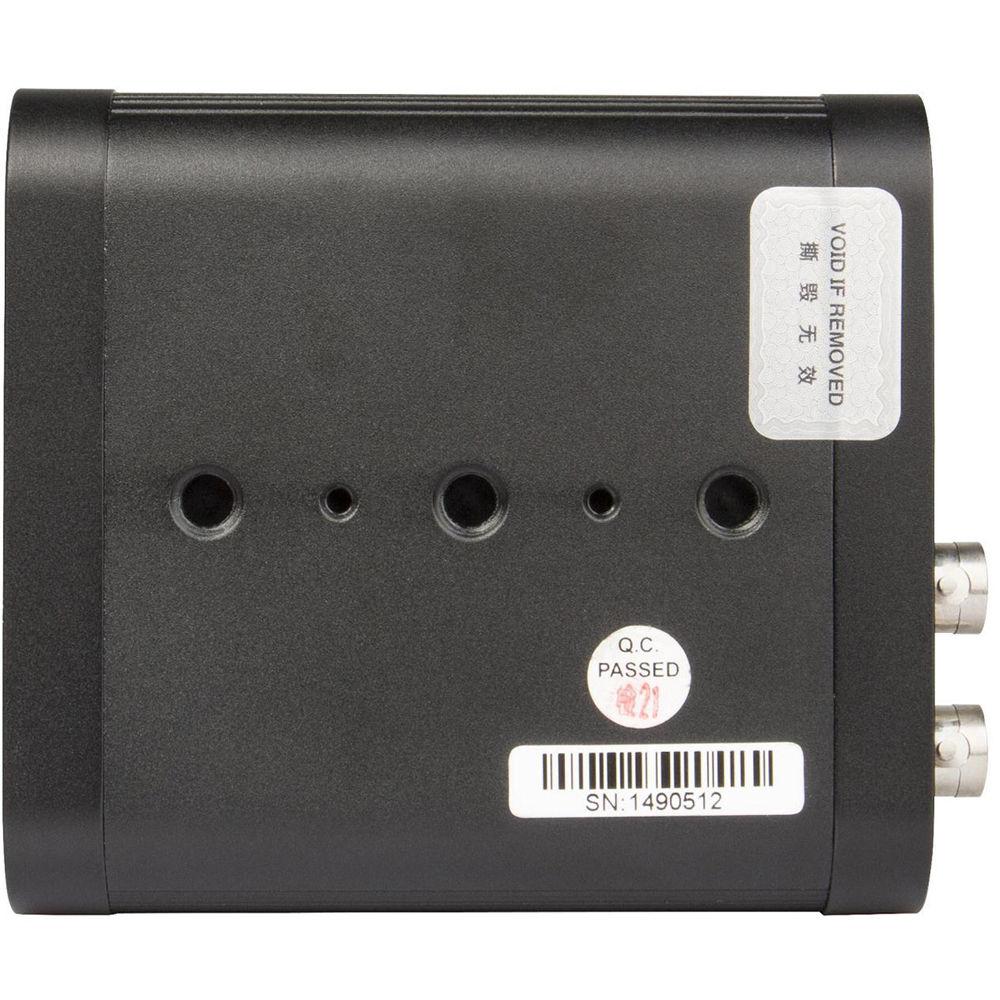

- Bottom screw threads for convenient installation
In the Box SWIT S-4600 SDI to HDMI Converter Power Adapter (A-PA03) Install Plate (A-IP00) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SWIT S-4600 SDI to HDMI Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSWIT S-4600 Specs | | | Input | 1 x 3G/HD/SD-SDI via BNC | | Output | 1 x 3G/HD/SD-SDI via BNC
1 x HDMI 1 x analog audio via 3.5 mm connector | | | | SDI | SMPTE-425M:
1080p (60 / 59.94 / 50)
SMPTE-274M:
1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-RP211:
1080PSF (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-296M:
720p (60 / 59.94 / 50)
SMPTE-125M:
480i (59.94)
ITU-R BT.656:
576i (50) | | HDMI | 480i
576i
720p (60 / 59.94 / 50)
1080i (60 / 59.94 / 50)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | | Audio | 48 kHz sync | | | | LED Indicators | Power: Red
HDMI Output Status: Green
SDI Input Lock: Yellow | | Power Consumption | ≤3 W | | Operating Voltage | 6 to 18 VDC | | Operating Temperature | 32 to 158°F (0 to 70°C) | | Operating Humidity | 10 to 90% | | Dimensions | 2.9 x 2.9 x 1.1" (7.3 x 7.4 x 2.9 cm) | | Weight | 4.9 oz (138.5 g) | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 6.5 x 4.8 x 3.1" |
