User Manual for SWIT S-4601 HDMI to SDI Converter Click to enlarge the picture
Contents of the user manual for the SWIT S-4601 HDMI to SDI Converter
- Product category: Signal Converters SWIT
- Brand: SWIT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SWIT Signal Converters
 |
User manual for the SWIT S-4601 HDMI to SDI Converter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SWIT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SWIT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SWIT product will considerably shorten its lifespan!
|

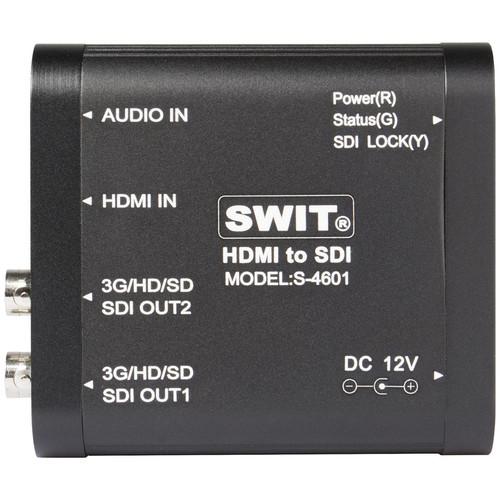

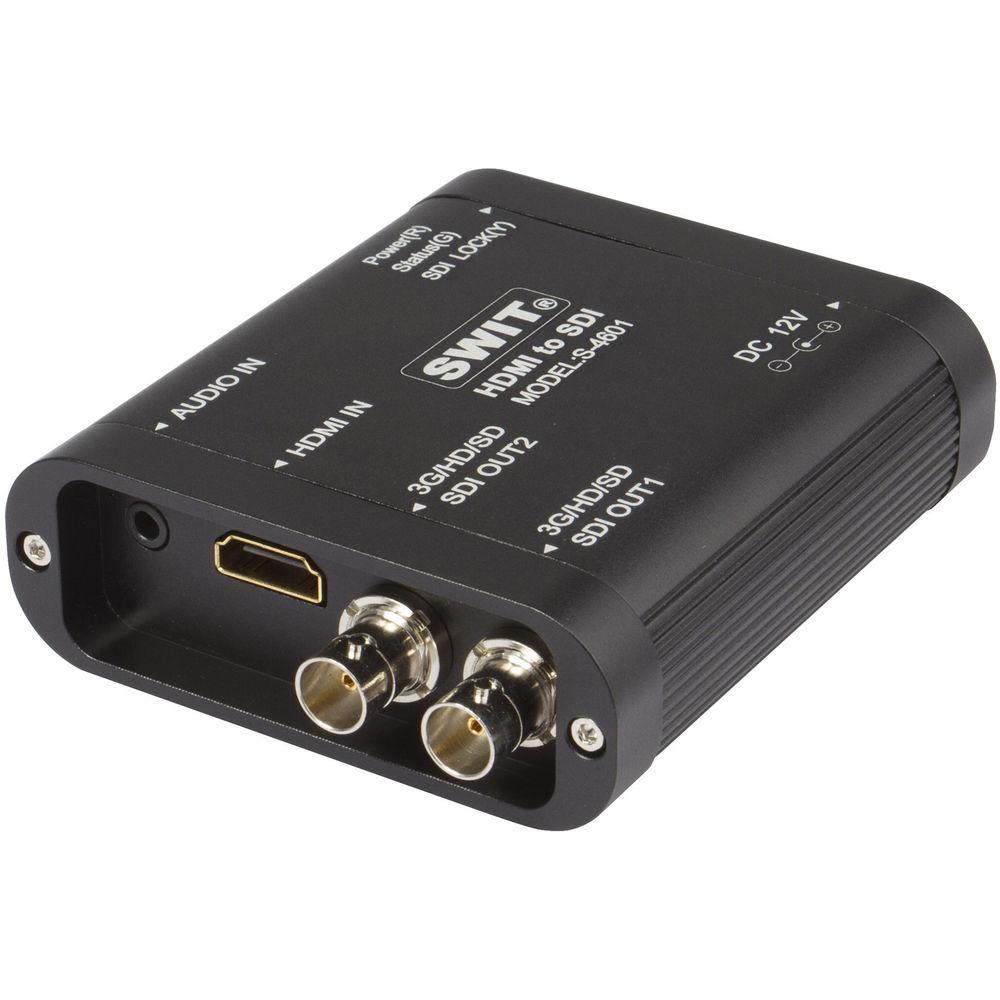

Product description The S-4601 Converter from SWIT is an HDMI to 3G/HD/SD-SDI converter. It supports HDMI audio embedded into SDI output and analog audio (3.5mm socket) input, embedded into SDI output. Protecting the BNC connectors, the S-4601 is housed in a heavy-duty housing. It features various screw threads at the bottom for convenient installation. The unit ships with a power supply. Note: Does not support HDCP. - Portable HDMI to 3G/HD/SD-SDI converter

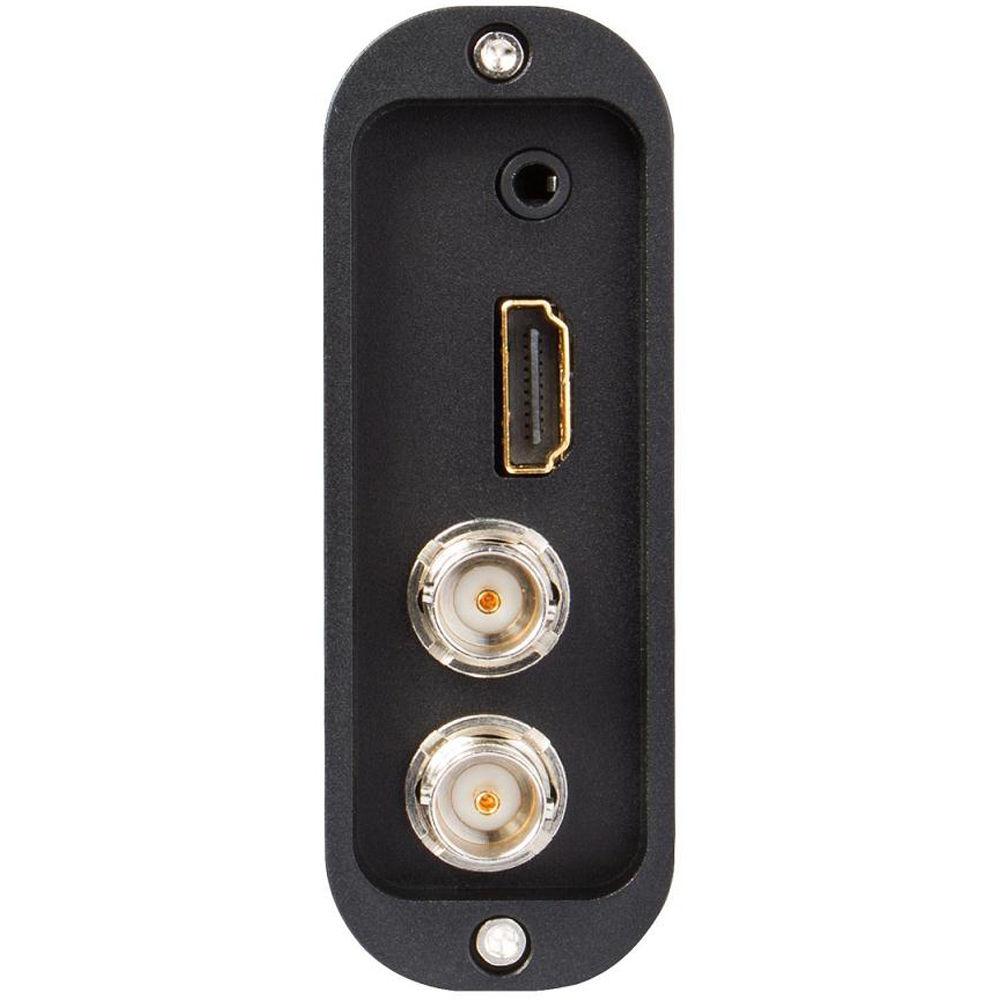

- One HDMI input and two SDI outputs
- One analog audio input via 3.5mm earphone socket
- Embed HDMI audio to SDI output
- Embed analog audio (3.5mm) to SDI output
- Power/input/output status indicator

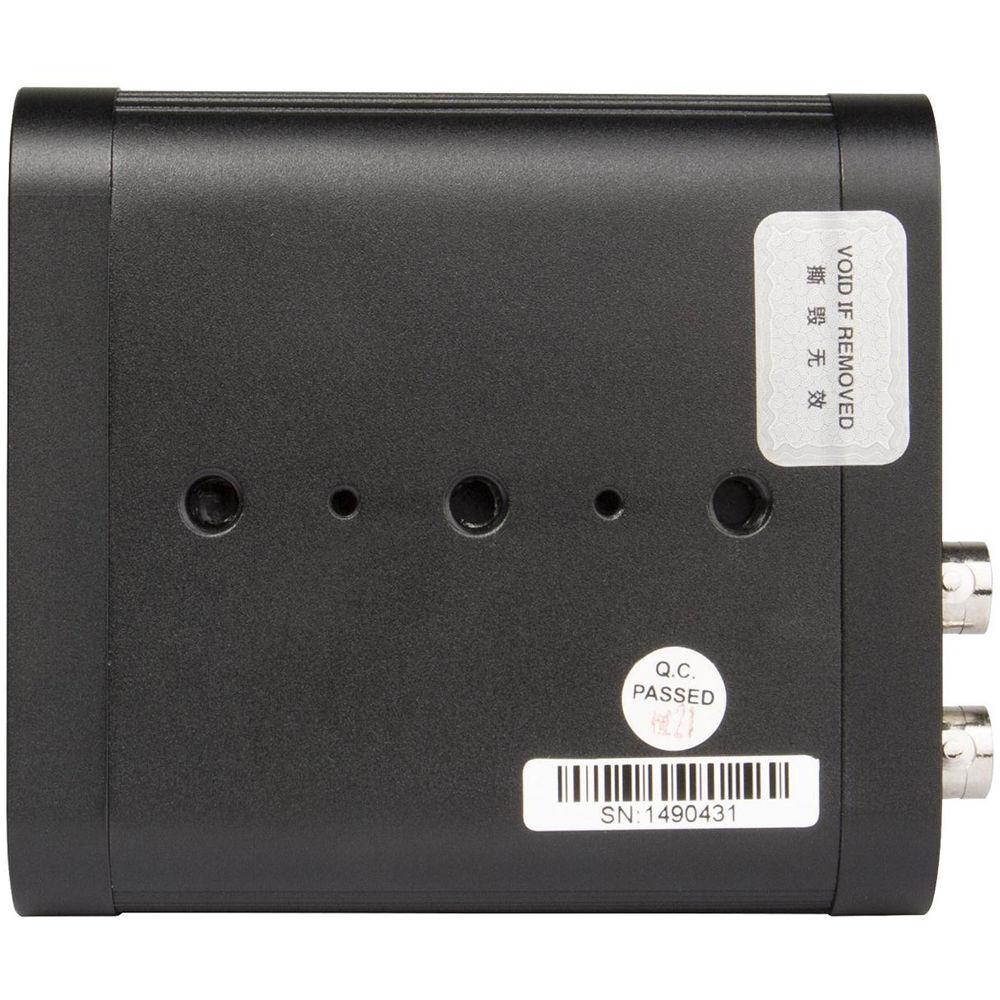

- Bottom screw threads for convinient installation
In the Box SWIT S-4601 HDMI to SDI Converter Power Adapter (A-PA03) Install Plate (A-IP00) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SWIT S-4601 HDMI to SDI Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSWIT S-4601 Specs | | | Input | 1 x HDMI (1.3)
1 x analog audio via 3.5 mm connector | | Output | 2 x 3G/HD/SD-SDI via BNC | | | | SDI | SMPTE-425M:
1080p (60 / 59.94 / 50)
SMPTE-274M:
1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-RP211:
1080PSF (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-296M:
720p (60 / 59.94 / 50)
SMPTE-125M:
480i (59.94)
ITU-R BT.656:
576i (50) | | HDMI | 480i
576i
720p (60 / 59.94 / 50)
1080i (60 / 59.94 / 50)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | | HDCP | No | | | | LED Indicators | Power: Red
HDMI Input Status: Green
SDI Output Lock: Yellow | | Operating Voltage | 6 to 18 VDC | | Power Adapter (Included) | 12 VDC; 5.5 mm barrel connector; center-pin positive | | Power Consumption | ≤3 W | | Operating Temperature | 32 to 158°F (0 to 70°C) | | Operating Humidity | 10 to 90% | | Dimensions | 2.9 x 2.9 x 1.1 cm (7.3 x 7.4 x 2.9 cm) | | Weight | 4.9 oz (138.5 g) | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 6.5 x 4.7 x 3.2" |
