User Manual for SWIT S-4611 SDI to DVI Converter Click to enlarge the picture
Contents of the user manual for the SWIT S-4611 SDI to DVI Converter
- Product category: Signal Converters SWIT
- Brand: SWIT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SWIT Signal Converters
 |
User manual for the SWIT S-4611 SDI to DVI Converter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SWIT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SWIT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SWIT product will considerably shorten its lifespan!
|

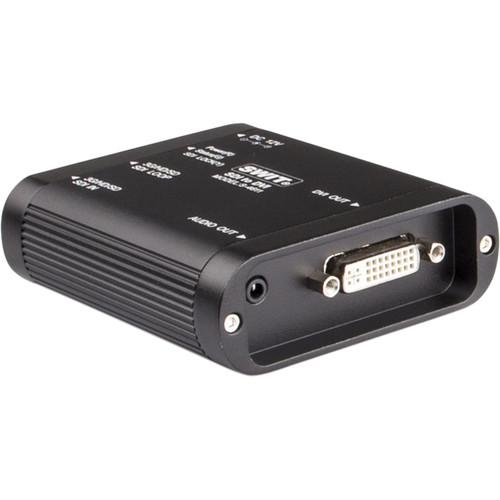

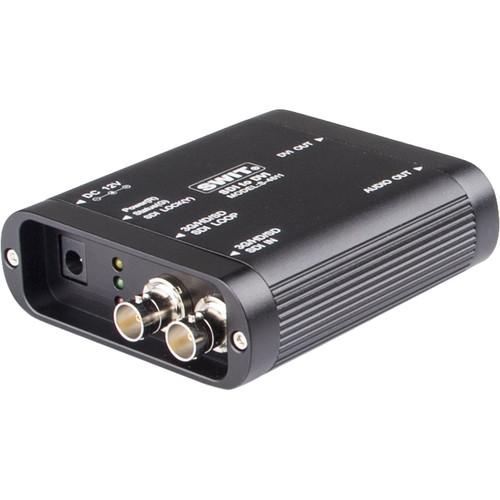

Product description The S-4611 SDI to DVI Converter from SWIT allows you to display up to 3 Gb/s broadcast SDI video on DVI monitors, televisions, LED boards, or projectors. The mini converter supports 48 kHz audio sampling rate and converts the two audio channels embedded in the SDI signal and outputs them via the 3.5mm connector. Three LED indicators allow you to check if the power is connected, and if the input/output signal is delivered. The mini converter is powered by pole-tap DC socket.The mini converter features a unibody aluminum alloy housing for durability and protection of the BNC connectors. With 1/4" screw threads in the bottom, the converter can be mounted on cameras, and the included A-IP00 Plate allows it to be mounted on walls and bind the BNC/DVI cables for a clean installation. - Portable 3G/HD/SD-SDI to DVI to converter 1
Please Note: SDI to DVI supports the same format conversion only close - Features one 3G/HD/SD-SDI input, DVI-D output, and re-clocked 3G/HD/SD-SDI loop output
- Supports 48 kHz audio sampling rate

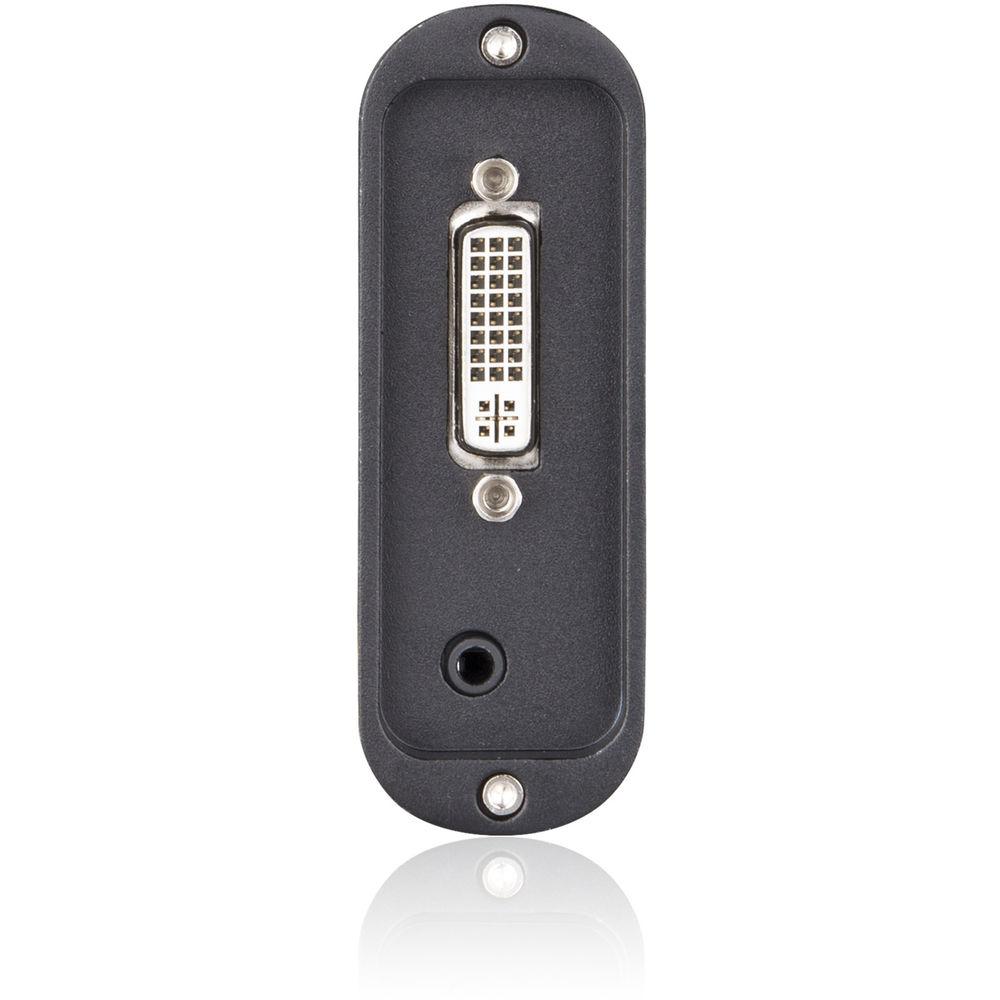

- Converts the two audio channels embedded in the SDI signal and outputs them via a 3.5mm audio port

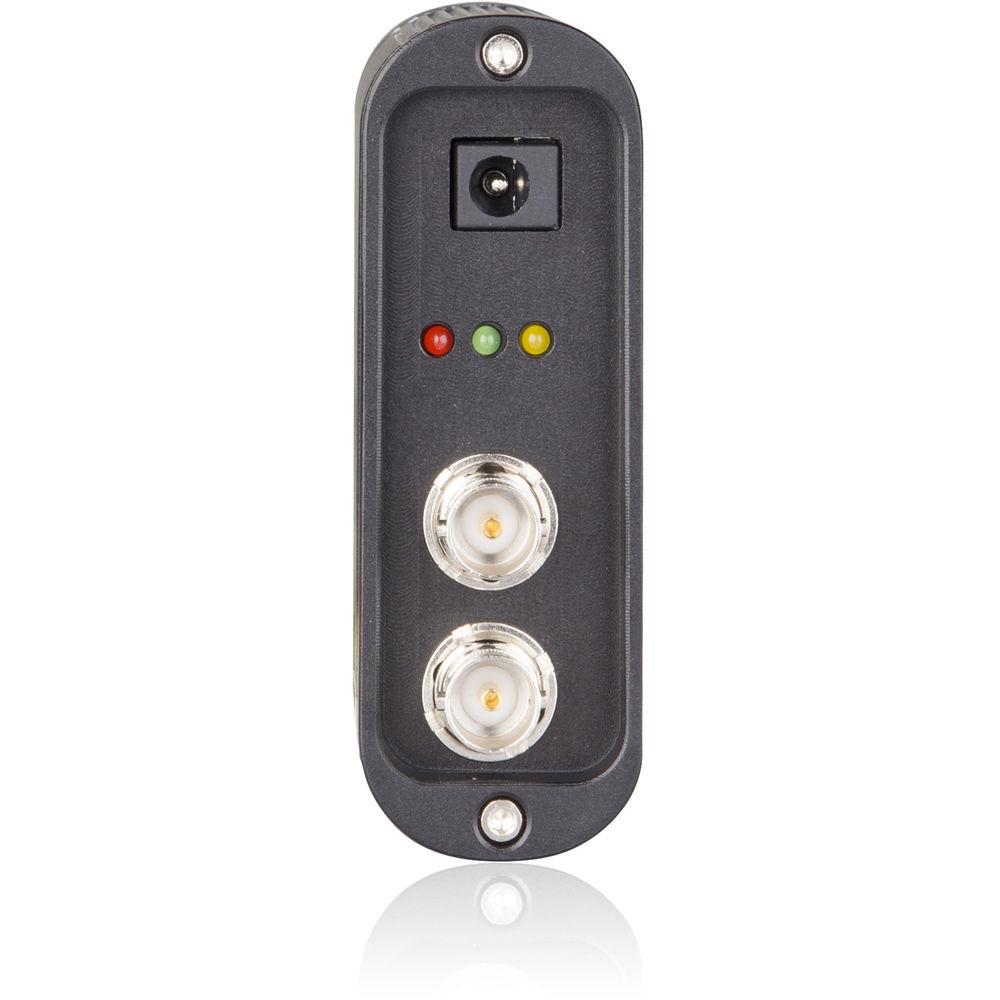

- Three built-in LED indicators for displaying power, input, and output status
- Pole-tap 6-18 VDC power input
- Heavy-duty aluminum housing

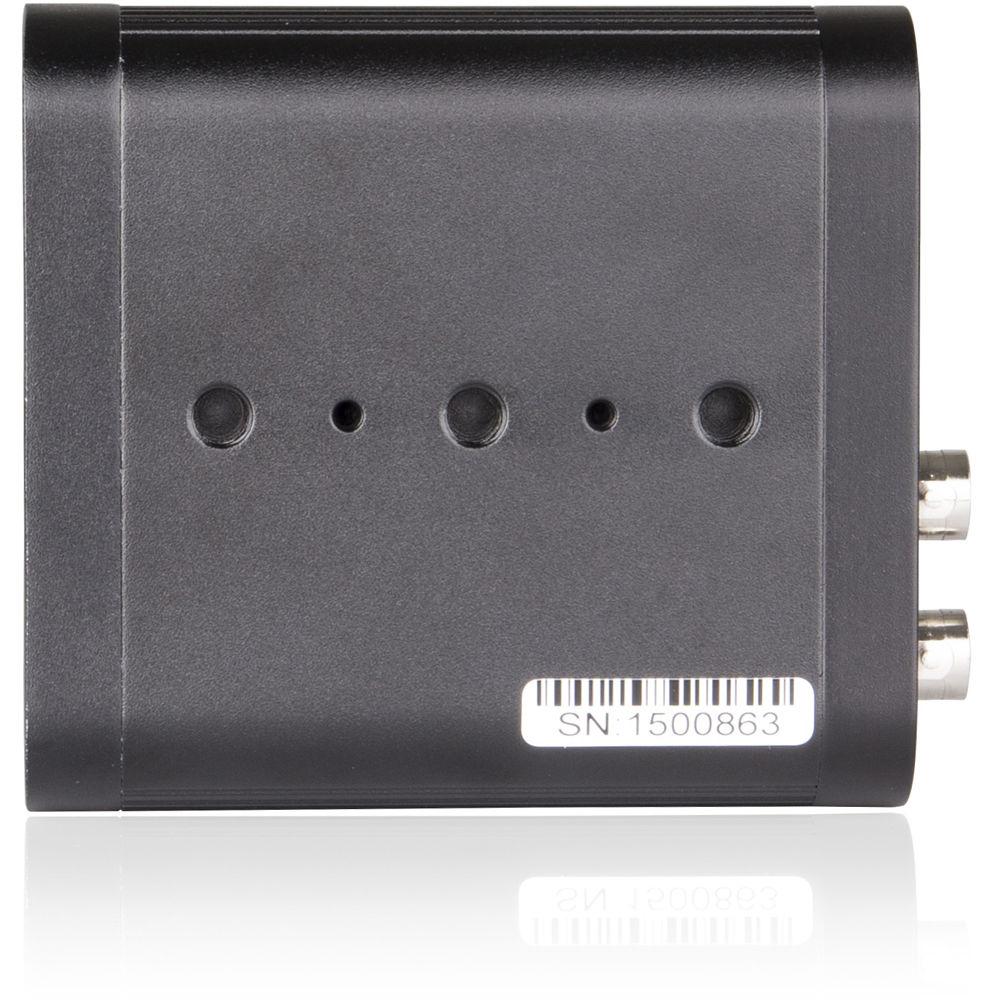

- Bottom 1/4" screw threads for installation
In the Box SWIT S-4611 SDI to DVI Converter A-PA03 AC-DC Power Adapter A-IP00 Install Plate Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SWIT S-4611 SDI to DVI Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

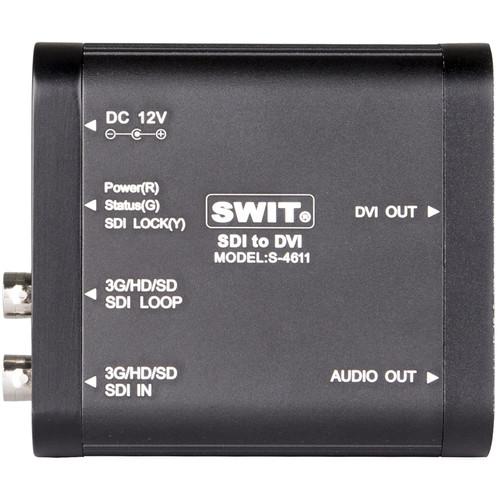

Technical parametersSWIT S-4611 Specs | Input | 1 x BNC 3G/HD/SD-SDI input | | Output | 1 x BNC 3G/HD/SD-SDI loop through output
1 x DVI-I converted DVI
1 x 3.5 mm SDI audio out | | Video Format | SDI:
SMPTE-425M: 1080p (60 / 59.94 / 50)
SMPTE-274M: 1080p (30 / 29.97 / 25 / 24 / 23.98), 1080i (60 / 59.94 / 50)
SMPTE-RP211: 1080psF (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-296M: 720p (60 / 59.94 / 50)
SMPTE-125M: 480i (59.94)
ITU-R BT.656: 576i (50)DVI:
1080p (60/ 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
576i / 480i | | Audio | 48 kHz sync | | Power | ≤ 3 W | | Operating Voltage | 6 to 18 VDC (AC-DC Power Adapter included) | | Operating Temperature | 32 to 158°F (0 to 70°C) | | Humidity | 10 to 90% | | Dimensions | 3.8 x 3.3 x 1.1" (9.8 x 8.4 x 2.9 cm) | | Weight | 7.4 oz (207.0 g) | | | | Package Weight | 1.115 lb | | Box Dimensions (LxWxH) | 6.5 x 4.8 x 3.1" |
