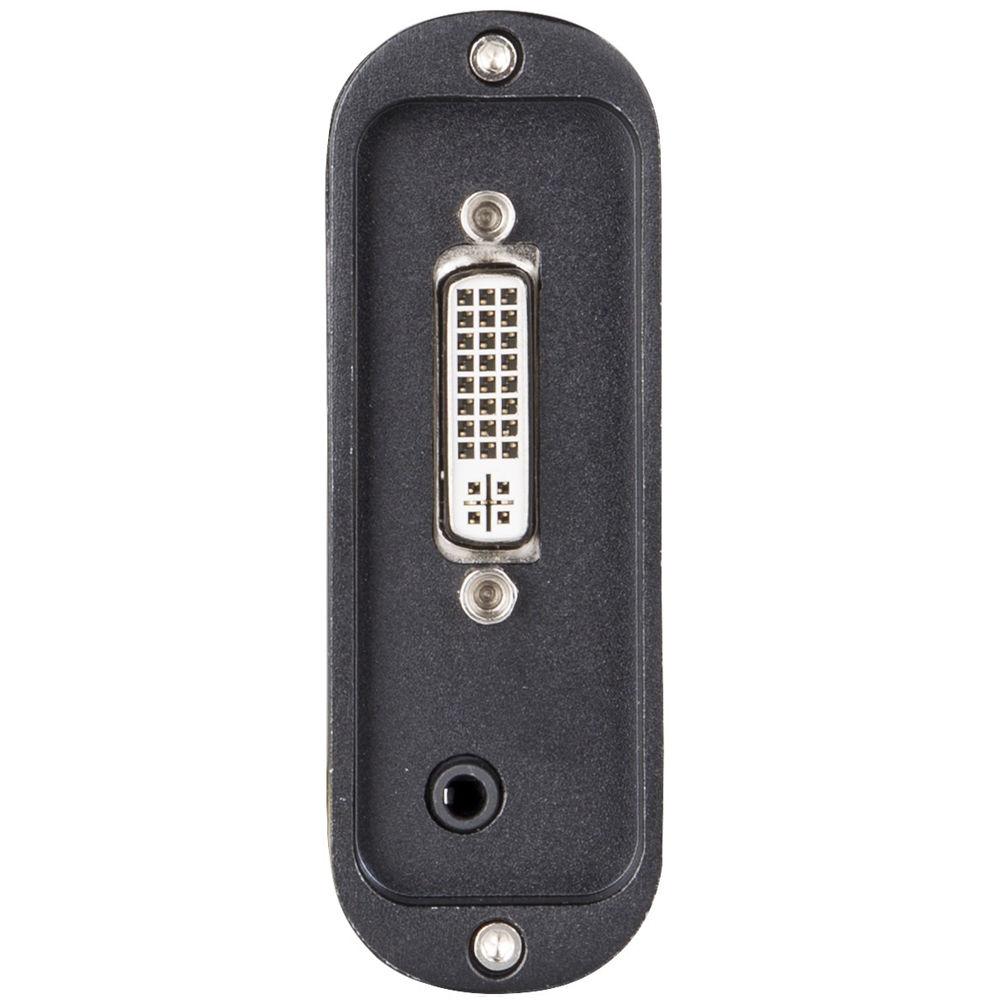

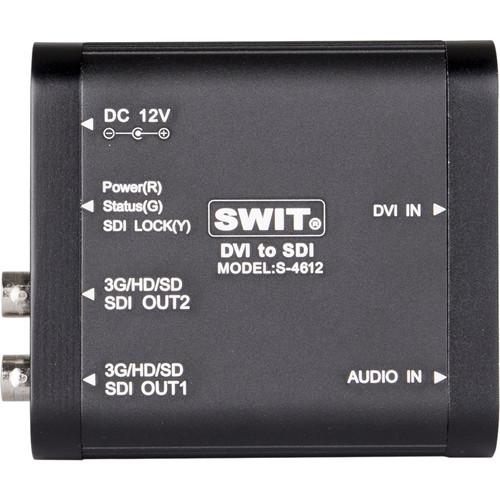

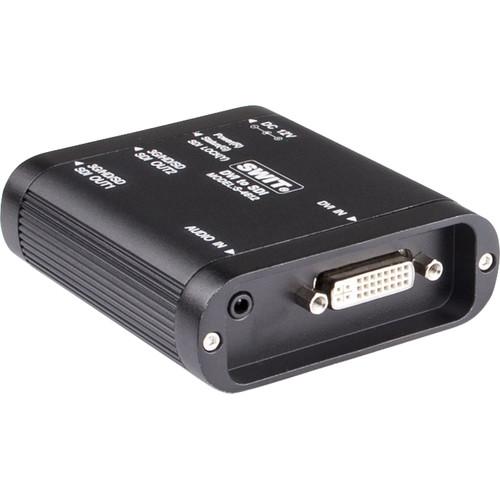

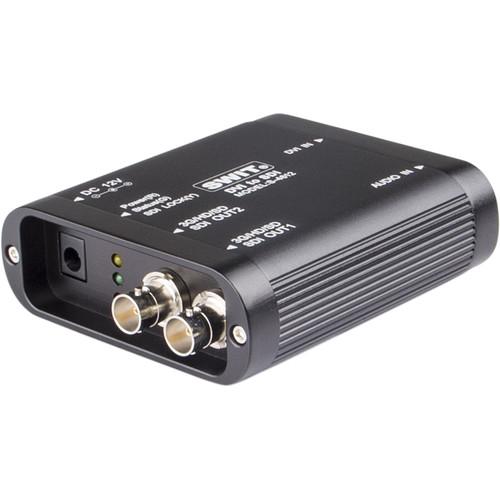

Product description The S-4612 DVI to SDI Converter from SWIT allows you to broadcast a DVI video signal with up to 1080p 50/60 resolution after converting it to SDI with low jitter. This mini converter features a DVI-D (18+1) input and two 3G/HD/SD-SDI outputs with support for signal re-clocking support. The converter also features a 3.5mm audio input and allows embedding analog audio with 48 kHz sample rate into the SDI video output. Three LED indicators allow you to check if the power is connected, and if the input/output signal is delivered. The mini converter is powered by pole-tap DC socket. - Portable DVI to 3G/HD/SD-SDI converter 1
Please Note: DVI to SDI supports the same format conversion only close - Features 1 DVI input, 1 analog audio input, and 2 SDI re-clocked outputs
- Allows you to embed analog audio into the SDI output

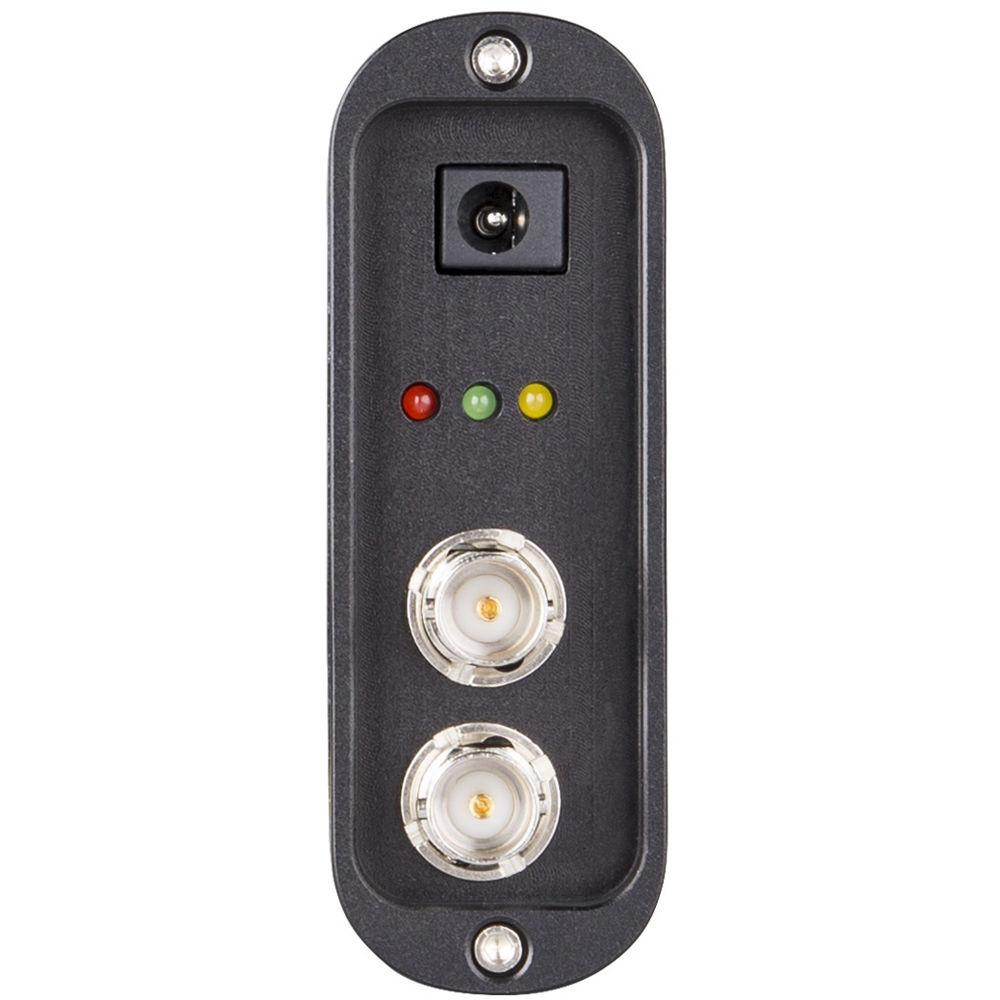

- Three built-in LED indicators for displaying power, input, and output status
- Pole-tap 6-18 VDC power input
- Heavy duty aluminum housing

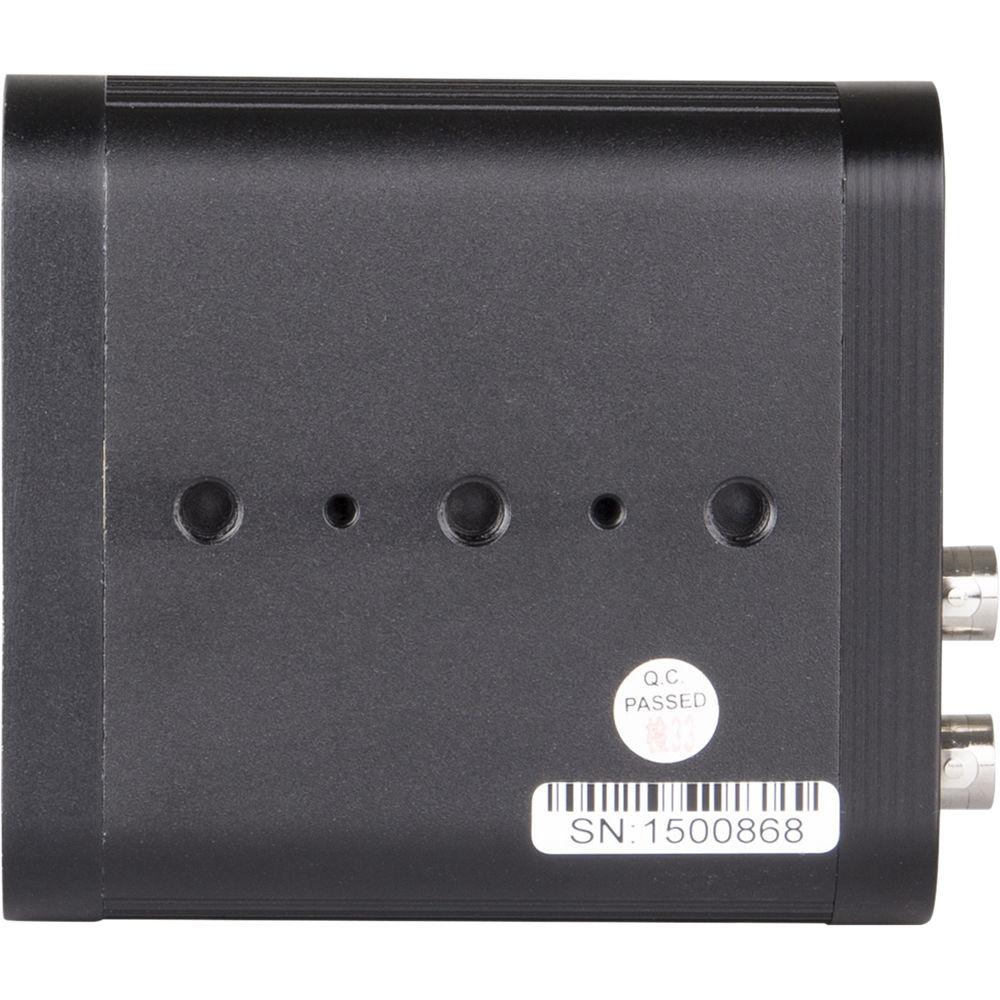

- Bottom 1/4" screw threads for installation
In the Box SWIT S-4612 DVI to SDI Converter AC-DC Power Adapter A-IP00 Install Plate Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SWIT S-4612 DVI to SDI Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSWIT S-4612 Specs | Input | 1 x DVI-D (18+1)
1 x 3.5 mm analog audio port | | Output | 2 x BNC 3G/HD/SD-SDI output | | Video Format | SDI:
SMPTE-425M: 1080p (60 / 59.94 / 50)
SMPTE-274M: 1080p (30 / 29.97 / 25 / 24 / 23.98), 1080i (60 / 59.94 / 50)
SMPTE-RP211: 1080psF (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-296M: 720p (60 / 59.94 / 50)
SMPTE-125M: 480i (59.94)
ITU-R BT.656: 576i (50)DVI:
1080p (60/ 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
576i / 480i | | Audio | 48 kHz sync | | Power | ≤ 3 W | | Operating Voltage | 6 to 18 VDC (AC-DC Power Adapter included) | | Operating Temperature | 32 to 158°F (0 to 70°C) | | Humidity | 10 to 90% | | Dimensions | 3.8 x 3.3 x 1.1" (9.8 x 8.4 x 2.9 cm) | | Weight | 7.3 oz (207.0 g) | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 6.5 x 4.9 x 3.0" |
