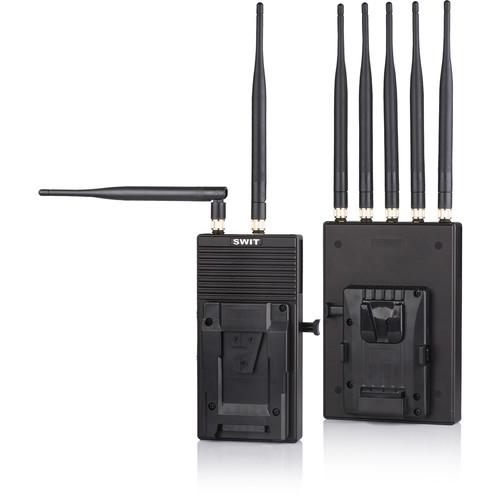

User Manual for SWIT S-4904A 2000' Wireless Transmitter Receiver Set Click to enlarge the picture
Contents of the user manual for the SWIT S-4904A 2000' Wireless Transmitter Receiver
- Product category: Wireless Transmission Systems SWIT
- Brand: SWIT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SWIT Wireless Transmission Systems
|
User manual for the SWIT S-4904A 2000' Wireless Transmitter Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SWIT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SWIT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SWIT product will considerably shorten its lifespan!
|
Product description The S-4904A 2000' Wireless Transmitter/Receiver Set (V-Lock) from SWIT transmits up to 1080p/60 uncompressed video. This set of one transmitter and one receiver features one each of 3G/HD/SD-SDI and HDMI inputs/outputs, under 1 ms of latency, AES 256-bit encryption, and two-channel SDI/HDMI embedded-audio transmission. The S-4904A set has a transmission range of up to 2000' with line-of-sight use. Up to four user-configurable channels are supported over the 5.9GHz frequency band.A multicasting feature enables you to use one S-4904A transmitter to send your video feed to multiple receivers (available separately), providing live viewing for your video village, camera assistants, and other monitor setups. Up to four receivers can be user-synced; pairing the maximum of seven receivers can only be done by SWIT.The S-4904A 2000' Wireless Transmitter/Receiver Set has built-in plates for using V-lock batteries. It can also be powered using the included D-Tap cable and 6.5~17V DC power. This set's components feature durable, all-metal housings, and plug-and-play setup. - 2000' Range
- The S-4904A can transmit uncompressed video up to 2000' away in line-of-sight configurations
- HDMI & HD Video
- Transmit HDMI and 3G/HD/SD-SDI in resolutions up to 1080p/60
- Embedded Audio
- Two-channel SDI/HDMI embedded-audio transmission
- Multicasting Capability
- Use one S-4904A transmitter to send your video feed to multiple receivers (available separately)
- Minimal Latency
- Transmit video with under 1 millisecond of latency
Additional Features - Secure transmission with AES 256-bit encryption
- Durable all-metal housings
- Power using longer-lasting V-lock batteries or a 6.5-17V AC adapter (not included)
In the Box SWIT S-4904A 2000' Wireless Transmitter/Receiver Set (V-Lock) S-4904T Transmitter (V-Lock) S-4904R Receiver (V-Lock) 10 x Antennas Articulating Arm Crab Clamp D-Tap to 5.5mm/2.1mm Barrel Cable 5.5/2.1mm Barrel AC Adapter 2 x Flat-Head Screwdrivers Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SWIT S-4904A 2000' Wireless Transmitter Receiver Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSWIT S-4904TS/S-4904RS Specs | Transmitter Input Ports | 1 x 3G/HD/SD-SDI
1 x HDMI | | Receiver Output ports | 1 x 3G/HD/SD-SDI
1 x HDMI | | SDI Format Support | SMPTE-425M: 1080p: 60/59.94/50
SMPTE-RP211: 1080psf: 30/29.97/25/24/23.98
SMPTE-274M: 1080p: 30/29.97/25/24/23.98, 1080i: 60/59.94/50
SMPTE-296M: 720p: 60/59.94/50
SMPTE-125M: 480i: 59.94
ITU-R BT.656: 576i: 50 | | HDMI Format Support | 1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
480i/576i | | Wireless Frequency Range | 5.1～5.9 GHz | | OFDM | 16-QAM | | Maximum Transmission Distance | 2,297' (700 m) [line-of-sight approximate] | | Latency | ≤ 1 ms | | Power Consumption | ≤ 6.5 W | | Transmission Power | Maximum: 21 dBm (63 mW) | | Input Voltage | 6.5~17 VDC | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Dimensions (WxHxD) | Transmitter: 3.7 x 7.4 x 2.6" (93 x 188 x 66 mm)
Receiver: 5.1 x 7.5 x 2.6" (130 x 191 x 65 mm) | | Weight | Transmitter: 1.3 lb (572 g)
Receiver: 1.9 lb (876 g) | | | | Package Weight | 11.65 lb | | Box Dimensions (LxWxH) | 16.7 x 13.8 x 5.1" |
